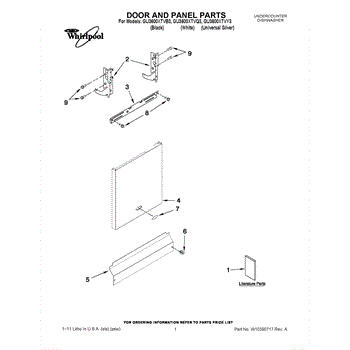

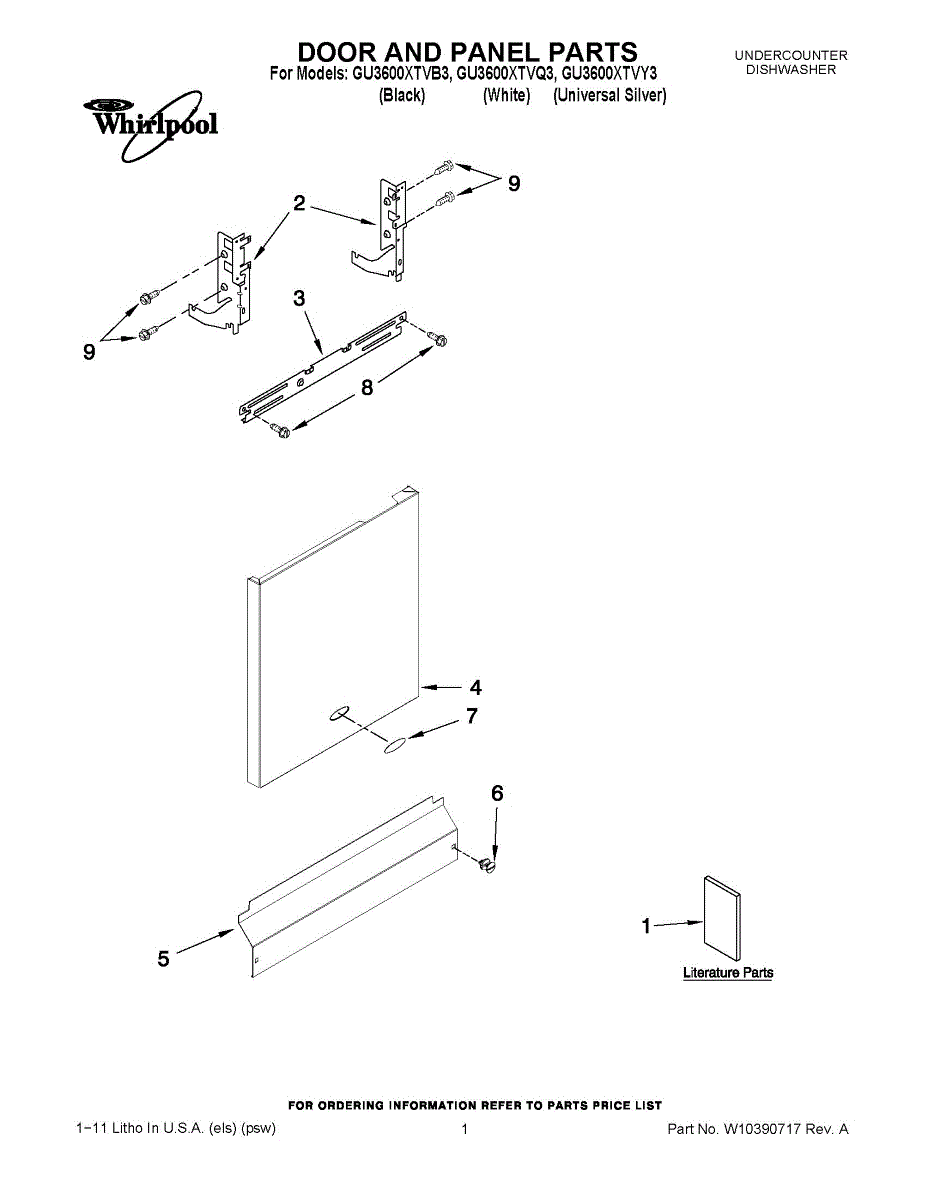

Parts for Whirlpool GU3600XTVY3: 01 - Door And Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Assembly is an OEM part for Whirlpool dishwashers. This hinge assembly is responsible for attaching the dishwasher door to the main body, allowing it to open and close smoothly while maintaining a proper seal when shut.

Causes of a bad door hinge assembly can include regular wear and tear, damage from excessive force or accidental impacts, and corrosion from exposure to moisture and detergents.

Symptoms of a bad door hinge assembly include:

• The dishwasher door not closing properly or staying open
• Difficulty opening or closing the dishwasher door
• A misaligned dishwasher door
• Unusual noises or resistance when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Hinge (RH) is an OEM replacement part for Whirlpool dishwashers. This hinge is installed on the right-hand side of the dishwasher door, allowing it to open and close smoothly while maintaining the proper tension and alignment. The hinge plays a crucial role in ensuring the door seals securely during operation, preventing leaks and enabling efficient cleaning performance.

Common causes include regular use leading to wear and tear, accidental impacts, or exposure to moisture, which can contribute to rust or corrosion.

Symptoms of a bad door hinge include:

• The dishwasher door not closing completely
• Difficulty opening or closing the door
• A sagging or misaligned door
• Unusual noises when moving the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is the lower access panel for the appliance's base. It finishes the front opening and shields internal components, helping reduce noise and keep dust and debris away from the motor and wiring.

• Covers the lower service opening beneath the door to provide a clean, finished look
• Helps protect internal components from debris and accidental contact
• Can reduce vibration noise when properly secured
• Replace if the panel is bent, cracked, rusted, missing, or rattles/doesn't stay secured

• Disconnect power; also shut off the water supply
• Support the existing panel while removing mounting screws; retain hardware for reuse
• Position the new panel, align with mounting holes/slots, and reinstall screws—do not overtighten
• Confirm door clearance and that the panel sits flush without interference

This replacement panel restores your appliance's original look while shielding internal components. Install a new panel to replace a dented, cracked, or missing piece and keep the assembly secure, aligned, and protected.

• Covers and protects internal parts while restoring the exterior finish and fit
• Provides the designed mounting surface for trim/handles; helps maintain alignment
• Replace when the panel is dented, cracked, warped, rusted, or mounting tabs are broken
• Helps resolve loose or rattling panels and visible gaps or misalignment

• Disconnect power; turn off water or gas supply if applicable
• Wear gloves and protect finished surfaces; handle carefully to avoid bending or scratching
• Transfer and reuse original screws, clips, insulation, and trim as directed by your service manual
• Fit and alignment before fully tightening fasteners

Color: White

The Retainer Clip is an OEM part for Whirlpool dishwashers. It is designed to secure the kickplate in place at the bottom of the dishwasher, ensuring that the kickplate remains securely attached to the dishwasher. It helps prevent the kickplate from becoming loose or falling off during regular use, ensuring that it stays in place to protect the internal components from any potential damage.

A bad Dishwasher Kickplate Retainer Clip can occur due to wear and tear over time or accidental damage.

Symptoms of a bad Retainer Clip include:

• Kickplate coming loose or falling off.
• Excessive noise or vibration during dishwasher operation.
• Difficulty in securing the kickplate in place.
• Visible damage or missing clip.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Access Panel Retaining Clip is an OEM part for Whirlpool dishwashers. This black clip is used to secure the access panel to the dishwasher frame, ensuring it stays in place and provides a finished look while protecting internal components.

You should replace the access panel retaining clip if it becomes damaged or worn out. Over time, the clip can break or lose its grip due to repeated removal and installation of the access panel or general wear and tear.

Symptoms of a bad access panel retaining clip include:

• The access panel not staying securely attached
• Rattling or vibrations from a loose panel
• Missing or broken clips

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This machine screw secures panels, brackets, and other components inside your appliance. Replacing a missing or damaged fastener restores a solid fit, reduces vibration and rattling, and helps keep assemblies properly aligned for reliable performance.

• 10-32 machine-thread fastener for mounting and securing internal parts and panels
• Helps maintain alignment and structural integrity of assembled components
• Replaces missing, stripped, or damaged hardware
• Reduces rattling, vibration, or loosening from worn fasteners

• Disconnect power; shut off gas or water supplies before servicing
• Match thread and length to the original fastener used in that location
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse original washers or clips if present and in good condition

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
