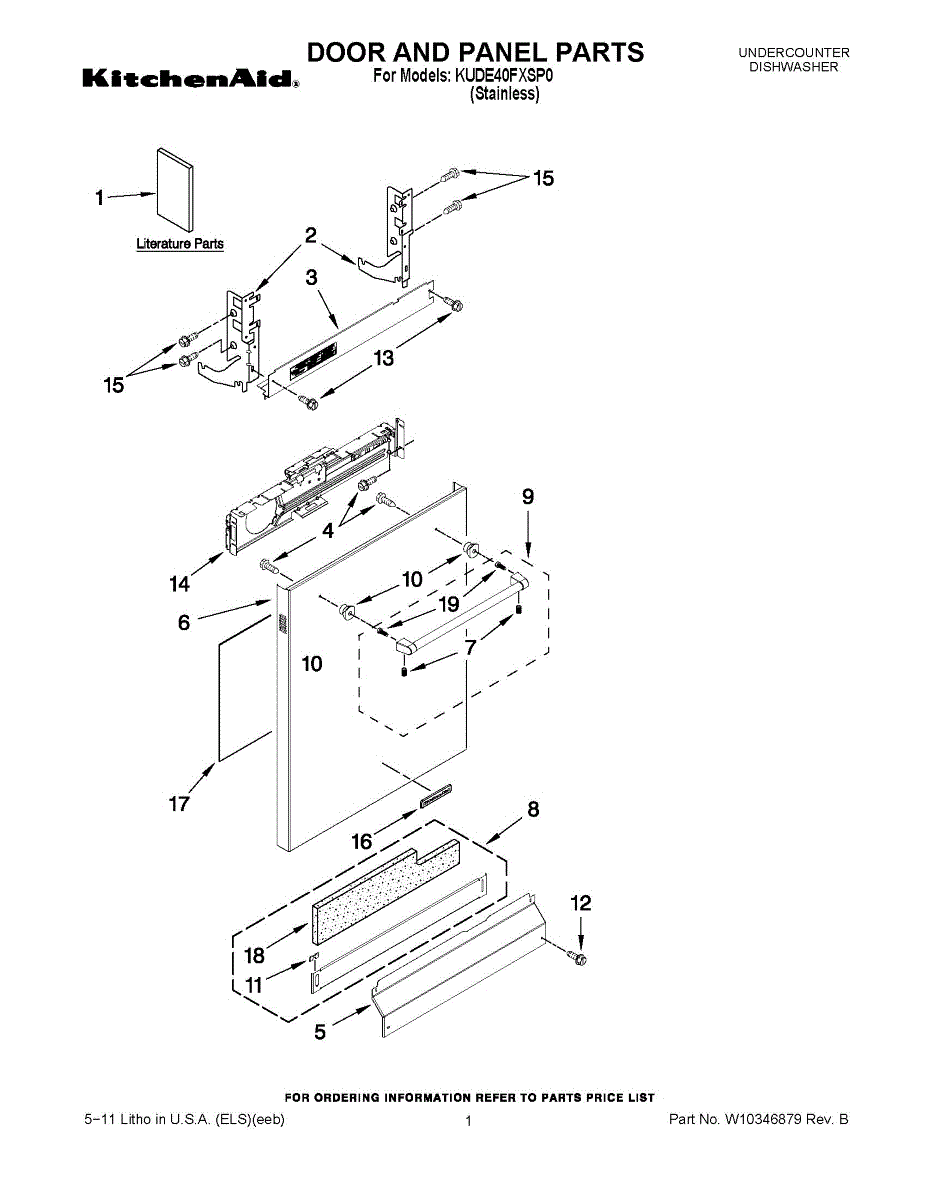

Parts for Kitchenaid KUDE40FXSP0: 01 - Door And Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Door Hinge Assembly is an OEM part for Whirlpool dishwashers. This hinge assembly is responsible for attaching the dishwasher door to the main body, allowing it to open and close smoothly while maintaining a proper seal when shut.

Causes of a bad door hinge assembly can include regular wear and tear, damage from excessive force or accidental impacts, and corrosion from exposure to moisture and detergents.

Symptoms of a bad door hinge assembly include:

• The dishwasher door not closing properly or staying open
• Difficulty opening or closing the dishwasher door
• A misaligned dishwasher door
• Unusual noises or resistance when moving the door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Hinge (RH) is an OEM replacement part for Whirlpool dishwashers. This hinge is installed on the right-hand side of the dishwasher door, allowing it to open and close smoothly while maintaining the proper tension and alignment. The hinge plays a crucial role in ensuring the door seals securely during operation, preventing leaks and enabling efficient cleaning performance.

Common causes include regular use leading to wear and tear, accidental impacts, or exposure to moisture, which can contribute to rust or corrosion.

Symptoms of a bad door hinge include:

• The dishwasher door not closing completely
• Difficulty opening or closing the door
• A sagging or misaligned door
• Unusual noises when moving the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hinge Brace is an OEM replacement part for Whirlpool dishwashers. It serves as a supportive bracket anchoring the dishwasher door hinge assembly firmly in place.Note: This part may be different from your original. If your original part was a flat plastic vapor barrier, the new design is a wire. It is a factory design change, the old design is no longer available.

Over time, the hinge brace can degrade due to constant use, heavy loads on the door, or accidental impacts. A faulty hinge brace can result in misalignment or difficulty in operating the dishwasher door.

Symptoms of a bad hinge brace include:

• Loose or unstable door that does not close securely
• Gaps appearing around the door seal during wash cycles
• Broken hinge components from added stress and tension on the door
• Difficulty fully opening or closing the dishwasher door

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This replacement screw secures appliance components, panels, and brackets. It restores a tight, reliable hold when an original fastener is missing or damaged, helping eliminate rattles, gaps, or shifting parts.

• Fastens two or more parts together inside the appliance
• Helps keep panels, brackets, or trim securely in place
• Can reduce vibration, rattling, or loose handles caused by missing/loose screws
• Replaces worn, stripped, or corroded fasteners

• Disconnect power and shut off water supply before servicing
• Match location and orientation to the original fastener
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Tighten snugly—do not overtighten to prevent stripping or cracking

This replacement panel restores your appliance's original look while shielding internal components. Install a new panel to replace a dented, cracked, or missing piece and keep the assembly secure, aligned, and protected.

• Covers and protects internal parts while restoring the exterior finish and fit
• Provides the designed mounting surface for trim/handles; helps maintain alignment
• Replace when the panel is dented, cracked, warped, rusted, or mounting tabs are broken
• Helps resolve loose or rattling panels and visible gaps or misalignment

• Disconnect power; turn off water or gas supply if applicable
• Wear gloves and protect finished surfaces; handle carefully to avoid bending or scratching
• Transfer and reuse original screws, clips, insulation, and trim as directed by your service manual
• Fit and alignment before fully tightening fasteners

This front panel badge restores the appearance of a washer or dryer control panel by replacing a worn, cracked or missing emblem. It provides a clean, factory look and helps make controls readable again. What it does:

• Replaces a damaged or missing control panel emblem or decorative badge
• Restores original appearance and legibility on the front/control panel
• Helps prevent dirt buildup behind a broken or loose badge
• Addresses cosmetic issues like fading, scratches or cracked plastic

• One front panel badge

• Disconnect power before attempting any service
• Remove any trim or bezels that cover the badge
• Gently pry or unpeg the old badge; adhesive or clips may secure the new one

This screw fastener secures appliance panels and components to keep assemblies stable during normal use. A simple replacement for damaged or missing screws that restore proper fit and reduce rattling. What it does:

• Holds appliance panels, brackets, or trim in place to prevent movement
• Helps stop vibrations and rattling caused by loose hardware
• Replaces stripped or corroded screws that no longer tighten properly
• Restores a flush, secure fit where a matching screw is required

• One screw as shown

• Disconnect power and follow safety procedures before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the screw head
• Seat the screw straight and tighten until snug; do not overtighten to avoid damaging parts
• Keep removed hardware organized to ensure correct reassembly

Color: Black - Part has been changed to an Access Panel Kit - The toe panel is no longer used.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This stud is a small mounting fastener that provides a secure anchor point for attaching appliance components. Replacing a worn or missing stud restores a tight, aligned fit and helps prevent looseness, rattles, or shifting.

• Provides a fixed, threaded anchor for mounting a handle, bracket, or panel
• Helps keep parts aligned and secure during normal operation
• Common replacement for studs that are stripped, bent, broken, or missing
• Symptoms can include a loose or wobbly component, difficulty tightening, or visible damage/corrosion

• Disconnect power and, if applicable, shut off water or gas before servicing
• Wear cut-resistant gloves and handle panels carefully
• Hand-start threads to avoid cross-threading; tighten snugly without over-torquing
• Reinstall any covers or related hardware in their original positions

A small metal clip that secures the appliance's ground wire to the chassis. Restores a reliable ground connection to reduce loose or arcing contacts and help prevent intermittent electrical faults. What it does:

• Secures the ground wire to the appliance frame to maintain a solid earth connection.
• Prevents a loose ground that can cause arcing, intermittent power issues, or visible sparking at the connection.
• Holds the wire in place through normal vibration and movement so terminals stay tight and stable.
• Replaces damaged, bent, or missing grounding fasteners to restore safe electrical continuity.

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the clip.
• Use proper hand tools to remove and reinstall the screw or fastener that holds the clip—do not overtighten.
• Ensure the ground wire is routed and stripped correctly; replace wiring if insulation or conductor is damaged.

Color: Black. Screw for lower toe panel. For Biscuit screw use 3400865, for white screw use WP3400836.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This control bracket secures the console or control housing to the appliance, keeping the control panel stable and properly aligned for reliable operation. Replaces a damaged or missing bracket to restore secure mounting and prevent panel movement. What it does:

• Mounts the control console to the appliance frame to prevent wobbling or sagging
• Keeps control buttons and switches aligned for consistent user operation
• Helps stop rattling or vibration noise caused by a loose control housing
• Supports wiring and components behind the console to reduce strain on connectors

• Always unplug the appliance or disconnect power before beginning service
• Remove the console or access panel per service instructions to reach mounting points
• Use appropriate screwdrivers or nut drivers; keep original hardware unless damaged
• Align bracket and tighten screws evenly; avoid overtightening to prevent stripping

This machine screw secures panels, brackets, and other components inside your appliance. Replacing a missing or damaged fastener restores a solid fit, reduces vibration and rattling, and helps keep assemblies properly aligned for reliable performance.

• 10-32 machine-thread fastener for mounting and securing internal parts and panels
• Helps maintain alignment and structural integrity of assembled components
• Replaces missing, stripped, or damaged hardware
• Reduces rattling, vibration, or loosening from worn fasteners

• Disconnect power; shut off gas or water supplies before servicing
• Match thread and length to the original fastener used in that location
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse original washers or clips if present and in good condition

This insulation pad installs in the factory location to isolate and cushion components or panels. It helps reduce vibration and limit unwanted heat transfer, supporting quieter operation and proper performance where the original pad was installed.

• Provides a thermal and acoustic barrier between parts or panels
• Helps minimize vibration and rattling noises
• Restores proper spacing/cushioning when the original pad is missing or deteriorated
• Replace if the pad is brittle, compressed, contaminated, or falling off
• Common signs include increased noise or rattles and localized hot spots or condensation

• Disconnect power (and gas/water, if applicable) before servicing
• Allow hot or cold surfaces to return to a safe temperature
• Note the original pad's location/orientation; remove old pad and clean the surface
• Install the new pad in the same spot without over-compressing; secure per the original method and verify clearances

The Toe Panel Insulation is an OEM part for Whirlpool dishwashers. This part was designed to enhance the appliance's performance by reducing noise and preventing heat escape from the bottom of the dishwasher. This insulation panel fits snugly behind the dishwasher's toe panel, which is located at the lower front part of the unit.

Causes of a bad Toe Panel Insulation might include wear and tear over time, damage during appliance installation or removal, or deterioration due to moisture exposure.

Symptoms of inadequate or damaged Toe Panel Insulation include:

• Noticeable increase in noise level from the dishwasher, making it more disruptive during its operation.
• Excess heat felt near the base of the dishwasher, indicating heat loss.
• Potential for condensation or slight temperature changes in the kitchen due to the heat emitted from the dishwasher.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
