Parts for Bosch HDI8054U/04: Door Parts

This inner door panel restores the dishwasher's internal door surface and helps protect internal components from water and steam. It keeps the door structure rigid and provides a clean, serviceable interior finish. What it does:

• Forms the inner surface of the dishwasher door, directing water and steam back into the tub
• Protects wiring, insulation, and latch mechanisms housed inside the door
• Helps the door close evenly and engage the latch correctly
• Visible damage, dents, cracks, or corrosion on this panel can cause leaks or alignment issues
• Replacing a damaged inner door panel can stop interior moisture damage and improve door performance

• 1 inner door panel

• Disconnect power to the appliance before servicing to avoid electrical shock
• Expect to remove the outer door panel and any attached trim or hardware to access the inner panel
• Handle edges carefully—sheet metal can be sharp and internal insulation or clips may be present

This glass panel replaces a damaged inner oven door glass, restoring visibility and proper heat containment. A clear, intact pane helps the oven heat efficiently and keeps the door insulated and safe to use.

• Forms the inner viewing surface of the oven door
• Helps retain heat and maintain proper oven temperatures
• Restores clear visibility into the oven cavity
• Common failure signs: cracked or shattered glass, heat loss, door too hot to touch on exterior, visible gaps or rattling

• Disconnect power and allow the oven to cool completely before service
• Support the door and remove it for safe access
• Handle glass with cut-resistant gloves; avoid overtightening fasteners
• Clean and reuse existing gaskets/insulation if in good condition; replace if damaged

This is a replacement glass panel for the dishwasher control/display area that restores a clean, functional front surface and protects the underlying controls. Replaces cracked, scratched, or badly worn glass to improve appearance and usability. What it does:

• Covers and protects the control buttons and display from moisture, grease and debris.
• Keeps the control area looking clean and finished after damage to the original glass.
• Helps prevent direct contact with underlying electronic components.
• Restores a smooth surface when the original glass is chipped, cracked, or scratched.

• Disconnect power to the appliance before attempting replacement to avoid shock.
• Handle the glass carefully; wear cut-resistant gloves and safety glasses.
• Removal/installation may require removing door trim or bezels and careful alignment; keep all fasteners.
• If adhesive or clips secure the original, reuse only the exact hardware or appropriate OEM replacement parts.

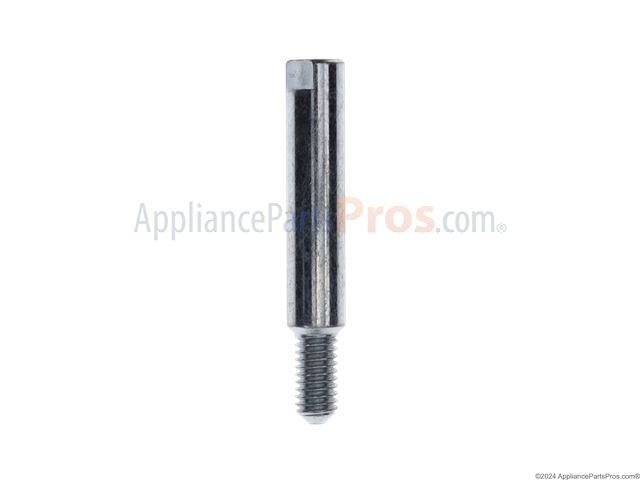

This is a replacement mounting screw used to secure appliance components so panels and assemblies stay firmly in place during normal use. It restores proper fastening and helps eliminate loose parts or vibration-related noise. What it does

• Fastens panels, brackets, or small assemblies to the appliance frame
• Restores secure mounting when original screws are missing, stripped, or damaged
• Helps reduce rattling, vibration noise, and misaligned panels
• Small hardware solution for cosmetic and functional attachment points

• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; stop when snug to prevent thread or part damage
• Disconnect power and/or water and follow appliance safety steps before accessing internal parts
• Keep removed hardware organized so replacement goes to the correct location

This genuine replacement door hinge restores proper door alignment and smooth opening/closing for compatible Bosch appliances. It helps keep the door secure and operating quietly to maintain normal appliance performance. What it does:

• Supports and guides the appliance door during opening and closing
• Restores correct door alignment and closing action when a worn hinge causes sagging or binding
• Reduces door-related rattling or uneven movement that can affect seals
• Matches OEM fit and mounting points for a direct replacement

• One hinge assembly as shown

• Turn power and water off to the appliance before beginning any repair
• Handle sharp edges and heavy panels carefully; use gloves and eye protection
• Installation typically requires removing the door or access panel and fastening hinge with original hardware

This insert is a replacement trim panel that restores the appliance's finished appearance and helps protect internal components from debris. It fits into the surrounding assembly to maintain a secure, flush exterior surface. What it does:

• Replaces a cracked, warped, or missing trim panel to improve appearance.
• Helps keep food, dust, and moisture out of internal gaps.
• Reduces rattling or movement when the surrounding panel is loose.
• Restores correct alignment for adjacent trim and controls.

• Disconnect power to the appliance before beginning any repair.
• Remove surrounding panels or door to access the insert; keep fasteners organized.
• Handle edges carefully to avoid cuts or damage to the finish.
• If adhesive, clips, or fasteners are damaged, replace them with exact-match parts for secure fit.

The Outer Door Panel is an OEM part for Bosch range doors. Crafted from durable stainless steel, it protects the inner workings of the oven door while providing an elegant and smooth surface for users.

Symptoms of a bad outer door panel include:

• Aesthetic issues like dents, scratches, or rusting of the surface
• Warping or sagging of the panel
• Gaps or misalignment that compromise the door seal
• Looseness or inability to properly close the door

Causes of failure may include normal wear and tear over time from daily use or accidental impacts and dents. Exposure to heat could cause warping.

Replacing this genuine Bosch OEM part restores the pristine look and feel of the oven door. Compatible with 300 series gas and electric range models, it ensures safe and reliable performance. This replacement panel is also compatible with Thermador and Gaggenau ranges.

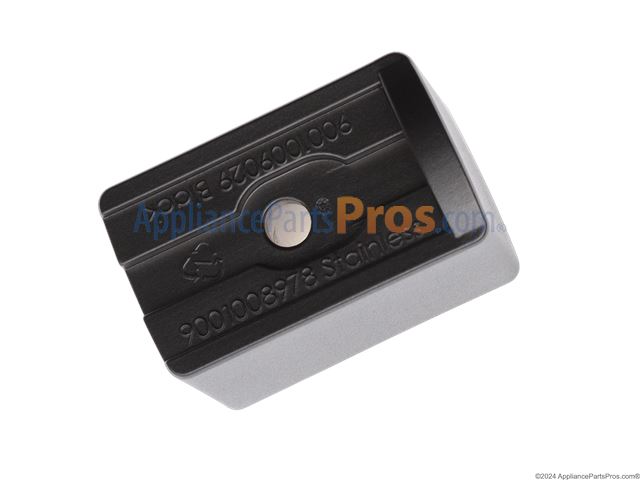

The Insert is an OEM part for Bosch ovens. It secures and stabilizes the oven door handle, ensuring proper alignment and smooth operation.

This insert is engineered to withstand the rigors of regular use, providing a stable and reliable connection between the oven door and the handle.

Causes of a bad mounting insert can include excessive wear and tear, exposure to high temperatures or moisture, or physical impact that may cause deformation or cracking.

Symptoms of a bad insert include:

• Loose or wobbly door handle
• Difficulty in opening or closing the oven door smoothly
• Misalignment of the handle with the door
• Potential damage to the handle or door due to improper support

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Handle End Cap is an OEM part for Bosch ovens. This end cap sits at either end of the range handle and helps complete the handle assembly. It provides an ergonomic gripping surface for easy lifting and lowering of the range door.

Causes of a bad handle end cap can include wear and tear or damage from excessive opening and closing of the range door over time. The end caps take the brunt of this activity and can crack, split or break off.

Symptoms of a bad handle end cap include:

• Exposed or sharp metal edges on the handle where the end cap is missing
• Difficulty opening or closing the range door smoothly due to an imbalanced handle
• Loose or insecure end cap that could potentially detach during use

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Door Handle is an OEM part for Bosch wall ovens and ranges. The door handle allows for easy opening, closing, and accessing of the oven cavity.

The oven door handle is responsible for safely grasping the heated door without risk of burns. Its ergonomic design provides a sturdy grip to smoothly manipulate the door back and forth while cooking or cleaning.

Causes of a bad oven door handle can include damage, cracks or loosening from repeated use. Accidental impacts are also possible.

Symptoms of a bad oven door handle include:

• Loose, unstable or detached handle assembly
• Cracks or breaks on handle components
• Difficulty opening and closing the oven door

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
