Parts for Bosch HDI8054U/04: Control Panel & Burner Parts

A replacement hob top that restores the cooktop's flat surface and supports burners, grates, and controls for safe, even operation and improved appearance. Installs as a direct replacement for the damaged or worn top. What it does:

• Provides the finished surface for burners and grates, protecting internal components from spills and debris
• Restores a level, stable mounting surface for consistent burner performance
• Replaces cracked, dented, rusted, or warped tops that can cause poor fit or leaks of spills into the cooktop body
• Helps maintain a clean, finished appearance and simplifies cleaning

• Disconnect power and, for gas cooktops, shut off the gas supply before starting work
• Remove grates, burner caps, and control knobs to access mounting fasteners

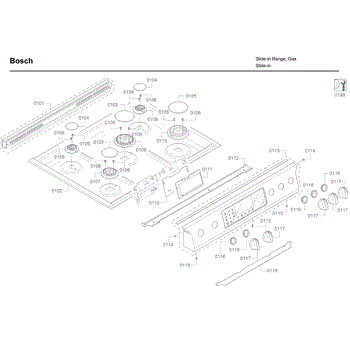

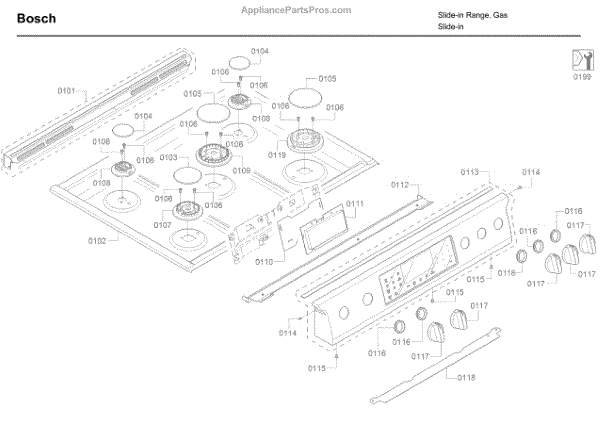

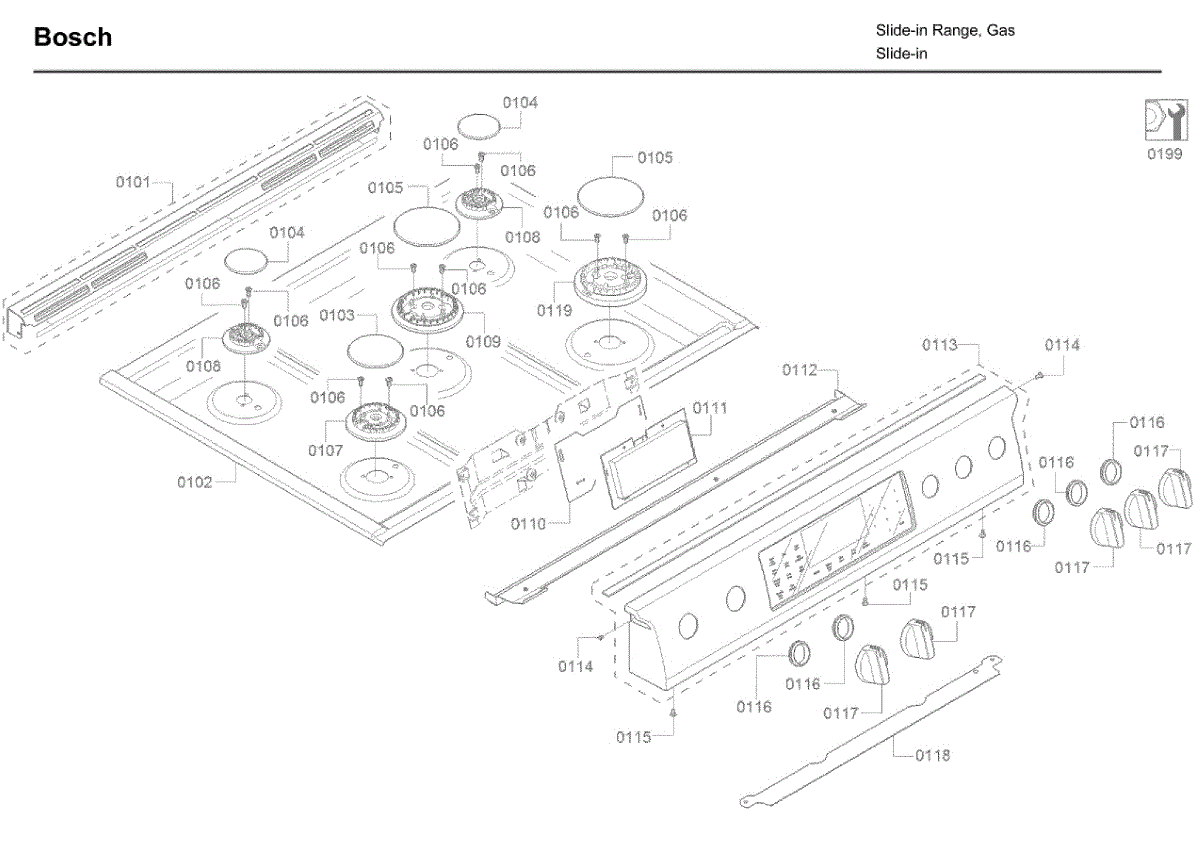

• Handle the panel carefully to avoid scratching; align fasteners and seals as shown in the OEM diagram

This burner cap sits on top of the sealed gas burner head to evenly spread the flame and protect the burner from spills, helping your cooktop light reliably and cook more uniformly.

• Distributes burner flame for even heating and proper ignition
• Shields the burner head from spills and debris
• Worn, chipped, or missing caps can cause uneven flames, poor ignition, or yellowing flames
• Replacing damaged caps can restore stable burner performance

• Turn off gas supply and allow the cooktop to cool completely before service
• Lift off the old cap; clean the burner head surface; set the new cap flat and centered
• Ensure the cap is properly seated to avoid weak or uneven flames
• Test ignition after reassembly and check for correct flame appearance

The Burner Cap is an OEM component specifically designed for Bosch wall ovens and ranges. It is the protective cover located at the top of each gas burner element.

Causes of a bad burner cap can include warping or deformation from high heat. Small cracks may occur along welding seams due to regular expansion and contraction during cooking. Surface abrasions and scratches are also possible through normal use.

Symptoms of a bad burner cap include:

• Yellow or orange flames indicate incomplete combustion
• Slow heating of cookware placed on the burner
• Gas odors detected around the stovetop
• Discoloration or corrosion visible on the burner surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This burner cap sits on the gas burner head to shape the flame and shield the burner from spills and drafts. Replacing a chipped, warped, or missing cap restores an even flame pattern, reliable ignition, and consistent cooking results.

• Shapes and spreads the burner flame for even heating
• Helps proper ignition and stable flame by ensuring correct flame pattern
• Protects the burner head and ports from cookware contact and boilovers
• Common symptoms: uneven or yellow-tipped flames, flame lifting/blowing out, delayed ignition, or visible damage to the cap

• Turn off the burner and allow the surface to cool completely before servicing
• Lift off the old cap; clean and dry the burner head and ports to remove debris
• Seat the new cap flat and centered on the matching burner—do not force or use adhesives
• Light the burner and verify a steady, even blue flame; reseat if the flame is uneven

The Screw is an OEM part for Bosch gas cooktops and ranges. It anchors the surface burner head assembly onto the cooktop surface.

Causes can be stripped threads or overall wear from repeated heating/cooling cycles. Exposure to cooking spills or impacts may also deteriorate the screw head over time.

Symptoms of a bad burner head screw include:

• A burner detaching from the cooktop surface entirely
• Excess movement or instability of burner heads when in use
• Gas leaks reported around the burner head connection points

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement burner restores a steady, even flame on your gas cooking appliance. A warped or clogged burner can cause hard-to-light, uneven, or yellow flames—installing a new burner brings back reliable ignition and consistent heat.

• Directs gas through calibrated ports to produce a stable flame
• Works with the igniter/electrode to light quickly and evenly
• Helps maintain proper flame size and distribution across the cooking zone
• Common signs it's failing: won't light or lights intermittently, weak/uneven or yellow flames, visible damage or clogged ports

• Turn off gas supply and disconnect power; allow the appliance to cool completely
• Access the burner per your model's service information; remove any mounting screws and lift off the old burner
• Clean the orifice area; align the new burner with the gas orifice and igniter, then seat fully and secure
• Reassemble and test for proper ignition and flame quality

This replacement surface burner head restores even gas distribution and reliable ignition on your cooktop. Replacing a worn or clogged burner helps the flame light quickly, burn evenly, and bring back dependable everyday performance. What it does:

• Channels gas from the orifice through flame ports to create an even, stable flame
• Interfaces with the igniter electrode for consistent, quick lighting
• May resolve delayed ignition, clicking without lighting, weak or uneven flames, or flames that go out
• Replaces corroded, damaged, or persistently clogged burner components

• 1 surface burner head

• Shut off gas supply and power; allow the cooktop to cool completely
• Remove grate and burner cap, then lift off the old burner head
• Clean the orifice area and ensure flame ports are free of debris
• Align the new head with the orifice and igniter, seat fully, reinstall cap and grate, then test operation

The Surface Burner is an OEM component specifically designed for Bosch cooktops. It provides an energy source for pots and pans to heat food safely and efficiently.

Causes of a bad surface burner can include cracks in ceramic glass allowing gas leakage, worn out or damaged burner heads preventing proper ignition, and loose or failed wiring and thermostats.

Symptoms of a bad surface burner include:

• Inability to ignite or produce a steady flame
• Yellow burner flames indicating improper combustion
• Gas smell when the surface is turned on
• Burners that do not heat food evenly

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Display Module is an OEM component specifically designed for Bosch built-in ovens. It contains an electronic display and control board that allows users to program cooking modes, set temperatures, monitor time remaining, and receive feedback on oven status.

Causes of a bad display module can include liquid damage, impact damage that has caused the internal component failure, or wear over many years of use.

Symptoms of a bad display module include:

• Blank or unresponsive display screen
• Inability to change oven functions
• Fault codes appearing
• Dimmed or flickering display lights

This replacement module is also compatible with Thermador, Gaggenau, and Kobeland Wolf built-in oven ranges.

The Front Control Panel is an OEM part for Bosch ranges. It houses all user interface buttons and digital displays. Manufactured from heat-resistant composite materials, the front control panel withstands demanding oven environments.

Causes of a damaged front control panel include long-term heat exposure slowly degrading surfaces and electronically conductive pathways. Spills, impacts, and abrasions from prolonged use can also compromise structural integrity.

Symptoms of a damaged front control panel include:

• Cracks, clouding or peeling of coated surfaces
• Faulty, stuck or unresponsive control buttons
• Distorted or cracked digital displays and interfaces
• Warping allowing entry of debris or reducing water resistance

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This is a small mounting screw used to secure panels and components in compatible Bosch appliances. It replaces a lost or worn fastener to restore a secure fit and reduce rattling or loose parts. What it does:

• Secures panels, brackets, or internal components in place
• Stops rattling and vibration caused by loose or missing screws
• Helps restore proper alignment of mounted parts
• Matches OEM fit and function for the listed part number

• Disconnect power and water supply before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten snugly but do not overtighten to prevent stripping or damaging the mating threads
• Keep small parts away from children and dispose of packaging responsibly

A small retaining ring that holds internal components securely in place to prevent shifting during normal use. Replacing this ring restores proper alignment and reduces noise or intermittent contact caused by loose parts. What it does:

• Secures shafts, clips or small assemblies so they stay seated during operation
• Prevents components from shifting, which can cause vibration or rubbing noises
• Keeps mating parts aligned for reliable mechanical function
• Simple, single-purpose part used where a small mechanical hold is needed

• Disconnect power and water before starting any repair
• Handle small parts carefully and keep track of removed components and orientation
• Replace only with the exact part number to ensure proper fit

This surface burner control knob lets you adjust heat from the front panel of your cooktop. Replace a cracked, stripped, or missing knob to restore smooth control and a clean, finished look. What it does:

• Attaches to the surface-burner valve stem to set flame/heat level
• Replaces damaged or missing knobs for consistent, reliable control
• Helps resolve slipping, wobbling, hard-to-turn, or misaligned-pointer issues
• Restores the original appearance of the control panel

• Ensure the appliance is cool and power is off before servicing
• Pull the old knob straight off the stem; avoid prying with tools
• Align the stem shape and indicator orientation; press the new knob straight on until fully seated
• If the knob will not stay on, inspect the valve stem for wear or damage

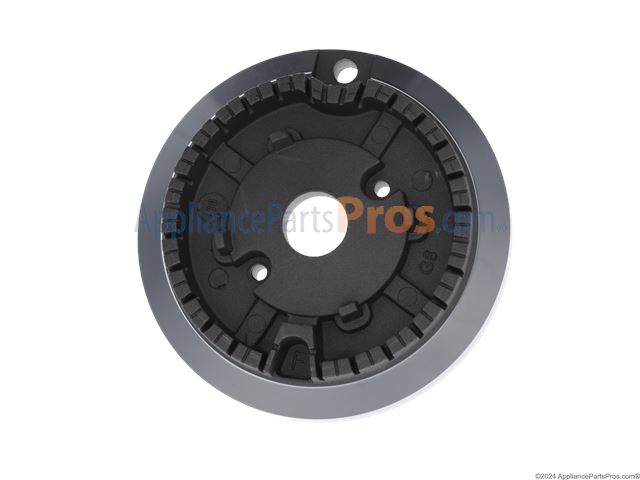

The Burner is an OEM part for Bosch ranges and cooktops. The burner head features precision engineered ports that allow for the proper mixing of gas and air, ensuring efficient and even combustion.

Causes of a bad gas burner head can include clogging or blockages of the small flame ports, cracks or breaks in the metal head casing from long term heat exposure or accidental damage.

Symptoms of a bad gas burner head include:

• Uneven or irregular flame patterns
• Flames that blow out easily or are difficult to ignite
• Reduced heating power and ineffective cooking
• Gas leaks from cracks or breaks in the head casing

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
