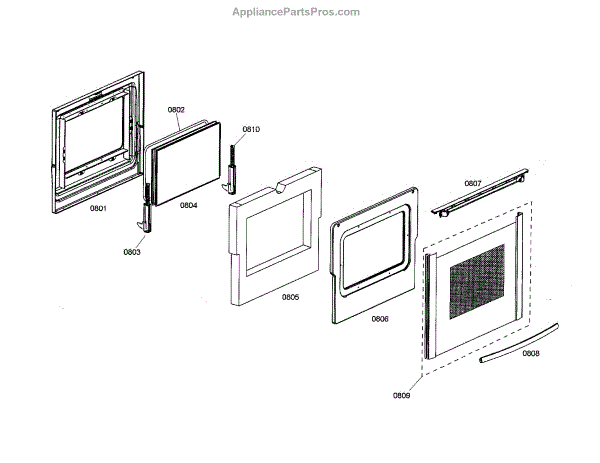

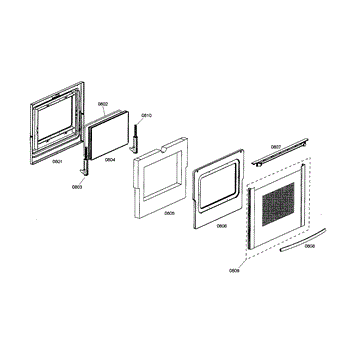

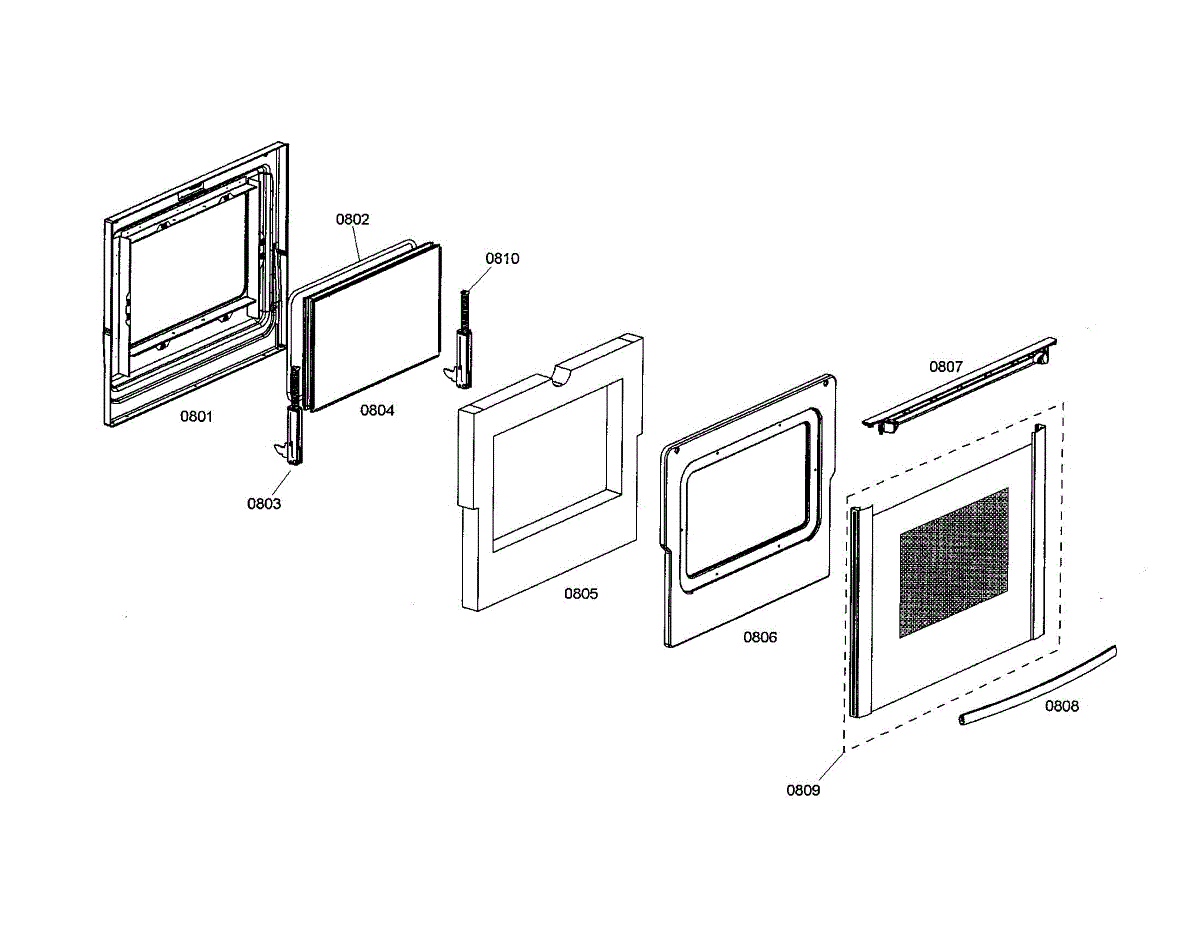

Parts for Bosch HDS7152U/01: Door Parts

This is a replacement oven control board manufactured by Bosch. The oven control board is the oven's brain and handles all the functions. It also includes the display and provides users with the ability to control functionality, like bake and broil, setting timers, and more. While the oven control board does not include moving parts, heat and moisture can damage soldered components and lead to failure. Signs that the control board may need to be replaced include lack of information on the display, inability to control specific functions, or complete lack of operability. Note that this part is often misdiagnosed, so make sure to check the old board's operability with a multimeter before replacing it. To replace the oven control board, first remove the exterior cowling. Locate the wiring harness and disconnect it before removing the mounting screws. Install the replacement part following these steps in reverse.This genuine OEM part is sold individually. It only fits Bosch Thermador ovens.

This oven control knob lets you select temperatures and cooking functions with a smooth, precise turn. It restores easy, accurate control when the original knob is worn, cracked, or missing, keeping your range looking and working its best.

• Turns the oven's selector/temperature shaft to choose settings
• Replaces knobs that are loose, broken, stripped, or missing
• Helps resolve issues like slipping when turned or inability to select temperatures
• Maintains a clean, factory look with a stainless-style finish

• Disconnect power and allow the appliance to cool before servicing
• Pull the old knob straight off the control shaft; avoid prying against the panel
• Align the knob's flat/D-shaped insert with the shaft and press firmly until seated
• Test for smooth rotation and proper engagement of oven functions

This replacement grill grid restores a flat, stable cooking surface so food cooks evenly and stays off the burner. Designed to fit compatible Bosch countertop grills and grilling modules for reliable performance. What it does:

• Provides a stable, heat-resistant surface for grilling and searing foods
• Keeps food elevated above the burner for even heat distribution
• Replaces bent, warped, or damaged grill surfaces that cause uneven cooking
• Helps prevent food from falling into the burner area during use

• One grill grid

• For safety, disconnect power and allow appliance to cool completely before removing or installing the grid
• Handle with care—edges may be sharp and surfaces hot after recent use
• Slide or position the grid into the existing support rails; no special tools typically required

The Burner Cap is an OEM part for Bosch Ranges. This part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This burner housing secures the surface burner assembly on compatible gas cooktops and ranges, restoring proper burner alignment and stable flame performance. It replaces damaged or warped housings that cause burner wobble or inconsistent ignition. What it does

• Supports and positions the burner head and cap for correct flame pattern
• Aligns the igniter/electrode and maintains clearance from other components
• Helps prevent burner wobble, misalignment, and uneven heating
• Use when housing is cracked, corroded, bent, or otherwise damaged

• Shut off gas supply and power to the appliance before starting work
• Remove grates and burner caps to access the housing; keep track of fasteners
• Replace with the exact OEM part and secure fasteners without over-tightening

The Burner Cap is an OEM component for Bosch Ranges. This crucial part fits atop the burner assembly, playing a vital role in controlling and diffusing the flame for cooking.

A common issue with a malfunctioning or worn-out Burner Cap involves deterioration over time due to exposure to heat, grease, or cleaning agents. Damage or deformation to the cap can disrupt the flame pattern, leading to inefficient cooking or inconsistent heat distribution.

Symptoms of a defective Burner Cap may include:

• Uneven or erratic flames during burner operation
• Inadequate heat output or difficulties in achieving desired temperatures
• Visible signs of damage or wear on the burner cap's surface

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This burner housing secures and positions the cooktop's top burner components for stable ignition and even heat. Replacing a damaged housing restores proper burner alignment and helps prevent loose parts that affect flame performance. What it does:

• Holds the top burner head, igniter, and related components in the correct position
• Maintains proper alignment for reliable ignition and a steady flame
• Replaces bent, cracked or corroded housings that can cause loose burner parts or irregular flame
• Works with existing burner caps, heads, and igniters

• Turn off the appliance and disconnect gas and power before servicing
• Inspect and replace any worn gaskets, seals, or fasteners when reinstalling

This burner housing is the metal mounting and enclosure that secures a gas burner and its ignition components, restoring proper burner alignment and stable flame control for safe cooking. Use to replace worn, rusted, or damaged housings. What it does:

• Holds and positions the burner head, electrode/igniter, and associated fittings for correct ignition and flame shape
• Shields and directs gas flow around the burner for consistent combustion
• Prevents burner wobble and helps maintain safe clearances between the flame and appliance cabinet
• Commonly replaced when the housing is bent, corroded, cracked, or causing ignition/misfire issues

• One burner housing assembly

• Turn off gas supply and disconnect power to the appliance before beginning work
• Only attempt installation if you are comfortable with gas appliance repair
• Inspect and replace any worn gaskets, screws, or mounting hardware as needed; ensure proper alignment of the igniter/electrode
• After installation, check for gas leaks and verify correct ignition and flame behavior before normal use

This cable harness is the wiring assembly that links dishwasher controls and internal components, restoring reliable electrical connections and helping resolve intermittent or failed component operation. Designed to replace a damaged or corroded factory harness. What it does

• Routes power and signals between the control board and internal parts so components can operate correctly
• Replaces broken, frayed, or corroded wires that cause intermittent power or communication failures
• Helps address symptoms such as devices not powering, erratic operation, or components that work intermittently
• Maintains correct wire routing and connector fit to prevent shorting or loose connections

• One cable harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Compare the harness and connector shapes to the original before installation to ensure correct fit
• Handle connectors by the housings; avoid pulling on individual wires

This mounting bracket secures appliance components in place to restore proper alignment and stability. It's a simple replacement part that helps reduce rattling and supports correct panel or assembly positioning. What it does:

• Secures a panel or assembly to the appliance frame to prevent movement and vibration
• Restores proper alignment for doors, panels, or internal components
• Helps stop rattling, noises, or loose components that occur when a support bracket fails
• Provides a direct mechanical replacement—no electrical function

• One replacement mounting bracket

• High-level: remove power and water to the appliance before starting repairs
• Use basic hand tools; keep fasteners from the original part for reinstallation unless new ones are supplied
• If the bracket mounts a door or heavy panel, support the panel during removal and reinstallation to avoid damage

The Oven Light Switch is an OEM part for Bosch ranges. It engages convenient interior illumination through a single motion, allowing monitoring of baked goods without compromising temps.

Causes of a bad oven light switch can include failures from the natural stresses of constant clicking associated with opening and closing the oven door.

Symptoms of a bad oven light switch include:

• Dim or unresponsive lights even when the door is opened properly
• Inability to turn lights off, leaving them burning needlessly
• Stuck in either the on or off position without toggle functionality
• Potentially hazardous exposed live terminals under switch housings

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

Replacement holder used to secure internal parts inside the appliance, restoring proper positioning to reduce rattling and help components remain aligned during normal operation and improve reliability. What it does:

• Holds internal components or assemblies in place to prevent unwanted movement.
• Reduces vibration and rattling that can occur during operation.
• Helps maintain correct alignment of parts that can affect function or contact.
• Common symptom: loose or moving parts and audible noise during use.

• Disconnect power to the appliance before beginning any work; shut off water supply if the repair involves water-connected models.
• Use basic hand tools; keep track of screws and clips removed during service.
• Refer to the appliance's service manual or parts diagram for correct location and orientation.

This replacement holder secures internal components in compatible Bosch appliances to restore proper alignment and reduce noise from loose parts. It's a simple swap that helps maintain reliable operation and prevents shifting or rattling. What it does

• Secures and positions internal components or assemblies to keep them stable during operation
• Helps stop rattling, vibration noise, and misalignment caused by a worn or broken holder
• Restores part fit where clips or supports no longer hold components firmly
• Resolves symptoms such as loose panels, shifting trays, or intermittent contact caused by a failing holder

• One replacement holder

• Disconnect power (and water supply where applicable) before servicing the appliance
• Inspect mating surfaces and fasteners; replace any damaged screws or clips for a secure fit
• Install with the original hardware where possible; use only manufacturer-recommended parts

The Orifice Holder Assembly is an OEM part for Bosch gas ranges. It securely holds the orifice which regulate gas flow to each burner, allowing flame levels to be finely tuned during cooking.

Causes can include deformation from overheating, damage or wear to the small orifice holes. Exposure to water or food debris may also lead to blockage over time.

Symptoms of a bad orifice holder include:

• Inability to properly adjust or maintain burner flame levels
• Uneven or irregularly sized flames between burners
• Gas leaks or flames that fluctuate excessively

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This jet meters gas to the burner on your cooktop or range to produce a stable, properly sized flame. Replace a clogged, damaged, or stripped jet to restore consistent gas flow and reliable ignition.

• Meters gas from the valve to the burner for correct flame size and shape
• Helps resolve issues like burners not lighting or producing weak/uneven flames
• Replaces jets with damaged threads or internal blockage
• Supports safe, consistent burner performance when the original jet is compromised

• Disconnect power and shut off gas supply before servicing; allow unit to cool
• Use the correct wrench to remove and install the jet; do not overtighten
• Install in the correct burner position
• After reassembly, check all connections with an approved leak-detection solution

This water inlet valve controls dishwasher water flow during fill cycles, restoring proper filling and preventing overfill. Replace a faulty valve to stop no-fill, slow-fill, or continuous-fill issues and restore normal wash cycles. What it does:

• Opens and closes to admit water into the dishwasher during fill cycles
• Maintains correct water flow and pressure for proper wash performance
• Stops water flow if inlet fails closed or prevents filling if stuck open
• Common symptom link: dishwasher won't fill, fills slowly, or shows error/overflow conditions

• One water inlet valve

• Disconnect power and shut off the water supply before starting
• Turn off the breaker; water and electrical safety first
• Basic hand tools typically required; keep track of hose clamps and fittings
• Inspect inlet hoses and gaskets and tighten or replace clamps as needed

This water inlet valve controls the flow of water into the appliance so cycles fill when needed and stop to prevent overfilling. Replaces a worn or failed inlet valve to restore reliable water fill operation. What it does:

• Opens and closes to allow water into the appliance during fill cycles
• Works with the control board and float/sensors to prevent overfill
• Common repair for no-fill, slow-fill, or continuous-fill symptoms
• Helps stop leaks caused by valves that fail to fully close

• Turn off power and shut off the water supply before starting
• Drain residual water and relieve pressure from the line before disconnecting
• Inspect and replace any worn inlet hoses, clamps, or seals during installation
• Test cycles and check for leaks after installation

The Valve is an OEM replacement part for Bosch gas ranges. Responsible operation delivers controlled flames through burners. Consistent cooking depends on precise regulation.

Causes of a bad valve can include wear from constant adjustments opening and closing fuel pathways thousands of times. Exposure to ambient heat and residual grease vapors also accelerates component decline over several years.

Symptoms of a bad valve include:

• Inability to modulate burner output properly for recipes
• Unstable pilot lights or sudden extinguishing during operation
• Gas buildups resulting in unpredictable combustion tendencies
• Failures illuminating control panels or kitchens with leak warnings

This OEM Bosch part is also compatible with Siemens or Gaggenau models.

This clamp secures flexible hoses and small tubes to fittings, keeping connections tight to help prevent leaks and movement. It's a small replacement clip used on water and drain lines in many appliances. What it does

• Holds a hose or tube firmly to a barb or nipple to maintain a sealed connection
• Helps stop leaks caused by loose or damaged hose connections
• Prevents hoses from slipping off during operation and reduces vibration noise
• Used wherever a small retaining clamp is required on water or drain lines

• One clamp

• Turn off power and shut off water supply before replacing the clamp
• Slide clamp over the hose, push hose fully onto the fitting, then compress or tighten clamp as required
• Use pliers or the correct tool for the clamp type; avoid damaging the hose when installing
• Replace if corroded, cracked, or not seating properly

A replacement pressure regulator that restores consistent pressure control for safe, reliable appliance operation. Helps stabilize fuel/air flow so burners and heating elements run at intended performance. What it does:

• Regulates pressure to maintain steady fuel or air flow to burners or valves
• Helps correct issues like weak or uneven heating, unstable flames, or intermittent operation
• Supports proper ignition and consistent temperature during normal use
• A faulty regulator can cause poor performance or safety concerns—address promptly

• Turn off power and shut off fuel (gas) supply before servicing; follow appliance safety guidelines
• Only install on compatible appliances; inspect the appliance manual
• Inspect fittings and seals for leaks after installation; perform a leak test if working with gas
• If you smell gas or suspect a leak, stop and immediately address the situation

This dishwasher water sensor monitors wash-water conditions so the control can adjust cycle time, rinses, and heating for consistent performance. Replace a failed sensor to restore reliable cleaning results and proper automatic cycle adjustments. What it does

• Detects water conditions during the wash cycle and reports to the control
• Helps the dishwasher optimize cycle length, rinses, and energy use
• Common symptoms: unusually long or short cycles, inconsistent cleaning, or sensor-related error messages
• Trigger erratic cycle behavior when the sensor is faulty or contaminated

• One sensor assembly

• Disconnect power and turn off water before servicing
• Access is typically from the underside; place a towel or pan to catch residual water
• Transfer/seat the seal properly if present; fully engage the locking tabs and reconnect the harness
• After installation, run a quick cycle and check for leaks and proper operation

This socket is an electrical connector used to join wiring or plug-in components, restoring a secure connection for reliable appliance operation. It replaces a worn or damaged socket to help prevent intermittent power or component failure. What it does:

• Provides a secure electrical connection between wiring and the appliance component
• Restores proper contact when a loose, corroded, or broken socket causes intermittent operation
• Helps prevent arcing or poor connections that can lead to component failure
• Used where a plug-in or push-fit electrical connection is required

• One socket

• Disconnect power to the appliance before inspecting or replacing the socket
• Replace only with the exact socket type specified for your appliance

This door seal restores a tight barrier between the oven door and cavity. Replacing a worn gasket helps your oven reach and hold temperature, reduces heat escaping at the door edges, and supports more consistent baking and roasting results.

• Creates a heat-resistant seal around the oven opening
• Helps the oven preheat and maintain set temperature
• Limits heat, steam, and odors from escaping at the door
• Typical signs it needs replacement: visible tears or flattening, heat felt around the door, longer preheat/cook times, or uneven baking

• Disconnect power at the breaker and let the oven cool completely
• Open the door, pull the old seal from its channel, and clean the groove
• Press the new seal evenly into the channel without stretching; ensure corners seat fully
• Close the door to verify uniform contact all around and adjust as needed

Restore clear visibility inside your oven with this oven lamp assembly. It replaces a failed or damaged light unit so you can check cooking progress without opening the door and losing heat.

• Illuminates the oven cavity during baking and broiling
• Replaces a cracked lens, burned socket, or damaged lamp housing
• Can help fix a light that won't turn on, flickers, or is intermittent
• Maintains visibility without repeated door openings

• Disconnect power at the breaker and allow the oven to cool completely before service.
• Remove oven racks for working space; access the lamp area per your model's service instructions (from inside the cavity or the rear panel).
• Handle glass components carefully; if transferring a bulb, avoid touching the glass directly.
• Restore power and test the light before reinstalling racks and returning the oven to service.

This heating element is the direct-replacement heater assembly that provides the heat source for compatible appliances, restoring proper heating so cycles reach the temperatures needed for effective drying or cleaning. What it does:

• Generates heat for the appliance's thermal system (air or water heating depending on model).
• Replaces a failed or damaged heater element to restore normal temperature rise.
• Common symptoms it may fix: no heat, weak/no drying or cleaning performance, or unusually long cycles.
• Works as part of the appliance's safety and temperature-control circuit (thermostats or sensors may also be involved).

• Always disconnect power (and water, if applicable) before replacing the element.
• Allow the appliance to cool fully and wear protective gloves; heating elements can have sharp edges.
• After installation, restore power and run a short test cycle to check for any error codes.

The Sensor is an OEM part for Bosch ovens and ranges. It detects and monitors the actual interior temperature to maintain precise baking and roasting conditions.

Causes of a bad temperature sensor can include wear from prolonged heat exposure within the oven cavity. Physical damage, moisture intrusion or circuitry malfunctions may also lead to sensor failure over time.

Symptoms of a bad oven temperature sensor include:

• Inability to accurately read or achieve set target temperatures
• Fluctuations in readings displayed
• Cooking modes like bake and broil functioning abnormally

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Convection Fan Motor is an OEM component specifically designed for Bosch combination and convection steam oven ranges. Located within the oven cavity, it powers the convection fan and circulation of hot air.

Symptoms of a bad convection motor include:

• Failure to achieve even heat distribution within the oven
• Loud grinding noises or vibrations from the fan
• Inability to select convection cooking modes
• Burning smells indicating possible overheating

Causes of failure may involve normal wear over extended use. Blocked ventilation from food debris could overload the motor. Accidental liquid spillage presents corrosion risks.

Replacing with this genuine Bosch motor restores essential airflow. Compatible with 500 series models, it features a permanently lubricated design for durable performance. Backed by Bosch quality, this convection replacement ensures reliable cooking for years to come. It is also compatible with Thermador and Gaggenau ranges.


This Terminal Box is an OEM part for Bosch Built-In Ovens. Integral to the oven's electrical system, this component serves as a secure connection point for various electrical wires within the appliance.

A common issue with a malfunctioning Terminal Box is loose connections or damage to the terminal block due to heat exposure or aging.

Symptoms of a defective Terminal Box may include:

• Inconsistent power supply to the oven
• Non-functional heating elements
• Sparks or electrical arcing within the terminal box area

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This door hinge secures and lets the appliance door pivot smoothly, restoring proper alignment and seal for reliable operation. Use this hinge to replace a worn, bent, or broken door pivot that prevents the door from seating correctly. What it does:

• Provides a stable pivot point so the door opens and closes smoothly
• Restores correct door alignment to improve sealing and reduce air leaks
• Stops door sagging, binding, or uneven gaps when mounting hardware has failed
• Prevents rubbing or unusual noises from a loose or damaged hinge

• One door hinge

• Disconnect power to the appliance and remove contents from the door before servicing
• Support the door while removing and installing the hinge to avoid damage or injury
• Tighten fasteners securely to the manufacturer's torque recommendations; replace any worn screws

This hinge is the OEM replacement that supports and pivots your appliance door for proper alignment and smooth opening. Replacing a worn hinge restores correct door fit and helps prevent sagging or binding. What it does:

• Provides a pivot point for the appliance door to open and close smoothly
• Maintains door alignment and seal to help prevent leaks or uneven gaps
• Worn or damaged hinges can cause the door to sag, rub, or close unevenly
• Matches OEM fit and mounting points for direct replacement

• Disconnect power and water before inspecting or replacing door hardware
• Support the door during removal to prevent dropping or damage
• Compare new hinge to the old part for correct orientation and mounting before final installation
• Tighten fasteners securely but avoid over-torquing; test door operation after installation

The Foot is an OEM component specifically designed for Bosch freestanding and slide-in electric ranges. Constructed of rugged cast metal, anti-tip brackets stabilize cooking operation. Even weight distribution protects floors.

Causes of a broken foot commonly relate to impacts during moving or cleaning. Prolonged use weakens mounting clips requiring timely replacement.

Symptoms of a bad foot include:

• Instability raising tip-over hazards
• Major leaning endangering cooktop surfaces
• Loosening raising noise concerns

Causes of a bad foot can involve stress fractures from overloading or excessive slide-outs. Corrosion inhibits secure fastening necessitating replacment.

This OEM Bosch part is also compatible with some Thermador, Dacor, and Lynx ranges maintaining dependable positioning and anti-tilt protection over years of use. Replace for uninterrupted cooking confidence.


This slide restores smooth in-and-out movement for a dishwasher rack by replacing worn or damaged sliding hardware. It helps racks glide evenly for easier loading and unloading and reduces sticking, scraping or unexpected drops. What it does:

• Guides and supports a dishwasher rack as it extends and retracts
• Replaces cracked, worn or stiff slides that cause a rack to stick, tilt or catch
• Reduces scraping, uneven travel and noisy operation
• Fits into the existing rack guide assembly to restore proper rack alignment

• Disconnect power to the appliance before servicing and remove the rack to access the slide
• Typically installs by sliding or snapping into the rack guide; retain or reuse any original fasteners if present
• After installation, verify the rack moves smoothly and is properly aligned

A replacement storage drawer that restores usable under-appliance or interior storage space and smooth sliding operation. Replaces damaged, cracked, or worn drawers to keep stored items safe and accessible. What it does:

• Provides a removable tray for storing cookware, utensils, or food items depending on the appliance configuration
• Restores smooth in-and-out sliding action when original drawer was broken or warped
• Keeps contents secured and organized to prevent shifting during use
• Helps maintain appliance appearance by replacing a damaged or discolored drawer

• One replacement drawer assembly

• Disconnect power to the appliance before servicing to reduce shock risk
• Remove any contents and slide out the old drawer; note rail alignment for reassembly
• Align the replacement drawer on the guides or rollers and slide in until it seats; secure any screws or clips removed
• Test full travel and closure; do not force if resistance is felt—recheck alignment

This replacement mounting bracket secures internal components and panels to restore proper alignment and stability. Use it when a broken or missing bracket causes loose parts, noise, or improper panel fit on compatible units. What it does

• Holds and supports adjacent panels or assemblies to maintain correct alignment.
• Prevents movement that can cause rattling, vibration noise, or scraping.
• Restores stable mounting for parts that may sag or sit unevenly.
• Helps ensure smooth operation by keeping components in their intended position.

• One mounting bracket

• Disconnect power before starting any repair to avoid electrical hazards.
• Basic hand tools are typically required; handle brackets carefully to avoid bending.
• Do not overtighten fasteners—secure snugly to avoid stressing the bracket.

This wire shelf provides a stable, ventilated storage surface inside the refrigerator to organize food and improve airflow for even cooling. It replaces a damaged, bent or missing shelf to restore usable interior storage space. What it does:

• Replaces a bent, rusted or broken refrigerator wire shelf that no longer supports items safely
• Restores flat, secure storage for food containers, bottles and produce
• Helps maintain proper air circulation in the compartment for more consistent cooling
• Fits into existing shelf tracks or supports designed for factory wire shelves

• One replacement wire shelf

• Slide shelf into existing tracks/supports; no tools typically required for drop-in style shelves
• Handle carefully to avoid sharp wire ends; wear gloves if needed
• Only replace with the correct part number for secure fit and safe operation

This grille for pan is a replacement trim piece that restores proper airflow and appearance around the appliance pan. It helps keep the pan area protected and looking finished after repair. What it does:

• Covers and ventilates the pan opening to help direct airflow and prevent debris entry
• Replaces a cracked, warped, or missing grille to restore fit and finish
• Helps eliminate rattling or rubbing caused by a damaged trim piece
• Matches OEM fit so it installs cleanly with the original mounting points

• Install requires removal of the surrounding trim or access panel; follow your appliance manual
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• Disconnect power to the appliance before working in the service area
• Replace damaged clips or screws with OEM fasteners for secure fit

This inner door is the dishwasher's inner panel that supports the door assembly and helps contain water and steam during cycles, restoring a secure, finished door surface. It replaces damaged or corroded inner door panels to improve sealing and appearance. What it does:

• Serves as the interior face of the dishwasher door and provides structural support for inner components
• Helps maintain a watertight seal and prevents leaks from the door area
• Replaces dented, cracked, or corroded inner panels that can trap moisture or cause cosmetic damage
• Restores proper alignment so the door closes and latches correctly

• 1 inner door panel

• Disconnect power and water supply before starting any repair
• Handle panel edges carefully; use gloves to avoid cuts and protect finish
• Installation typically requires removing the outer door panel and disconnecting inner fasteners—keep hardware organized for reassembly

This glass front panel is the exterior replacement glass that restores the appliance's finished look and protects the underlying door and control area from scratches and wear. It fits into the door assembly to provide a clean, glossy surface. What it does:

• Replaces cracked, chipped, or heavily scratched front/door glass to restore appearance
• Protects internal components and trim from direct contact and debris
• Helps keep the door surface smooth and easy to clean
• Restores a secure fit when broken or loose glass affects the door finish

• One glass front panel

• Disconnect power to the appliance before starting any repair
• Handle glass with gloves and protective eyewear to avoid cuts
• Installation typically requires removing the door trim or bezel—follow the OEM service instructions for your model

This insulating part provides electrical and thermal isolation for internal appliance components, helping prevent shorting and reducing heat transfer where wiring or terminals meet sensitive parts. Use it to restore safe operation after damage or wear. What it does:

• Provides electrical insulation for terminals, connectors, or wiring to prevent shorts and arcing
• Reduces heat transfer between hot components and nearby wiring or plastic parts
• Helps maintain safe clearances and protects against chafing or contact-related failures
• Commonly replaced when cracked, melted, burned, or otherwise compromised

• One insulating part

• Always disconnect power (unplug appliance or switch off breaker) before servicing
• Verify correct orientation and seating; do not force the part into place
• Inspect surrounding wiring and terminals; replace any damaged connectors or wires

This heat shield is a replacement protective panel that helps block and deflect heat away from nearby components for safer operation and longer component life. It restores the original heat barrier where a damaged or missing shield allows excess heat exposure. What it does:

• Deflects and disperses heat away from wiring, insulation, and nearby plastic or sensitive parts
• Prevents heat-related charring, warping, or premature failure of adjacent components
• Reduces the risk of hot spots that can cause burning smells or visible scorch marks
• Restores the appliance's original thermal protection when the existing shield is bent, corroded, or missing

• One heat shield panel

• Always disconnect power (and gas if applicable) before servicing the appliance
• Handle carefully—edges may be sharp; wear gloves and eye protection
• Verify proper orientation and secure all fasteners to restore original clearance and airflow

The Trim Plate is an OEM part for Bosch ranges. This trim plate provides a sleek, finished look while also contributing to the handle's durability and ergonomics.

Causes of a bad Trim Plate can include excessive wear from routine use, accidental impacts that cause dents or scratches, or exposure to extreme temperatures leading to material degradation.

Symptoms of a bad trim plate include:

• Loosening or wobbling of the door handle, indicating a compromised fit.
• Visible damage like cracks, chips, or discoloration that affects the overall look of the range.
• Difficulty in opening or closing the oven door smoothly, which can impact cooking routines and safety.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.
