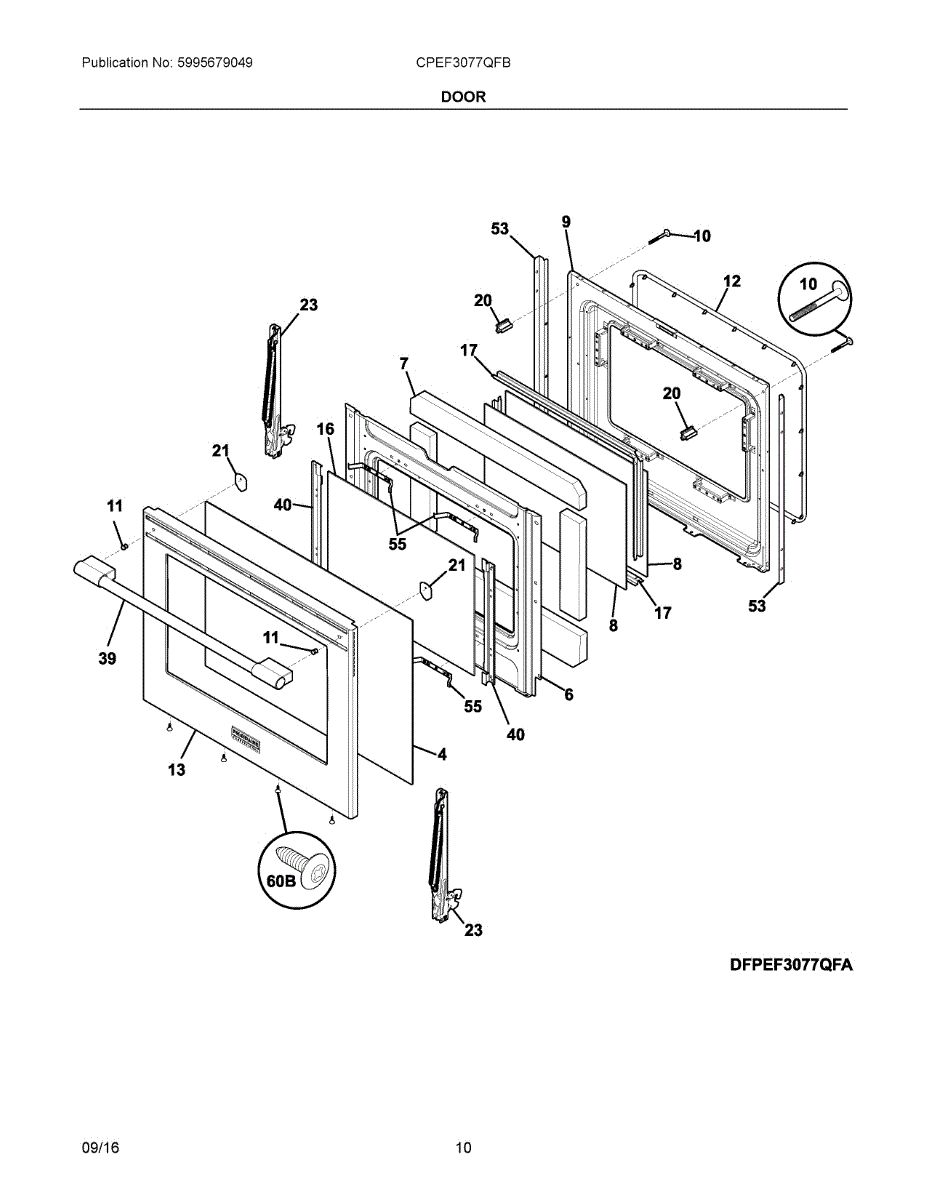

Parts for Electrolux CPEF3077QFB: 05 - Door Parts

This replacement shield is a molded protective mounting shield that helps protect internal appliance components from debris and physical damage, keeping parts aligned for reliable operation and quieter performance. What it does:

• Covers and protects wiring, harnesses, or small components from contact and debris
• Helps maintain proper alignment of nearby parts to reduce wear and noise
• Prevents incidental interference between moving parts
• Restores intended component protection after damage or removal

• One replacement shield

• Disconnect power before starting any repair to avoid shock or injury
• Handle plastic tabs and mounting points carefully to avoid breaking clips
• Reuse original fasteners if undamaged; replace any broken clips before powering appliance

This foam cabinet insulation panel helps reduce heat transfer and stabilizes internal temperatures, improving cooling performance and efficiency in the refrigerator cabinet. It replaces torn or missing insulation to help maintain consistent operation. What it does:

• Replaces damaged or missing cabinet foam insulation to reduce temperature fluctuations
• Helps limit frost buildup and uneven cooling caused by gaps in the cabinet
• Supports overall refrigerator efficiency by reducing heat gain from surrounding air
• Covers interior cabinet cavities where insulation is required for proper operation

• One foam cabinet insulation panel

• Disconnect power to the appliance before starting any repair
• Remove shelves and access panels for a clear work area; adhesive or clips may secure the insulation
• Press insulation into place, replacing any fasteners or adhesive strips as needed

The Inner Door Glass is an  OEM replacement part for Frigidaire ranges. It is responsible for providing a safe viewing window into the oven cavity while protecting interior components from external damage.

Causes of a bad inner door glass include normal wear and tear such as chips or cracks developing from years of use. Accidental impact or thermal shocks from sudden temperature changes can also compromise the integrity of the glass.

Symptoms of a bad inner door glass:

• Cracks or breaks visible in the glass
• Difficulty seeing into the oven cavity clearly
• Increased risk of heat escaping when the oven is in use
• Potential safety hazards if glass cracks or shatters

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

The Oven Seal is an OEM replacement part for Frigidaire ovens. This seal is installed around the oven door to create a tight barrier, preventing heat from escaping during operation. By maintaining the internal temperature, the seal ensures efficient cooking and baking while reducing energy consumption.

Over time, the oven seal can wear out or become damaged due to exposure to high temperatures, frequent use, or accidental mishandling. A compromised seal can lead to heat loss, uneven cooking, or longer preheating times.

Symptoms of a bad oven seal include:

• Heat escaping from the oven door
• Longer cooking times or unevenly cooked food
• The oven taking longer to preheat
• Visible cracks, tears, or flattening of the seal

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Spacer is an OEM part for Frigidaire ranges and ovens. This part provides the necessary clearance between the oven door handle and the door itself, preventing friction and wear while ensuring the handle is securely attached and easy to use. This small but crucial component aids in the proper functioning of the oven door, making it easier and safer to open and close without exerting extra force.

Causes of a bad Spacer include mechanical stress leading to cracks or breaks, improper installation that may result in loosening over time, and degradation from heat exposure and frequent use.

Symptoms of a failing Spacer include:

• Loose oven door handle.
• Difficulty in opening or closing the oven door.
• Visible gaps or misalignment of the door handle.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This factory replacement plate is used on Frigidaire-made cooking appliances to cover and support a specific area of the unit. Replacing a bent or missing plate restores proper protection, alignment, and a clean, finished appearance. What it does

• Covers an opening or shields internal components as designed for the model
• Provides a stable mounting surface for adjacent parts or hardware
• Helps prevent debris intrusion and potential rattles or vibration
• Common signs it's needed: plate is missing, bent, cracked, or won't fasten securely

• 1 plate

• Disconnect power (and gas, if applicable) and allow the appliance to cool before servicing
• Retain and reuse existing screws/fasteners unless your model specifies new hardware
• Align the plate with existing holes; start screws by hand to avoid cross-threading and tighten evenly
• Verify clearances and safe operation before restoring power

This oven door hinge restores smooth, controlled door movement so the door closes flush and seals properly. Replace a fatigued or bent hinge to reduce heat loss, improve safety, and keep cooking temperatures consistent.

• Supports and pivots the oven door while managing spring tension for controlled opening/closing
• Helps the door gasket compress fully for proper heat retention
• Replaces a hinge that is bent, worn, broken, sticking, or squeaking
• Common symptoms: door won't close fully, drops too quickly, won't hold at a partially open position, misaligned door

• Disconnect electrical power; shut off gas supply if applicable. Allow the appliance to cool completely.
• The hinge is spring-loaded—support the door and use hand/eye protection.
• Remove the door per service procedure, replace the hinge, and ensure the hinge arm seats fully in its receiver before reinstalling the door.
• If the door remains misaligned, inspect the opposing hinge and hinge receivers for wear or damage.

This door handle replaces a worn, damaged, or missing refrigerator door handle to restore a solid grip and normal door access. It installs on the exterior of the fridge door and gives a finished look while providing reliable pulling strength. What it does:

• Provides a secure grip for opening and closing the refrigerator door
• Replaces cracked, broken, loose, or missing door handles
• Restores proper handle alignment and ergonomics to reduce strain when opening
• Helps maintain the appliance's appearance by covering damaged areas

• Disconnect power or unplug the appliance and empty the door area before starting
• Removal usually requires loosening or removing a few screws or clips from the interior door panel
• Preserve and reuse existing mounting screws or brackets unless new hardware is explicitly listed as included
• Do not overtighten fasteners; test operation after installation to ensure proper alignment and seal

This shield-filler door is a factory-style trim piece that covers the gap at the appliance filler/door area for a finished appearance and helps keep debris out of the opening. It restores the original look when the original piece is cracked or missing. What it does:

• Replaces a damaged, cracked or missing filler/door shield to restore appearance
• Covers the gap between cabinet and appliance to help keep crumbs and debris out
• Provides the OEM fit and alignment for proper door/filler function
• Helps prevent snagging or catching on the exposed edge

• One shield-filler door

• Install requires basic hand tools; part typically snaps or screws into place—tighten fasteners securely
• Work with the door in the position specified by your service manual to avoid misalignment
• Unplug the appliance or shut off power at the breaker before working near electrical components

This mounting bracket secures internal appliance components to the cabinet or frame, helping keep parts aligned and stable for reliable operation. A direct-fit replacement when the original bracket is bent, broken, or missing. What it does

• Provides a stable anchor point for panels, assemblies, or hardware
• Prevents movement that can cause noise, vibration, or misalignment
• Restores proper fit and clearance for neighboring parts
• Damaged brackets can lead to loose panels, rattling, or impaired component operation

• Disconnect power and disconnect water before beginning repairs.
• Some disassembly of exterior panels or trim may be required to access the bracket.
• Use appropriate hand tools; avoid over-tightening fasteners which can deform the bracket.
• If sharp edges are present, wear gloves and eye protection; follow the appliance's service manual for detailed instructions.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

Replacement screw that secures panels, trim and internal components in compatible appliances. Restores proper fit and helps reduce rattling or loose parts when the original fastener is missing, worn, or damaged. What it does:

• Fastens panels, brackets, trim pieces and small component assemblies to the appliance frame
• Helps eliminate noise and vibration caused by loose or missing fasteners
• Replaces stripped, corroded or missing screws to restore secure mounting
• Matches OEM fit when the identical screw is required for proper alignment

• Disconnect power to the appliance before starting any repair
• Use the correct driver size to avoid cam-out or damage to the screw head
• Do not overtighten; overtightening can strip threads or crack plastic parts

Size: 8-32t x 0.500 inch. Color: Black.
