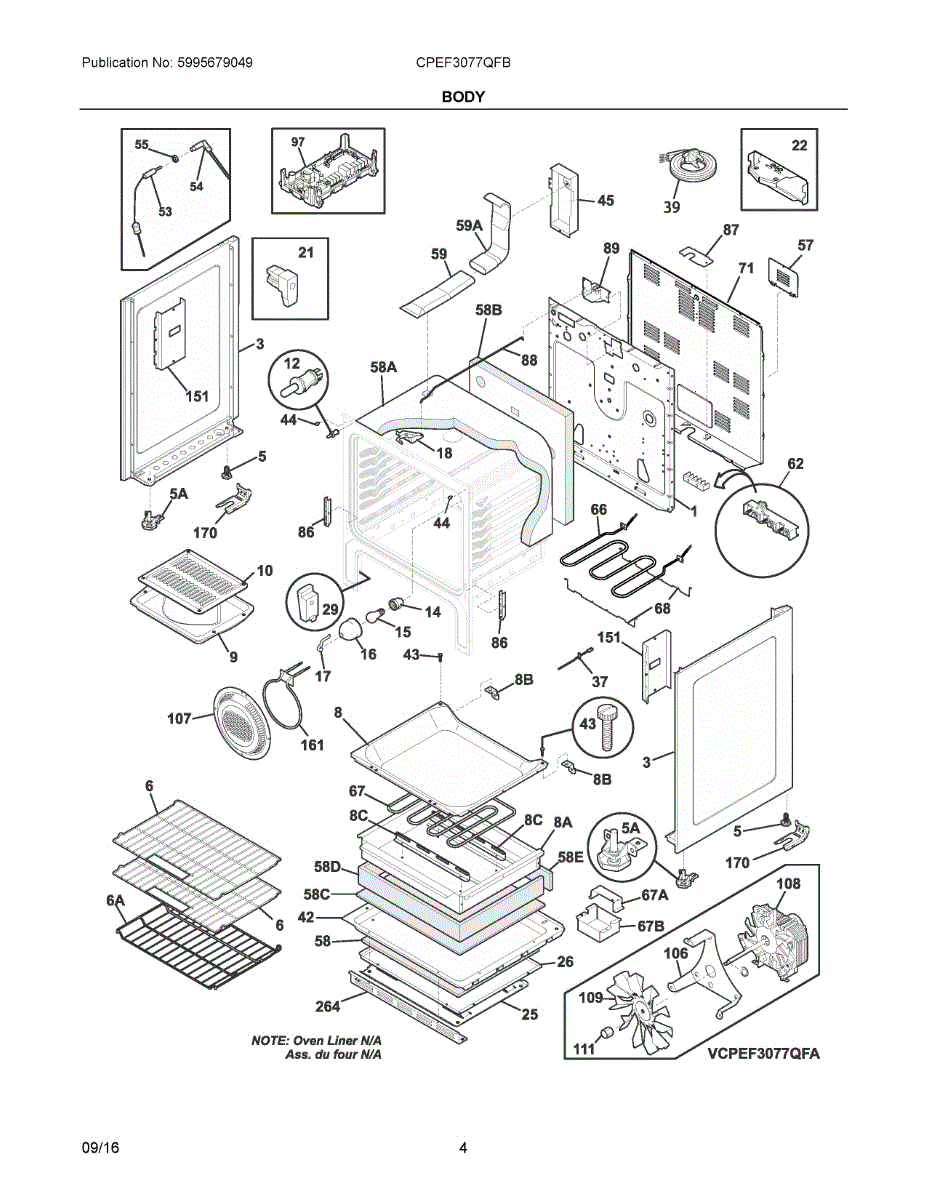

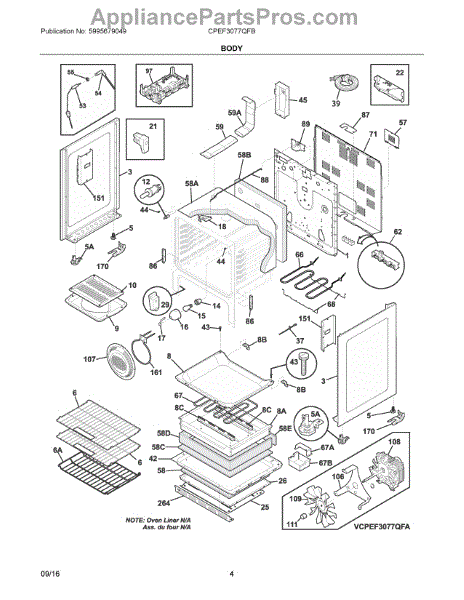

Parts for Electrolux CPEF3077QFB: 03 - Body Parts

Control panel for electric and gas ranges. Replaces a cracked, damaged, or worn panel on the front of your range. Restores the appearance of your appliance.

Control panel trim for electric and gas ranges. Replaces cracked, faded, or damaged panel trim. Installs on the front control area to restore appearance.

Exterior trim panel that houses and protects your range's control interface and display. Replace if cracked, broken, or worn to restore a clean appearance.

This factory screw secures panels, brackets, and other components in your cooking appliance. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and keep parts properly aligned during use.

• Fastens components to maintain proper alignment and stability
• Helps prevent vibration, rattling, and loose parts during operation
• Replace if threads are stripped, the head is damaged, or the screw is missing
• Commonly used to mount internal or exterior parts in ranges and wall ovens

• Disconnect power and allow the appliance to cool; shut off gas supply if applicable
• Use the correct driver bit to avoid stripping the screw head
• Install in the original location and do not overtighten
• If the receiving threads are damaged, repair or replace the mating part before installation

Leveling leg assembly installs at the front corners of your range. Replace if broken, rusted, missing, or no longer adjusts to level your appliance.

Replacement oven rack for electric and gas ranges. Replaces bent, rusted, discolored, or missing racks. Slides into side rails for sturdy support.

Oven rack for electric and gas ranges. Provides a cooking surface inside the oven cavity. Replace if discolored, warped, rusted, or damaged.

Replace your range's damaged or missing base frame. This structural component supports the appliance and installs at the bottom. Ideal for cracked or worn bases.

Mounting bracket that secures burner components to your electric range. Replace if bracket is bent, broken, or missing to properly support burner assembly.

Replacement mounting bracket that secures internal range components. Needed when your original support is broken, cracked, or missing, causing parts to rattle.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light stays on or won't turn on when door opens? This door-activated switch restores automatic light control. Easy 15-minute DIY repair.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Lens is an OEM component for Frigidaire freezers. It acts as a transparent cover and protective barrier for the freezer compartment lights. Crafted for durability and clarity, the lens avoids frost and minimizes condensation while allowing visibility inside the freezer.

Causes of a bad lens can include deep scratches or cracks developing over time from repeated wiping or exposure to chemicals like frost removers.

Symptoms of a bad freezer lens include:

• Cloudiness, fogginess, or smears inhibiting internal visibility
• Cracks or breaks compromising the protective barrier
• Distorted views make it difficult to assess food levels
• Diffused lighting with shadows instead of a clear view

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Secures the glass light cover to your range oven cavity. Replace if the retainer is cracked, broken, or missing to keep the lens firmly in place.

Fix an oven door that won't lock during self-clean or clean cycle errors. This door latch assembly secures the door and reports lock status to the control.

Secures range trim, panels, and components to prevent rattles and loosening. Replace when clips break or lose tension. Confirm fit with your model number.

Secures cabinet panels to your range frame, maintaining proper alignment and structural stability. Replace if bracket is cracked, bent, or missing.

This replacement shield is a molded protective cover that shields internal components from debris and moisture and helps maintain proper airflow and component alignment for reliable appliance operation. What it does:

• Protects wiring, sensors, and small components from physical contact and debris
• Helps direct airflow or block light, depending on installation location
• Prevents vibration-related noise when cracked or loose
• Commonly replaced when the original is cracked, missing, or warped

• Disconnect power before beginning any repair
• Handle carefully to avoid cracking the plastic; transfer any grommets or clips from the old part
• Reuse original fasteners unless damaged; ensure shield is seated and secured to prevent rattling

Supports smooth drawer movement in your range's storage compartment. Replace when drawer becomes crooked, slides too far, or glide shows wear grooves.

Fix F10 error codes or inaccurate oven temperatures with a new sensor probe. Common fix for ovens that overheat or won't reach set temp. Easy DIY repair.

Replace a cracked, warped, or missing heat shield in your electric range. This protective guard installs between heating elements and internal components.

Size: 8-32t x 0.500 inch. Color: Black.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Shield protects the wire harness near the vent tube in your range. Replace if cracked, damaged, or missing to prevent wire exposure and ensure safe operation.

Oven displaying probe error or reading temperature when unplugged? This meat probe monitors internal food temperature. Easy DIY replacement part.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Replace a cracked, broken, or missing outer housing cover on your range. This trim piece protects internal components and restores the finished look.

This cabinet foam insulation panel restores the refrigerator's internal thermal barrier to help maintain temperature stability and reduce condensation and noise. Replaces a worn or missing insulation panel behind interior panels or liner. What it does:

• Provides thermal resistance to help the appliance hold cold air and run more efficiently
• Reduces surface condensation that can lead to moisture buildup and ice
• Dampens vibration and reduces operating noise from the compressor and cabinet
• Helps ensure even cooling by filling the cavity between outer cabinet and inner liner

• One cabinet foam insulation panel

• Disconnect power and empty/prop open doors before removing panels; follow OEM service instructions
• Remove interior liners or access panels to reach the insulation cavity; handle foam carefully to avoid tearing
• Position the panel so it fills the cavity without excessive compression; trim only if specifically instructed by OEM
• If adhesive or fasteners are used, replace with OEM-recommended materials and inspect surrounding seals

This cabinet insulation replaces worn or missing foam inside the refrigerator cabinet to help restore proper temperature control and reduce energy loss. Fits behind liners and panels to improve cooling efficiency and reduce condensation. What it does:

• Provides thermal barrier between cold interior and warm cabinet to help maintain consistent temperatures
• Reduces heat transfer that can cause the compressor to run more frequently
• Helps limit condensation and frost buildup on cabinet surfaces
• Dampens vibration and reduces noise from normal operation

• One cabinet insulation piece as shown

• Remove power and empty the appliance before starting work
• Access may require removing interior liners, shelves, or back panels — follow OEM service instructions
• Replace only in the area indicated by the OEM; use appropriate adhesive or fasteners if required

Thermal insulation pad that installs inside the range cabinet. Replace if torn, missing, or deteriorated to restore heat protection between panels and liners.

Insulation panel for range oven cabinet that reduces heat transfer and noise. Installs on top and sides. Replace if worn, damaged, or missing.

Replace your range's vent tube if the original is cracked, damaged, or missing. This duct component directs airflow within your appliance. Direct fit.

Upper oven vent tube for gas and electric ranges. Channels hot air from the oven cavity to the exterior vent. Replace if cracked, damaged, or missing.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Broil element not heating or burned out? This top heating element restores high-heat broiling for browning and crisping. DIY-friendly, 15-30 minute repair.

Burner not heating on your smooth-top range? This radiant surface element restores even heat to one cooking zone. Straightforward DIY repair.

Replacement support plate for ranges. Mounts inside the appliance to provide structural stability. Order a new one if cracked, broken, or missing.

Protective shield for your range. Installs to guard internal components from heat and debris. Replace if cracked, bent, or missing for proper protection.

This electrical receptacle is the small connector that secures a wiring plug to an appliance component, restoring a reliable electrical connection and preventing intermittent operation or arcing. What it does:

• Provides a secure plug-in connection between a wire harness and a component
• Restores power to a component when the original connector is cracked, melted, or corroded
• Helps prevent loose connections that can cause intermittent operation or sparks
• Fits the OEM-style wiring configuration for a direct replacement

• Disconnect power to the appliance before starting any repair
• Remove the damaged connector and match the replacement to the harness before installing
• Use basic hand tools; avoid forcing terminals to prevent damage

Replacement door latch rod for electric and gas ranges. Installs in the door mechanism to secure the latch assembly. Order a new rod if broken or missing.

Fix F95 error code or oven door that won't lock during self-clean cycle. This door lock motor assembly repair takes about 15 minutes with basic tools.

Fix F10 error codes, blank displays, or temperature fluctuations. This oven control board restores bake/broil cycles and keypad response in your range.

Secures the motor assembly to the range chassis. Replace if your bracket is cracked, bent, or broken to restore proper motor alignment and stability.

This evaporator fan cover protects the refrigerator evaporator fan assembly and helps direct airflow for proper cooling. It's a molded replacement part that restores the original airflow path and prevents debris contact with the fan. What it does:

• Shields the evaporator fan and motor from ice buildup and loose debris
• Directs airflow across the evaporator for even cooling in the freezer compartment
• Helps reduce fan noise by stabilizing airflow around the fan housing
• Commonly replaced when cracked, broken mounting tabs are present, or airflow is obstructed

• One fan cover

• Disconnect power before accessing the evaporator compartment to avoid shock and fan injury
• Remove food and evaporator access panels per model service instructions before replacing the cover
• Handle clips and mounting tabs gently—use proper fasteners if any original hardware is damaged
• If you encounter ice buildup on the evaporator, fully defrost and address the underlying cause before reassembly

Fixes loud noises or no airflow from convection fan. This motor drives the fan to circulate air evenly during cooking. DIY-friendly repair in 10-30 minutes.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Uneven baking or convection mode not working? This rear-mounted convection fan heating element circulates hot air for consistent cooking results.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

This wiring harness connects control components and delivers reliable electrical routing inside the appliance, restoring proper circuit continuity and helping eliminate intermittent power or control issues. What it does

• Provides the required wiring and connector plugs between controls, switches and motors
• Restores lost or damaged electrical paths that cause intermittent operation or non-responsive controls
• Replaces harnesses with frayed wires, damaged insulation or broken terminals to reduce short and fault risks
• Ensures correct plug-to-plug connections for safe, consistent appliance function

• Disconnect power to the appliance before starting any repair
• Verify connector orientation and fully seat plugs to avoid loose connections
• Route harness away from sharp edges and heat sources; secure with existing clips or fasteners
• If wires or terminals appear damaged beyond visible repair, replace the entire harness.

This is a replacement mounting screw used to secure the dual safety valve assembly on compatible gas ranges and ovens. It restores proper fastening so the valve stays firmly in place during operation. What it does

• Secures the safety/dual gas valve to the appliance chassis or manifold
• Prevents valve movement that can interfere with burner operation or alignment
• Commonly replaced when original screw is missing, stripped, or damaged
• Matches OEM thread size and length for correct fit and retention

• One (1) screw, size 10-16 x 0.486

• Disconnect power and shut off gas supply before starting work; follow all safety procedures
• Thread carefully to avoid cross-threading; do not overtighten — snug to OEM torque specification
• Inspect surrounding mounting holes and hardware; replace any stripped or damaged parts for a secure fit

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Replacement mounting screw for range power and control boards. Secures electrical board connections. Needed when original screw is missing or damaged.

Replacement washer for electric and gas ranges. Secures components during installation. Order a new washer if yours is missing, damaged, or worn.

Replace your range's multi-connector wire harness if damaged, frayed, or causing connection issues. Restores electrical connections between components.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Mounting screw for securing range panels, brackets, and igniters. Replace if stripped, missing, or damaged to restore proper fastening and alignment.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Secures the oven bottom panel in place. Replace if screw is stripped, missing, or no longer holds the panel securely. Sold individually.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.
