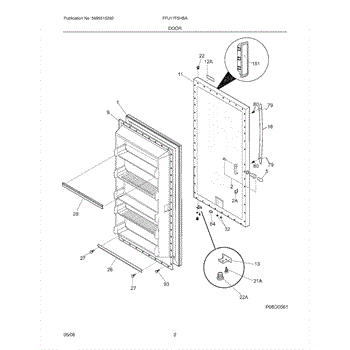

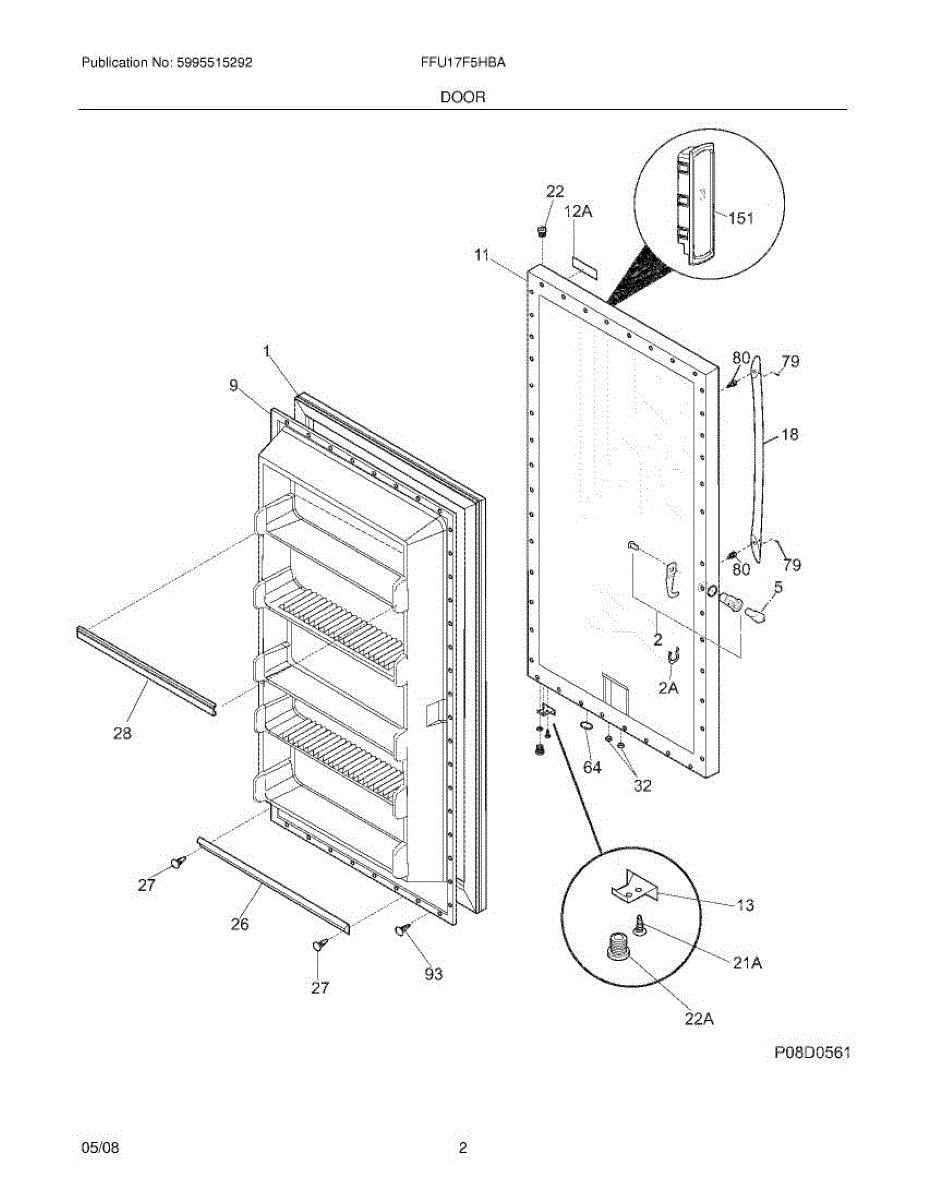

Parts for Frigidaire FFU17F5HBA: 03 - Door Parts

The Door Gasket, in black, is an OEM part for Frigidaire refrigerators. This essential component provides a tight seal around the door to prevent cool air from escaping and outside air from entering. The gasket measures approximately 60-1/2 x 31-1/2 inches.

Symptoms of a failing Door Gasket include:

• Condensation or frost buildup around the edges of the refrigerator door
• The refrigerator running more frequently or for longer periods
• A noticeable increase in the energy bills due to decreased efficiency
• The door not sealing properly, which can be felt as a slight resistance or ease when opening the door

Causes of a bad door gasket can include wear and tear from regular use, exposure to food oils and residue that can degrade the rubber, or damage from cleaning or accidental impacts.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Freezer Door Key is an OEM replacement part for Frigidaire refrigerators. This small but essential component is designed to securely lock the freezer door, preventing accidental openings or unauthorized access.

Symptoms of needing to replace the freezer door key include:

• Difficulty in locking or unlocking the freezer door
• The key not fitting properly or becoming stuck in the lock
• Visible wear, damage, or breakage of the key itself

Causes of a faulty freezer door key can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the locking mechanism itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This replacement screw secures panels, brackets, or internal components in select Frigidaire-made refrigerators and freezers. Use it to replace missing or stripped hardware and restore a secure fit to help reduce vibration and noise.

• Fastens appliance panels, brackets, and internal components
• Helps prevent vibration, rattling, or looseness from missing hardware
• Reliable fix when the original screw is missing, damaged, or stripped
• Designed for proper fit in the original threaded location(s) specified for this part number

• Disconnect power to the appliance before servicing
• Align parts and start the screw by hand to avoid cross-threading
• Tighten snugly; do not overtighten, especially into plastic components
• Reuse any original washers or clips if present and in good condition

This bearing installs in the refrigerator/freezer door hinge to provide a smooth pivot point and maintain alignment. Replacing a worn bearing restores easy door movement and helps the door close and seal correctly.

• Provides a low-friction surface between the hinge pin and hinge bracket for smooth door pivoting
• Helps maintain proper door height and alignment for a reliable gasket seal
• Typical symptoms of wear: squeaking or grinding when opening, door binding or dropping, door not closing fully or popping open
• Excess wear can contribute to air leaks and frost buildup around the door

• Disconnect power before servicing; remove or secure items in the door
• Support the door; remove hinge fasteners and lift the door off if required
• Note and retain any shims/spacers; install the new bearing in the hinge as oriented in the diagram
• Reinstall and align the door; verify smooth operation and a complete gasket seal. Do not lubricate unless specified by the manufacturer

This door gasket creates an airtight seal around your refrigerator or freezer door or lid, keeping cold air in and moisture out. Replace a worn gasket to restore temperature control, reduce frost, and support efficient operation.

• Forms a tight perimeter seal between the cabinet and door/lid to prevent air leaks
• Helps maintain stable internal temperatures and consistent cooling performance
• Reduces frost and condensation caused by a failed or leaking seal
• Common symptoms: visible tears or cracks, gaps, warping/shrinkage, door not sealing or staying closed

• Disconnect power; remove items from the door/lid as needed
• Warm the new gasket (soak in warm water or gently heat) to make it pliable, then straighten corners
• Fit the gasket into the channel or under the retainer, working evenly around the perimeter
• Check closure all around with a paper test; adjust hinges/leveling as needed and allow the gasket to relax and conform

Quantity of 1 clip.

Note: See kit# 5303922007 and 5304406520.

This door rack mounts to the inside of the refrigerator or freezer door to hold small items securely. Replace a cracked or missing rack to restore door storage and prevent items from falling when the door opens and closes.

• Provides additional storage on the inner door for jars, condiments, and small items
• Helps keep contents organized and stable during door movement
• Common symptoms: broken or missing rack, items falling from the door, reduced storage space
• Restores original fit and function when the existing rack is damaged

• Unplug the appliance before servicing
• Remove items from the affected door area
• Lift or release the old rack from the end supports/slots; seat the new rack fully into the same supports
• Confirm the rack is secure before reloading and avoid overloading to prevent damage

This screw set contains the fasteners used to secure panels and components on compatible Frigidaire appliances, helping restore proper fit and reduce rattling or loose parts. Replace missing or worn screws to re-secure covers and mounts. What it does:

• Provides the correct fasteners for reattaching trim, panels, or internal components
• Restores secure mounting to reduce vibration, rattling, or loose panels
• Replaces missing or damaged screws that prevent proper assembly
• Helps ensure service repairs use the correct OEM-style hardware

• One screw set

• Use the screws only in the specified locations and quantities recommended by your service guide
• Tighten screws snugly but avoid over-torquing to prevent stripping or damage
• Disconnect power (and water, if applicable) before servicing the appliance
• If any fastener appears damaged or the fit is incorrect, stop and verify fit before completing the repair

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This is the electronic temperature control board for select refrigerators/freezers with EZ Set controls. It regulates interior temperature based on sensor feedback and user settings to keep food safely stored.

• Monitors temperature sensor(s) and cycles compressor/defrost as designed
• Interfaces with EZ Set user controls to adjust cooling level
• Faulty boards can cause warm or too-cold temperatures, erratic cycling, or unresponsive controls
• May resolve intermittent cooling or control panel issues when properly diagnosed

• Unplug the appliance before servicing; use ESD protection when handling electronics
• Access location varies by model; note all wire connections before removal
• Handle connectors and board carefully; avoid bending pins or stressing harnesses
• After installation, restore power and allow 24 hours for temperatures to stabilize

This nut-anchor is a small mounting insert that provides a secure threaded point in thin sheet metal so screws can fasten panels or components reliably. It restores a solid attachment where the original fastener or threaded hole is missing. What it does:

• Provides a reinforced threaded anchor in thin metal or plastic panels
• Allows screws to tighten without stripping the sheet material
• Stops panels, trim, or assemblies from coming loose or rattling
• Used where a captive nut or threaded insert is required for reassembly

• Install where original nut/insert was located; verify orientation before fastening
• Use the correct screw size and hand-tighten to avoid overtightening or thread damage
• Disconnect power and move the appliance to a safe, stable work area before servicing
• If the original mounting point is severely damaged, consider assessing the surrounding structure for repair

The Refrigerator Door Gasket Clips are OEM parts for Frigidaire refrigerators. These clips secure the door gasket in place, ensuring a tight seal to maintain the internal temperature and prevent cold air from escaping. This pack contains 40 clips, which secure the interior trim pieces and hold the gasket and liner to the freezer lid.

Over time, the gasket clips can become damaged or worn out due to frequent opening and closing of the refrigerator door, exposure to moisture, or accidental impacts. If the clips fail, the door gasket may not stay in place, compromising the refrigerator's efficiency.

Symptoms of bad refrigerator door gasket clips include:

• The door gasket not staying securely in place
• Visible damage or wear on the clips
• Cold air escaping from around the door
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
