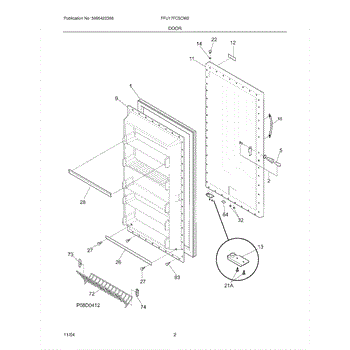

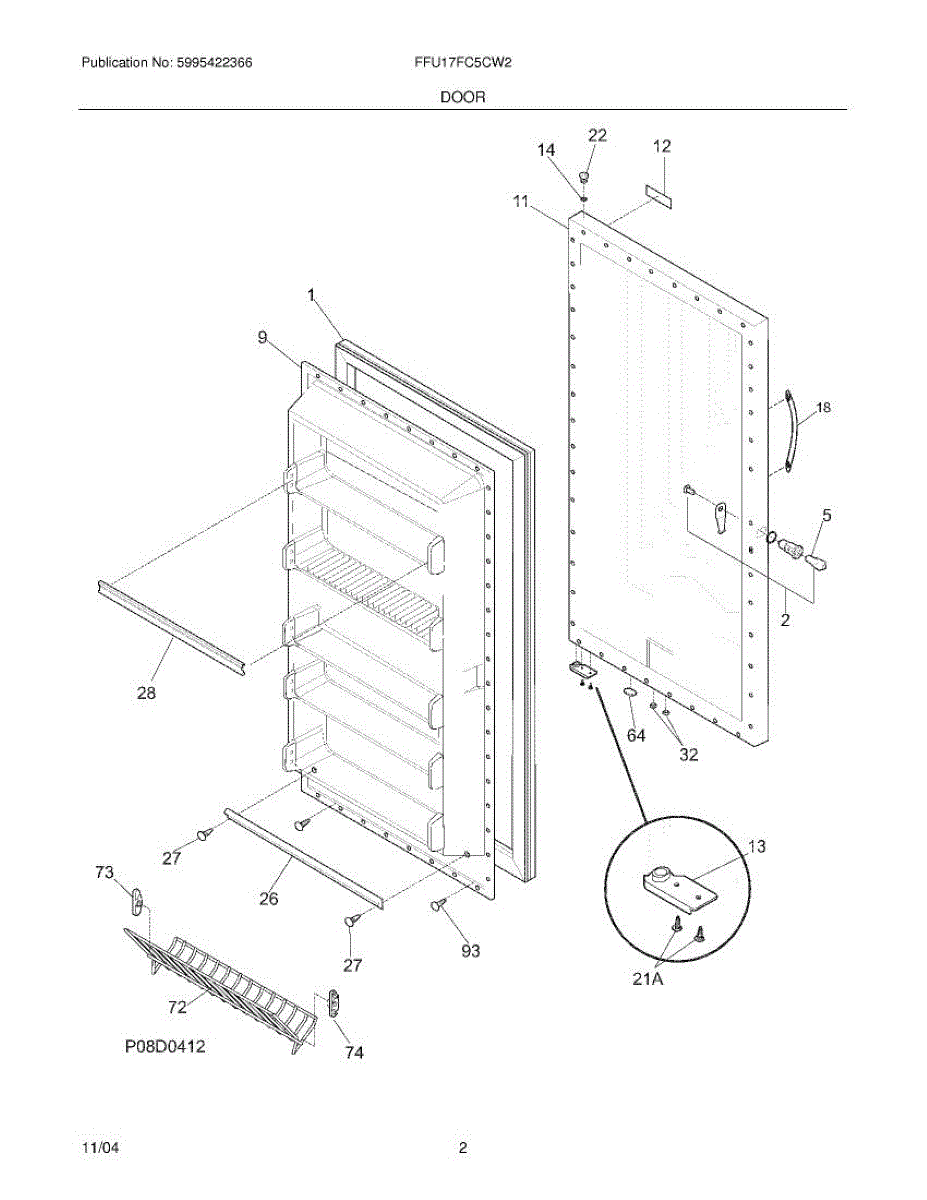

Parts for Frigidaire FFU17FC5CW2: 03 - Door Parts

The Door Gasket is an OEM part for Frigidaire refrigerators. It ensures a tight seal around the door, preventing cold air from escaping and maintaining the set temperature inside the appliance. Over time, the gasket can wear out, become brittle, or lose its elasticity, leading to gaps between the gasket and the appliance frame. The gasket measures approximately 31" x 60"

Causes of a bad door gasket can vary from normal wear and tear to accidental damage.

Symptoms of a bad Gasket include:

• Noticeable gaps or tears in the gasket
• Difficulty in maintaining the set temperature
• Condensation or frost buildup around the door

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

By Frigidaire. Includes Freezer key 5303310289.

The Freezer Door Key is an OEM replacement part for Frigidaire refrigerators. This small but essential component is designed to securely lock the freezer door, preventing accidental openings or unauthorized access.

Symptoms of needing to replace the freezer door key include:

• Difficulty in locking or unlocking the freezer door
• The key not fitting properly or becoming stuck in the lock
• Visible wear, damage, or breakage of the key itself

Causes of a faulty freezer door key can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the locking mechanism itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This door gasket creates an airtight seal around your refrigerator or freezer door or lid, keeping cold air in and moisture out. Replace a worn gasket to restore temperature control, reduce frost, and support efficient operation.

• Forms a tight perimeter seal between the cabinet and door/lid to prevent air leaks
• Helps maintain stable internal temperatures and consistent cooling performance
• Reduces frost and condensation caused by a failed or leaking seal
• Common symptoms: visible tears or cracks, gaps, warping/shrinkage, door not sealing or staying closed

• Disconnect power; remove items from the door/lid as needed
• Warm the new gasket (soak in warm water or gently heat) to make it pliable, then straighten corners
• Fit the gasket into the channel or under the retainer, working evenly around the perimeter
• Check closure all around with a paper test; adjust hinges/leveling as needed and allow the gasket to relax and conform

Quantity of 1 clip.

Note: See kit# 5303922007 and 5304406520.

This door rack mounts to the inside of the refrigerator or freezer door to hold small items securely. Replace a cracked or missing rack to restore door storage and prevent items from falling when the door opens and closes.

• Provides additional storage on the inner door for jars, condiments, and small items
• Helps keep contents organized and stable during door movement
• Common symptoms: broken or missing rack, items falling from the door, reduced storage space
• Restores original fit and function when the existing rack is damaged

• Unplug the appliance before servicing
• Remove items from the affected door area
• Lift or release the old rack from the end supports/slots; seat the new rack fully into the same supports
• Confirm the rack is secure before reloading and avoid overloading to prevent damage

This left-side tiltout end cap replaces the damaged or worn plastic end piece that secures and guides a fridge/freezer tilt-out or dairy bin. Restores a secure fit and smooth opening for the tilt-out assembly. What it does:

• Replaces the left end cap on a tilt-out/dairy bin assembly
• Helps keep the drawer aligned and held in place during use
• Reduces rattling or catching when opening and closing the tilt-out
• Matches OEM fit and mounting points for direct replacement

• One left tiltout end cap

• Remove contents and the tilt-out bin before attempting replacement
• Installation typically requires basic hand tools and gentle prying to disengage clips
• Inspect mating clips and housing; replace or repair any broken tabs before reinstalling

This is a right-side tilt-out end cap that replaces a damaged or missing end piece on a refrigerator/freezer tilt-out bin. Restores secure mounting and proper pivoting of the bin for smooth opening and closing. What it does:

• Serves as the right end support for a tilt-out bin, providing the pivot point and cosmetic trim
• Keeps the bin aligned so it opens and closes smoothly
• Replaces cracked, broken, or worn end caps that allow the bin to sag or fall out
• Helps prevent rattling and excessive play of the tilt-out bin

• One right-side tilt-out end cap

• High-level snap-in or screw-mount replacement; remove the bin and follow OEM instructions
• Remove stored items before servicing and support the bin while replacing the cap
• Use basic hand tools; avoid forcing parts to prevent further damage

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener
