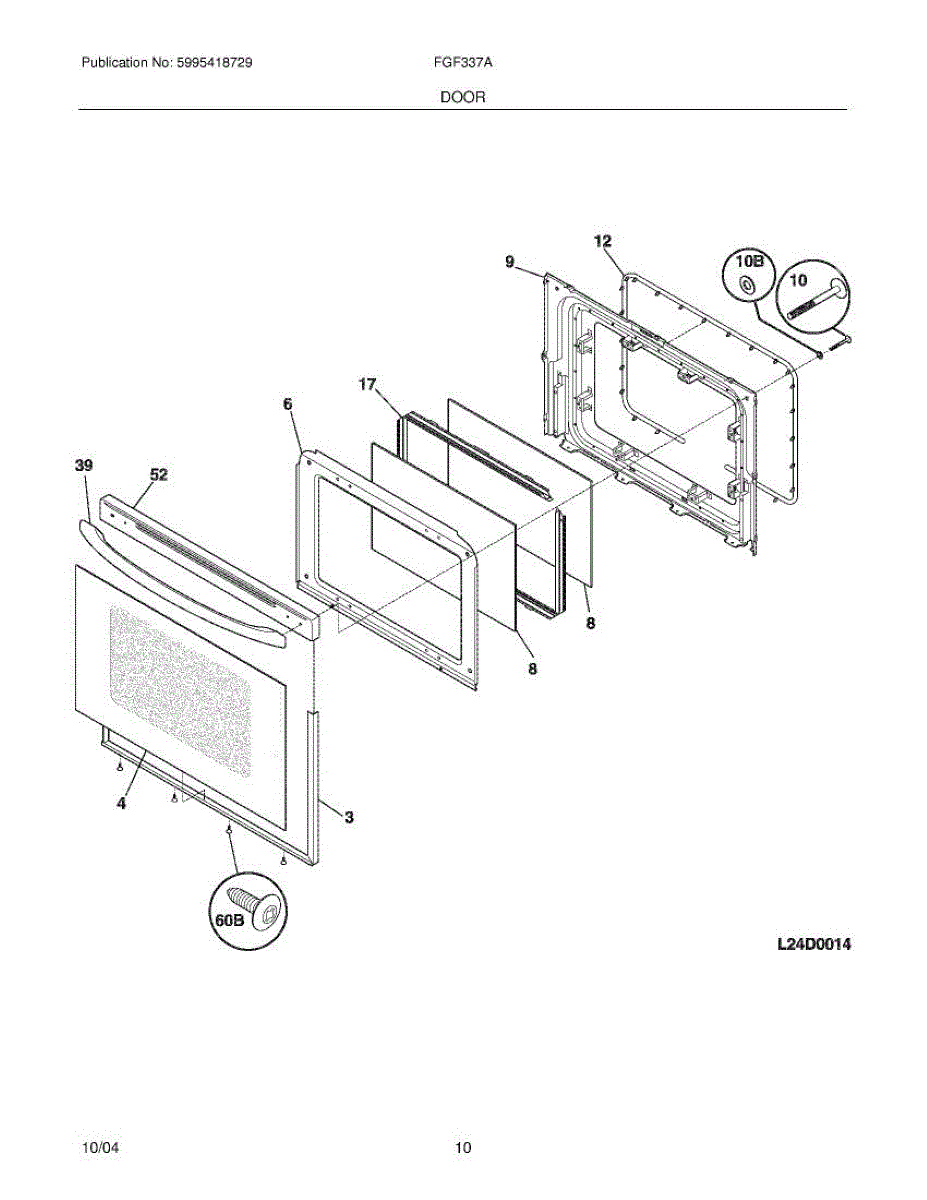

Parts for Frigidaire FGF337ASJ: 11 - Door Parts

Color: White. This is a 3-sided door trim kit.

Color: White. This is the outer door glass. Kit includes foil tape.

Inner door glass panel for range and wall oven doors. Replace if cracked, shattered, or slipped out of position. Installs between outer glass and oven cavity.

Size: 3/4 inch od x 1/4 inch id.

Mounting screw for range oven door handles. Secures the handle to the door panel. Replace when stripped, corroded, missing, or if handle is loose.

Replace your range oven door seal when heat escapes or it's cracked. Seals oven perimeter for proper temperature control. Confirm fit with model number.

White plastic handle that mounts to the front of your range oven door. Replace if your handle is cracked, broken, or screw holes are stripped out.

This replacement surface burner cap sits on top of the gas burner head to focus and distribute the flame for even, efficient heating. Replacing a damaged or missing cap can restore proper ignition and flame pattern. What it does:

• Covers and protects the burner head from spills and debris
• Spreads and concentrates the flame for consistent cooking performance
• Helps prevent yellow, lifting, or uneven flames when properly seated
• Common symptoms: uneven or yellow flames, poor simmer, delayed ignition, chipped/warped/missing cap

• 1 surface burner cap

• Allow the cooktop to cool; disconnect power and shut off gas if servicing beyond simple cap replacement
• Lift off the old cap and clean the burner head surface of residue or debris
• Center the new cap on the matching burner head so it sits level—do not force
• Use the correct cap for the burner position; test ignition and flame after installation

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Size: 8-18ab x 0.5 inch.

Size: 8-18ab x 0.5 inch.

Size: 10-32 x 0.312 inch. Color: Black.

Size: 10-32 x 0.312 inch. Color: Black.

Size: 8-32t x 0.500 inch. Color: Black.

Size: 8-32t x 0.500 inch. Color: Black.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
