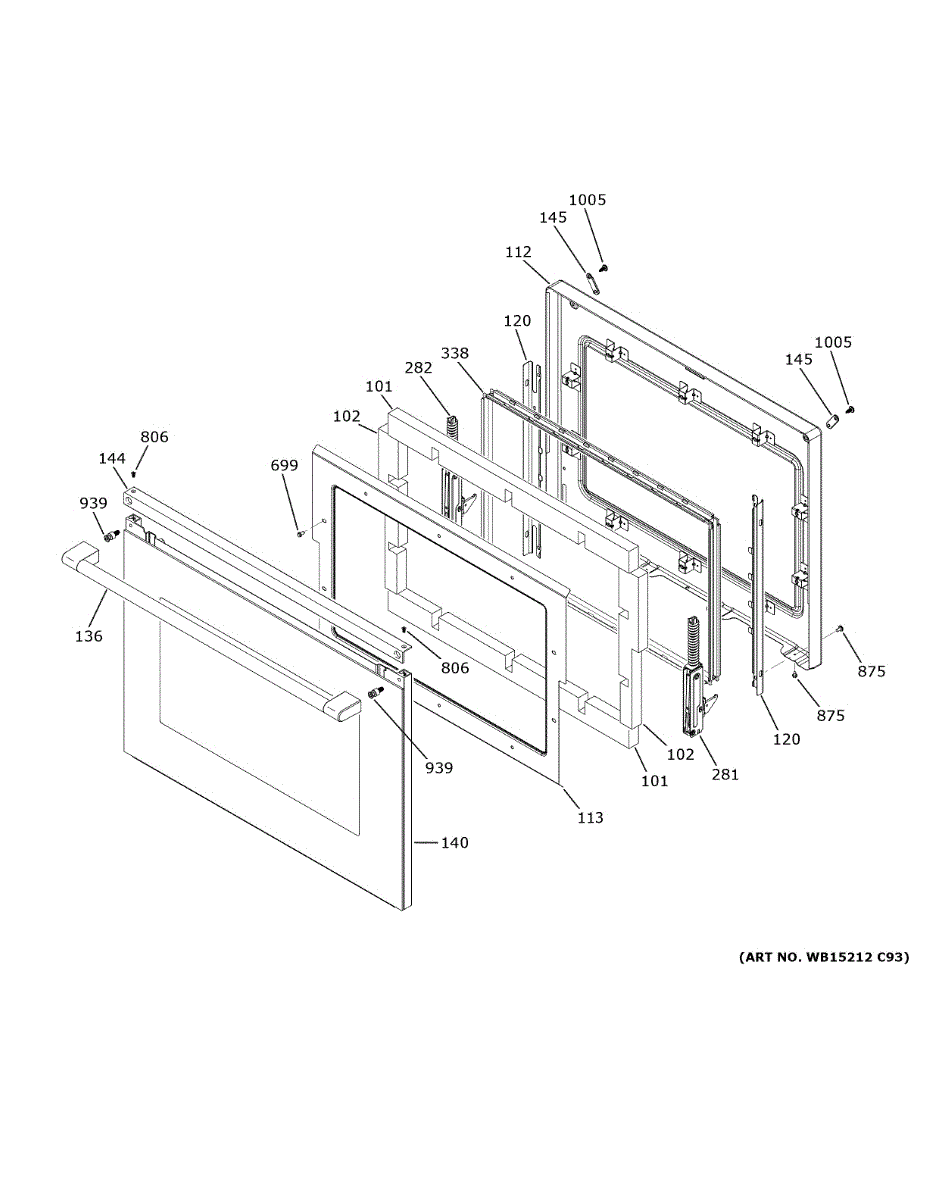

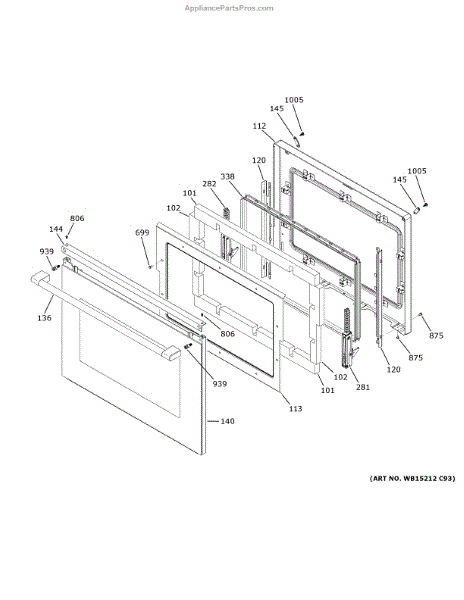

Parts for Ge CTS70DM2N4S5: Door Parts

Replace a cracked, damaged, or worn oven door liner assembly. This inner door panel installs on the oven door and protects internal components.

This door insulation retainer is a small plastic clip that secures insulation inside a refrigerator/freezer door to help maintain proper temperature and reduce noise. It replaces worn or missing retainers to keep the door liner insulation in place. What it does:

• Secures the door insulation to the inner door liner so insulation stays positioned
• Helps prevent insulation from shifting or sagging that can affect door seal performance
• Commonly used when insulation falls out or the liner shows gaps around the insulation
• Works as a direct-fit replacement for the original retainer designed for the door assembly

• One door insulation retainer clip

• Installation generally requires removing the door panel or liner; keep track of fasteners and trim
• Handle the door liner and insulation carefully to avoid damage or tearing the insulation
• Use proper tools and disconnect power if working near electrical components or lights
• Replace all affected clips for an even, secure fit

Secures cabinet liner and interior trim panels in wall ovens. Replace if cracked or loose to restore proper alignment and prevent gaps. Confirm fit with your model.

Stainless steel door handle and endcap for electric ranges and wall ovens. Replaces cracked, broken, or worn handles. Restores appearance and grip.

This oven door top trim restores the finished edge at the top of the oven door for a clean appearance and proper panel alignment. It helps cover the door gap and contributes to a sealed, professional-looking door assembly. What it does:

• Replaces damaged, dented, or bent top trim that affects door appearance
• Helps maintain proper alignment between the oven door and control panel area
• Conceals gap and fasteners for a finished look
• Can reduce drafts or light leaks at the top edge when installed correctly

• Designed to install on the existing oven door assembly; verify fit before installation
• Disconnect power to the appliance before starting any repair
• Handle trim carefully to avoid scratching finished surfaces; use soft cloths if needed
• If screws or brackets appear worn or missing, replace with OEM fasteners for secure fit

Covers fastener holes in your oven's inner door liner for a clean finish. Replace when missing, loose, or damaged to keep grease out. Confirm fit with your model.

Right-side door hinge for wall ovens. Mounts to oven cabinet and supports door opening/closing. Replace if hinge is cracked, bent, or broken.

Left door hinge for electric range ovens. Mounts between the oven door and frame to support opening and closing. Replace if cracked, bent, or loose.

Replaces cracked, broken, or shattered inner glass window on your oven door. Installs between door panels to restore visibility and heat retention.

ST10-16 X 7/16"

This is a replacement 8-32 screw (TT FLT 7/20) for securing appliance panels and internal components. It restores a secure fastened connection so parts stay aligned and rattle-free during normal use. What it does:

• Fastens panels, brackets, and small assemblies that use 8-32 threaded holes
• Helps stop loose or vibrating parts caused by missing or stripped screws
• Provides a direct one-for-one replacement where this specific screw was used
• Works with metal or plastic mounting points designed for 8-32 threads

• Use the correct 8-32 driver; do not overtighten to avoid stripping threads
• Inspect mating threads and replace damaged inserts or clips before installing
• Disconnect power to the appliance and follow manufacturer safety guidance when accessing internal components

Black. 8-18 AB HXW 3/8

This threaded mounting stud secures appliance components, restoring proper fit and stability for panels, trim, or internal parts. Replacing a damaged or missing stud helps stop rattling and keeps assemblies aligned for safe operation. What it does:

• Provides a secure anchor point for panels, trim pieces, or component housings
• Restores correct alignment to reduce vibration and noise from loose parts
• Replaces broken, stripped, or missing studs that prevent proper fastening
• Helps maintain electrical and mechanical clearance by keeping parts in place

• Disconnect power to the appliance before beginning any repair.
• Use appropriate hand tools and match thread engagement; do not overtighten.
• Inspect mating threads and surrounding parts for damage before installation.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
