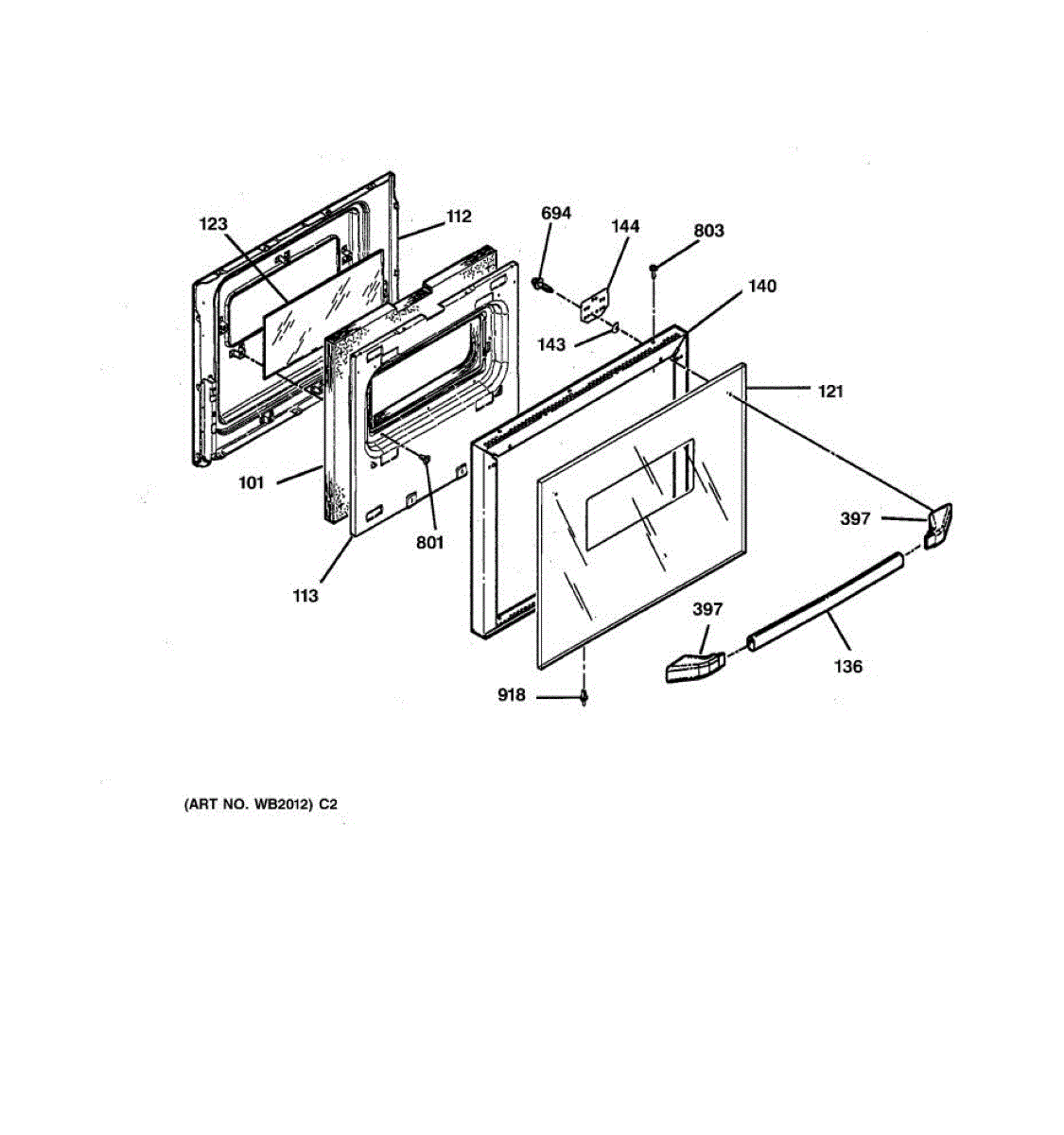

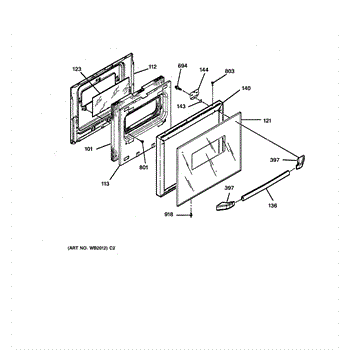

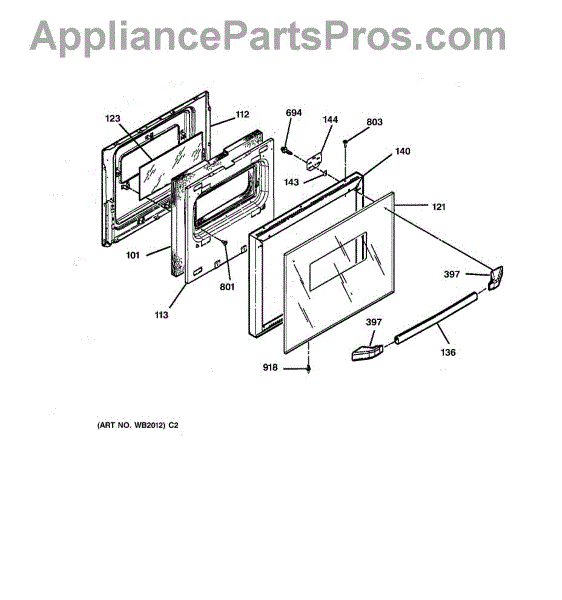

Parts for Ge HMV24CEWABB: 04 - Door Parts

Replaces worn, damaged, or missing insulation inside your oven door. Installs between inner and outer door panels to maintain heat efficiency.

Retainer cable for oven door insulation. Secures insulation in place along door panel. Replace if cable is broken, frayed, or missing from your oven door.

Outer glass panel for oven doors. Replaces cracked, shattered, or broken exterior panes. Restores a clean, safe door surface and protects insulation.

Center glass panel for oven door. Installs between inner and outer door panels. Replace if cracked, broken, or heat-damaged for safety and visibility.

This lower front panel frame replaces the trim piece at the bottom of the oven/range to restore appearance and help keep the bottom cavity covered. It provides a finished look and protects internal components from debris. What it does:

• Covers the lower front opening and conceals the storage/drawer area
• Restores cosmetic appearance when original panel is dented, bent, or scratched
• Helps reduce debris from entering the area under the oven/range
• Fits to existing mounting points and works with the unit's lower assembly

• Disconnect power to the appliance before servicing and allow the range/oven to cool.
• Installation typically requires removal of lower access screws or clips; keep fasteners for reuse.
• Handle the panel carefully to avoid scratching the finish during installation.

Mounting spacer shim for ranges and ovens. Positions components for proper alignment and stable operation. Replace if worn, missing, or damaged.

Reinforcement plate restores structural support where the oven door or trim attaches. Replaces cracked or broken plates to stop sagging and keep panels aligned.

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

• A loose or incomplete look of the range handle, affecting the overall design and functionality.
• Exposed sharp edges that could pose a safety risk to users.
• An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Hex washer head screw secures oven panels, brackets, and door handles. Replace missing, stripped, or damaged screws to eliminate looseness and rattling.

ST10-16 X 7/16"

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or con

Plastic push-in rivet fastener secures trim and panels on electric ranges and ovens. Replace if broken, missing, or worn to prevent loose rattling parts.
