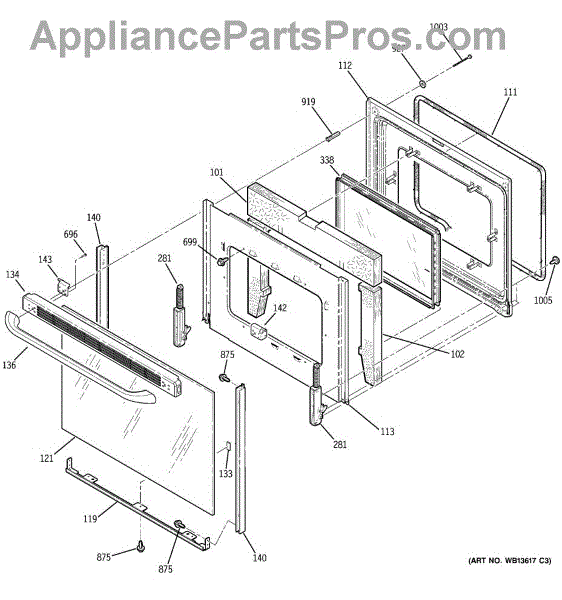

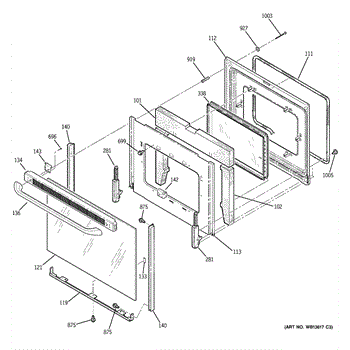

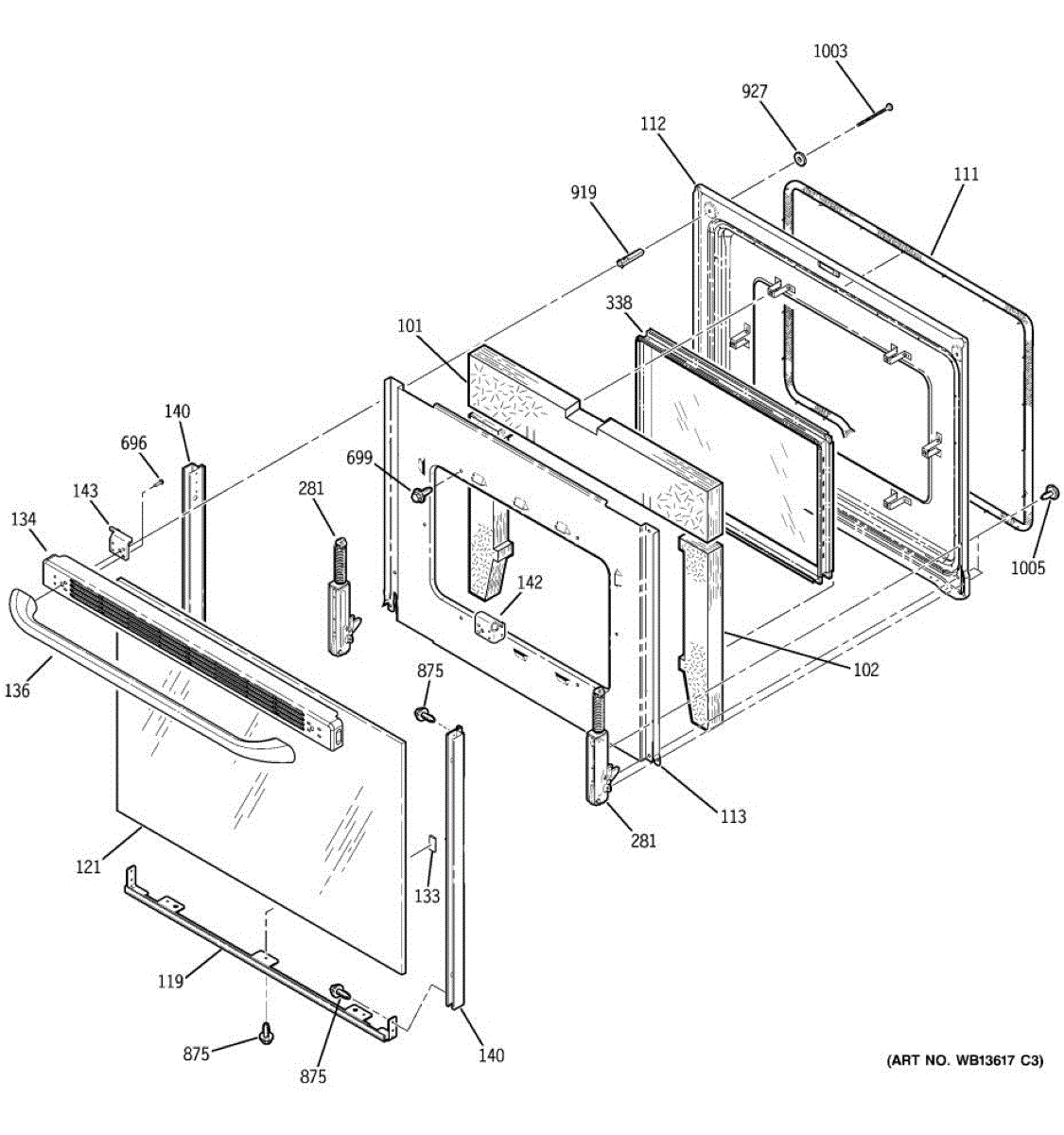

Parts for Ge JBP65BK3BB: 04 - Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

This door insulation lines the inside of the oven door to reduce heat loss and help maintain stable temperatures. Replace a torn, burnt, or saturated pad to restore heating performance and keep the outer door cooler.

• Provides a thermal barrier between the oven cavity and the outer door panel
• Helps the oven reach and hold set temperature more consistently
• Helps reduce heat felt on the exterior door and nearby controls
• Replace if insulation is damaged, compressed, burnt, or grease-soaked; common signs include heat escaping at the door, longer preheat, or temperature swings

• Disconnect power/gas and allow the range to cool completely
• Remove the oven door; place it on a padded surface
• Separate door panels; note insulation routing and any cutouts before removal
• Position the new pad without over-compressing; keep clear of the window and latch, reassemble, and ensure hinges are fully seated

The Oven Door Seal is an OEM part for GE ovens. This seal prevents heat from escaping during cooking, ensuring that the oven maintains a consistent temperature for efficient and even cooking.

A compromised Oven Door Seal can result from several factors, including normal wear and tear from regular use, exposure to high temperatures that degrade the material over time, or accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Seal include:

• Visible wear or damage to the seal
• Heat escaping from the oven door during use
• An increase in cooking times or uneven cooking results
• A noticeable increase in energy consumption as the oven works harder to maintain temperatures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

 Color: Black

The Bottom Trim Channel is an OEM part for GE ranges and wall ovens. This trim piece attaches along the bottom front edge of the oven cavity, creating a seamless facade.

The bottom trim channel is responsible for covering any unsightly gaps and providing a sleek, finished look. It also acts as a protective barrier, shielding internal electronics and insulation from accidental impacts or liquid spills on the counter below.

Symptoms of a bad bottom trim channel include:

• Drooping, loose, or improperly fitted trim piece
• Exposed internal components behind missing or damaged trim
• Liquids or debris accumulating behind or beneath the channel

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This is the door pad. Consider replacing both when replacing trim number WB07T10230

A replacement trim vent door that restores the vent opening and appearance on compatible appliances. Replaces a cracked, loose, or missing vent door to help protect the vent opening and maintain proper airflow. What it does:

• Covers the exterior vent opening and provides a finished trim around the vent
• Helps prevent debris and pests from entering the vent when closed
• Replaces damaged or warped doors that stick or won't latch properly
• Restores proper door movement and a clean, finished exterior appearance

• One black trim vent door

• Disconnect power (or gas) and follow the appliance manufacturer's safety instructions before replacing parts
• Installation typically requires removing a few mounting screws; keep hardware for reuse
• Handle the part carefully to avoid scratching the finish during installation
• After installation, check that the door opens and closes freely and is securely fastened

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

This spring-loaded oven door hinge supports and pivots the door so it opens smoothly and closes tightly. Replacing a worn hinge restores proper door alignment and seal, helping maintain temperature and safe, reliable operation.

• Provides the spring-tensioned pivot that controls door opening and closing
• Maintains door alignment and gasket compression for a tight seal
• Common symptoms: door won't close fully or pops open during use
• Door may drop/sag, not hold position, or make squeaking/binding noises
• Heat escaping from the front of the oven or longer preheat/uneven baking

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door per your model's procedure; engage hinge locks or insert retaining pins and support the door
• Replace the hinge; springs are under tension—use gloves and caution
• Reinstall and check door movement and seal for proper closure

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hex washer-head screw secures sheet-metal panels, brackets, and assemblies in your appliance. Replacing a missing, stripped, or rusted fastener restores a tight, rattle-free fit and helps keep components properly aligned during everyday use.

• Fastens panels, brackets, and assemblies to the chassis
• Helps maintain alignment and stability under normal vibration and heat
• Direct replacement for lost, damaged, or stripped hardware
• Common signs include loose or rattling panels, gaps/misalignment, or a rounded screw head

• Disconnect power; if servicing a gas appliance, also shut off gas and allow surfaces to cool
• Match the new screw to the original location; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping sheet metal
• Use an appropriate nut driver or socket for the hex head

ST10-16 X 7/16"

Package of 12

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

This is a genuine OEM replacement screw that is to attach the oven door panels to each other. This is a fully threaded screw that fits the predrilled hole to connect the two components. The screw is used with a washer when installed. This screw does not require a nut; it connects directly into the oven part, where it has a built-in receiving nut. If this part becomes worn and breaks or is lost during repairs to the oven, it must be replaced before the oven can be reassembled.Component assembly screws like this one used in oven panels are not normally replaced. These are made of high-temperature steel and designed to last a long time; however, if the oven panels are removed to make repairs, one or more screws may become lost. If this happens, replacement screws must be purchased and installed before the oven can be used. This screw is a silver metal replacement part that is sold individually. It does not come with the washer needed to install it. Verify the number of screws needed before ordering. This screw is designed for use in ovens manufactured by General Electric and Kenmore.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
