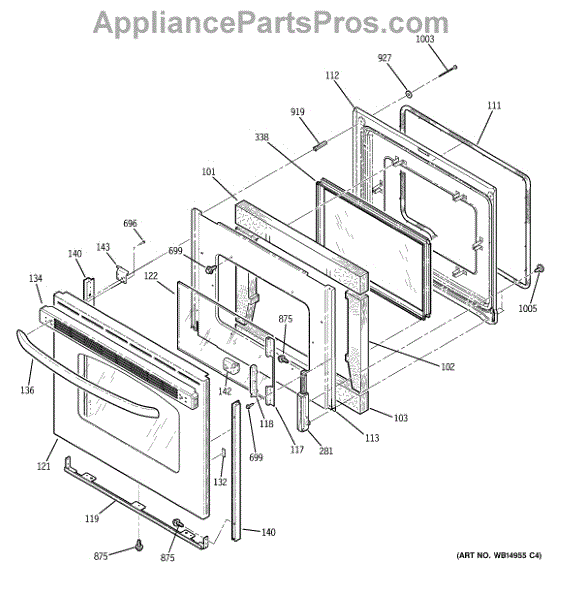

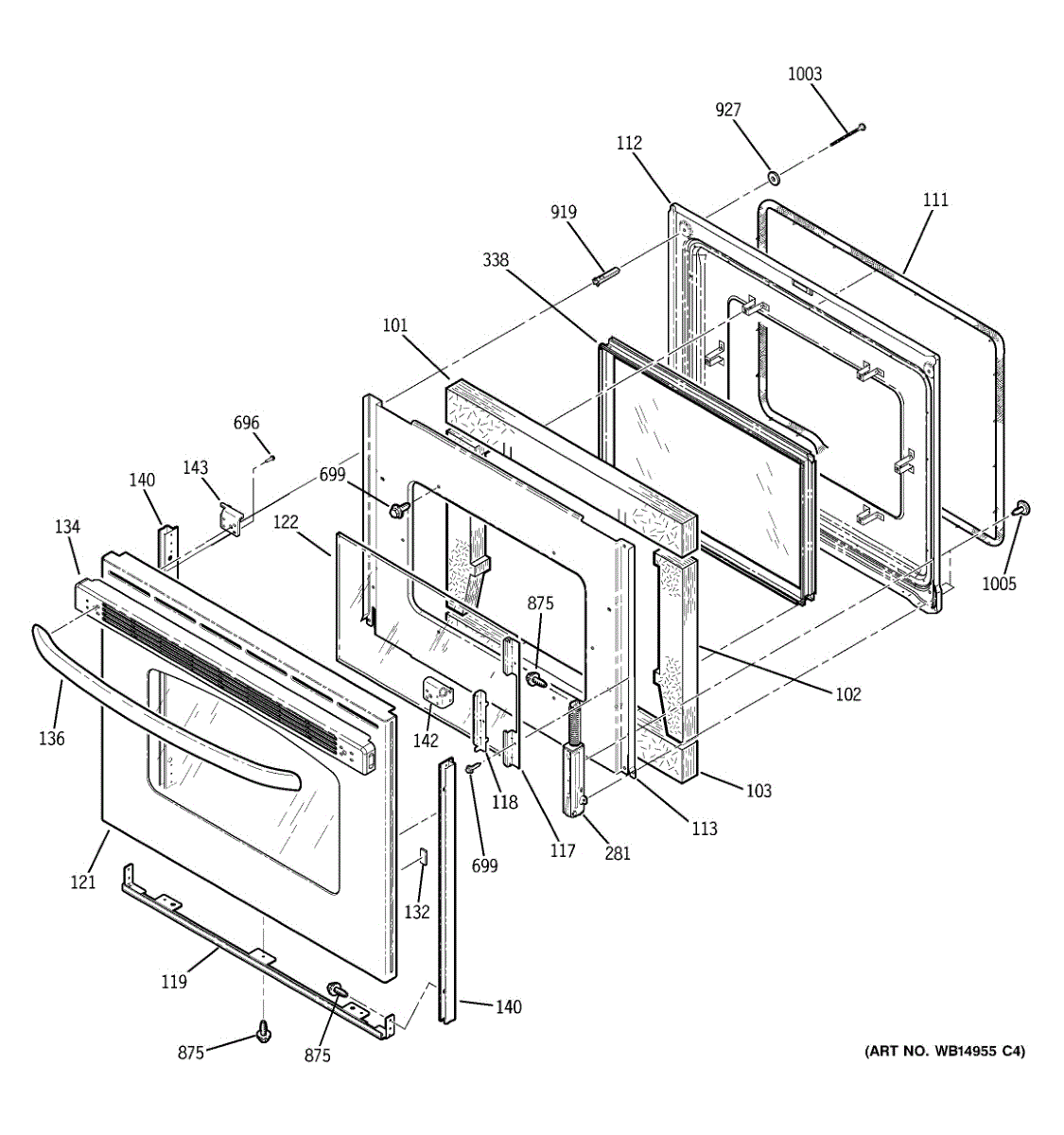

Parts for Ge JBS60RF1SS: 04 - Door Parts

This inner door foam panel restores the insulating barrier inside a refrigerator/freezer door to help maintain proper temperatures and improve efficiency. Fits behind the inner door liner where original insulation has deteriorated or been removed. What it does:

• Replaces collapsed or missing door insulation that can allow warm air into the cabinet
• Helps reduce frost buildup and excessive compressor runtime caused by poor door insulation
• Restores the designed thermal barrier to improve temperature stability
• Used when insulating foam is torn, water-damaged, or missing after repairs

• One inner door foam insulation panel

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing the inner door liner; keep screws and fasteners organized
• Handle insulation carefully to avoid tearing; use appropriate adhesive or retainer clips if the OEM design requires them

This door insulation replaces the foam insert that helps keep the refrigerator or freezer door properly insulated, improving temperature stability and reducing energy loss. Fits behind the interior door panel. What it does

• Replaces damaged or compressed door foam that can allow cold air to escape
• Helps restore proper temperature retention and reduce frost or condensation on door surfaces
• Matches OEM shape to fit behind the door inner panel

• One door insulation piece as shown

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing the interior door panel and carefully positioning the foam insert; keep clips/screws for reassembly
• Handle the foam gently to avoid tearing; use appropriate trim or adhesive only if specified by the OEM

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

This is the door pad. Consider replacing both when replacing trim number WB07T10230

The Handle and End Cap Assembly is an OEM part for GE electric ranges

Causes of a bad handle and end cap can include loss of integrity in seals after years of daily use. Cooking vapors may prematurely wear away protective finishes over time as well.

Symptoms of a bad handle and end cap assembly include:

• Difficulty opening or closing the oven door
• Loose, rattling or misaligned handle mounting
• Peeling or flaking cosmetic coatings
• Drafty air gaps presenting heat loss and burn risks

It is also compatible with Hotpoint, RCA, and certain Kenmore electric ranges.

A replacement door side frame that restores the oven door's fit and appearance. This black side trim replaces damaged or worn door framing to help the door close and seal correctly while improving cosmetic condition. What it does:

• Replaces a cracked, chipped, or warped door side frame to restore door alignment and finish
• Supports the door assembly and maintains the correct spacing for the door seal
• Addresses visible cosmetic damage and helps prevent drafts around the oven door
• Matches original mounting points for a direct fit when the correct OEM part is used

• One (1) door side frame (black)

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Remove the oven door or open it to the service position per the manufacturer's instructions for safe access
• Handle glass and painted surfaces carefully to avoid scratches; use proper fasteners and torque per OEM guidance

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

This door hinge assembly restores proper pivot and alignment for a refrigerator door, helping the door open and close smoothly and maintain a reliable seal. Designed as a direct-replacement hinge used on compatible GE refrigerators. What it does:

• Re-establishes stable door pivot to prevent sagging or uneven gaps
• Helps the door close fully to maintain proper temperature and seal
• Replaces damaged, bent or worn hinge components that cause binding or noise
• Restores correct door alignment to improve gasket contact and performance

• Disconnect power and remove contents from the door before starting.
• Support the door securely during removal/installation to avoid damage or injury.
• Basic hand tools generally required; follow OEM instructions for torque and alignment.

Note: This part has one piece of glass. Per factory, it only requires one glass because it is used on non-self clean models.

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

ST10-16 X 7/16"

Package of 12

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

This 10-32 threaded screw fastens appliance panels and components, restoring secure attachments and reducing vibration. It's a direct-fit fastener for assemblies that use a standard 10-32 UNC machine screw. What it does

• Secures control panels, brackets, and internal components that use a 10-32 thread.
• Stops loose parts that can rattle, vibrate, or cause misalignment.
• Replaces stripped, missing, or damaged 10-32 screws to restore proper fit.
• Works where a short machine screw with a 10-32 thread is required.

• One 10-32 threaded screw.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or nut driver for the screw head to avoid stripping.
• Install matching thread engagement; do not force or cross-thread.
• Tighten snugly but avoid over-torquing to prevent damage to mounting holes or plastic parts.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
