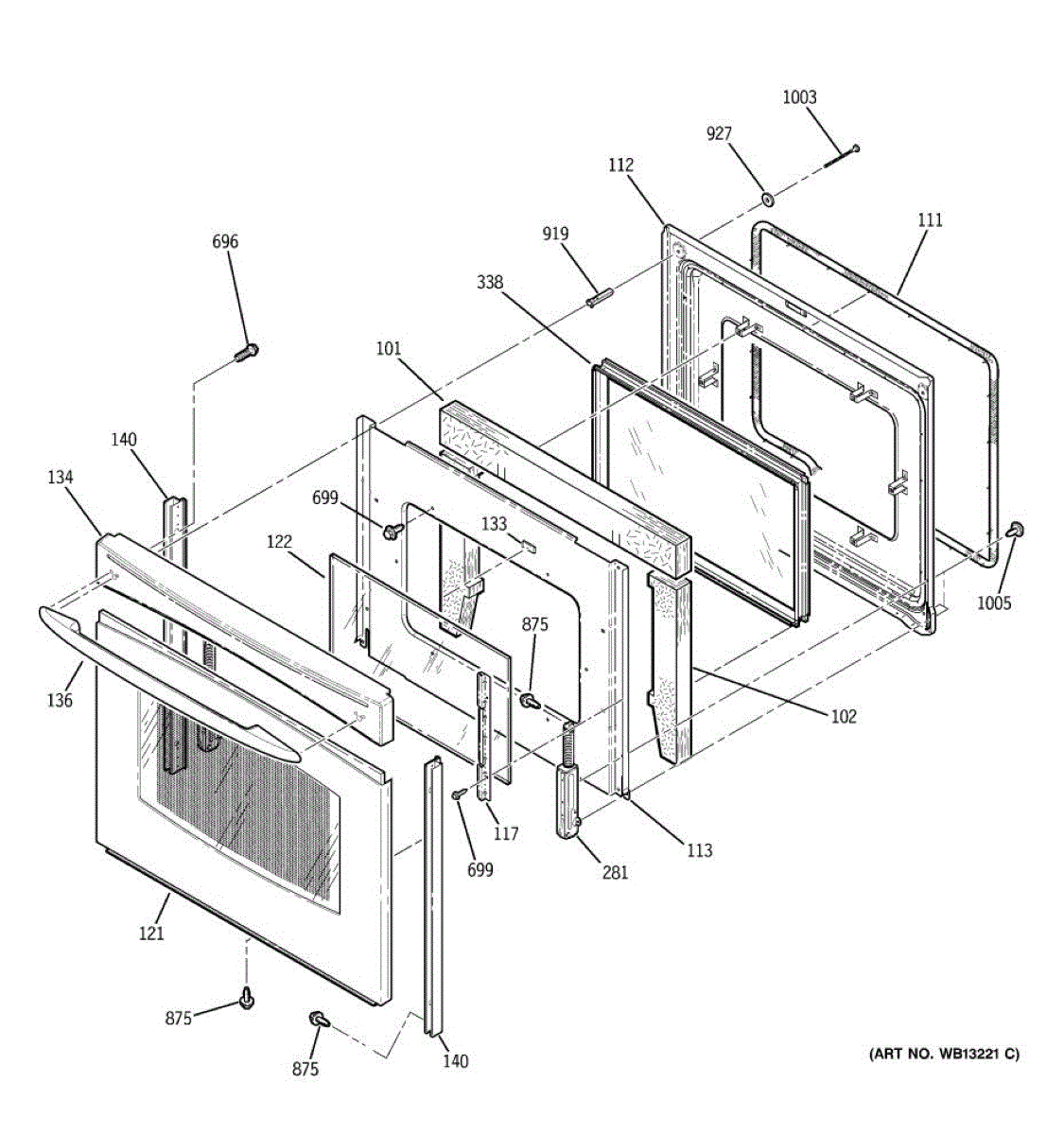

Parts for Ge JCB910SK2SS: 05 - Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

This door insulation lines the inside of the oven door to reduce heat loss and help maintain stable temperatures. Replace a torn, burnt, or saturated pad to restore heating performance and keep the outer door cooler.

• Provides a thermal barrier between the oven cavity and the outer door panel
• Helps the oven reach and hold set temperature more consistently
• Helps reduce heat felt on the exterior door and nearby controls
• Replace if insulation is damaged, compressed, burnt, or grease-soaked; common signs include heat escaping at the door, longer preheat, or temperature swings

• Disconnect power/gas and allow the range to cool completely
• Remove the oven door; place it on a padded surface
• Separate door panels; note insulation routing and any cutouts before removal
• Position the new pad without over-compressing; keep clear of the window and latch, reassemble, and ensure hinges are fully seated

The Oven Door Seal is an OEM part for GE ovens. This seal prevents heat from escaping during cooking, ensuring that the oven maintains a consistent temperature for efficient and even cooking.

A compromised Oven Door Seal can result from several factors, including normal wear and tear from regular use, exposure to high temperatures that degrade the material over time, or accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Seal include:

• Visible wear or damage to the seal
• Heat escaping from the oven door during use
• An increase in cooking times or uneven cooking results
• A noticeable increase in energy consumption as the oven works harder to maintain temperatures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner oven door glass is a replacement inner-pane that restores visibility and helps contain heat inside the oven cavity. It fits into the oven door assembly and replaces damaged or cracked inner glass for safe, functional use. What it does:

• Replaces cracked, broken or fogged inner oven door glass to restore clear viewing of the cooking chamber
• Helps maintain proper heat containment when installed correctly
• Works with the oven door assembly to preserve insulation and door integrity
• Reduces heat transfer to the outer door surface when used as part of a complete door repair

• Allow the appliance to cool and disconnect power before starting any repair
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires removing the oven door and disassembling the door panels.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

This 30-inch door handle assembly replaces a worn or damaged refrigerator door handle to restore a secure grip and normal door operation. Durable replacement designed to match the original mounting points and finish. What it does

• Provides a solid grip for opening and closing the refrigerator door.
• Replaces cracked, loose, broken, or missing handles that make the door hard to operate.
• Restores proper alignment and feels like the original factory handle when mounted.
• Helps prevent further damage to the door face or trim from using a compromised handle.

• One 30-inch door handle assembly.

• Disconnect power to the appliance before beginning any repair to avoid injury.
• Use appropriate hand tools; some fasteners may be concealed under trim or caps.
• Handle mounting holes must align with existing door hardware—do not force.

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

ST10-16 X 7/16"

Package of 12

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
