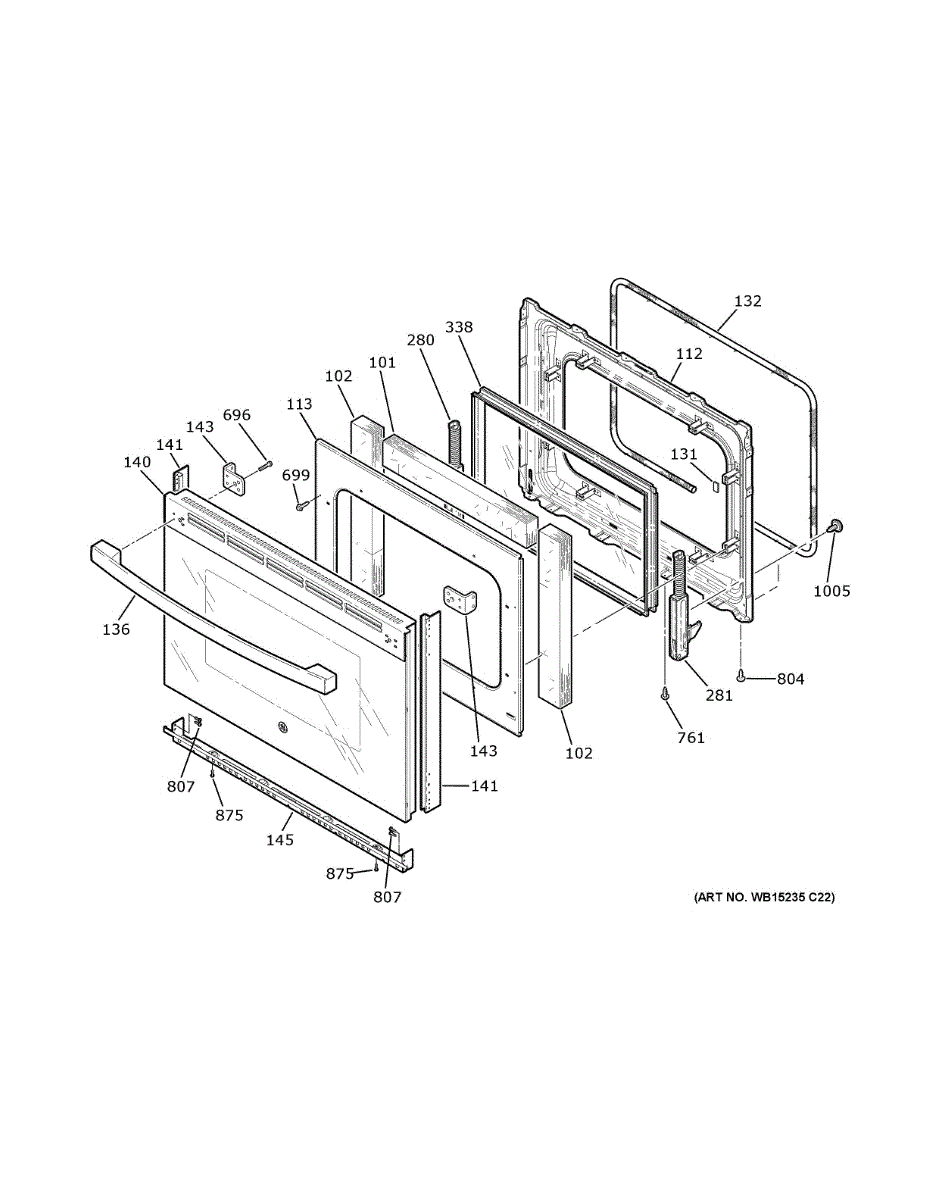

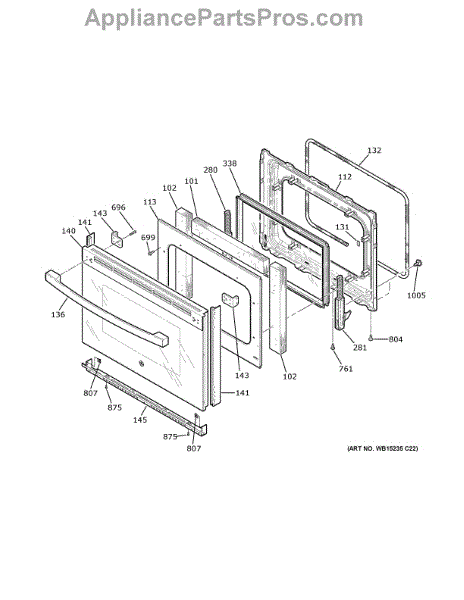

Parts for Ge JD630ST3SS: Door Parts

Insulation pad that installs behind the oven inner door liner to retain heat. Replace if worn, damaged, water-logged, or missing to restore proper insulation.

This oven door insulation side panel fits inside the oven door to help reduce heat transfer and improve cooking consistency. It replaces damaged or missing insulation to help maintain proper oven temperatures and protect the door assembly. What it does

• Helps retain heat inside the oven for more even cooking and efficient operation
• Reduces exterior door temperature by insulating the inner door cavity
• Prevents hot spots and heat loss caused by torn, compressed, or missing insulation
• Supports the oven door structure and helps keep inner components protected

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the oven door per the manufacturer instructions to access internal insulation
• Handle insulation and door components carefully; wear gloves and eye protection
• Follow OEM instructions for reassembly and proper placement of the insulation panel

Secures insulation inside the oven door to prevent shifting and maintain heat containment. Replace if clip is cracked, broken, or missing.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

The Oven Door Gasket is an OEM part for GE ranges. This gasket is responsible for creating an air-tight seal between the door and the oven housing. It allows heat to be properly contained within the oven cavity during the cooking process.

Causes of a bad gasket can include warping, cracking, or breakdown of the gasket material over repeated heating and cooling cycles. Exposure to excessive heat or impact damage is also possible.

Symptoms of a bad gasket include:

• Inability to maintain proper oven temperatures
• Leaks of heat, smoke, or flames from the door seal area
• Drafts or cold spots felt around the door perimeter
• Difficulty in fully latching the oven door closed

This OEM GE replacement gasket is also compatible with Hotpoint, RCA, and some Kenmore models.

Replaces a worn, cracked, or damaged range door handle and end cap. Restores a clean, finished look and secure grip for smooth door operation.

This left door hinge secures and pivots a refrigerator or freezer door so it opens and closes smoothly. Replacing a worn hinge restores proper door alignment and helps the seal close evenly to maintain temperature. What it does:

• Provides the pivot point that supports the door and allows smooth opening/closing
• Restores correct door alignment to help prevent sagging or uneven gaps
• Reduces binding or scraping that can occur with worn or bent hinges
• Helps the door seal fully to reduce cool-air loss and compressor overwork

• Unplug the appliance and empty/secure the door before starting work
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use the existing screws or included hardware as specified by the OEM; tighten fasteners securely

Hex washer head screw secures oven panels, brackets, and door handles. Replace missing, stripped, or damaged screws to eliminate looseness and rattling.

ST10-16 X 7/16"

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Replacement screw for securing panels and components on ranges and ovens. Needed when original fastener is stripped, missing, or damaged during repairs.

Black. 8-18 AB HXW 3/8

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
