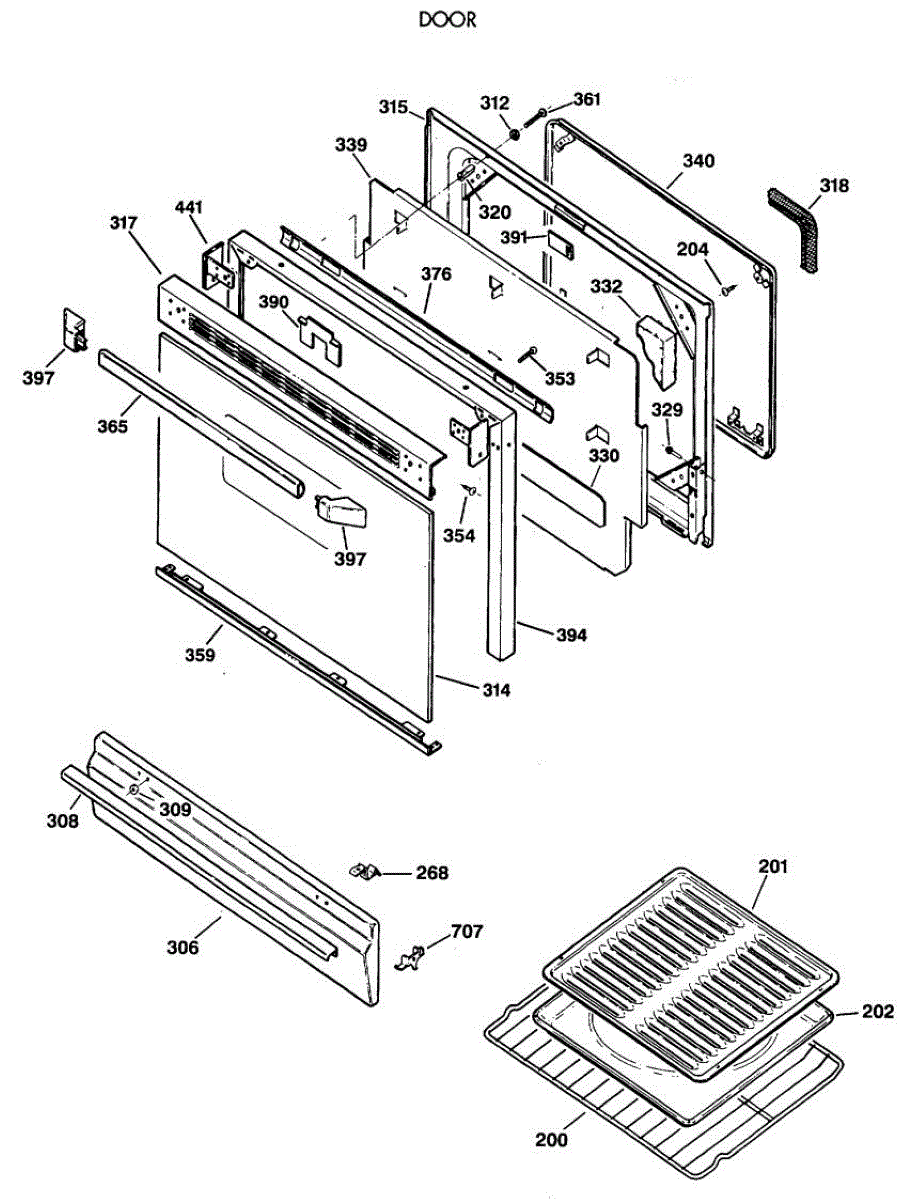

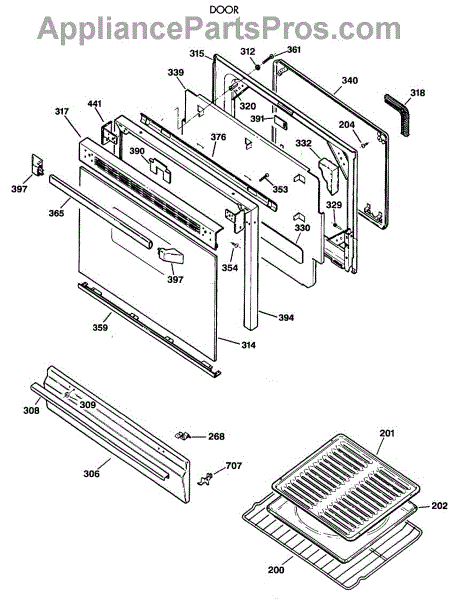

Parts for Ge JGBP27GEV2AD: 01 - Door Parts

Large

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

The Oven Rack is an OEM part for GE ranges, providing a sturdy and reliable platform for baking and roasting a variety of dishes. Its design allows for easy placement and removal from the oven, offering flexibility in cooking heights and accommodating different sizes of bakeware.

Causes of a bad Oven Rack can range from excessive weight being placed on the rack, exposure to high moisture levels leading to rust, or simply the age-related wear and tear that comes from regular use.

Symptoms of a bad Oven Rack include:

• Warping or bending, which can prevent the rack from sitting level in the oven and affect cooking performance.
• Rust or corrosion, which can weaken the rack's structure and potentially contaminate food.
• Difficulty sliding the rack in and out, which may indicate damage or misalignment.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This broiler pan rack is the slotted grid that rests over the broiler pan, supporting food while drippings drain into the pan during broiling. Replace a worn or missing rack to restore safe, consistent broiling results.

• Supports food above the broiler pan so fat and juices drain away while broiling
• Provides proper spacing to the heat source for searing and even browning
• Replaces a rusted, chipped, warped, or missing broiler grid
• Signs of wear can include flaking finish, bent wires, wobbling food, or uneven broiling

• Allow the oven to cool completely before handling; wear heat-resistant gloves
• Set the rack into the matching broiler pan with the slotted surface facing up; verify a stable fit
• Position the assembled pan and rack as directed in your model's use and care guide

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Includes 12 washers.

The Oven Door Gasket is an OEM part for GE ovens. This part is designed to seal the gap between the oven door and the oven body, ensuring that heat is retained during the cooking process.

Causes of a bad Oven Door Gasket can include wear and tear from regular use, resulting in cracks or gaps, heat damage causing the gasket to become brittle or melt in places, and accidental damage such as tears or cuts.

Symptoms of a failing Oven Door Gasket include:

• Visible damage or deterioration of the gasket material.
• The oven takes longer to preheat or has difficulty maintaining the set temperature.
• Increased energy usage as the oven works harder to compensate for heat loss.
• Uneven cooking results due to heat escaping from the oven cavity.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Door Handle is an OEM part for GE ovens. This handle provides a secure grip for opening and closing the oven door, ensuring safe and convenient access to the oven cavity. The handle measures approximately 22 inches by 1 inch.

Causes of a bad oven door handle can include wear and tear from frequent use, accidental impact, or exposure to high heat, which can weaken or damage the handle over time. A faulty handle can compromise the ability to safely operate the oven door.

Symptoms of a bad Oven Door Handle include:

• Loose or wobbly handle
• Cracks or breaks in the handle
• Difficulty in opening or closing the oven door
• Handle detaching from the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

• A loose or incomplete look of the range handle, affecting the overall design and functionality.
• Exposed sharp edges that could pose a safety risk to users.
• An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This PM mini manual is the official service and operation guide that provides clear instructions for programming, setup, and basic troubleshooting. Keep it on hand to understand control functions and safe servicing steps. What it does:

• Explains control features, menu navigation, and programming procedures
• Guides diagnosis of common control or programming symptoms
• Helps verify proper settings after repairs or power interruptions
• Serves as a reference for technicians and informed DIY repairs

• Read the manual fully before attempting any service or programming
• Follow all safety warnings; disconnect power before working on electrical parts
• Keep the manual dry and store with appliance documentation for future reference
• If replacing a control, use the manual to ensure correct setup and calibration

Anti-tip kit.
