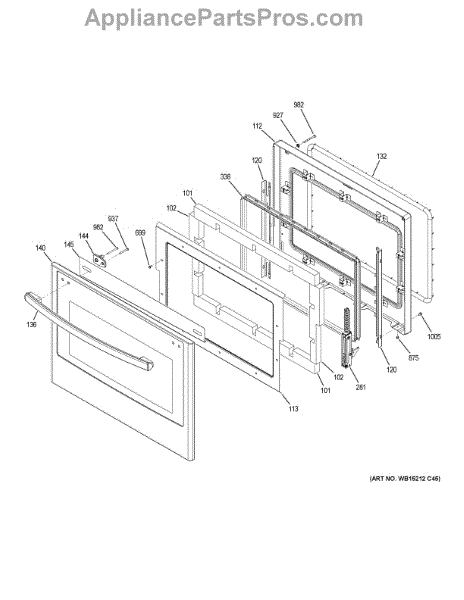

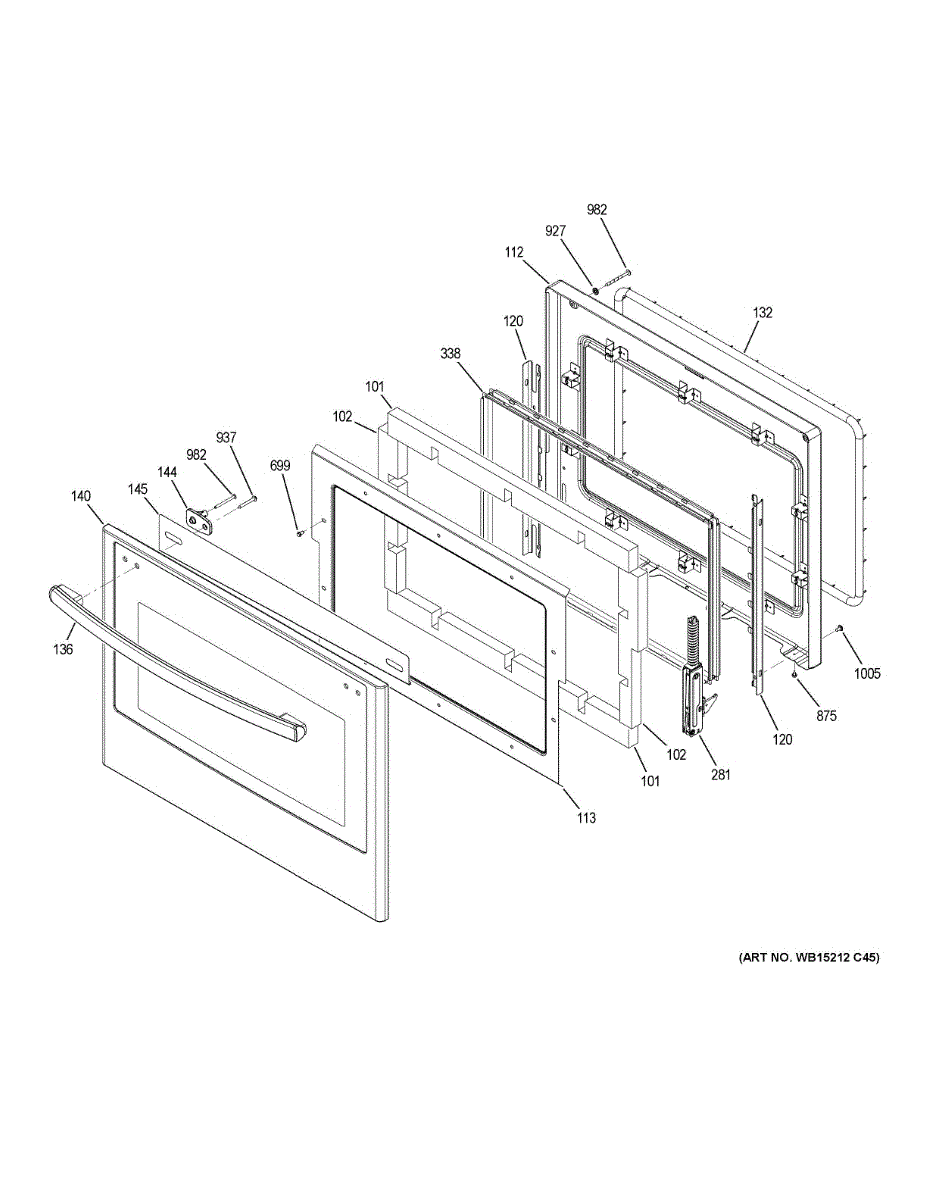

Parts for Ge JK3800DH8BB: Door Parts

This oven door liner is the inner metal panel that forms the inside surface of the oven door, restoring structural support and the finished interior appearance. Replaces a damaged or warped liner to help the door seal and support the inner glass. What it does:

• Provides the interior surface and structural backing for the oven door and inner glass
• Restores proper alignment and support when liner is dented, cracked, or bent
• Helps maintain the door's sealing surface to reduce heat loss and maintain cooking performance
• Prevents contact between the inner glass and insulation or components

• Disconnect power to the appliance before starting and allow all surfaces to cool completely
• Handle glass and metal edges with care; wear gloves and eye protection
• Installation typically requires removing the oven door and inner glass; follow the oven manufacturer's instructions

Secures cabinet liner and interior trim panels in wall ovens. Replace if cracked or loose to restore proper alignment and prevent gaps. Confirm fit with your model.

Seals oven door edges to prevent heat loss and maintain cooking temperature. Replace if worn, melted, compressed, or causing uneven heating. Confirm fit with your model number before ordering.

Black lower outer door panel for wall oven combinations. Replaces cracked, dented, or scratched exterior door panels to restore appearance and proper fit.

Replaces broken or cracked door handle support bracket on wall oven/microwave combo units. Restores secure door operation and proper handle alignment.

Deflector that mounts to the oven door to direct airflow. Replace if your deflector is cracked, broken, warped, or missing from the door assembly.

Replace a broken or worn left door hinge on your wall oven. Installs on the left side of the oven door frame to support proper door alignment.

Right-hand door hinge for electric wall ovens. Mounts to the oven cavity and door frame to support smooth opening and closing. Replace if cracked or worn.

Oven door window pack assembly includes glass pane and frame for viewing food while cooking. Replace if cracked, shattered, or broken from heat damage.

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

Contoured washer trim secures and cushions range components, maintaining proper alignment and reducing wear. Replace if worn or damaged. Verify fit with your model.

Hex head machine screw with 10-32 thread, 1-3/4 inches long. Secures brackets, panels, and internal oven components. Replace missing or stripped screws.

10-18 x 3/4 inch Torx T20 screw secures control panels, trim pieces, and internal components in wall ovens. Replaces missing, stripped, or damaged fasteners.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
