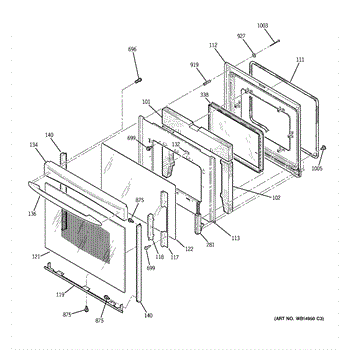

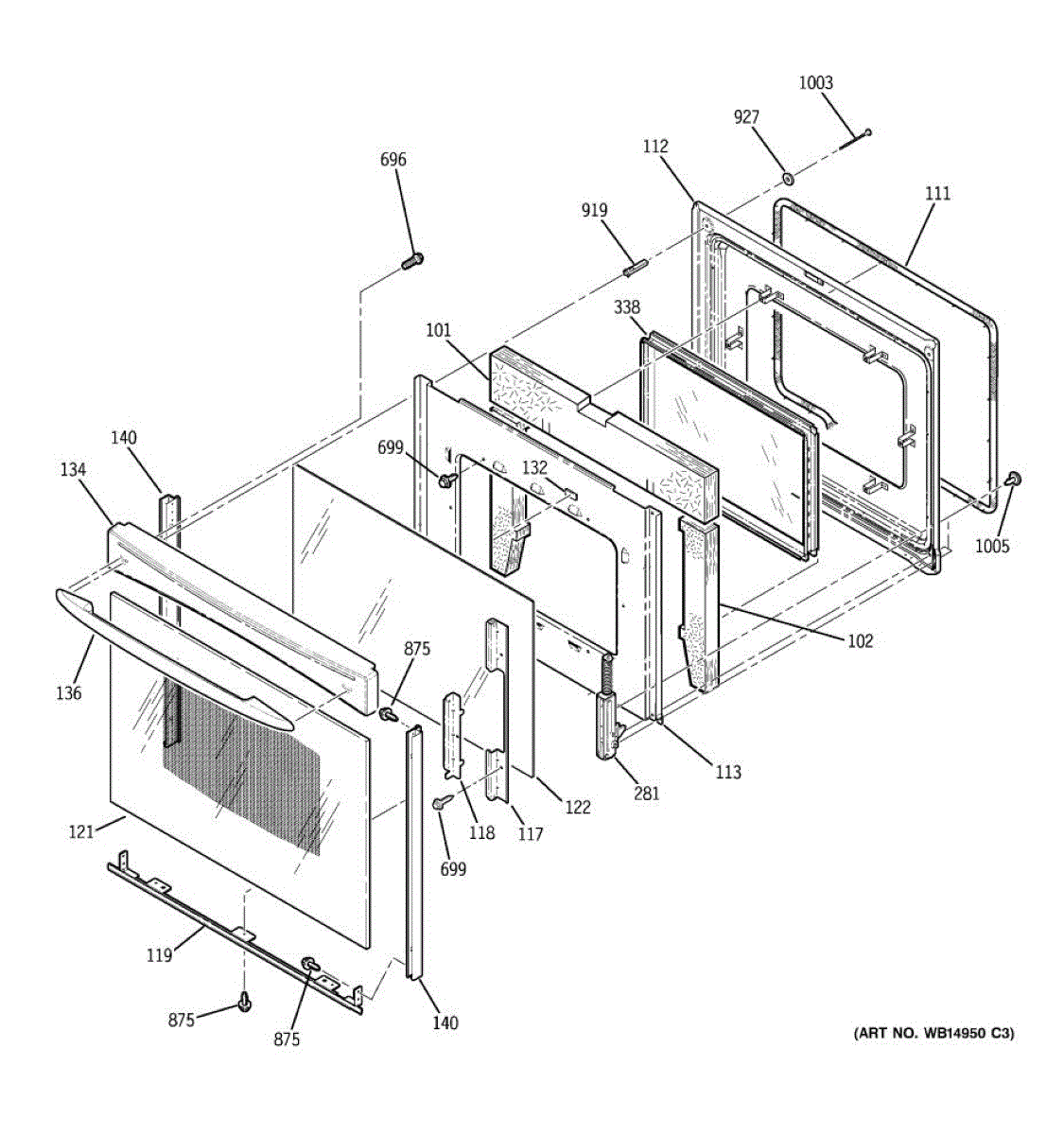

Parts for Ge PB910DP2BB: 05 - Door Parts

This oven door insulation restores the heat barrier inside the door so your oven can reach and maintain temperature while helping keep the exterior cooler. Replace brittle, burned, or grease-soaked insulation to reduce heat loss and odors.

• Provides a thermal barrier between the inner and outer door panels
• Helps the oven reach and hold set temperature by reducing heat transfer through the door
• Common signs it's needed include excessive exterior door heat, lingering odors/smoke from past spills, or visibly deteriorated/missing insulation
• Replacing contaminated insulation can reduce recurring odors during preheat and baking

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Remove the oven door per your model's instructions and place it on a padded surface for disassembly
• Wear cut-resistant gloves and eye protection; handle insulation gently to limit airborne fibers
• Note the original orientation and any retainers; install the new insulation the same way without compressing it, then reassemble

This door insulation lines the inside of the oven door to reduce heat loss and help maintain stable temperatures. Replace a torn, burnt, or saturated pad to restore heating performance and keep the outer door cooler.

• Provides a thermal barrier between the oven cavity and the outer door panel
• Helps the oven reach and hold set temperature more consistently
• Helps reduce heat felt on the exterior door and nearby controls
• Replace if insulation is damaged, compressed, burnt, or grease-soaked; common signs include heat escaping at the door, longer preheat, or temperature swings

• Disconnect power/gas and allow the range to cool completely
• Remove the oven door; place it on a padded surface
• Separate door panels; note insulation routing and any cutouts before removal
• Position the new pad without over-compressing; keep clear of the window and latch, reassemble, and ensure hinges are fully seated

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

Color: Bisque

The Bottom trim channel is an OEM part for GE ranges. This trim piece provides an aesthetic finishing touch to the bottom exterior of the oven, covering any gaps and protecting internal components.

Causes of a bad trim chanel can include normal wear and tear over time from regular cleaning or accidental impacts. Plastic trim pieces can fade or become discolored with exposure to heat and cleaning chemicals.

Symptoms of a bad trim chanel include:

• Visible gaps along the bottom front edge of the oven
• Scratches, cracks or fading of the trim surface
• Looseness or inability to snap tightly into place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

 Color: Black

The Bottom Trim Channel is an OEM part for GE ranges and wall ovens. This trim piece attaches along the bottom front edge of the oven cavity, creating a seamless facade.

The bottom trim channel is responsible for covering any unsightly gaps and providing a sleek, finished look. It also acts as a protective barrier, shielding internal electronics and insulation from accidental impacts or liquid spills on the counter below.

Symptoms of a bad bottom trim channel include:

• Drooping, loose, or improperly fitted trim piece
• Exposed internal components behind missing or damaged trim
• Liquids or debris accumulating behind or beneath the channel

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Trim Channel is an OEM part for GE electric ranges. As an essential cosmetic component, it works to cover and seamlessly conceal the area along the bottom perimeter of the range.

Causes of a faulty trim channel can include damage from impact or abrasion, degradation of material finishes from repeated cleaning, or loose fittings from normal stresses of use over time.

Symptoms include:

• Gaps visible between the channel and appliance bottom
• Scuffs, cracks, or breaks in the trim piece surface
• Loose or improper positioning of channel attachment clips

Color: White

This GE replacement restores a sleek, professional look while protecting internal components from spills and debris ingress. Compatible with Hotpoint, RCA, and select Kenmore models as well, it prevents future repairs from minor aesthetic issues. Keep your range looking its best!


The Inner Oven door glass is an OEM replacement part for GE ranges. Located inside the oven door cavity behind an outer steel panel, the inner glass allows viewing food without opening the door for temperature checks. As an insulating barrier, it separates intense oven heat from exterior door surfaces.

Causes of a bad inner door glass can include cracks or chips from heavy impacts over time, scratches clouding visibility, or breaks compromising insulation integrity.

Symptoms of a bad inner door glass include:

• Inability to see cooking progress without opening the door
• Noticeable increase in exterior door temperatures during baking
• Possible oven heat loss if broken glass disrupts insulation values
• Stress cracks spreading that threaten larger pane failures

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore wall oven models.

This is the door pad. Consider replacing both when replacing trim number WB07T10230

A replacement door side frame that restores the oven door's fit and appearance. This black side trim replaces damaged or worn door framing to help the door close and seal correctly while improving cosmetic condition. What it does:

• Replaces a cracked, chipped, or warped door side frame to restore door alignment and finish
• Supports the door assembly and maintains the correct spacing for the door seal
• Addresses visible cosmetic damage and helps prevent drafts around the oven door
• Matches original mounting points for a direct fit when the correct OEM part is used

• One (1) door side frame (black)

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Remove the oven door or open it to the service position per the manufacturer's instructions for safe access
• Handle glass and painted surfaces carefully to avoid scratches; use proper fasteners and torque per OEM guidance

The Side Door Trim is an OEM part for GE ovens. This trim piece is designed to fit along the edge of the oven door, providing a finished look and helping to seal the door properly when closed. It contributes to the overall aesthetics of the oven and ensures efficient heat retention during cooking.

Causes of a bad side door trim can include accidental impact, heat damage over time, or general wear and tear from frequent use. A damaged trim can lead to inefficient sealing, affecting the oven’s cooking performance and energy efficiency.

Symptoms of a bad side door trim include:

• Visible cracks or damage on the trim
• The oven door not sealing properly
• Heat escaping from the sides of the oven door
• The oven door appearing misaligned

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This door hinge secures and aligns an appliance door to restore smooth opening and closing. It replaces a worn or damaged hinge to help eliminate door sag and improve seal alignment for reliable operation. What it does:

• Provides a stable pivot point so the door opens and closes smoothly
• Keeps the door aligned to prevent dragging, uneven gaps, or improper sealing
• Reduces noise and sticking caused by a bent or worn hinge
• Helps restore proper door fit that can affect temperature control on sealed compartments

• Disconnect power to the appliance before starting any repair
• Support the door while removing and installing the hinge to prevent dropping or damage
• Use appropriate hand tools and tighten fasteners securely but do not overtighten

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This hex washer-head screw secures sheet-metal panels, brackets, and assemblies in your appliance. Replacing a missing, stripped, or rusted fastener restores a tight, rattle-free fit and helps keep components properly aligned during everyday use.

• Fastens panels, brackets, and assemblies to the chassis
• Helps maintain alignment and stability under normal vibration and heat
• Direct replacement for lost, damaged, or stripped hardware
• Common signs include loose or rattling panels, gaps/misalignment, or a rounded screw head

• Disconnect power; if servicing a gas appliance, also shut off gas and allow surfaces to cool
• Match the new screw to the original location; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping sheet metal
• Use an appropriate nut driver or socket for the hex head

A silicon-controlled rectifier (SCR) used on appliance control boards to regulate power to motors, igniters or other loads. Replacing a faulty SCR can restore proper power switching and steady operation of the driven component. What it does:

• Acts as a power-switching semiconductor in appliance electronic control circuits to allow current flow only when triggered.
• Enables controlled delivery of voltage/current to motors, igniters and similar loads on the control board.
• A failing SCR can cause symptoms such as no power to a motor or igniter, intermittent operation, or complete failure of the driven component.
• Match the SCR package and electrical ratings to the control board before replacing.

• Disconnect all power to the appliance before accessing control electronics to avoid shock or damage.
• Take electrostatic-discharge (ESD) precautions; handle the SCR by its body and avoid touching leads.
• Package orientation and electrical ratings on the control board and wiring before installation.

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

Includes 12 washers.

The 10-16 Pl Pnt 2.5 S Screw is an OEM replacement part for GE ranges.

Causes of damaged or worn oven door screws include repeated exposure to high-temperature fluctuations during cooking cycles. This repeated heating and cooling puts repetitive stresses on fasteners over time.

Symptoms of bad oven door screws include:

• Loosened or detached door assemblies that will not seal properly
• Misaligned controls or glass panels suffering fitment issues
• Potential burns or cuts from accidental door detachment while in use

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
