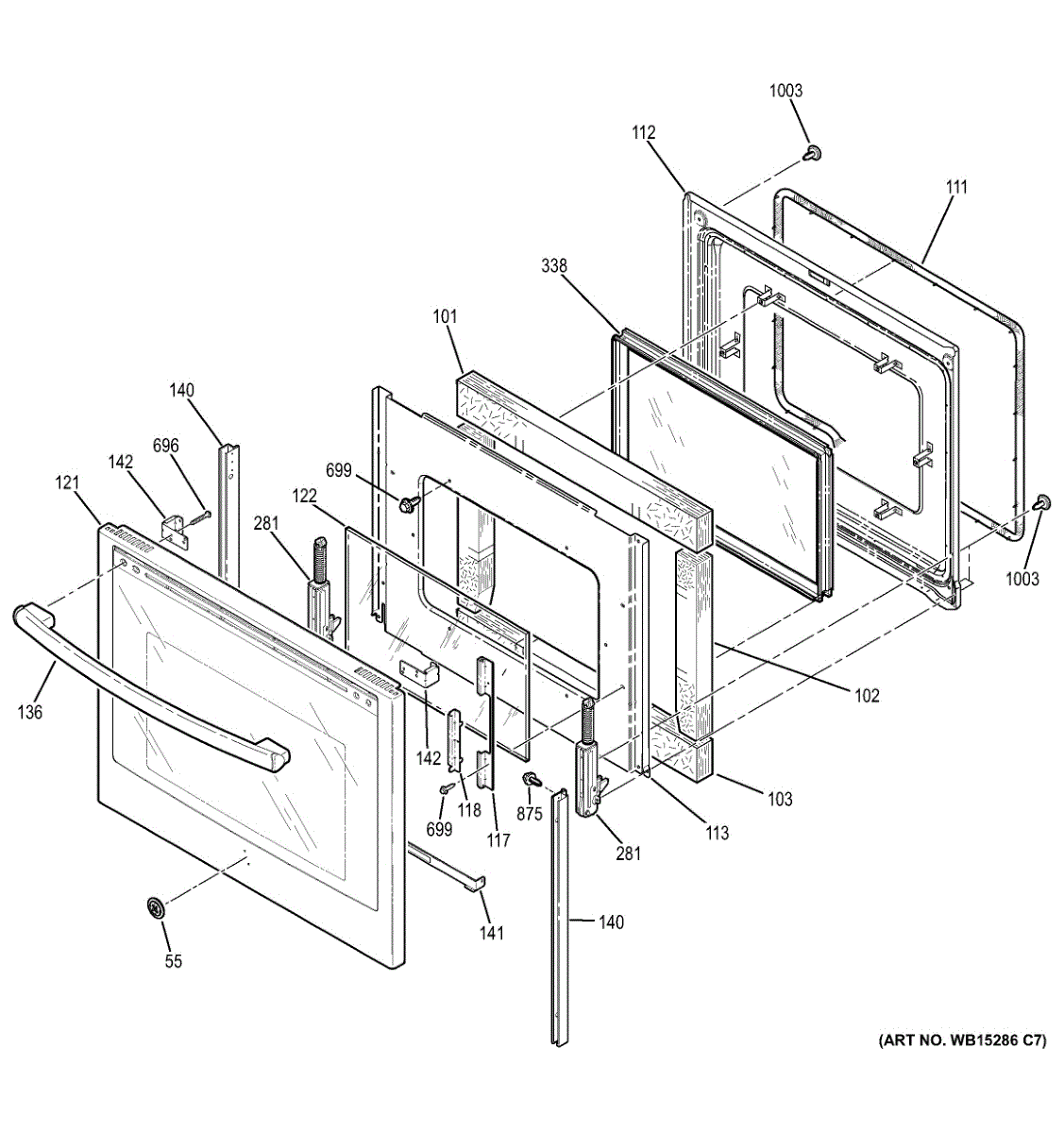

Parts for Ge JB750DF2CC: Door Parts

Decorative badge emblem that mounts on range control panel or door. Restores appliance exterior appearance when original is faded, scratched, or missing.

Replaces brittle, burned, or grease-soaked insulation inside your oven door. Restores the thermal barrier to reduce heat loss and exterior heat.

Insulation pad that lines the inside of your range oven door. Replace if torn, burnt, saturated, or missing to restore thermal barrier performance.

If your oven door exterior gets too hot or temperature fluctuates, this inner door insulation pad blocks heat transfer. Fits behind the inner panel.

Seals oven cavity to prevent heat loss during baking and broiling. Replace if worn, cracked, or heat escapes around door. Verify fit by model number.

Replace your range's cracked or damaged oven door liner assembly. Restores the inner door surface, protects insulation, and maintains proper fit.

Retains oven door insulation in place on electric ranges. Replace if cracked, broken, or missing to secure door insulation and maintain proper fit.

Secures and holds the glass panel in place on your oven door. Replace this retainer if it's cracked, broken, or missing to properly support the glass.

Retainer holds the glass panel securely in your oven door. Replace if cracked, broken, or missing to restore proper glass mounting and door appearance.

Inner oven door glass installs inside the door cavity behind the outer panel. Replace if shattered, cracked, or broken to restore viewing window function.

Replace the door side trim frame on your electric range. This decorative trim piece covers the edge of the oven door and may need replacement if cracked or damaged.

This door glass bracket secures the oven door glass to the door frame so the glass stays aligned and stable during use. It helps keep the door sealed and the glass supported for safe operation and easy cleaning. What it does:

• Fastens and supports the oven door glass to the door inner frame
• Helps maintain proper door alignment and consistent sealing
• Reduces rattling or movement of the door glass during use
• Commonly replaced when glass becomes loose, cracked, or the bracket is bent

• One door glass bracket

• Disconnect power to the appliance before beginning any repair
• Handle glass with care; wear cut-resistant gloves and safety glasses
• Remove the oven door per manufacturer instructions to access the bracket
• Use OEM fasteners if provided

Secures and aligns your range oven door for smooth opening and closing. Replace this hinge if bent, damaged, or causing door sag and seal misalignment.

Replace cracked, broken, or shattered oven door window glass. This assembly includes the glass pane and securing brackets that install inside your range door.

Silicon controlled rectifier (SCR) for range control boards. Regulates power switching to motors and igniters. Replace if cracked, burned, or damaged.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
