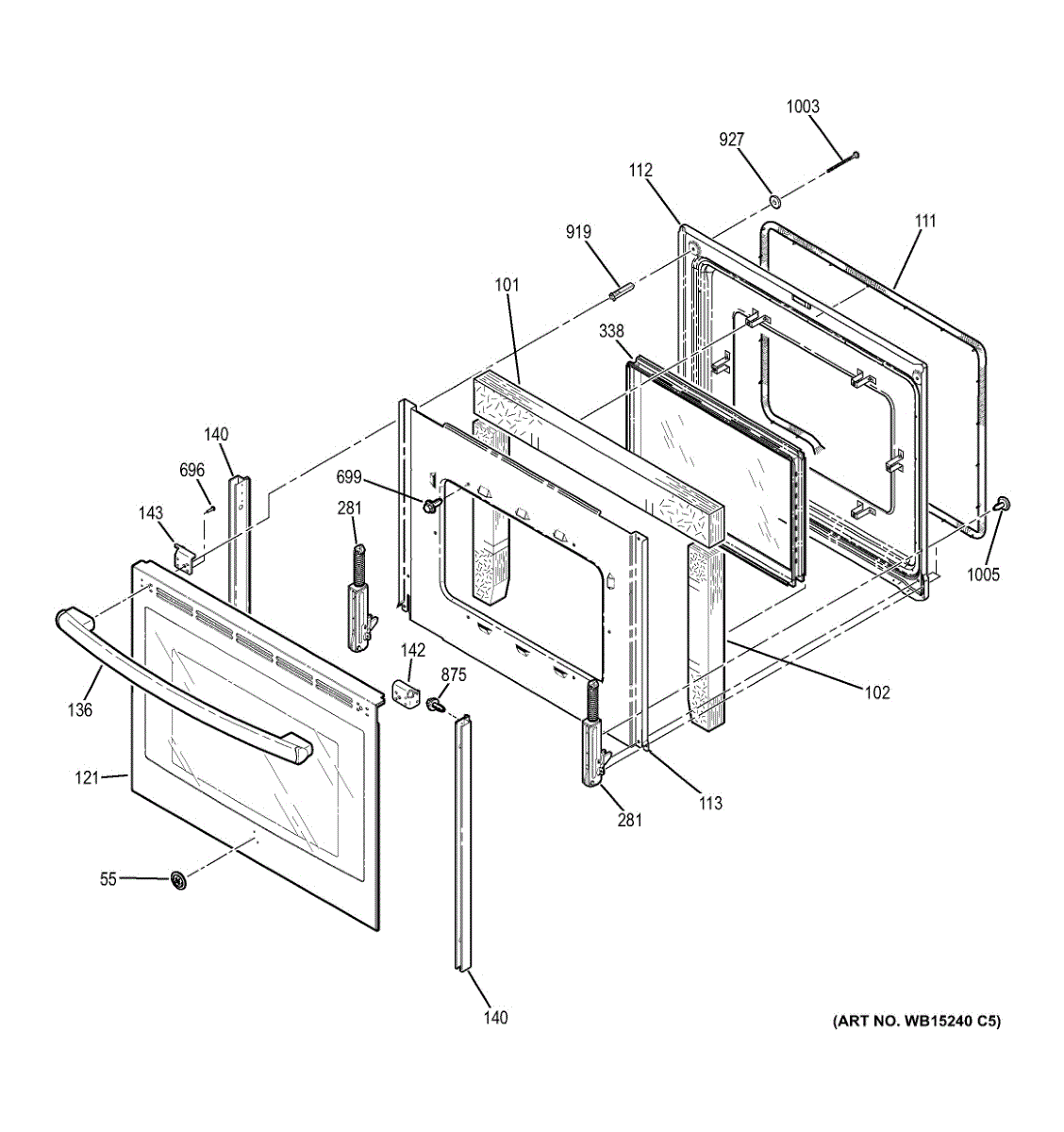

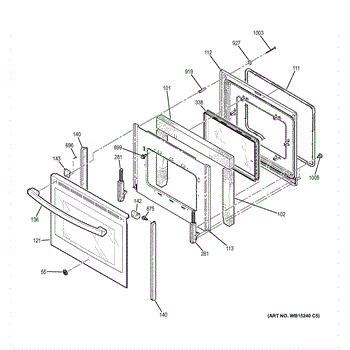

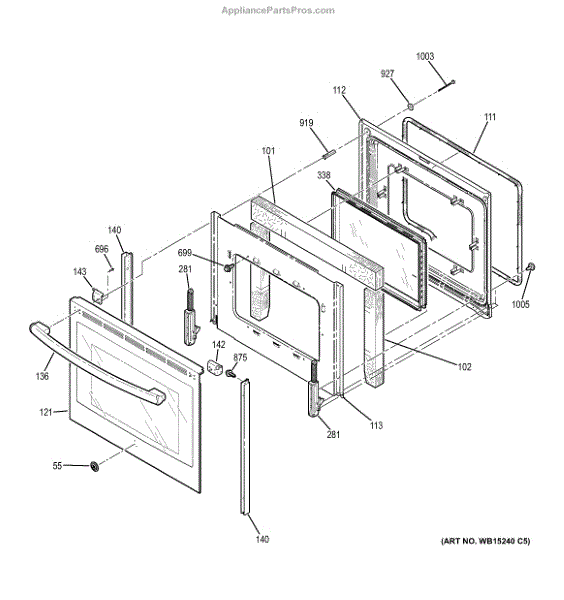

Parts for Ge JBS60RF2SS: Door Parts

Replacement badge designed to restore the appliance's exterior appearance and factory look. This decorative emblem replaces a faded, scratched, or missing badge so the control panel or door presents a clean, branded finish. What it does:

• Replaces a worn, cracked, faded, or missing badge to restore original appearance
• Sits on the appliance front where the original emblem was located for accurate visual match
• Helps maintain a factory-fresh look after cosmetic damage or panel repair
• Sold as the individual decorative emblem; intended as a direct-fit cosmetic replacement

• Clean and fully dry the mounting area before installing to ensure proper adhesion and fit
• Align carefully with the original location; press firmly and evenly to secure the badge

This door insulation replaces the foam insert that helps keep the refrigerator or freezer door properly insulated, improving temperature stability and reducing energy loss. Fits behind the interior door panel. What it does

• Replaces damaged or compressed door foam that can allow cold air to escape
• Helps restore proper temperature retention and reduce frost or condensation on door surfaces
• Matches OEM shape to fit behind the door inner panel

• One door insulation piece as shown

• Disconnect power to the appliance before starting any repair
• Installation typically requires removing the interior door panel and carefully positioning the foam insert; keep clips/screws for reassembly
• Handle the foam gently to avoid tearing; use appropriate trim or adhesive only if specified by the OEM

The Oven Door Gasket is an OEM part for GE ranges. This seal prevents heat from escaping the oven cavity when baking or broiling. The gasket helps maintain temperatures for more efficient cooking and reliable operation. The gasket measures approximately 84" long.

Causes of a bad gasket can include deterioration over prolonged high-heat use, damage due to abrasion or impact, or warping from moisture exposure over time.

Symptoms of a bad oven door gasket include:

• Excessive heat loss from around the oven door when in use
• Difficulty keeping desired baking temperatures
• Cooler/cold air felt escaping around the door seal
• Visible cracks, splits, or gaps in the gasket seal

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Handle and End Cap Assembly is an OEM part for GE ranges. It includes both the oven door handle as well as the decorative end caps that cover connections on the door frame. This assembly is responsible for providing an accessible and ergonomic solution for opening and closing the oven door.

Causes of a bad Handle and End Cap Assembly can include wear and tear over time, damage due to excessive heat exposure, or cracks/breaks from accidental mishandling of the oven door.

Symptoms of a bad assembly include:

• Difficulty opening or closing the oven door
• Loose, wiggly, or detached door handle
• Exposed frame connections due to missing end caps
• Reduced insulation performance from open connections

This GE replacement part is compatible with Hotpoint, RCA, and Kenmore models. Replacing yours today will restore the reliable and easy operation of your oven door.


A replacement door side frame that restores the oven door's fit and appearance. This black side trim replaces damaged or worn door framing to help the door close and seal correctly while improving cosmetic condition. What it does:

• Replaces a cracked, chipped, or warped door side frame to restore door alignment and finish
• Supports the door assembly and maintains the correct spacing for the door seal
• Addresses visible cosmetic damage and helps prevent drafts around the oven door
• Matches original mounting points for a direct fit when the correct OEM part is used

• One (1) door side frame (black)

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Remove the oven door or open it to the service position per the manufacturer's instructions for safe access
• Handle glass and painted surfaces carefully to avoid scratches; use proper fasteners and torque per OEM guidance

This right-side door trim bracket secures the exterior trim to the appliance door, restoring a flush, finished appearance and preventing the trim from coming loose. Designed to replace a damaged or missing right-hand bracket. What it does:

• Holds the door trim in place on the right side to maintain alignment and appearance
• Prevents trim gaps, vibration noise, and rattling caused by a loose or broken bracket
• Restores proper trim attachment after collision, wear, or failed fasteners
• Works with the factory trim assembly to ensure a straight, secure fit

• One right-side door trim bracket

• Use basic hand tools; retain any reusable screws or clips unless damaged
• Power off and unplug the appliance before starting work for safety
• Align the bracket and trim before tightening fasteners to avoid cracking the trim
• Replace missing or damaged clips or screws with OEM-specified fasteners

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

This door hinge assembly restores proper pivot and alignment for a refrigerator door, helping the door open and close smoothly and maintain a reliable seal. Designed as a direct-replacement hinge used on compatible GE refrigerators. What it does:

• Re-establishes stable door pivot to prevent sagging or uneven gaps
• Helps the door close fully to maintain proper temperature and seal
• Replaces damaged, bent or worn hinge components that cause binding or noise
• Restores correct door alignment to improve gasket contact and performance

• Disconnect power and remove contents from the door before starting.
• Support the door securely during removal/installation to avoid damage or injury.
• Basic hand tools generally required; follow OEM instructions for torque and alignment.

Note: This part has one piece of glass. Per factory, it only requires one glass because it is used on non-self clean models.

This silicon controlled rectifier (SCR) is an electrical switching component used to control power to heating or motor circuits, restoring proper on/off control for affected appliance functions. What it does:

• Regulates power flow in heater and motor control circuits to enable correct cycling
• Helps control startup and run voltage to motors and heating elements
• Commonly linked to symptoms like no power to heater or motor, intermittent operation, or erratic cycling
• Works as a replacement component on control assemblies that use a discrete SCR

• Disconnect all power to the appliance before accessing electrical components
• SCRs are static-sensitive and may require careful handling; use ESD precautions
• May be soldered or mounted to terminals; confirm mounting and connector type before installation

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

Includes 12 washers.

This 10-32 threaded screw fastens appliance panels and components, restoring secure attachments and reducing vibration. It's a direct-fit fastener for assemblies that use a standard 10-32 UNC machine screw. What it does

• Secures control panels, brackets, and internal components that use a 10-32 thread.
• Stops loose parts that can rattle, vibrate, or cause misalignment.
• Replaces stripped, missing, or damaged 10-32 screws to restore proper fit.
• Works where a short machine screw with a 10-32 thread is required.

• One 10-32 threaded screw.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or nut driver for the screw head to avoid stripping.
• Install matching thread engagement; do not force or cross-thread.
• Tighten snugly but avoid over-torquing to prevent damage to mounting holes or plastic parts.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
