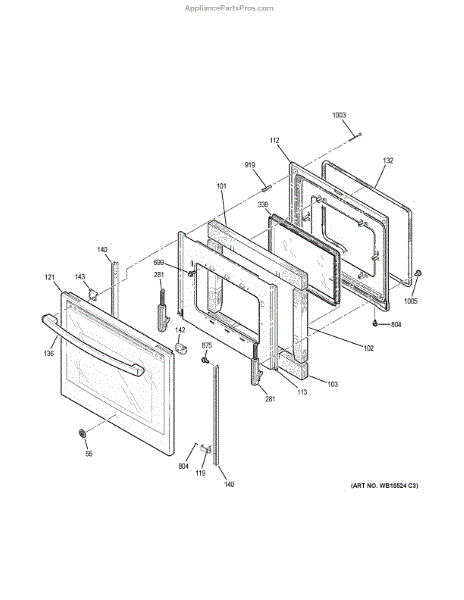

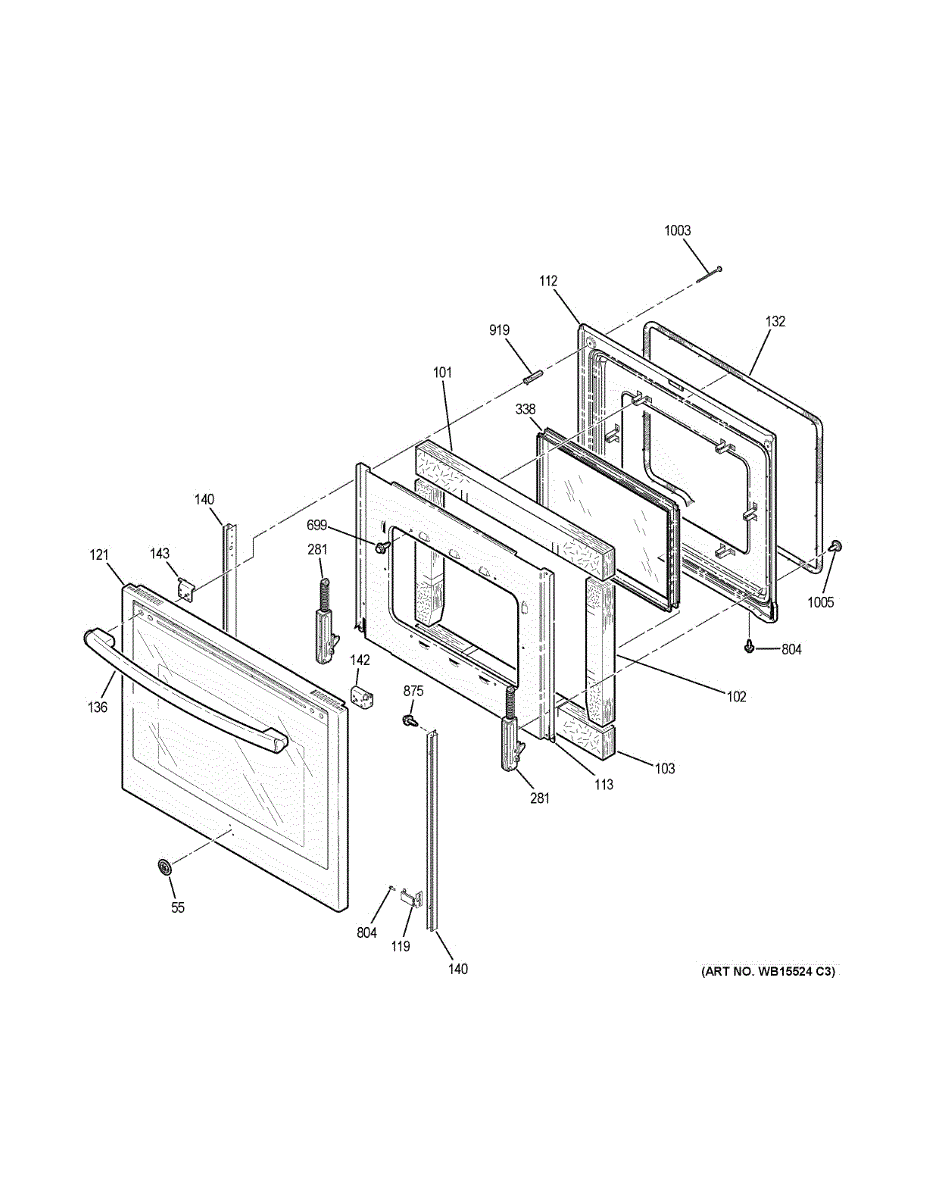

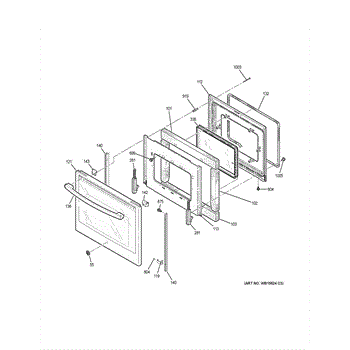

Parts for Ge PHS930BL2TS: Door Parts

This door insulation replaces the inner thermal pad that helps block heat transfer through the oven door, improving temperature stability and reducing exterior door heat. Fits behind the inner door panel to restore proper insulation. What it does

• Replaces the oven door's internal insulation to help maintain oven temperature and improve heating efficiency.
• Reduces exterior door surface heat for safer operation and lower cabinet heat exposure.
• Helps prevent heat loss that can cause longer preheat times or uneven baking.
• Fits behind the inner door panel and works with the door's liners and glass to insulate the cooking cavity.

• One oven door insulation piece as shown.

• Always disconnect power at the breaker and allow the oven to cool completely before servicing.
• Remove the oven door and inner door panel per the manufacturer's instructions to access the insulation.
• Handle insulation with gloves and avoid compressing or tearing the material; position it flat against the inner panel.
• If any mounting clips, screws, or inner door glass were removed, keep parts organized and reassemble.

This oven door liner assembly provides the inner surface for the oven door and restores proper fit and appearance. Replacing a damaged liner helps protect door insulation and maintain safe, even cooking performance. What it does:

• Replaces the interior liner that holds the oven door inner components and insulation
• Restores the door's inner surface if the liner is cracked, dented, or warped
• Helps prevent direct contact with insulation and internal parts
• Reduces rattling or misalignment caused by a damaged liner
• Preserves the oven door's appearance and functional seal

• Disconnect power (and gas, if applicable) before servicing the oven
• Handle carefully—sharp edges or attached glass can cause injury
• Removing the door may be required to access and replace the liner; keep track of screws and fasteners

This door glass bracket secures the oven door glass to the door frame so the glass stays aligned and stable during use. It helps keep the door sealed and the glass supported for safe operation and easy cleaning. What it does:

• Fastens and supports the oven door glass to the door inner frame
• Helps maintain proper door alignment and consistent sealing
• Reduces rattling or movement of the door glass during use
• Commonly replaced when glass becomes loose, cracked, or the bracket is bent

• One door glass bracket

• Disconnect power to the appliance before beginning any repair
• Handle glass with care; wear cut-resistant gloves and safety glasses
• Remove the oven door per manufacturer instructions to access the bracket
• Use OEM fasteners if provided

This oven door gasket forms the heat-resistant seal around the oven door opening. Replacing a worn seal helps the oven preheat and hold temperature, reduces heat and steam escaping at the door, and supports consistent cooking results.

• Seals the gap between the oven cavity frame and the door to contain hot air and steam
• Helps maintain stable temperatures and more even baking/roasting
• Replace if you notice fraying, tears, flattened sections, or visible gaps around the door
• Symptoms of a failing seal can include longer preheat or cook times and heat escaping around the door

• Disconnect power and let the oven cool completely before servicing
• Remove the old gasket and clean the mounting area of any debris
• Install the new gasket following the original routing; seat retainer points evenly and do not stretch the gasket
• Close the door to confirm uniform contact, then run a short heat cycle to verify no leaks

A replacement door side frame that restores the oven door's fit and appearance. This black side trim replaces damaged or worn door framing to help the door close and seal correctly while improving cosmetic condition. What it does:

• Replaces a cracked, chipped, or warped door side frame to restore door alignment and finish
• Supports the door assembly and maintains the correct spacing for the door seal
• Addresses visible cosmetic damage and helps prevent drafts around the oven door
• Matches original mounting points for a direct fit when the correct OEM part is used

• One (1) door side frame (black)

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Remove the oven door or open it to the service position per the manufacturer's instructions for safe access
• Handle glass and painted surfaces carefully to avoid scratches; use proper fasteners and torque per OEM guidance

This oven vent trim bracket secures the vent/handle trim to the oven door so the trim stays aligned and stable during normal use. It replaces a worn or broken mounting bracket to restore proper fit and appearance. What it does:

• Holds the oven vent trim and handle assembly in place to prevent shifting or rattling
• Restores correct trim alignment and a finished look to the oven front
• Addresses symptoms like a loose, sagging, or noisy vent trim or handle
• Prevents further wear to surrounding trim and fasteners caused by a loose bracket

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Typical installation requires removal of the oven door trim and/or screws; keep fasteners organized
• Use basic hand tools and avoid overtightening to prevent trim damage

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

Oven doors utilize door hinges to open and close efficiently. There is a door hinge attached to opposite ends of the door, and the part is also connected to the range. With time, the hinges can wear out, get damaged, or break off. When the hinges are no longer functioning correctly, replacement parts are necessary to continue using the appliance.An indication that there is a problem with the door hinge on an oven door is difficulty opening or closing or a door that partially slips on one side or the other out of position. A visual inspection will determine the condition of a door hinge. The replacement of the piece is simple. Unplug the range from its power source before starting the repair. Wear gloves for protection. Check the condition of both hinges before ordering. This door hinge is an authentic OEM replacement part. It is sourced directly from the manufacturer. The piece is sold as an individual unit. The door hinge fits several different models of ranges. The replacement part is compatible with appliances produced by General Electric, Hotpoint, and RCA. It is manufactured using high-quality, durable metal materials.

The Window Pack Assembly is an OEM replacement part for GE electric ranges. It comprises the outer oven window and securing brackets that hold the glass in place.

Causes of failure can include cracks in the glass from impact or thermal stress over time. Mounting brackets may loosen from normal use.

Symptoms of a faulty window pack assembly include:

• Fogging or condensation between panes of glass
• Leaks evident around the perimeter of the oven window
• Window that rocks or wiggles in the frame
• Inability to securely latch the window shut

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models.

ST10-16 X 7/16"

This hex washer head screw secures appliance panels and brackets. The 10-16 x 0.812 size replaces missing or stripped hardware so components stay properly fastened, helping prevent looseness, rattling, and misalignment.

• Fastens metal panels, brackets, and components in compatible appliances
• Replaces a lost, damaged, or corroded screw to restore proper attachment
• Helps reduce vibration, noise, or loose-fitting parts caused by missing hardware
• Correct 10-16 thread and 0.812-inch length for specified mounting points

• Disconnect power; for gas models, also shut off the gas supply.
• Note the original screw's location and orientation before removal.
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing.
• Use a nut driver or socket that fits the hex head.

Black. 8-18 AB HXW 3/8

This spacer positions and supports appliance panels and components to maintain correct alignment and clearances, helping reduce panel movement and ensure proper fit. It's a simple replacement that restores intended spacing where worn or missing. What it does

• Provides consistent spacing between panels or components to prevent rubbing or misalignment
• Helps stabilize trim, panels, or assemblies that sit flush against the cabinet
• Used when gaps, loose panels, or misaligned trim are present

• One spacer

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect surrounding fasteners and mounting points; replace any damaged screws or clips
• Install in the same orientation and location as the original spacer; do not force into place

This 10-32 threaded screw fastens appliance panels and components, restoring secure attachments and reducing vibration. It's a direct-fit fastener for assemblies that use a standard 10-32 UNC machine screw. What it does

• Secures control panels, brackets, and internal components that use a 10-32 thread.
• Stops loose parts that can rattle, vibrate, or cause misalignment.
• Replaces stripped, missing, or damaged 10-32 screws to restore proper fit.
• Works where a short machine screw with a 10-32 thread is required.

• One 10-32 threaded screw.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or nut driver for the screw head to avoid stripping.
• Install matching thread engagement; do not force or cross-thread.
• Tighten snugly but avoid over-torquing to prevent damage to mounting holes or plastic parts.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
