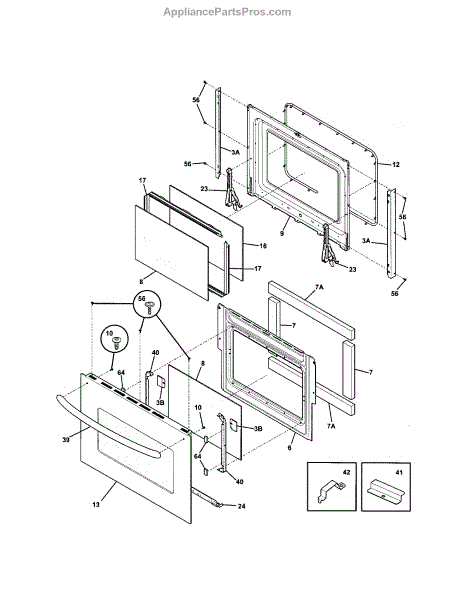

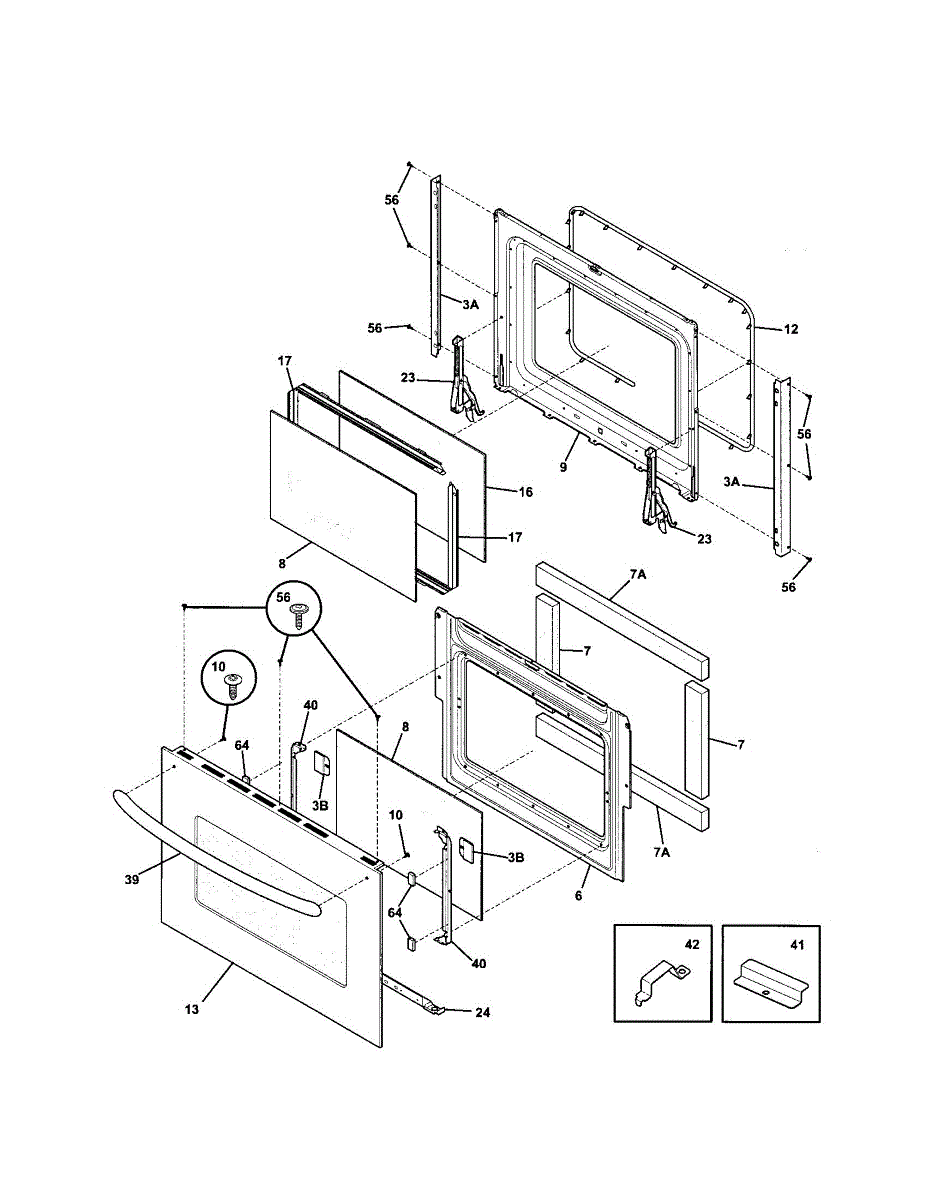

Parts for Kenmore 790.46703606 (79046703606, 790 46703606): Door Parts

This printed repair parts list shows the parts diagram and itemized part numbers for the appliance to help identify replacement components and speed parts ordering. Useful for troubleshooting and verifying part locations before repair. What it does:

• Displays the exploded diagram and item numbers for the unit
• Helps you match physical parts to OEM part numbers for ordering
• Clarifies where parts mount and how assemblies relate during diagnosis
• Speeds troubleshooting by showing component relationships and fastener locations

• Not an electrical or mechanical replacement part—use for reference and ordering only
• Keep the sheet dry and store with service records for future reference
• Use the part numbers listed to order replacement components;

Technical service data sheet for your range. Provides wiring diagrams, troubleshooting guides, and repair specifications. Replace lost or damaged sheets.

Wire harness for ranges. Connects electrical components inside your appliance. Replace if wires are frayed, damaged, or connections are loose or burnt.

Oven won't maintain temperature or exterior gets too hot? This insulation blanket contains heat and protects nearby components. Moderate DIY repair.

Heat-resistant insulation that wraps the oven cavity to contain heat. Replace if worn, damaged, or missing to improve heat retention and efficiency.

Specs: 8 - 18 x 0.500

Inner door glass panel for range and wall oven doors. Replace if cracked, shattered, or slipped out of position. Installs between outer glass and oven cavity.

Replacement 10-24 x 3/8 machine screw secures panels, brackets, and trim in ranges and ovens. Replace missing, stripped, or damaged screws.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Seals oven door to prevent heat loss and improve efficiency. Replace if frayed, damaged, or door doesn't close properly. Verify fit with your model number.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement mounting screw for refrigerators, ovens, ranges, and cooktops. Secures interior panels, components, and trim. Needed when original is stripped, missing, or damaged during repair.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Protective shield that covers and guards the switch assembly on your range. Replace if the original shield is cracked, broken, or missing to restore proper coverage.

Secures the oven door handle in place. Replace if screw is stripped, missing, or no longer holding the handle firmly against the door surface.

This stainless steel cleaner restores and protects stainless surfaces, removing fingerprints, smudges and light soils to improve appearance and make routine cleaning easier. Safe for finished stainless when used as directed. What it does:

• Cleans away fingerprints, grease, and light residue from stainless surfaces
• Restores a streak-free shine and improves overall appearance
• Helps reduce visible smudges for easier routine maintenance
• Leaves a light protective finish that helps resist fingerprints between applications

• Read and follow the product label before use; test on an inconspicuous area first
• Apply to a soft cloth and wipe with the grain of the stainless; avoid abrasive pads
• Do not use on hot surfaces, painted finishes, or unsealed metals unless manufacturer approves
• Keep out of reach of children and avoid contact with eyes; if contact occurs, rinse thoroughly

Anti-tip warning label for electric ranges. Replaces faded, peeling, or missing safety labels on the anti-tip bracket. Ensures compliance with safety standards.

Replace your range oven door handle if it's cracked, broken, or missing. This handle installs on the front of the oven door for opening and closing access.

Secures and routes wiring cables inside your range or oven. Replace this retainer bracket if it's cracked, broken, or missing to properly support cables.

Metal support bracket that secures and stabilizes range components. Replaces broken, bent, or missing brackets to restore proper panel alignment.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.
