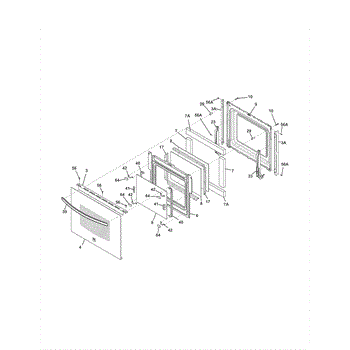

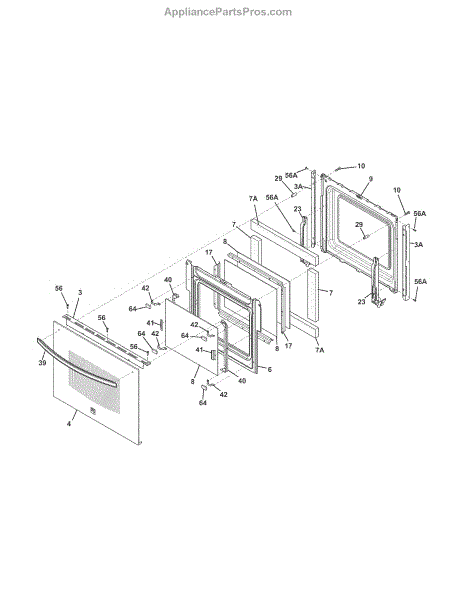

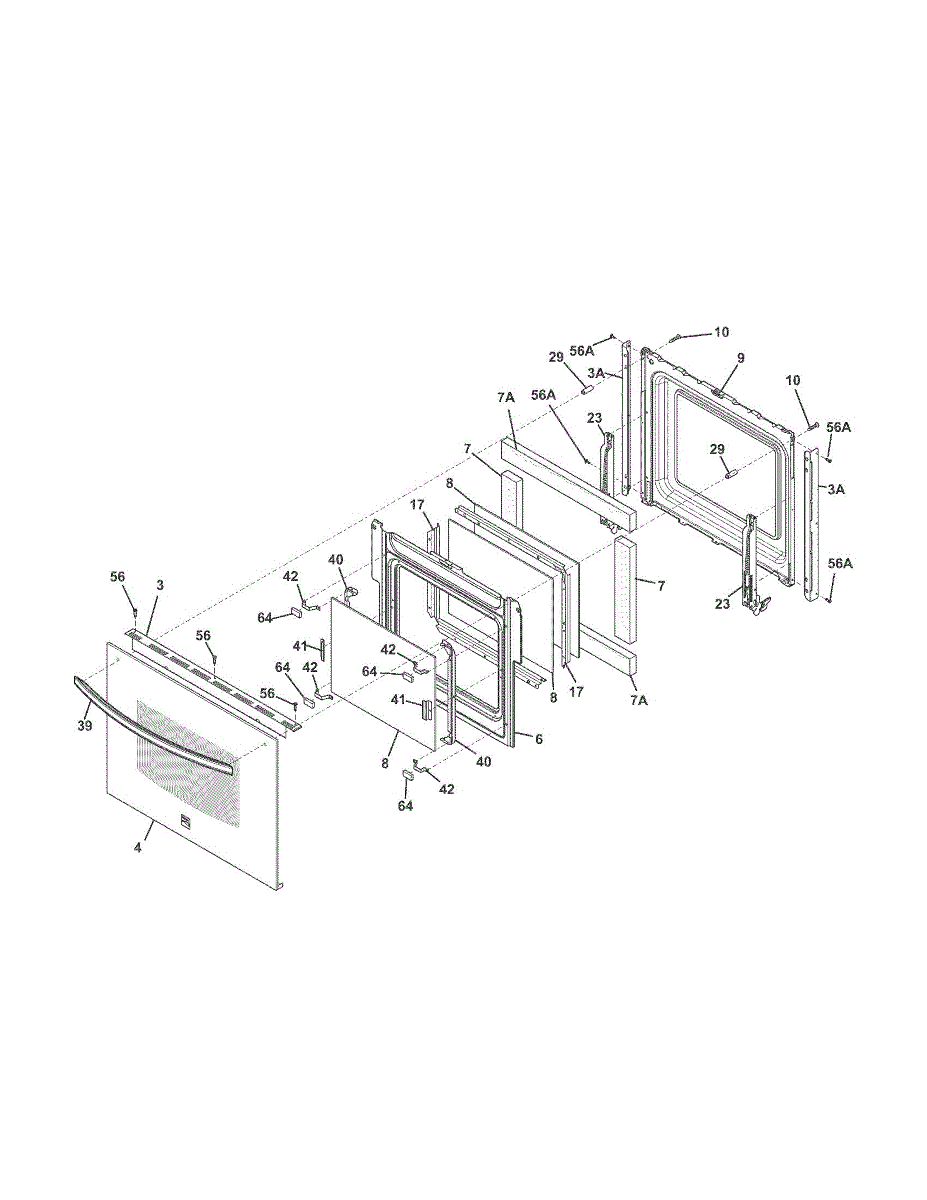

Parts for Kenmore 790.49509311 (79049509311, 790 49509311): Door Parts

This glass assembly replaces a damaged or cracked door glass to restore a clear view and proper sealing. It fits as the oven/door glass panel and helps maintain appearance and safe operation. What it does:

• Replaces broken, cracked or chipped door glass so the appliance door seals and looks correct
• Restores visibility into the oven or appliance cavity for safe monitoring of cooking
• Helps maintain proper heat containment and consistent cooking performance
• Prevents shards and loose glass from posing a safety hazard

What's included:

• One glass assembly

Install notes:

• Disconnect power to the appliance before starting any repair and allow surfaces to cool
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Follow OEM instructions for removing the door and attaching the glass; screws and clips may be required

This high-temperature insulation is used in the oven assembly to contain heat and protect nearby components and cabinetry. Replacing damaged insulation helps the appliance maintain set temperatures and keeps exterior surfaces from getting excessively hot. What it does:

• Helps retain heat for stable baking and roasting temperatures
• Reduces heat transfer to the appliance frame and adjacent cabinets
• Replaces insulation that is torn, charred, or saturated with spills/grease

• One insulation piece

• Disconnect power; for gas models, also shut off the gas supply
• Remove the range or wall oven and access the oven body
• Wear gloves, eye protection, long sleeves, and a dust mask; fibers can irritate skin and lungs
• Reinstall in the same orientation/routing as the original; do not compress insulation or block vents

This is a replacement glass panel for the appliance assembly. It restores a clear, intact barrier where the original glass was cracked, chipped, or missing—helping the unit operate safely and look like new. What it does:

• Replaces broken or shattered glass to restore the intended barrier or support surface
• Helps maintain safe operation by eliminating sharp edges and gaps
• Preserves proper appearance and fit of the assembly
• Typical symptoms: visible cracks, spider-web shatter, loose or rattling panel, missing glass

• One glass panel

• Disconnect power and allow all surfaces to cool before service; wear cut-resistant gloves and eye protection
• Support the assembly during disassembly to prevent drops or stress on hinges/frames
• Transfer any trim, brackets, gaskets, or insulation from the original panel as required
• Handle glass carefully by the edges; do not overtighten fasteners against glass

The Screw is an OEM replacement part for Frigidaire appliances. This screw is used to securely fasten components, such as panels, brackets, or internal parts, ensuring the appliance remains stable and functions correctly. Its precise design ensures a snug fit and reliable performance in the designated area of the appliance.

Over time, screws can become stripped, corroded, or loosened due to vibrations, frequent use, or environmental factors. A damaged or missing screw may lead to instability, misaligned components, or operational issues with the appliance.

Symptoms of a bad or missing screw include:

• Loose or misaligned panels or components
• Rattling or unusual noises during operation
• Difficulty in securing parts during repairs or adjustments
• Parts becoming detached or unstable

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This spring-loaded hinge supports and controls the oven door's movement so it opens smoothly and closes firmly, helping the door seal properly and retain heat. Replacing a worn hinge restores proper door alignment and closing force.

• Provides the pivot and spring tension for controlled door opening/closing
• Helps the door sit flush against the gasket to maintain a proper heat seal
• Common symptoms: door won't fully close, sags or drops, won't hold at a mid-open position, heat escaping from the front
• Typical causes of failure: metal fatigue, spring wear, or hinge deformation from heavy use

• Disconnect power; for gas models, also shut off gas. Allow the oven to cool completely.
• Support the door and engage hinge locks or remove the door.
• Springs are under tension—use gloves and eye protection; do not disassemble the hinge.
• Align with the receivers/slots and test for smooth operation and full closure; consider replacing both for even tension.

A small mounting spacer used to position and support appliance components for correct alignment and stable operation. Replaces a worn or missing spacer to help restore proper fit between panels and parts. What it does:

• Keeps panels, brackets, or components spaced correctly to prevent rubbing and misalignment
• Helps reduce vibration and rattling caused by gaps or loose fits
• Restores correct clearance for moving parts that need precise spacing
• Used wherever a fixed gap or support is required between parts

• Disconnect power (and fuel or water if applicable) before beginning any repair
• Access may require removing outer panels, trim, or adjoining components
• Keep orientation and placement the same as the original spacer; install snugly but avoid over-tightening
• If other parts show wear or damage, inspect and replace them as needed for a complete repair

This support bracket secures and stabilizes appliance components, restoring proper alignment and stopping movement. It's a simple replacement that helps reduce rattling and prevents panels or assemblies from shifting during use. What it does:

• Provides a rigid mounting point to hold panels, trim, or internal assemblies in place
• Restores proper alignment when a worn or broken bracket causes gaps or looseness
• Reduces vibration and rattling caused by a damaged or missing support
• Keeps connected parts from shifting, which can prevent further wear or damage

• Disconnect power to the appliance before beginning any repair
• Verify the bracket orientation and fit against the mating surface before fastening
• Use the factory screw locations and hardware; tighten screws securely but avoid over-torquing

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

Replacement screw that secures panels, trim and internal components in compatible appliances. Restores proper fit and helps reduce rattling or loose parts when the original fastener is missing, worn, or damaged. What it does:

• Fastens panels, brackets, trim pieces and small component assemblies to the appliance frame
• Helps eliminate noise and vibration caused by loose or missing fasteners
• Replaces stripped, corroded or missing screws to restore secure mounting
• Matches OEM fit when the identical screw is required for proper alignment

• Disconnect power to the appliance before starting any repair
• Use the correct driver size to avoid cam-out or damage to the screw head
• Do not overtighten; overtightening can strip threads or crack plastic parts
