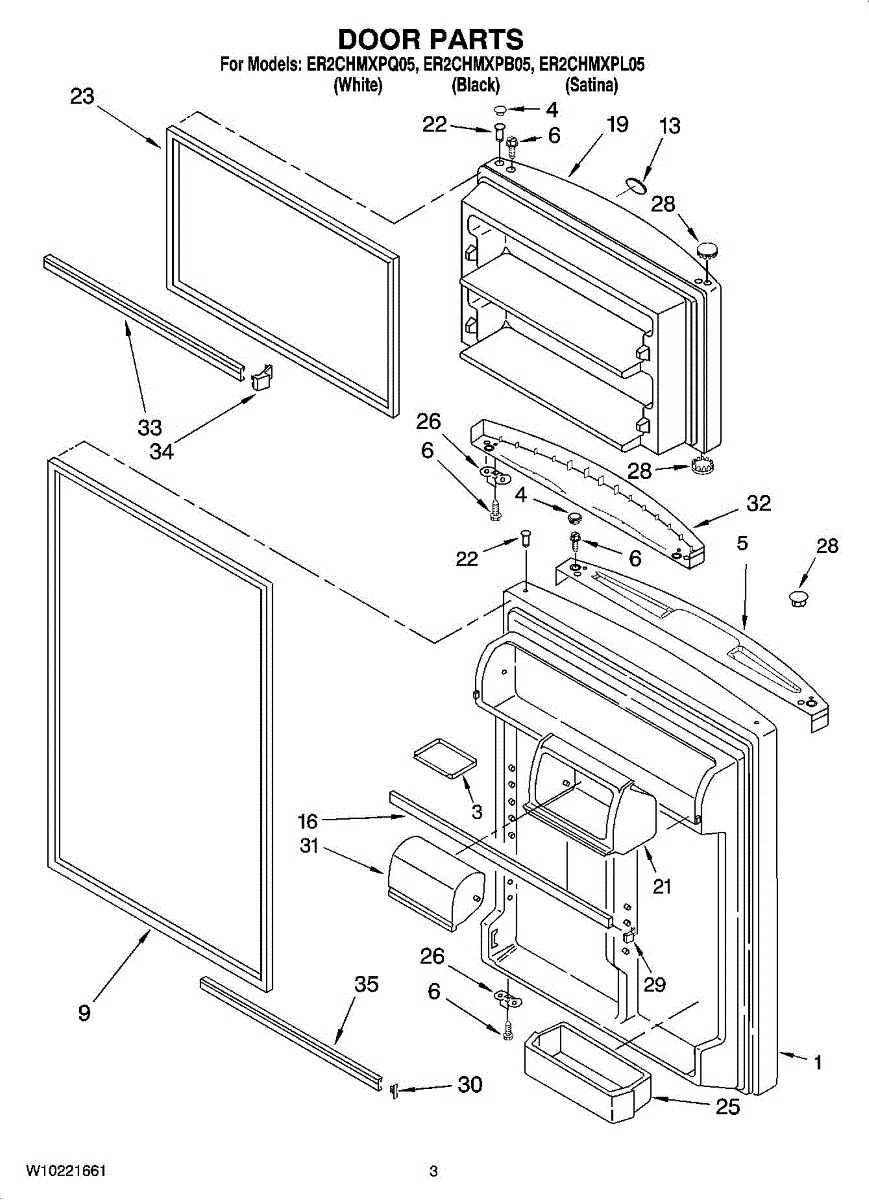

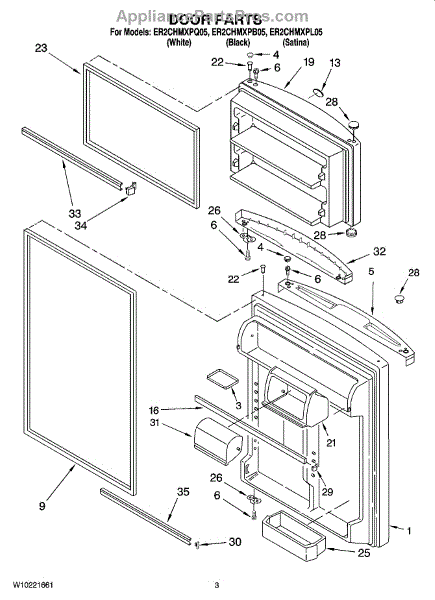

Parts for Whirlpool ER2CHMXPQ05: 02 - Door Parts

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms an important seal around the refrigerator door, preventing warm air from entering the sealed interior compartment. Maintaining proper temperature and humidity levels inside depends on an intact, well-sealed door gasket.

Causes of a bad door gasket can include cracks, tears or deterioration over time due to exposure and normal compression/expansion cycles. Food particles or debris trapped against the gasket can also damage sealing integrity.

Symptoms of a bad door gasket include:

• Difficulty closing or sealing the door properly
• Higher electric bills from the refrigerator running more often
• Warm air leaking into the refrigerator sections
• Loss of interior temperature regulation

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Fresh Food Door Gasket is an OEM part for Whirlpool refrigerators. It seals the refrigerator door, keeping cold air inside and preventing warm air from entering, which helps maintain the proper temperature and efficiency of the refrigerator.

You should replace the fresh food door gasket if it becomes damaged or worn out. Common causes of a bad gasket include wear and tear from regular use, exposure to temperature fluctuations, or physical damage from cleaning or handling.

Symptoms of a bad fresh food door gasket include:

• The refrigerator door not sealing properly
• Increased energy consumption
• Frost or condensation buildup around the door
• Visible cracks, tears, or deformation of the gasket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door compartment housing provides a durable replacement section for the refrigerator door, restoring secure storage and proper fit for your door bins. It helps return stable support to stored items and keeps the door interior sealed. What it does:

• Replaces a cracked, broken, or warped door compartment housing to restore bin stability
• Supports door bins and helps keep stored items from shifting or falling
• Restores proper spacing and alignment of the door interior for consistent use
• Can reduce rattling or movement caused by a damaged housing

• Designed for drop-in replacement; remove door bins and fasteners before installing
• Inspect surrounding clips and mounting points; replace if damaged to ensure secure fit
• Use basic hand tools; disconnect power only if working near electrical components

This door handle thimble is a small spacer/bushing used on select refrigerator and freezer doors. It sets the correct stand-off for the handle hardware so the handle mounts securely, aligns properly, and feels solid in use.

• Spaces and aligns the door handle to the correct distance from the door
• Supports the handle mounting stud/screw for a secure fit
• Helps reduce handle wobble, gaps, or scuffing against the door
• Replace if the handle won't tighten evenly or the original thimble is cracked, worn, or missing

• Disconnect power before servicing the appliance
• Support the handle to protect the door finish during removal
• Loosen the handle's set screw(s) or mounting bolt, remove the old thimble, and clean the area
• Seat the new thimble fully, reinstall hardware, and tighten evenly—do not overtighten

The Freezer Door Gasket is an OEM part for Whirlpool freezers. This gasket forms a tight seal around the freezer door, keeping the cold air inside and preventing warm air from entering, which helps to maintain the optimal temperature and efficiency of the freezer. The gasket measures approximately 20.19” x 31.29” Color: Misty Beige. For Black order 217731

Causes of a bad door gasket can include regular wear and tear, exposure to extreme temperatures, mold or mildew buildup, and physical damage from repeated opening and closing of the door.

Symptoms of a bad freezer door gasket include:

• Frost buildup inside the freezer
• The freezer running more frequently to maintain temperature
• Difficulty keeping the door closed or it not sealing properly
• Visible cracks, tears, or deformation in the gasket

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Freezer Door Gasket (Black) is an OEM part for Whirlpool refrigerators. This part ensures an airtight seal around the freezer door. This gasket prevents warm air from entering and cold air from escaping the freezer compartment, playing a crucial role in maintaining the freezer's internal temperature. The gasket measures approximately 20.19” x 31.29”.

Causes of a bad Freezer Door Gasket can include natural aging and wear over time, exposure to extreme temperatures that can degrade the material, and physical damage from cleaning or heavy use.

Symptoms of a bad Freezer Door Gasket include:

• Visible cracks, tears, or wear in the gasket, leading to poor sealing
• Condensation or ice buildup around the door edges, indicating air leaks
• Difficulty in maintaining the freezer's set temperature, resulting in increased energy consumption
• The freezer door not closing properly or feeling less resistant to opening

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Bin is an OEM replacement part for Whirlpool refrigerators. It is a removable plastic storage bin mounted inside the upper refrigerator door. This bin provides convenient access for eggs, condiments, and other small items with the door open.

Symptoms of a failing door bin may include:

• Cracks along joints compromising structural integrity
• Detached mounting clips unable to securely hold contents
• Hairline fractures that expand over time reducing capacity

Causes relate to normal stresses from frequent loading/unloading over the appliance lifespan. Temperature fluctuations from door openings may also contribute to gradual material degradation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This end cap is a small door trim piece that restores the finished look and edge protection on the appliance door. It helps cover exposed edges and fasteners for a clean, factory appearance. What it does:

• Replaces damaged, cracked, or missing door trim end caps to restore appearance.
• Covers and protects exposed screw holes and door edges from wear.
• Prevents loose trim and helps keep the door surface smooth and snag-free.
• Commonly used when door trim pulls away, is broken, or shows cosmetic damage.

• High-level replacement: usually snaps or fastens into place from the door edge; remove trim carefully to avoid cracking adjoining pieces.
• Disconnect power (or water supply on dishwashers) before removing panels if access requires panel removal.
• Use gentle, even pressure and the correct trim tools; avoid excessive force to prevent breakage.
• Follow the appliance's service manual or OEM diagram for removal and reassembly steps.

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Endcap is an OEM part for Whirlpool refrigerators. It serves as a component for the interior shelving system, providing support and stability to the shelves that hold food and beverages.

Causes of a bad endcap can include physical damage from overloading shelves, accidental breakage, or normal wear and tear over time. These scenarios can lead to the endcap becoming cracked, broken, or otherwise unable to properly support the shelf, potentially leading to the shelf collapsing or not being able to hold items securely.

Symptoms of a bad Endcap include:

• Shelves that sag or fail to stay level
• Difficulty in sliding shelves in or out
• Visible cracks or breaks in the endcap
• Loose or unstable shelves due to poor endcap support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators, specifically designed to enhance the functionality and organization of the refrigerator's door shelves. This bar is crucial for securely holding items in place, preventing them from falling out when the door is opened or closed. Made to fit perfectly with specific Whirlpool models, this part ensures durability and reliability, upholding Whirlpool's standards for quality.

Causes of a bad Door Shelf Bar can range from normal wear and tear to accidental damage. Overloading the door shelves with heavy items can also lead to stress and eventual breakage of the shelf bar.

Symptoms of a failing Door Shelf Bar include:

• Difficulty keeping items secure on the door shelves
• Items falling from the door when it is opened
• Visible cracks or wear on the bar, indicating physical damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
