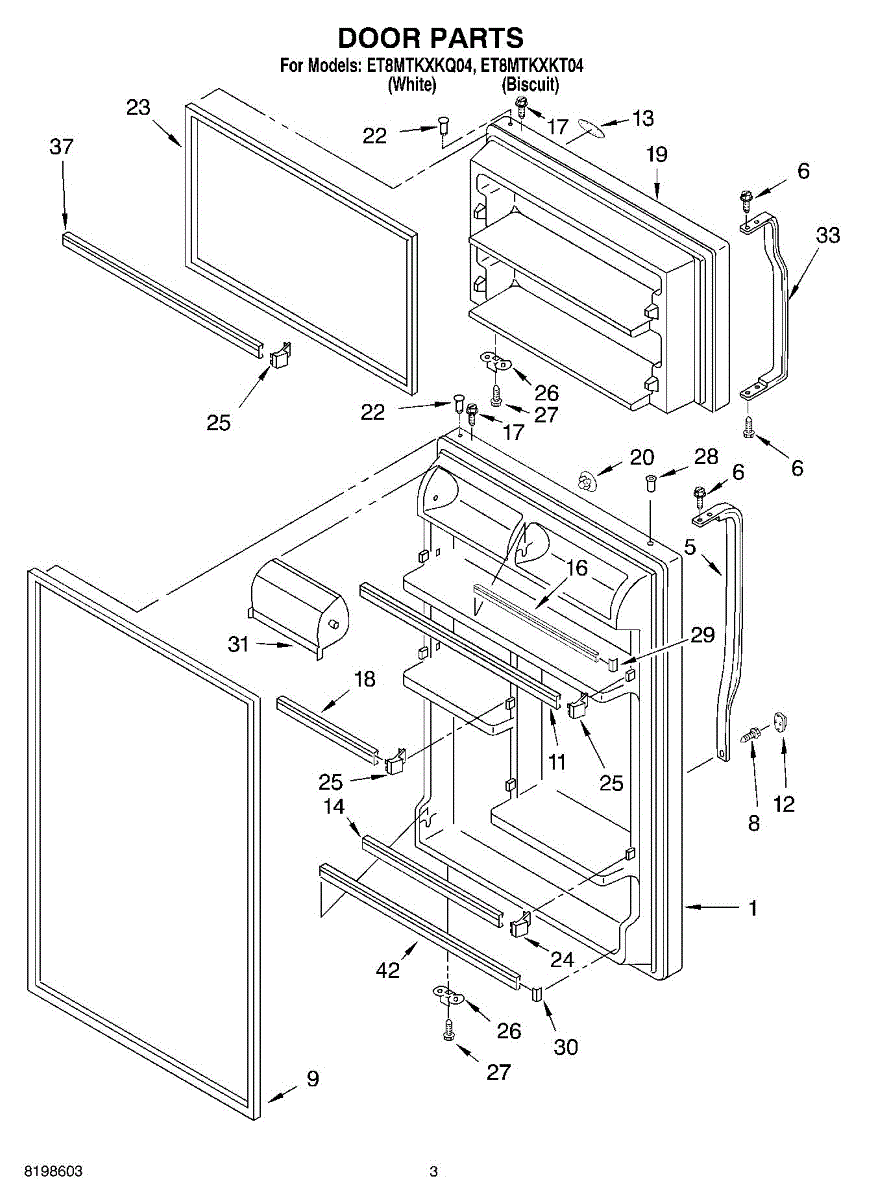

Parts for Whirlpool ET8MTKXKQ04: 02 - Door Parts

Refrigerator door assembly with gasket-white.

Color: Biscuit. For white order WP2202807W. For black order WP2202807B. For the freezer door handle in biscuit order WP2202806T.

Color: White. For biscuit order WP2202807T. For black order WP2202807B. For the freezer door handle in white order WP2202806W.

The Screw is an OEM fastening component specifically designed for securing interior panels and assemblies of Whirlpool brand appliances.

Causes of a problematic screw include stripping, corrosion, or shearing from repeated installations and removals during service procedures.

Symptoms of faulty screws include:

• Loosened or detached interior panels rattling behind appliance exteriors
• Reduced structural integrity allowing unnecessary vibrations and noise

Compatible models include brands produced by KitchenAid, Maytag, and some Kenmore.

This replacement screw secures appliance components such as panels, brackets, and trim. Replacing a missing, stripped, or corroded fastener restores a snug, rattle-free fit and helps keep parts properly aligned during operation. What it does:

• Fastens panels, brackets, trim, and assemblies in place
• Maintains alignment and reduces vibration or rattling
• Replaces worn, corroded, or missing hardware to ensure safe attachment
• Typical symptoms: loose panel, rattling noises, misalignment, stripped head/threads

• 1 screw

• Disconnect power; shut off gas/water if applicable before servicing
• Match the replacement to the original screw (thread and length) for proper fit
• Start threads by hand to avoid cross-threading; use the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

The Fresh food door gasket is an OEM component for Whirlpool refrigerators. As the main door seal, this rubber gasket works to prevent air and moisture exchange between the refrigerator interior and exterior. It plays a crucial role in maintaining optimal freshness levels.

Causes of a bad fresh food door gasket include cracks, tears, or compressed sections that no longer form an airtight seal. Prolonged use of 10+ years can cause rubber to break down. Entering/closing the door carelessly could damage the gasket over time as well.

Symptoms of a bad fresh food door gasket include:

• Frozen items thawing in the fridge shelves
• Increased moisture inside causing ice/fog buildup
• Higher electricity bills from inefficient cooling
• Warm air entering when opening the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool refrigerators.

Causes of failure include cracks or fractures due to repeated loading/unloading of shelves. Deterioration over time additionally diminishes secure fixation.

Symptoms of a problematic retainer bar involve:

• Shelves difficult to position
• Visible sagging evident on shelving

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Color: white

Color: white. Measures about 13 inches wide by 2 inches high.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. This part goes on the door to hold condiments on the shelf. This does not include the endcaps.

Causes of malfunction involve cracks developing from weight stress on fasteners.

Symptoms of a problematic shelf bar include:

• Gaps noticeable between shelves and door
• Visible bowing or sagging on panels

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Note: In some cases, you may have to cut to fit.

This replacement screw secures panels, brackets, or trim within your appliance. Replacing a worn, stripped, or missing screw restores a tight, rattle-free fit so components stay aligned and operate as intended. What it does:

• Fastens components at the original factory locations specified for this part
• Replaces missing, damaged, or stripped screws to restore holding power
• Helps reduce vibration and rattling from loose parts
• Maintains proper alignment of panels, covers, brackets, and trim

• Disconnect power (and gas, if applicable) before servicing
• Match to the original screw and install in the same location and orientation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver or nut-driver; transfer any washers or spacers from the original hardware if present

Replacement door trim that restores the finished edge of a refrigerator door shelf and helps keep the shelf bin seated properly. Improves appearance and replaces cracked, worn or missing trim. What it does:

• Covers and finishes the front edge of a refrigerator door shelf for a clean, uniform look.
• Helps hold the shelf bin in place so it sits securely in the door pocket.
• Replaces cracked, chipped or missing trim that can catch or scratch items.
• Prevents small gaps where items might shift or snag along the shelf edge.

• Remove the door shelf bin before installing; support the bin to avoid dropping or damage.
• Align trim clips with the shelf flange and press evenly until it snaps into place.
• Inspect mounting clips for damage; replace any broken clips before reinstalling the trim.

This hole plug covers the screw access on appliance handles for a finished, factory appearance. It helps keep moisture and debris out of the handle cavity while restoring a clean, matching look to the door. What it does:

• Covers exposed handle screw holes for a finished appearance
• Helps prevent moisture, dirt, and food particles from entering the handle cavity
• Restores a color-matched cosmetic finish to the handle area
• Useful when replacing a handle or finishing a repair where the plug is missing

• One biscuit-colored handle hole plug

• Push the plug into the hole until it snaps flush; may require light pressure or a soft mallet
• Remove the old plug by prying gently with a plastic trim tool to avoid scratching the finish
• No electrical disconnection is typically required for this cosmetic part; follow appliance manufacturer guidance for any door/handle work

Color: White.

This thimble is a small insert used in the freezer compartment. It reinforces a mounting hole, prevents liner wear, and helps keep attached hardware stable and properly aligned for smooth, quiet operation.

• Serves as a protective bushing for a hole in the freezer compartment liner
• Helps stabilize and align the component secured at that location
• Replaces cracked, worn, or missing inserts that can cause loose hardware, wobbling, or rattling
• Restores proper fit while helping prevent further wear to the liner

• Unplug the refrigerator and clear the work area in the freezer before service
• Remove the fastener/component to access the insert, then pull the old thimble straight out
• Press the new thimble fully into the hole; reinstall hardware without overtightening
• Use care—cold plastic and liner edges can be brittle or sharp

This freezer door gasket creates a tight seal around the door opening to keep cold air in and humidity out. Replacing a worn gasket restores proper door closure, helps prevent frost buildup, and supports consistent freezer temperatures.

• Forms an air-tight perimeter seal to minimize air leaks and moisture intrusion
• Helps resolve frost/ice buildup and sweating/condensation around the door
• Can improve temperature stability and reduce excessive run times caused by air leaks
• Common fix for doors that won't seal or when the old gasket is cracked, torn, or shrunken

• Disconnect power and clear items from the door before starting
• Warm and relax the new gasket (lay flat or soak in warm water) for easier installation
• Fit the corners first, then work evenly along the sides for a uniform seal
• If your model uses a retainer or screws, loosen and re-tighten evenly; check door alignment and perform a "dollar-bill" test

Color: white. Measures about 2-1/2 inches high by 5 inches deep.

The Door Shelf Retainer End Cap is an OEM replacement part for Whirlpool refrigerators. This component is designed to secure and support the end of the door shelves, providing a clean and finished look while preventing items from falling off the edges.

Symptoms of needing to replace the door shelf retainer end cap include:

• Visible cracks, damage, or missing pieces
• Loose or wobbly door shelves
• Items falling off the ends of the door shelves

Causes of a faulty door shelf retainer end cap can include normal wear and tear over time, accidental impact or mishandling, or exposure to excessive moisture or temperature fluctuations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and other components in your appliance so they stay tight and properly aligned. Use it to replace missing, stripped, or rusted hardware and eliminate looseness, rattles, or gaps.

• Fastens parts to the cabinet/frame to maintain structural integrity
• Helps keep panels and assemblies aligned to reduce vibration and noise
• Replaces missing, damaged, or corroded screws during service
• Common fix for loose panels or components that no longer hold securely

• Disconnect power and shut off water or gas before servicing
• Match length and thread to the original screw for proper fit
• Hand-start threads to avoid cross-threading; tighten only until snug—do not overtighten
• Tighten them evenly to ensure proper alignment

Color: Bisque

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Shelf Trim Endcap is an OEM replacement part for Whirlpool refrigerators. This component fits on the end of the refrigerator shelf trim, providing a finished look and securing the trim in place. It helps to maintain the integrity and appearance of the refrigerator shelves, preventing items from sliding off and ensuring the shelves are securely held in place.

Causes of a bad shelf trim endcap can include regular wear and tear, physical impact from loading and unloading items, or exposure to temperature changes that can cause the plastic to become brittle.

Symptoms of a bad Shelf Trim Endcap include:

• The shelf trim being loose or not staying in place
• Items sliding off the shelf due to instability
• Visible cracks or breaks in the endcap
• Difficulty in securing the shelf trim properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Compartment Door is an OEM part for Whirlpool refrigerators. It is designed to cover and protect specific compartments within the refrigerator, such as the dairy or deli section, helping to maintain the ideal temperature and humidity levels for stored items. It measures approximately 9 inches by 6 inches.

You should replace the compartment door if it becomes damaged or worn out. Causes of a bad compartment door can include cracks or breaks from frequent use, hinge damage, or warping due to temperature fluctuations.

Symptoms of a bad compartment door include:

• The door not closing properly
• Visible cracks or breaks
• Difficulty in opening or closing the compartment
• Reduced freshness of stored items due to improper sealing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Biscuit. For white order 4388947. For black order WP2202806B. For the refrigerator door handle in biscuit order WP2202807T.

Color: White. For black order WP2202806B. For biscuit order WP2202806T. For the refrigerator door handle in white order WP2202807W.

This part may be longer than needed and may have to be cut to fit.

The Door Shelf Retainer Bar is an OEM replacement part for Whirlpool refrigerators. It secures interior door shelves securely in place during operation.

Causes of a faulty retainer bar include stress cracks or fractures from repeated door opening/closing over time.

Symptoms of a bad retainer bar include:

• Shelves detaching from the refrigerator door
• Items falling or spilling due to unstable shelves
• Exposed sharp edges posing a safety hazard

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
