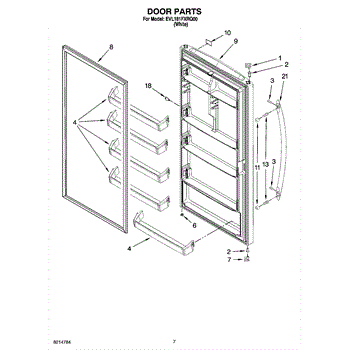

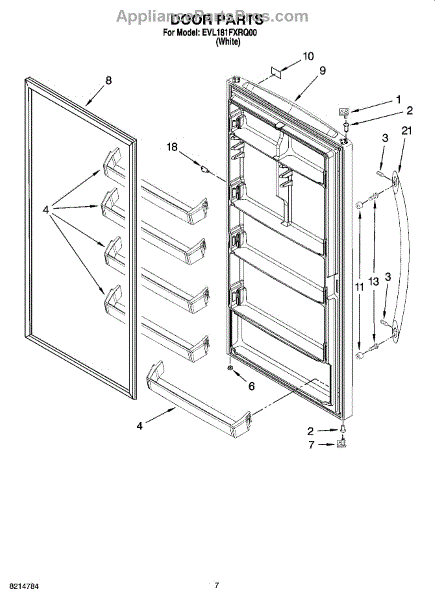

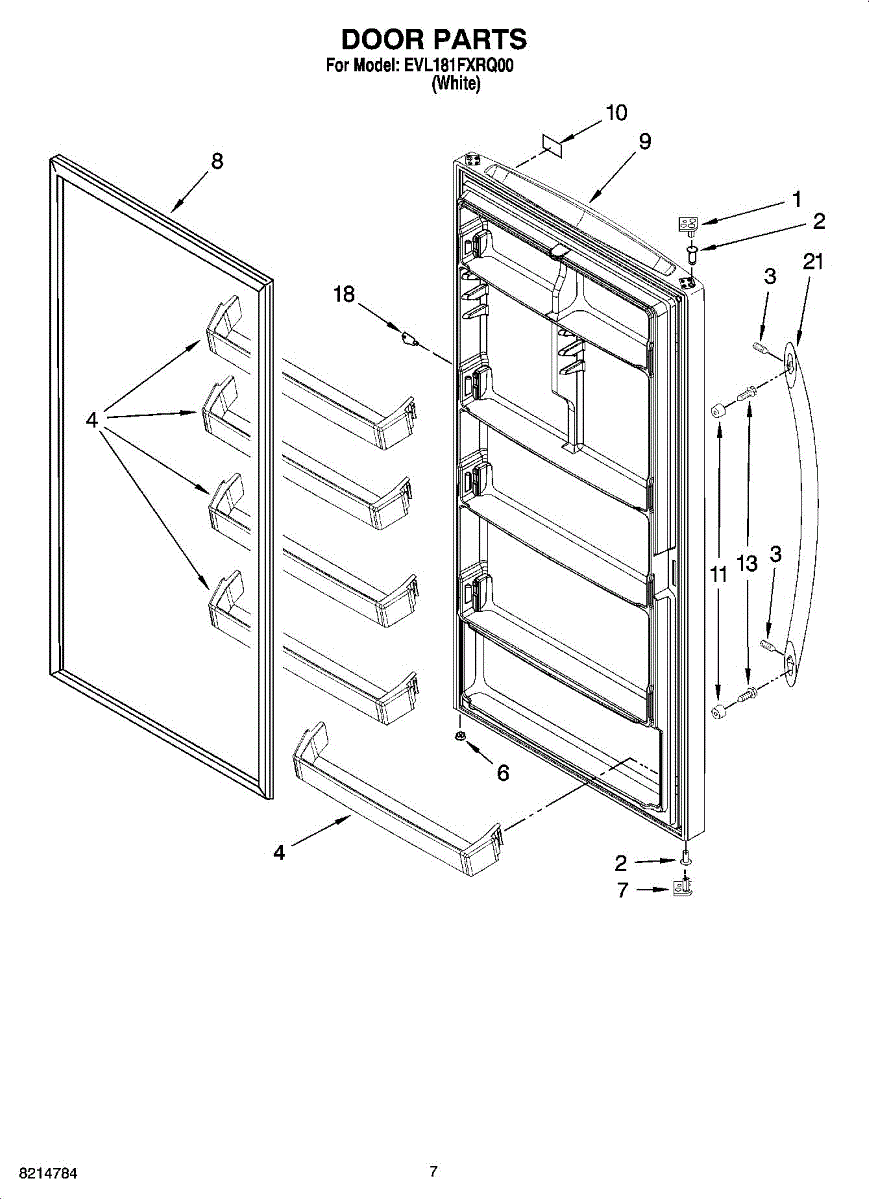

Parts for Whirlpool EVL181FXRQ00: 04 - Door Parts, Optional Parts (Not Included) Parts

This door stop replaces the worn or broken stop that limits door travel and keeps the door aligned for smooth opening and closing. Restores proper door positioning to prevent over-travel and edge wear. What it does:

• Acts as the mechanical stop that limits the door's range of motion
• Helps keep the door aligned and prevents the door from swinging past the designed stop
• Reduces stress on hinges and adjacent trim from over-travel
• Commonly replaced when the door binds, catches, or does not sit flush

What's included:

• One door stop (stop-door) as shown

Install notes:

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Removal typically requires basic hand tools; keep fasteners for reassembly
• Inspect surrounding hinge and trim for wear; replace as needed

This white hinge sleeve cap covers and protects the exposed hinge bushing/pin area, providing a clean, finished look while helping keep debris out of the hinge mechanism.

• Covers the hinge sleeve to improve appearance and protect the hinge area
• Helps prevent dirt and moisture from entering the hinge bushing
• Common failure signs include a missing/broken cap or a loose cap that won't stay in place
• May be used on door hinge locations where a sleeve/bushing is present

• Unplug the appliance or shut off power before starting
• Open the door and support it if working near a hinge
• Gently pry off the old cap; press the new cap firmly onto the hinge sleeve
• Do not force—align carefully to avoid cracking the cap

This door rail secures and guides the appliance door trim so the door closes and aligns properly. Replacing a worn or damaged rail restores a snug fit and reduces rattling or misalignment for reliable operation. What it does:

• Provides a mounting and guide surface for the door trim and related hardware
• Keeps the door aligned so seals engage and the door closes fully
• Prevents rattling or loose trim caused by worn or cracked rails
• Helps maintain proper door appearance and function

• One door rail

• Disconnect power to the appliance before starting any repair
• Remove door trim or panel fasteners as needed to access the rail
• Inspect adjacent clips, screws, and seals; replace any damaged fasteners

This vent plug seals the designated vent port on the appliance assembly to maintain the intended seal and containment. Replacing a worn or missing plug helps prevent nuisance leaks and odors from an open or damaged vent.

• Seals a factory vent opening on the specified assembly
• Helps prevent moisture or drips from escaping at the vent area
• Helps keep dust and debris from entering through an open port
• Replace if the plug is cracked, hardened, shrunken, loose, or missing
• Typical signs include moisture around the vent, visible damage, or a plug that won't stay seated

• Disconnect power and shut off water or gas supplies (as applicable) before servicing
• Allow appliance surfaces to cool and dry; wear protective gloves
• Remove the old plug, clean the vent port, and press the new plug fully flush in the same orientation
• Restore power and run a brief test; inspect the vent area for leaks

This door stop replaces the worn or broken stop that limits door travel and keeps the door aligned for smooth opening and closing. Restores proper door positioning to prevent over-travel and edge wear. What it does:

• Acts as the mechanical stop that limits the door's range of motion
• Helps keep the door aligned and prevents the door from swinging past the designed stop
• Reduces stress on hinges and adjacent trim from over-travel
• Commonly replaced when the door binds, catches, or does not sit flush

What's included:

• One door stop (stop-door) as shown

Install notes:

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Removal typically requires basic hand tools; keep fasteners for reassembly
• Inspect surrounding hinge and trim for wear; replace as needed

This magnetic door gasket seals the perimeter of the refrigerator or freezer door to keep cold air in and humidity out. Replacing a worn gasket restores a tight seal, stabilizes temperatures, and helps reduce frost and energy use. What it does:

• Creates an airtight magnetic seal between the cabinet and door liner
• Helps maintain proper interior temperature and efficiency
• Reduces condensation, frost, and ice buildup around the door opening
• Resolves gaps, torn or hardened gasket edges, doors not sealing, or frequent cycling

• 1 magnetic door gasket

• Disconnect power and clear door bins/shelves for access
• Warm the new gasket in hot water or with low heat to relax and straighten before installation
• Seat the gasket evenly around the perimeter; ensure the lip is fully engaged in the channel (loosen retainer screws if your model uses them)
• Close the door and check for uniform contact; re-seat corners or adjust hinges as needed. Allow up to 24 hours for the gasket to fully conform.

The Screw (Shoulder Bolt) is an OEM part for Whirlpool refrigerators. This part secures the refrigerator handle to the door, ensuring it remains firmly attached and functions correctly. The shoulder design of the bolt allows for proper spacing and alignment of the handle, providing stability and ease of use.

Causes of a bad handle screw can include regular wear and tear, over-tightening, or accidental damage during use or maintenance.

Symptoms of a bad handle screw include:

• Loose or wobbly refrigerator handle
• Handle detaching from the door
• Difficulty opening or closing the refrigerator
• Visible damage or wear on the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This is the keyed lock insert for select appliance doors. It lets you lock or unlock the door to secure contents and prevent unintended opening.

• Engages the door's lock mechanism to secure or release the door
• Helpful when the door won't lock/unlock or the original key is lost
• Restores proper locking function without replacing the whole lock assembly

• Unplug the appliance before service
• Verify the key profile matches your existing lock before use
• Insert fully and turn gently; do not force if resistance is felt
• Keep a spare key in a safe location away from the appliance

This face-mount handle assembly replaces a worn or broken appliance door handle and restores a solid, easy-to-grip surface for opening the door. It provides a direct-fit replacement designed to match the original mounting style and function. What it does:

• Replaces a cracked, bent, or broken face-mounted door handle
• Restores secure grip and normal door operation
• Prevents metal edges or sharp fragments from catching hands or clothing
• Helps eliminate wobble or looseness caused by damaged mounting points

• For safety, unplug the appliance or disconnect power before starting work
• Typically mounts with exposed screws or fasteners; use appropriate screwdriver or nut driver
• Align handle over mounting posts, then install and snug fasteners—do not overtighten
• Replace hardware before use

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Size: 1/4 lb.

Size: 63-1/2 x 35-1/2 x 2-5/8 inch.

Sealer for refrigerant line insulation.

Color: Almond

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
