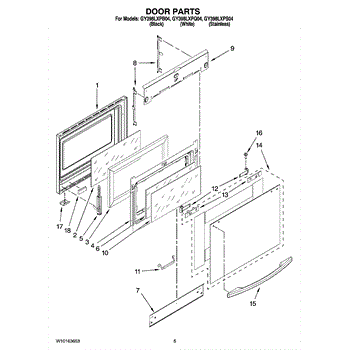

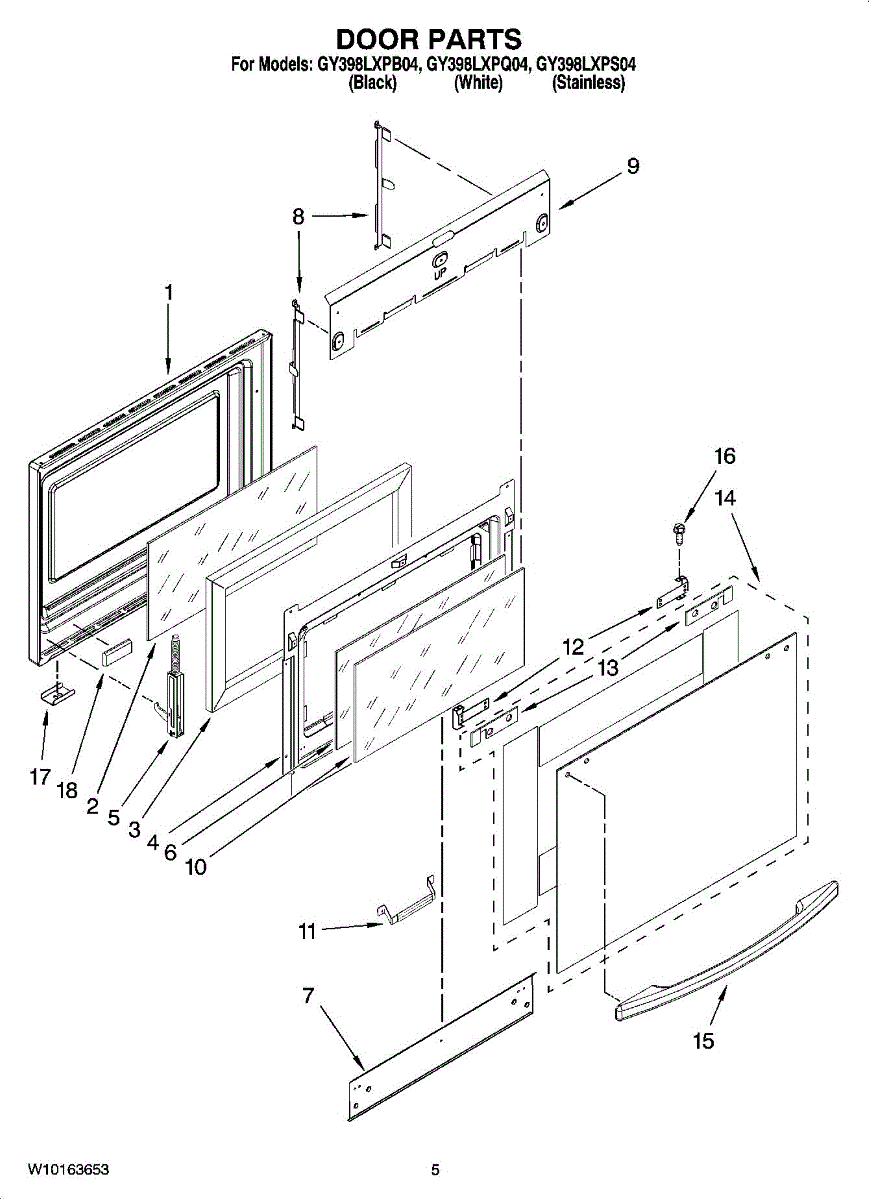

Parts for Whirlpool GY398LXPQ04: 04 - Door Parts

This is the 30-inch door panel for select ovens/ranges. It restores the door's appearance and provides the structural skin that supports the handle, glass, and trim for a solid, properly aligned door assembly. What it does:

• Forms the primary outer skin of the door assembly and supports handle/trim
• Provides a mounting surface for door glass and nameplate/emblems
• Helps maintain proper door alignment and a tight, rattle-free fit
• Common reasons to replace: dents, bends, scratches, discoloration, or stripped mounting holes

• 1 door panel

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door assembly and place it on a protected surface; wear cut-resistant gloves
• Transfer handle, screws, glass, and trim from the old panel to the new one; note screw lengths/locations
• Align carefully and avoid overtightening to prevent damaging threads or cracking glass

This inner oven door glass mounts on the inside of the door to help seal in heat while letting you view cooking progress. Replace damaged glass to restore safe viewing, proper insulation, and consistent oven performance.

• Forms the inner pane of the oven door window and acts as a thermal barrier
• Helps the oven reach and maintain set temperature by limiting heat loss through the door
• Provides visibility into the oven cavity during cooking
• Replace if the glass is cracked, shattered, missing, or heat is escaping from the door

• Disconnect power and allow the oven to cool completely; if applicable, shut off gas
• Remove the door and place it on a protected, flat surface before disassembly
• Wear cut-resistant gloves and eye protection; handle glass carefully and support the edges
• Reuse existing brackets, seals, and screws; note orientation during reassembly

The Door Insulation is an OEM part for Whirlpool ranges and wall ovens. This part provides thermal insulation for the oven door, helping to maintain the internal temperature and improve energy efficiency. It also protects the exterior surfaces of the oven door from becoming excessively hot during operation.

Causes of bad door insulation can include general wear and tear over time, degradation from repeated exposure to high temperatures, or physical damage.

Symptoms of bad door insulation include:

• Oven taking longer to heat up
• Heat escaping from the oven door
• Outer door surfaces becoming too hot to touch
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This left-hand oven door hinge assembly restores smooth, spring-assisted door movement and a tight seal. Replacing a worn or bent hinge helps the door close properly, reducing heat loss and improving cooking performance and safety.

• Supports and pivots the door; spring mechanism controls opening/closing tension
• Helps the door close fully and compress the gasket for a proper seal
• Corrects sagging, misalignment, or popping doors caused by hinge wear
• Common symptoms: door won't close or stay shut, drops open, uneven gaps, heat escaping, oven light stays on

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per your model's instructions; support the door and release hinge locks before lifting off
• Left-hand specific: install on the left side when facing the appliance
• Hinge springs are under tension—use caution, and wear gloves and eye protection

This right-hand oven door hinge assembly supports and counterbalances the door so it opens smoothly and closes firmly against the gasket. Replacing a worn hinge restores proper alignment and heat retention for consistent cooking performance.

• Provides the pivot point and spring tension for the oven door
• Helps the door open smoothly and close completely for a tight seal
• Wear or damage can cause sagging, misalignment, or slamming/falling open
• Heat loss from a poor seal may lead to long preheat or temperature fluctuations

• Disconnect power and allow the oven to cool completely before servicing
• The hinge is spring-loaded—support the door and use care to avoid injury
• Remove the door per your model's instructions, then replace the right-side hinge
• After installation, adjust per service guidance if needed

Note: This door hinge is for Stainless Door Models.

The Door Hinge is an OEM replacement part for Whirlpool wall ovens. It is located on oven doors and works to support the door for smooth opening and closing motions when removing or checking on food.

Causes of a bad door hinge can include wear of internal bearing surfaces from thousands of door cycles over many years of use. Exposure to heat from inside the oven cavity may also accelerate hinge component deterioration over time.

Symptoms of a bad Door Hinge include:

• Doors that are difficult to open fully or fail to stay securely in position
• Noises and grinding sounds heard while operating doors
• Improper or imbalanced door alignments that cause sealing or binding issues
• Premature wear of adjacent gasket and sealing surfaces

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and select Kenmore models.

This inner oven door glass panel restores the heat-resistant barrier between the oven cavity and the door. Replacing damaged glass helps the oven hold temperature, improves safety, and keeps the viewing window clear and easy to clean.

• Forms the interior heat barrier of the door window to contain heat inside the oven
• Lets you monitor cooking without opening the door
• Supports stable temperatures and consistent baking performance
• Common symptoms: visible cracks, chips, or shattered glass; rattling pieces in the door; missing or visibly damaged inner pane

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the door per your model's instructions and place it face-down on a padded, protected surface
• Wear cut-resistant gloves and eye protection; handle glass carefully and avoid stressing the edges
• Reassemble in the original order, ensuring brackets/seals are seated correctly; tighten fasteners snugly without overtightening

This inner oven door glass panel restores the heat-resistant barrier between the oven cavity and the door. Replacing damaged glass helps the oven hold temperature, improves safety, and keeps the viewing window clear and easy to clean.

• Forms the interior heat barrier of the door window to contain heat inside the oven
• Lets you monitor cooking without opening the door
• Supports stable temperatures and consistent baking performance
• Common symptoms: visible cracks, chips, or shattered glass; rattling pieces in the door; missing or visibly damaged inner pane

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the door per your model's instructions and place it face-down on a padded, protected surface
• Wear cut-resistant gloves and eye protection; handle glass carefully and avoid stressing the edges
• Reassemble in the original order, ensuring brackets/seals are seated correctly; tighten fasteners snugly without overtightening

Color: White

This oven door glass assembly replaces a damaged or shattered viewing panel so the door seals and insulates properly while letting you monitor cooking. Restores clarity and helps maintain temperature when the original glass is compromised.

• Forms the viewing window and part of the oven door's thermal barrier
• Replace if the panel is cracked, shattered, missing, or heavily scratched
• Helps reduce heat loss through the door after glass damage
• Restores a clear view into the oven cavity

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the door per your model's instructions and place it face-down on a padded surface
• Handle glass carefully and wear cut-resistant gloves and eye protection
• Transfer any reusable trim or brackets from the old panel; tighten fasteners evenly without overtightening

The Outer Door Glass is an OEM part for Whirlpool ranges. This part forms the exterior surface of the oven door, providing a clear view of the interior while insulating the outer surface from high temperatures.

Causes of a bad outer door glass can include accidental impacts, exposure to extreme temperature changes, or general wear and tear.

Symptoms of a bad outer door glass include:

• Visible cracks or shattering
• Clouding or discoloration that obstructs the view
• Heat escaping from the oven door
• Loose or unstable glass panel

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black
