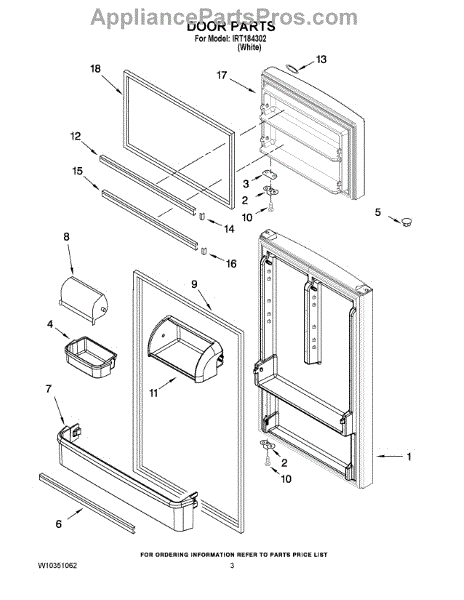

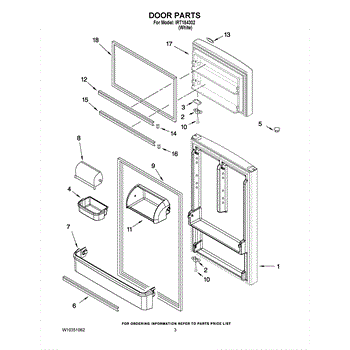

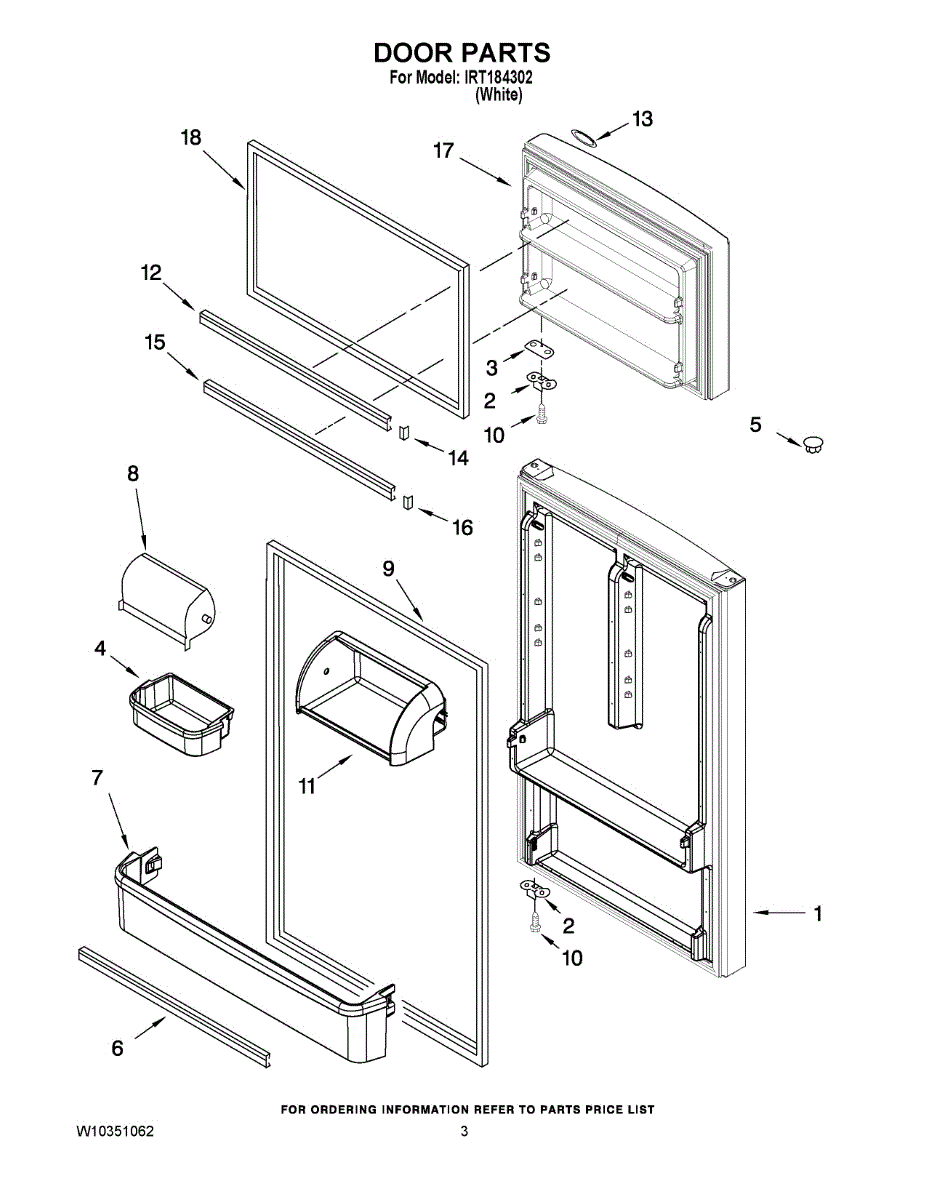

Parts for Whirlpool IRT184302: 02 - Door Parts

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The door stop shim positions the stop flush and fine-tunes the door's opening limit. Replacing a worn or missing shim helps restore smooth door operation and protects nearby surfaces from over-travel or rubbing.

• Provides correct spacing behind the door stop for proper alignment
• Helps limit the door swing to the intended stop position
• Can reduce wobble, play, or clicking at the stop point
• Replaces cracked, deformed, or missing shim components

• Disconnect power and support the door as needed to prevent strain
• Remove the door stop fastener(s) and note the original shim orientation
• Place the new shim behind the stop; reinstall hardware and tighten without overtightening
• Open and close the door to confirm stop angle and clearances

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. It provides organized storage on the refrigerator door, allowing quick access to frequently used items like eggs, butter, or condiments.

Causes of a bad door shelf bin can include warping or cracking of the plastic over time due to temperature changes from door opening. Handles may also loosen or break off from heavy use.

Symptoms of a bad door shelf bin include:

• Food items rolling around inside the door
• Loss of organized storage and ability to neatly display contents
• Possible premature spoilage from lack of airflow

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Trim-Door is an OEM part for Whirlpool refrigerators. This trim piece provides a finished look to the refrigerator door, covering gaps and edges to enhance the appliance's appearance. It also helps protect the door's edges from damage and can aid in sealing the door to maintain optimal cooling efficiency.

Causes of a bad trim-door can include regular wear and tear, impact damage, or exposure to fluctuating temperatures. A damaged trim can lead to aesthetic issues and potentially compromise the door's seal.

Symptoms of a bad trim-door include:

• Visible cracks or breaks in the trim
• Trim not fitting securely or coming loose
• Gaps between the door and the trim
• Refrigerator door not sealing properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

This door shelf trim is the front retainer bar that snaps across a refrigerator door bin to keep items in place. Replace a cracked or missing trim to restore secure storage on the door and prevent spills.

• Holds items within the door bin by providing the front retaining edge
• Common failure signs: cracked/broken bar, won't snap or stay in place, items sliding out of the bin
• Restores proper fit and appearance of the door shelf area

• Unplug the refrigerator before beginning any repair
• Lift off the affected door bin to access the trim
• Align the trim tabs with the bin slots and snap into place without forcing
• Verify the bin is seated securely on the door before use

The Door Shelf Retainer End Cap is an OEM replacement part for Whirlpool refrigerators. This component is designed to secure and support the end of the door shelves, providing a clean and finished look while preventing items from falling off the edges.

Symptoms of needing to replace the door shelf retainer end cap include:

• Visible cracks, damage, or missing pieces
• Loose or wobbly door shelves
• Items falling off the ends of the door shelves

Causes of a faulty door shelf retainer end cap can include normal wear and tear over time, accidental impact or mishandling, or exposure to excessive moisture or temperature fluctuations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. This bar attaches to the interior of the refrigerator door, providing a secure barrier that holds items like bottles, jars, and containers in place on the door shelves. This trim measures approximately 22 inches long. Notably, this door shelf bar can be cut to fit specific dimensions.

Over time, the door shelf bar can become worn out or damaged due to regular use, heavy loads, or accidental impacts. Causes of a bad door shelf bar include cracking, breaking, or warping of the plastic material, which can lead to items falling out of the shelf or the bar not staying in place.

Symptoms of a bad door shelf bar include:

• The bar becoming loose or detaching from the door
• Items falling off the shelf when the door is opened
• Visible cracks or breaks in the bar
• Difficulty in securing the bar back into place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Endcap is an OEM part for Whirlpool refrigerators. It serves as a component for the interior shelving system, providing support and stability to the shelves that hold food and beverages.

Causes of a bad endcap can include physical damage from overloading shelves, accidental breakage, or normal wear and tear over time. These scenarios can lead to the endcap becoming cracked, broken, or otherwise unable to properly support the shelf, potentially leading to the shelf collapsing or not being able to hold items securely.

Symptoms of a bad Endcap include:

• Shelves that sag or fail to stay level
• Difficulty in sliding shelves in or out
• Visible cracks or breaks in the endcap
• Loose or unstable shelves due to poor endcap support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Color: White
