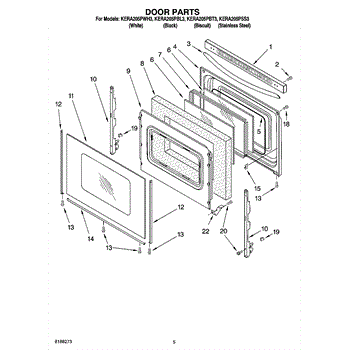

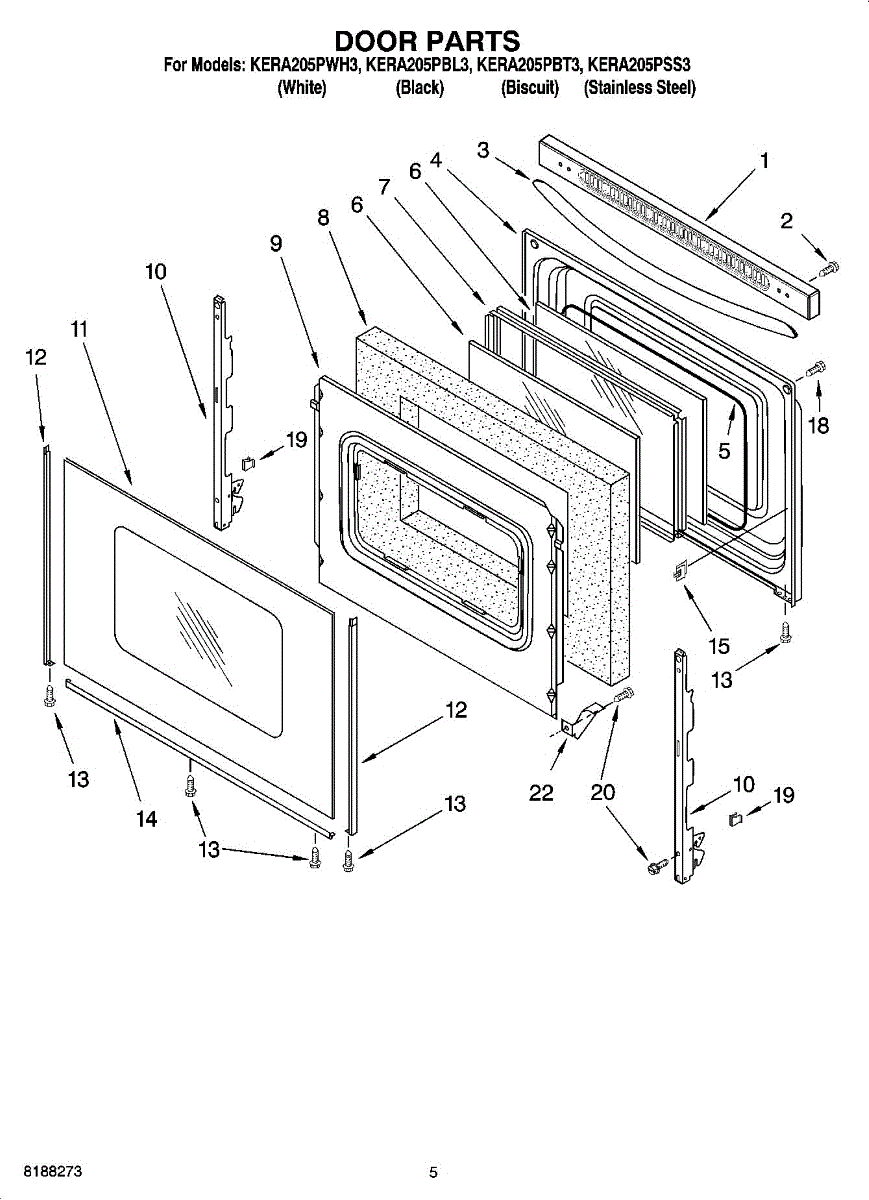

Parts for Kitchenaid KERA205PSS3: 04 - Door Parts

Color: Biscuit

Color: Black

Color: Cashmere Metalic

Color: White

Color: Stainless Steel

Color: Black

Color: White

Color: Biscuit

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This frame surrounds and supports the window glass in your oven door, keeping the glass secure and aligned. Replace a bent or corroded frame to address loose glass and restore the door's proper fit and clean appearance.

• Secures the oven door window glass within the door assembly
• Helps maintain alignment and seal around the window area
• Replaces frames that are bent, cracked, or corroded
• Addresses loose, rattling, or misaligned door glass
• Restores the finished look of the door

• Disconnect power and allow the oven to cool completely before service
• Remove the door per your model's instructions and place it on a padded surface
• Handle glass with cut-resistant gloves; keep track of screws, clips, and insulation for transfer
• Seat the glass evenly and avoid overtightening fasteners during reassembly

Qty 4 needed to complete full insulation

This hinge is for painted door only. For stainless steel door use WP8272822.

Color: Black

Color: Biscuit

This is a glass door outer panel assembly that has been manufactured by Whirlpool for use with ovens. The glass door outer panel assembly contains everything needed to replace a broken or deteriorated door. The door needs to be in proper working order to keep heat-sealed inside the oven, as well as allow the user to easily access the oven. Over time, this part could become dented, bent, scratched, cracked, or otherwise rendered ineffective, requiring replacement. This part may require two people to install as it is heavy. Unplug the oven and allow it to cool down entirely before attempting any repairs.As a genuine OEM part, this part has been sourced directly from the manufacturer and is only sold individually. This glass door outer panel assembly is manufactured from high quality and durable materials to ensure sturdiness. It is intended for use with ovens and ranges manufactured by Whirlpool, Maytag, Kitchenaid, Amana, and Magic Chef.

The Outer Door Glass is an OEM part for Whirlpool ranges. It serves as the exterior glass panel on the oven door, providing visibility into the oven while protecting the internal components and maintaining the oven’s aesthetic appeal.

Causes of a bad outer door glass can include accidental impacts, thermal stress from frequent heating and cooling, or general wear and tear over time.

Symptoms of a bad outer door glass include:

• Visible cracks or breaks in the glass
• Heat escaping from the oven door
• Difficulty in maintaining consistent oven temperature
• Potential safety hazards due to broken glass shards

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Cashmere Metalic. Left hand side

Color: Cashmere Metalic. Right hand side

Color: Biscuit. Left hand side. For right hand use WP8523167

Color: Biscuit. Right hand side. For left hand use WP8523173

The Right Side Door Trim is an OEM part for Whirlpool ranges. This part covers any gaps and protects the internal components from dust and debris.  Note: For Left-Hand use WP8523172

Causes of a bad side door trim can include general wear and tear, accidental damage, or deterioration due to exposure to heat and moisture over time.

Symptoms of a bad side door trim include:

• Visible cracks or breaks in the trim
• Gaps between the range door and cabinetry
• Loose or misaligned trim pieces
• Accumulation of dust or debris inside the range door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Range Side Trim is an OEM replacement part for Whirlpool brand cooking ranges. This decorative trim piece attaches along the sides of the range and protects the outer edge. Left Hand Trim. For the Right Hand use WP8523166

Causes of a bad range trim can include normal wear from regular use of oven and cooktop surfaces over time, as well as potential impact or heat damage.

Symptoms of bad trim include:

• Cracks, peeled paint, or damaged coating on the trim material
• Gaps appearing at trim joints or attachment points
• Reduced aesthetic appeal or protection of the range exterior

This OEM Whirlpool part is also compatible with Kenmore, KitchenAid, Roper, and some Frigidaire cooking ranges.

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Lower Trim is an OEM replacement part for Whirlpool ranges. This black stainless steel trim is positioned at the bottom of the range, providing a finished look by covering the gap between the floor and the appliance. Additionally, the lower trim helps to protect internal components from debris and ensures the appliance fits securely within your kitchen setup.

Over time, the lower trim can become damaged due to exposure to heat, accidental impacts, or general wear and tear. A damaged or missing lower trim may lead to the appliance looking unfinished and could allow debris to accumulate underneath.

Symptoms of a bad lower trim include:

• Visible damage, such as dents or cracks
• The trim not fitting securely
• Gaps between the floor and the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Biscuit.

Color: Black

The Bottom Door Trim is an OEM part for Whirlpool ranges. It provides a finished appearance to the bottom edge of the oven door and helps to prevent heat from escaping, ensuring efficient oven operation and consistent cooking results. For Stainless Steel order 8523180, for Black 8523177, and for Bisque 8523178 and for the universal part W10067550.

Causes of a bad bottom door trim include wear and tear from opening and closing the oven door, damage from cleaning processes, or the trim becoming loose or detached due to thermal expansion and contraction.

Symptoms of a bad bottom door trim include:

• Heat escaping from the bottom of the oven door
• Loose or detached trim
• Visible cracks or warping in the trim
• Difficulty in closing the oven door properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 10-32 machine screw secures panels, brackets, and internal assemblies in your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and helps keep components properly aligned.

• Provides a threaded fastener for metal-to-metal connections
• Helps maintain correct alignment of panels, brackets, and housings
• Replaces missing, rusted, or stripped screws
• Symptoms include loose or vibrating panels, gaps/misalignment, or hardware that won't tighten

• Disconnect power (and shut off gas/water, if applicable) before servicing
• Match the 10-32 thread and length to the original screw for the location
• Start by hand to avoid cross-threading; tighten snugly without over-torquing
• Retain and reinstall any original clips, spacers, or washers used in your model

This door stop clip mounts at the oven door hinge area to limit how far the door opens. Replacing a bent or missing clip restores the correct stop point and helps protect the hinge from overextension.

• Limits the oven door opening angle to a designed stop
• Helps prevent overextension that can strain or damage the hinge mechanism
• Common symptoms include the door dropping open too far, loose-feeling travel, or difficulty reinstalling the door
• Visual clues: bent, cracked, or missing clip at the hinge area

• Disconnect power or shut off gas; allow the appliance to cool completely
• Support the door; removal may be required to access the hinge area
• Install the clip in the same orientation/location as the original; replace on both hinges if your model uses two
• Verify smooth movement and that the door stops at the normal open position before use

Size: 8-18 x 1/2 inch.
