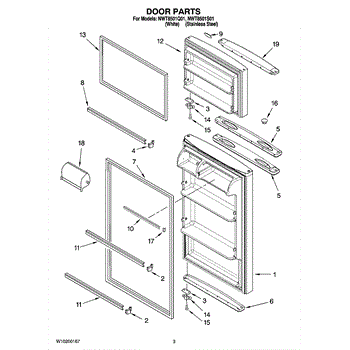

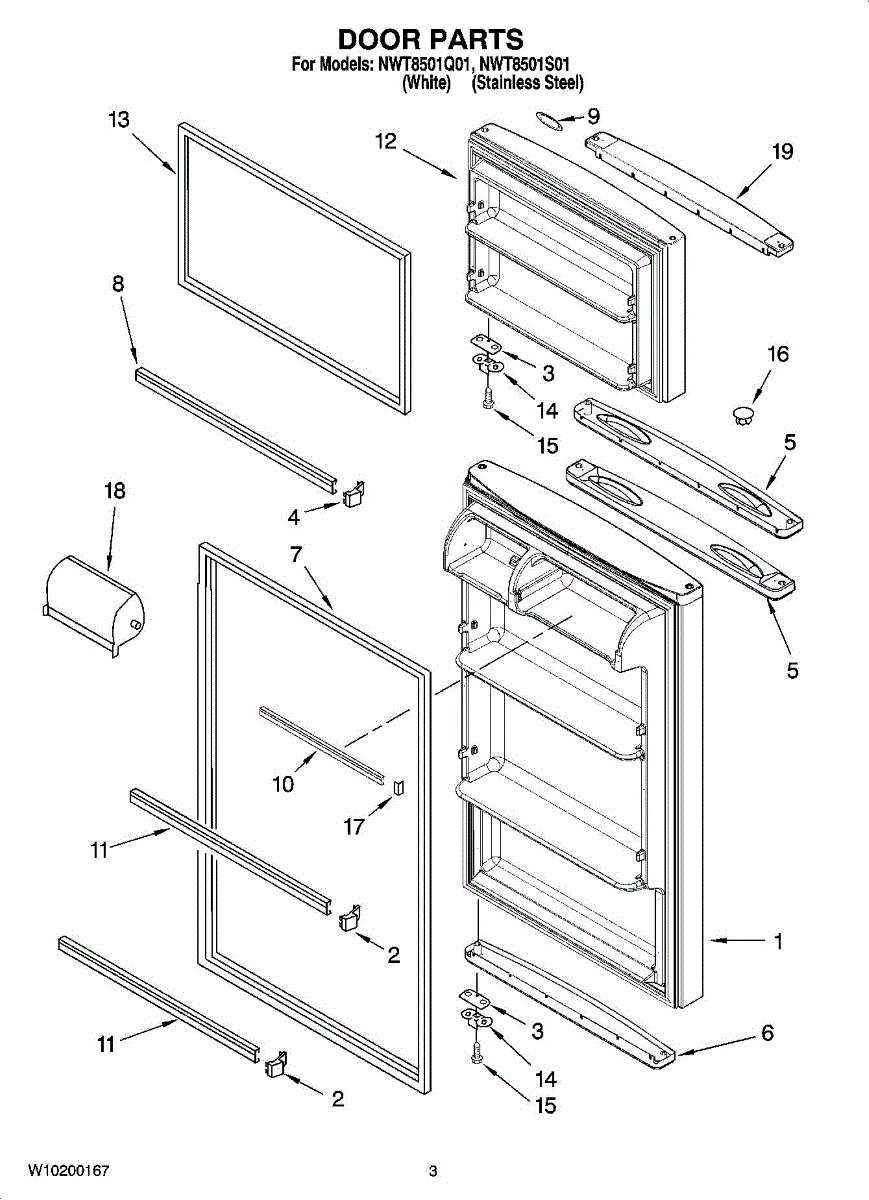

Parts for Whirlpool NWT8501S01: 02 - Door Parts

The Endcap is an OEM part for Whirlpool refrigerators. It serves as a component for the interior shelving system, providing support and stability to the shelves that hold food and beverages.

Causes of a bad endcap can include physical damage from overloading shelves, accidental breakage, or normal wear and tear over time. These scenarios can lead to the endcap becoming cracked, broken, or otherwise unable to properly support the shelf, potentially leading to the shelf collapsing or not being able to hold items securely.

Symptoms of a bad Endcap include:

• Shelves that sag or fail to stay level
• Difficulty in sliding shelves in or out
• Visible cracks or breaks in the endcap
• Loose or unstable shelves due to poor endcap support

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The door stop shim positions the stop flush and fine-tunes the door's opening limit. Replacing a worn or missing shim helps restore smooth door operation and protects nearby surfaces from over-travel or rubbing.

• Provides correct spacing behind the door stop for proper alignment
• Helps limit the door swing to the intended stop position
• Can reduce wobble, play, or clicking at the stop point
• Replaces cracked, deformed, or missing shim components

• Disconnect power and support the door as needed to prevent strain
• Remove the door stop fastener(s) and note the original shim orientation
• Place the new shim behind the stop; reinstall hardware and tighten without overtightening
• Open and close the door to confirm stop angle and clearances

The Door Shelf Retainer End Cap is an OEM replacement part for Whirlpool refrigerators. This component is designed to secure and support the end of the door shelves, providing a clean and finished look while preventing items from falling off the edges.

Symptoms of needing to replace the door shelf retainer end cap include:

• Visible cracks, damage, or missing pieces
• Loose or wobbly door shelves
• Items falling off the ends of the door shelves

Causes of a faulty door shelf retainer end cap can include normal wear and tear over time, accidental impact or mishandling, or exposure to excessive moisture or temperature fluctuations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This genuine replacement handle endcap restores the finished edge of a refrigerator door handle, improving grip and appearance. Durable molded plastic matches white handle trims for a seamless look. What it does:

• Replaces a worn, cracked, or broken handle endcap to restore handle fit and appearance
• Secures the handle end and helps maintain proper handle alignment
• Helps eliminate rattling or loose-feeling handle edges
• Designed to match factory white finish for a cohesive look

• Basic hand tools required; your refrigerator's service manual for access steps
• Remove and retain any mounting hardware; replace only with OEM-specified fasteners
• Avoid forceful prying to prevent damage to the door or surrounding trim

Color: Black

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool French-door refrigerators. Located around the perimeter of refrigerator door openings, it forms a critical insulating seal to maintain optimum interior temperatures.

Causes of a bad Refrigerator Door Gasket involve years of compression cycles compressing the door gasket material. Chemical deterioration from foods or spills could inhibit proper sealing as well.

Symptoms of a bad Refrigerator Door Gasket include:

• Sections inside the fridge appear warmer than expected
• Visible frost or condensation indicating temperature inconsistencies
• The cool air felt escaping around edges when doors are closed
• Inability to maintain a tight, insulating seal around doorways

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, and select Kenmore models.

The Fresh Food Door Gasket is an OEM part for Whirlpool refrigerators. It creates an airtight seal around the refrigerator door, helping to maintain the internal temperature and keep food fresh by preventing warm air from entering the refrigerator. This gasket measures approximately 44.70" X 27.16".

You should replace the fresh food door gasket if it becomes worn out or damaged. Causes of a bad door gasket can include regular wear and tear, damage from frequent opening and closing of the door, and exposure to temperature fluctuations. Over time, the gasket may become brittle, crack, or develop mold.

Symptoms of a bad fresh food door gasket include:

• Warm air entering the refrigerator, leading to higher internal temperatures
• The refrigerator running more frequently or for longer periods
• Visible cracks, tears, or mold on the gasket
• Difficulty in closing the refrigerator door securely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Gasket is an OEM replacement part specific to Whirlpool refrigerators. It is a flat sealing gasket located inside the refrigerator cabinet that forms a tight connection between the fill pipe inlet and the refrigerator unit. The gasket plays an important role in preventing water leaks from developing around the fill pipe connection point during regular operation.

Causes of a faulty gasket can include regular wear and tear over time breaking down its sealing ability, as well as mineral deposits accumulating on the gasket surface.

Symptoms of a leaking gasket include:

• Water puddling or flooding inside the refrigerator cabinet
• Visible water dripping or accumulating around the fill pipe inlet
• White mineral residue visible where the gasket makes contact

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore branded models.

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
