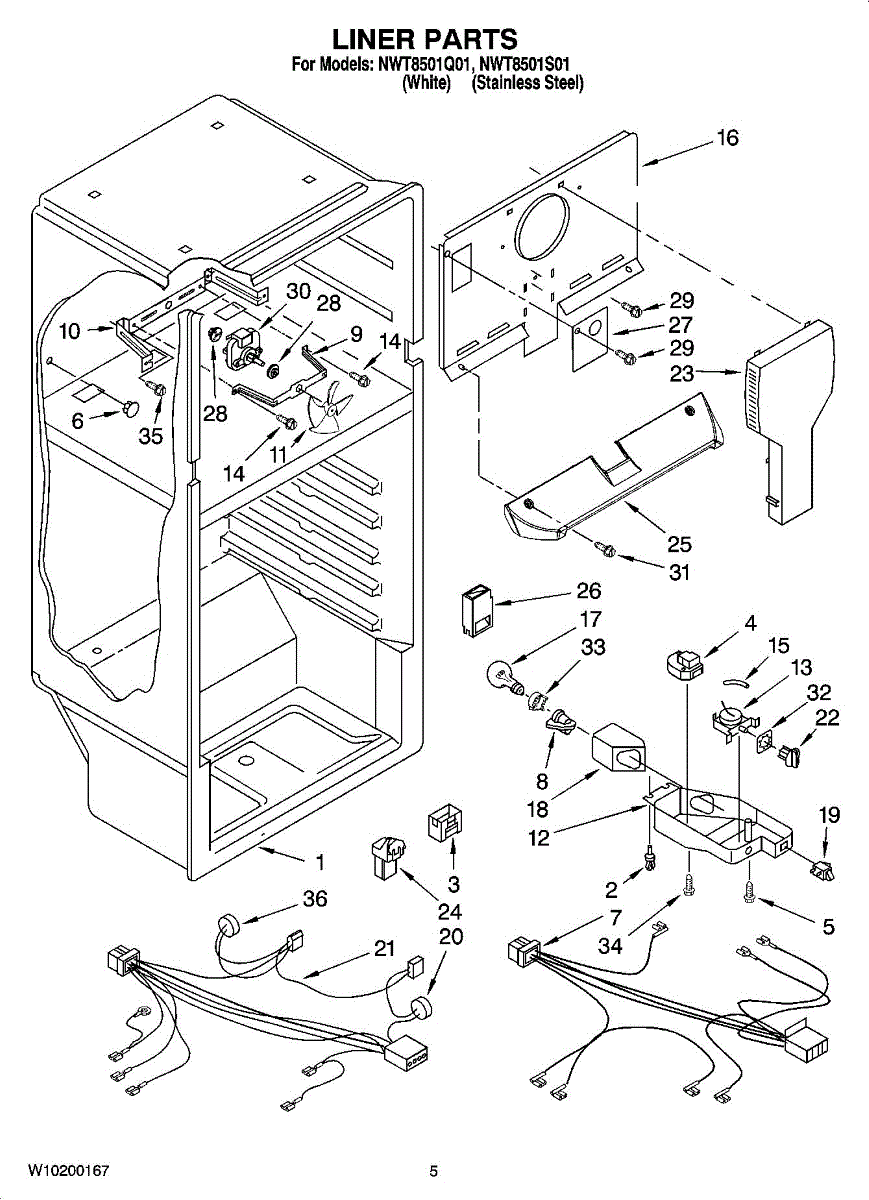

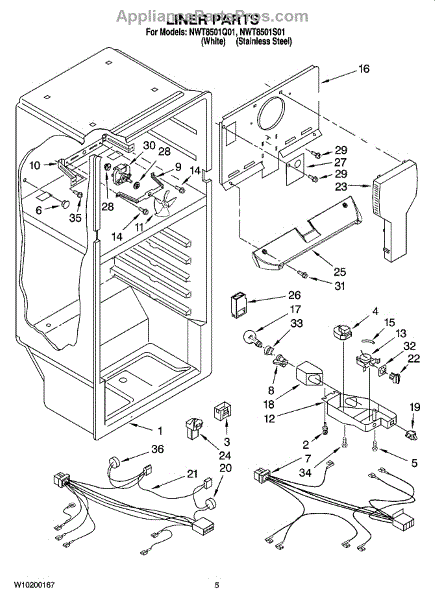

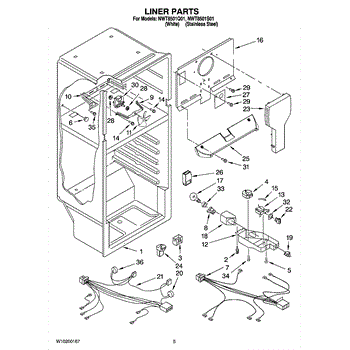

Parts for Whirlpool NWT8501S01: 03 - Liner Parts

This is a 8-15 x 2.00 in. hex washer head, self-locking screw used to secure appliance panels and components. It provides a durable, vibration-resistant fastener that helps keep parts aligned and stable. What it does:

• Fastens and secures panels, brackets, or assemblies to the appliance frame
• Self-locking design helps resist loosening from vibration or thermal cycling
• Hex washer head gives a larger bearing surface to prevent pull-through on thin materials
• Commonly replaced when screws are missing, stripped, or causing loose/rattling parts

• Use the correct driver/socket to avoid rounding the hex head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power and follow appliance safety procedures before working inside the unit
• Replace any stripped or damaged mating hardware for secure fastening

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This fan support bracket is a direct replacement mounting bracket that secures the fan/blower motor assembly and helps keep the blower aligned for proper airflow and quieter operation. It restores stable motor mounting and reduces vibration. What it does

• Secures the fan/blower motor and helps maintain correct fan alignment.
• Keeps the blower assembly stable to reduce vibration and noise.
• Helps prevent the blower wheel from rubbing or contacting surrounding panels.
• Supports consistent airflow for efficient operation and drying/cooling performance.

• 1 fan support bracket

• Disconnect power to the appliance before beginning any repair.
• Remove the appropriate access panel(s) to reach the fan/motor assembly.
• Compare the new bracket to the old part before installing.
• Use basic hand tools; avoid overtightening fasteners to prevent damage.

The Refrigerator Thermostat is an OEM replacement part for Whirlpool refrigerators. This part monitors and maintains the temperature inside the appliance.

Causes typically relate to normal component degradation over extended use.

Symptoms of a faulty thermostat can include:

• ineffective or fluctuating interior conditions
• higher than normal energy usage
• intermittent compressor cycling
• potentially complete cooling loss in extreme cases

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Size: 8-32 x .312 inch.

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 40W replacement light bulb restores interior appliance lighting so you can see inside ovens and ranges for checking food without opening the door. Simple, direct fit for compatible appliance light sockets. What it does:

• Provides bright, focused 40W illumination for appliance interiors
• Replaces burned-out or dim bulbs so the interior light turns on when the door is opened
• Helps you monitor cooking progress and oven/range activity safely
• Fits standard appliance light housings designed for a 40W lamp

• Always disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb and surrounding area to cool completely before handling
• Use a cloth or gloves to avoid skin oils on the bulb; tighten gently—do not overtighten
• Restore power to test operation

This light lens is the replacement dome cover that protects and diffuses the refrigerator interior light, restoring even illumination and preventing direct bulb contact. It replaces cracked, yellowed or missing lenses. What it does

• Protects the interior light bulb from spills and contact
• Diffuses and softens the light for even illumination inside the compartment
• Stops rattling or loose cover noise when the original lens is broken or warped
• Helps prevent food or debris from hitting the bulb and causing premature failure

• One light lens (dome cover)

• Disconnect power to the appliance before beginning any work
• Typically installs by snapping into the light housing or fastening with one or two screws—retain mounting hardware if present
• Handle carefully to avoid cracking; replace if warped, chipped, or yellowed

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This bimetal defrost thermostat monitors evaporator temperature and helps control the defrost cycle so frost doesn't build up on the evaporator. It replaces a failed thermostat to restore proper defrost operation. What it does:

• Opens or closes the defrost heater circuit based on evaporator temperature
• Prevents the heater from running when the evaporator is warm
• Helps stop excessive frost buildup that can reduce cooling performance
• Common symptom: repeated frost/ice buildup or defrost heater not cycling

• One bimetal defrost thermostat

• Disconnect power to the appliance before servicing
• Access may require removing the evaporator cover or rear panel
• Avoid crushing or bending the sensing element during installation
• After installation, verify defrost operation and wiring connections; test continuity with a multimeter according to service manual procedures

This wire harness connects internal controls and components to restore reliable electrical signaling inside your appliance. It replaces a damaged or worn harness to help fix intermittent power or non-responsive control issues. What it does:

• Routes power and signals between control boards, sensors, and switches
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation
• Helps resolve symptoms like unresponsive controls, intermittent cycles, or communication faults
• Maintains OEM-style connector fit and wire routing for proper component operation

• One replacement wire harness

• Disconnect power to the appliance before starting any repair
• Handle connectors by the plugs and match connector shapes during installation
• Route and secure the harness to follow original clips and strain reliefs; avoid pinching or sharp edges

Color: white. It measures about 1 inch in diameter.

HOOD & FOIL

This replacement cover restores the appliance's finished appearance while protecting internal components from dust and debris. It provides a clean, secure barrier so panels stay in place and the appliance looks and functions as intended. What it does:

• Protects internal parts and wiring from exposure to dust, moisture, and accidental contact
• Helps keep panels securely in place to prevent rattling or loose trim
• Restores the appliance's exterior appearance after damage or loss
• Commonly replaced when the original cover is cracked, broken, bent, or missing

• One replacement cover

• Disconnect power (and water, if applicable) before starting any repair
• Use basic hand tools; support panels to avoid dropping or scratching surfaces
• Handle edges carefully; some covers or mounting points may be sharp
• Refer to your appliance's service manual or parts diagram for exact placement and fastener locations

This hole cover seals an access/opening in the refrigerator evaporator housing to help maintain proper airflow and prevent moisture or frost from entering the cabinet. A simple replacement that restores the evaporator enclosure's intended seal. What it does:

• Seals an opening in the evaporator housing to reduce air leaks and unwanted moisture entry
• Helps prevent excessive frost or ice buildup near the evaporator area
• Supports consistent cooling by keeping the evaporator cover intact
• Can stop interior water or debris from entering the evaporator cavity

• Disconnect power to the appliance before starting any repair
• Remove the evaporator cover or access panel as required to reach the opening
• Press or snap the cover into place until it seats securely; no special tools typically required
• If the cover is brittle or damaged, inspect surrounding mounting surfaces and replace as needed

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

Size: 8 x 1/2 ab.

Size: 8 x 1-1/4 inch.

This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.

This genuine mounting screw secures appliance panels and components so they stay aligned and stable during use. A simple replacement that stops rattles and keeps parts properly fastened for safe, reliable operation. What it does:

• Fastens panels, brackets, or trim to the appliance frame
• Helps stop vibration noise and loose or misaligned parts
• Restores proper fit where an original screw is missing or damaged
• Prevents further wear caused by unsecured components

• Disconnect power to the appliance before beginning any repair
• Use the correct driver to prevent stripping the screw head
• Tighten until snug; avoid overtightening to prevent stripping threads or cracking plastic
• Replace like-for-like: if the original screw has a washer or special head, install the same type

The Defrost Bimetal is an OEM part for Whirlpool refrigerators. This crucial component functions as a safety thermostat in the freezer's defrost system. It is designed to monitor and control the temperature of the evaporator coils during the defrost cycle, preventing them from overheating. By cutting off the defrost heater when the coils reach a certain temperature, the bimetal helps maintain optimal functioning and efficiency of the refrigerator’s defrost system.

Symptoms of a failing defrost bimetal include:

• Build-up of frost on the evaporator coils that does not melt during defrost cycles
• Refrigerator or freezer section getting too warm
• Continuous running of the refrigerator compressor

Causes of bimetal malfunction typically include corrosion, continuous exposure to extreme temperatures, and general wear over time, which can prevent it from responding accurately to temperature changes.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
