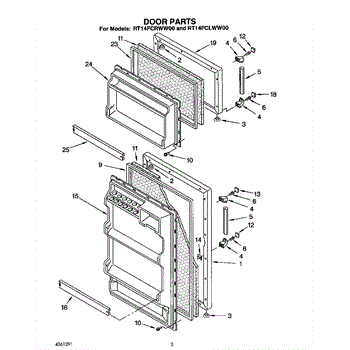

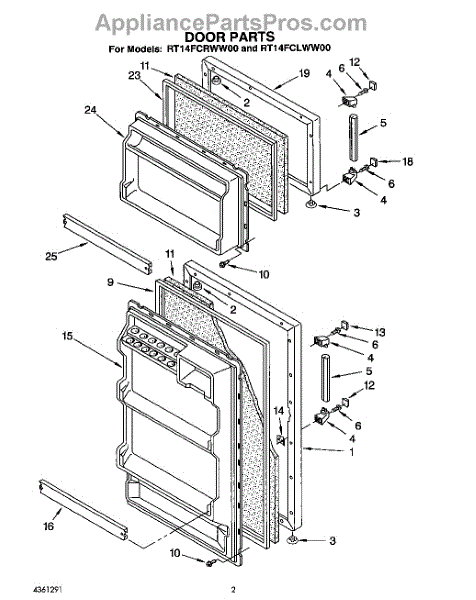

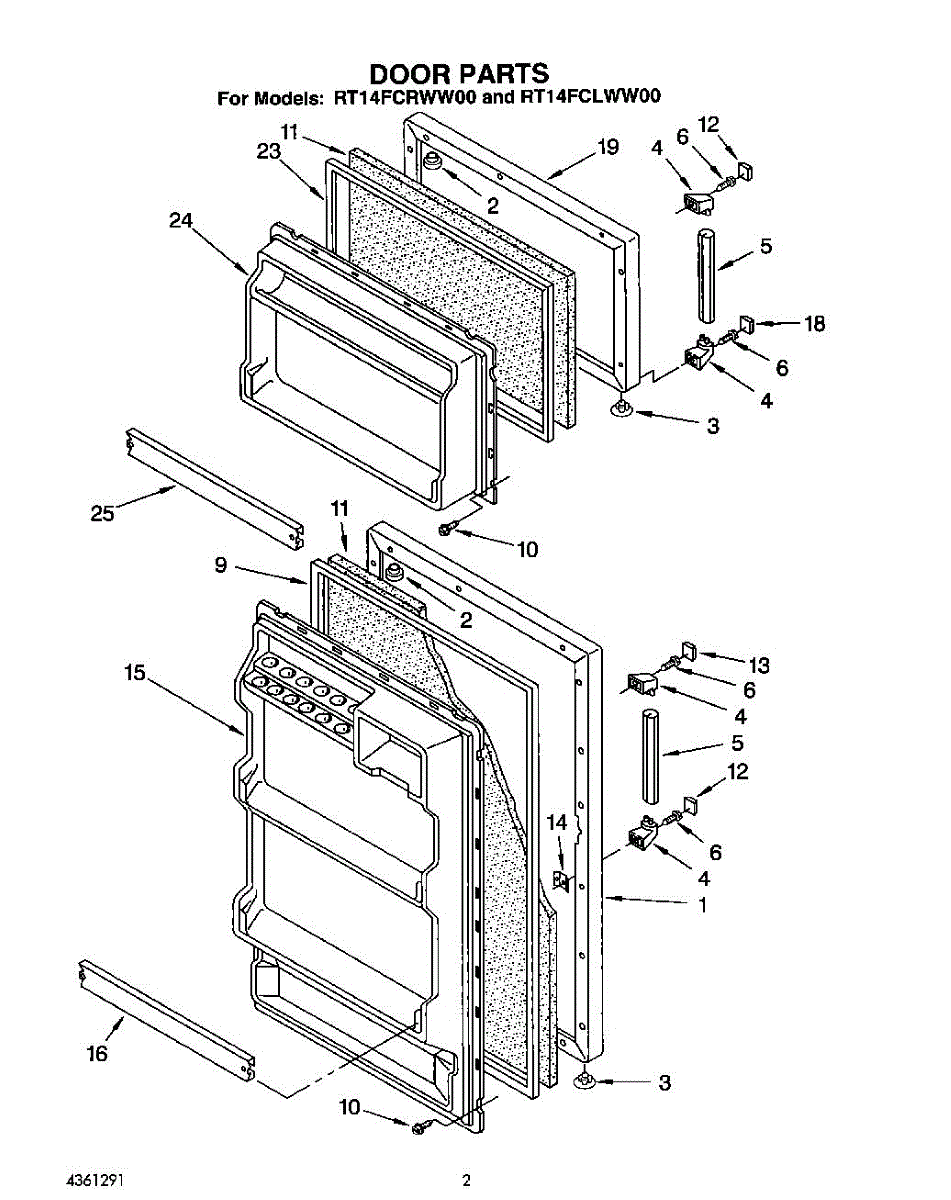

Parts for Whirlpool RT14FCLWL00: 02 - Door Parts

This refrigerator door gasket seals the fresh food compartment door to restore an airtight closure. A proper seal helps keep cold air in, limit moisture intrusion, and support stable temperatures and efficiency.

• Creates a tight seal between the fresh food door and cabinet
• Helps maintain interior temperature and reduce energy loss
• Limits condensation and frost near the door opening
• Worn, torn, or misshapen gaskets may cause warm spots, sweating, or doors that won't close fully

• Unplug the refrigerator before servicing.
• Pull the inner lip from the door retainer to remove; some models require loosening liner screws hidden under the gasket edge.
• Warm the new gasket (warm water or gentle heat) to relax folds, then press the lip fully into the channel.
• Close the door and check for uniform contact; adjust hinges or re-tighten liner screws as needed.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Specs: 10-16 x 1/2 inch.

This screw anchor is a small plastic fastener that secures panels and trim on appliances, preventing screws from stripping or pulling out. It provides a reliable anchor point for screws where threaded material is thin or absent. What it does:

• Creates a secure mounting point for screws in sheet metal, plastic or thin panels
• Helps prevent screw looseness, stripping, and parts that shift or rattle
• Commonly used to hold trim, panels, or interior components in place
• Works with compatible screws to distribute load and stabilize attachments

• Use the correct screw size and length; anchors are made for specific screw diameters—do not force oversize screws
• Align anchor in the prepared hole before driving the screw to avoid cracking the anchor or surrounding material
• Hand-start screws until seated, then tighten gradually—do not overtighten to prevent stripping or damage
• Disconnect power and follow appliance safety procedures before accessing internal panels

This freezer door gasket forms an airtight seal between the door and cabinet to keep cold air in and humid air out. Replacing a worn gasket helps maintain temperature, reduce frost, and improve efficiency. What it does:

• Seals the perimeter of the freezer door to prevent air leaks
• Helps maintain stable freezer temperature and proper freezing performance
• Reduces warm air infiltration that leads to frost and moisture
• Common symptoms of a failing gasket: tears or warping, frost along door edges, condensation around the door, poor sealing or door popping open, longer run times

• 1 freezer door gasket

• Disconnect power before servicing; open the door and clear the work area
• Warm the new gasket in hot water or with low heat to relax folds; clean the sealing surfaces
• If your model uses a screw-on retainer, loosen screws to remove the old gasket and install the new one evenly; if it press-fits, seat the gasket lip fully into the channel, aligning corners
• After installation, verify an even seal all around; adjust hinges/leveling if needed and use low heat to smooth waves; test with a dollar-bill test
