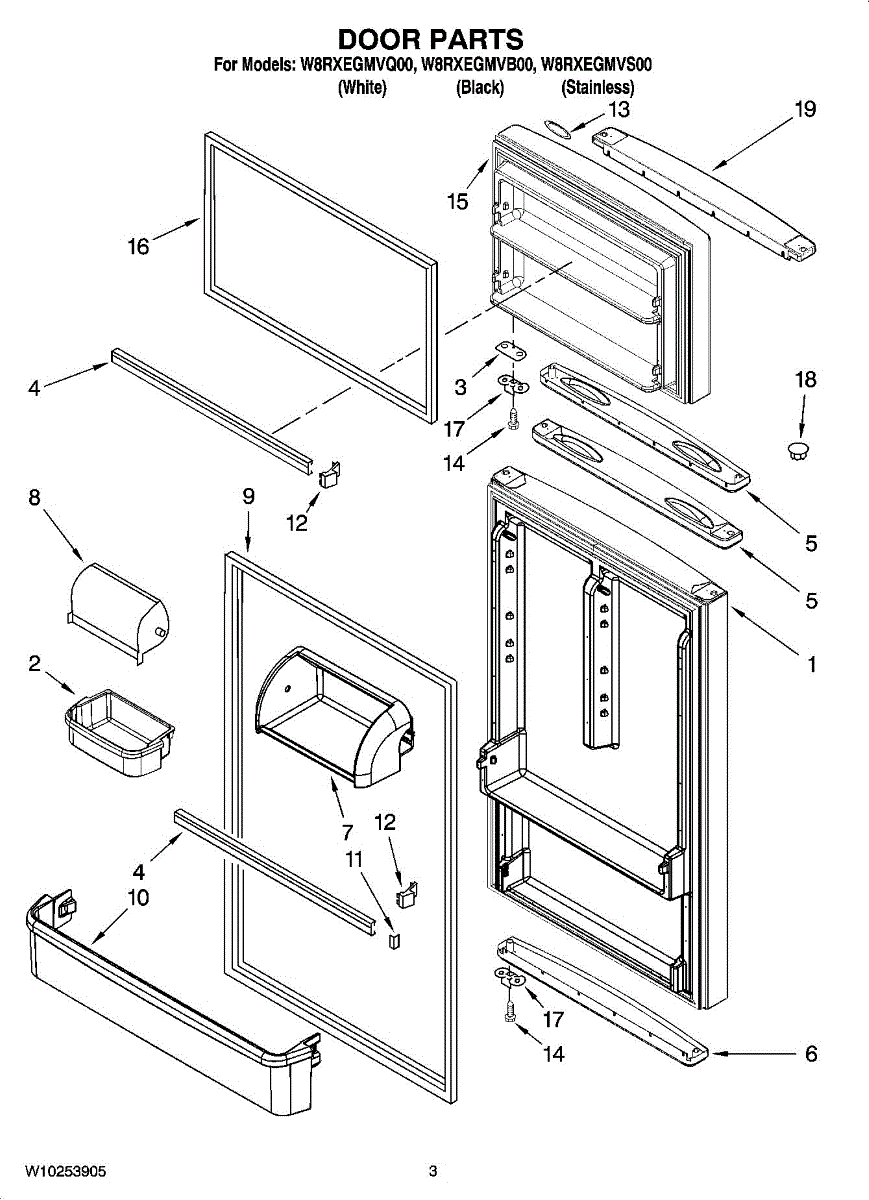

Parts for Whirlpool W8RXEGMVB00: 02 - Door Parts

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. It provides organized storage on the refrigerator door, allowing quick access to frequently used items like eggs, butter, or condiments.

Causes of a bad door shelf bin can include warping or cracking of the plastic over time due to temperature changes from door opening. Handles may also loosen or break off from heavy use.

Symptoms of a bad door shelf bin include:

• Food items rolling around inside the door
• Loss of organized storage and ability to neatly display contents
• Possible premature spoilage from lack of airflow

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small black door stop shim helps position and stabilize the appliance door for correct alignment and smoother closing. It replaces a worn or missing shim to reduce door gaps and rubbing against the cabinet or frame. What it does:

• Centers and supports the door stop so the door closes evenly and seals properly.
• Prevents door-to-cabinet rubbing, scraping, or uneven wear on hinges and seals.
• Helps eliminate minor misalignment that can cause noise or uneven gaps.
• Compatible where the OEM diagram lists a door stop shim in the hinge/stop assembly.

• One black door stop shim

• High-level replacement: typically installs at the door stop or hinge area; may slide or snap into place—retain original orientation.
• Always support the door during removal/installation to avoid dropping or damaging the door or hinges.
• If the repair requires removing trim or hinge fasteners, keep fasteners organized and follow the appliance diagram.
• For any work near electrical components, unplug the appliance or switch off power at the breaker first.

The door stop shim positions the stop flush and fine-tunes the door's opening limit. Replacing a worn or missing shim helps restore smooth door operation and protects nearby surfaces from over-travel or rubbing.

• Provides correct spacing behind the door stop for proper alignment
• Helps limit the door swing to the intended stop position
• Can reduce wobble, play, or clicking at the stop point
• Replaces cracked, deformed, or missing shim components

• Disconnect power and support the door as needed to prevent strain
• Remove the door stop fastener(s) and note the original shim orientation
• Place the new shim behind the stop; reinstall hardware and tighten without overtightening
• Open and close the door to confirm stop angle and clearances

The Door Shelf Bar is an OEM part for Whirlpool refrigerators. This bar attaches to the interior of the refrigerator door, providing a secure barrier that holds items like bottles, jars, and containers in place on the door shelves. This trim measures approximately 22 inches long. Notably, this door shelf bar can be cut to fit specific dimensions.

Over time, the door shelf bar can become worn out or damaged due to regular use, heavy loads, or accidental impacts. Causes of a bad door shelf bar include cracking, breaking, or warping of the plastic material, which can lead to items falling out of the shelf or the bar not staying in place.

Symptoms of a bad door shelf bar include:

• The bar becoming loose or detaching from the door
• Items falling off the shelf when the door is opened
• Visible cracks or breaks in the bar
• Difficulty in securing the bar back into place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine replacement handle endcap restores the finished edge of a refrigerator door handle, improving grip and appearance. Durable molded plastic matches white handle trims for a seamless look. What it does:

• Replaces a worn, cracked, or broken handle endcap to restore handle fit and appearance
• Secures the handle end and helps maintain proper handle alignment
• Helps eliminate rattling or loose-feeling handle edges
• Designed to match factory white finish for a cohesive look

• Basic hand tools required; your refrigerator's service manual for access steps
• Remove and retain any mounting hardware; replace only with OEM-specified fasteners
• Avoid forceful prying to prevent damage to the door or surrounding trim

Color: White

Color: Black

The Refrigerator Door Gasket is an OEM replacement part for Whirlpool French-door refrigerators. Located around the perimeter of refrigerator door openings, it forms a critical insulating seal to maintain optimum interior temperatures.

Causes of a bad Refrigerator Door Gasket involve years of compression cycles compressing the door gasket material. Chemical deterioration from foods or spills could inhibit proper sealing as well.

Symptoms of a bad Refrigerator Door Gasket include:

• Sections inside the fridge appear warmer than expected
• Visible frost or condensation indicating temperature inconsistencies
• The cool air felt escaping around edges when doors are closed
• Inability to maintain a tight, insulating seal around doorways

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, and select Kenmore models.

The Door Shelf is an OEM replacement part for Whirlpool refrigerators. This component is designed to fit into the door of your refrigerator, offering additional storage space for items such as condiments, bottles, and other small or medium-sized items that need to be readily accessible.

Causes of damage to the door shelf can range from overloading it with too much weight, accidental impacts from moving items in and out of the refrigerator, or simply the age of the refrigerator contributing to wear and tear over time.

Symptoms of a bad Door Shelf include:

• Cracks or breaks in the shelf
• The shelf becoming loose or failing to fit securely in the door slots
• Signs of warping or deformation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Shelf End Cap is an OEM part for Whirlpool refrigerators. This part secures the door shelf bar in place, ensuring that items stored in the door bins are properly supported and contained. The end cap attaches to the ends of the door shelf bar, providing stability and a finished look.

Causes of a bad end cap can include wear and tear from frequent use, heavy loads in the door bins causing stress and fractures, and accidental impacts or mishandling leading to cracks or breaks.

Symptoms of a bad door shelf end cap include:

• The door shelf bar becoming loose or falling off
• Cracks or breaks in the end cap
• Door bins not staying in place
• Difficulty in securing the door shelf bar

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Shelf Retainer End Cap is an OEM replacement part for Whirlpool refrigerators. This component is designed to secure and support the end of the door shelves, providing a clean and finished look while preventing items from falling off the edges.

Symptoms of needing to replace the door shelf retainer end cap include:

• Visible cracks, damage, or missing pieces
• Loose or wobbly door shelves
• Items falling off the ends of the door shelves

Causes of a faulty door shelf retainer end cap can include normal wear and tear over time, accidental impact or mishandling, or exposure to excessive moisture or temperature fluctuations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

Color: White

Color: Black

The Bracket-Door Stop is an OEM replacement part for Whirlpool appliances. This zinc-finished bracket is designed to prevent the appliance door from opening beyond its intended range, protecting both the door and surrounding components from potential damage. It ensures the door stays secure and functions smoothly during regular use.

Symptoms of a bad Bracket-Door Stop include:

• The door overextending when opened
• Difficulty in maintaining the door's position
• Visible bending, cracking, or damage to the bracket

Causes of a failing Bracket-Door Stop can include repeated stress from excessive force when opening the door, normal wear over time, or accidental impacts. A damaged bracket can compromise the door's alignment and overall functionality.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Hinge-Sleeve Hole Plug is an OEM part for Whirlpool refrigerators. It is designed to cover the hinge sleeve holes on the refrigerator door, providing a finished look and protecting the internal components from dust and debris.

Common causes of a bad hinge-sleeve hole plug include physical damage during routine maintenance or accidental impacts. A missing or damaged plug can lead to exposure of internal hinge components, potentially causing further damage over time.

Symptoms of a bad hinge-sleeve hole plug include:

• Visible gaps or holes in the refrigerator door hinge area
• Accumulation of dust or debris in the hinge mechanism
• Loose or unstable refrigerator door hinges

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
