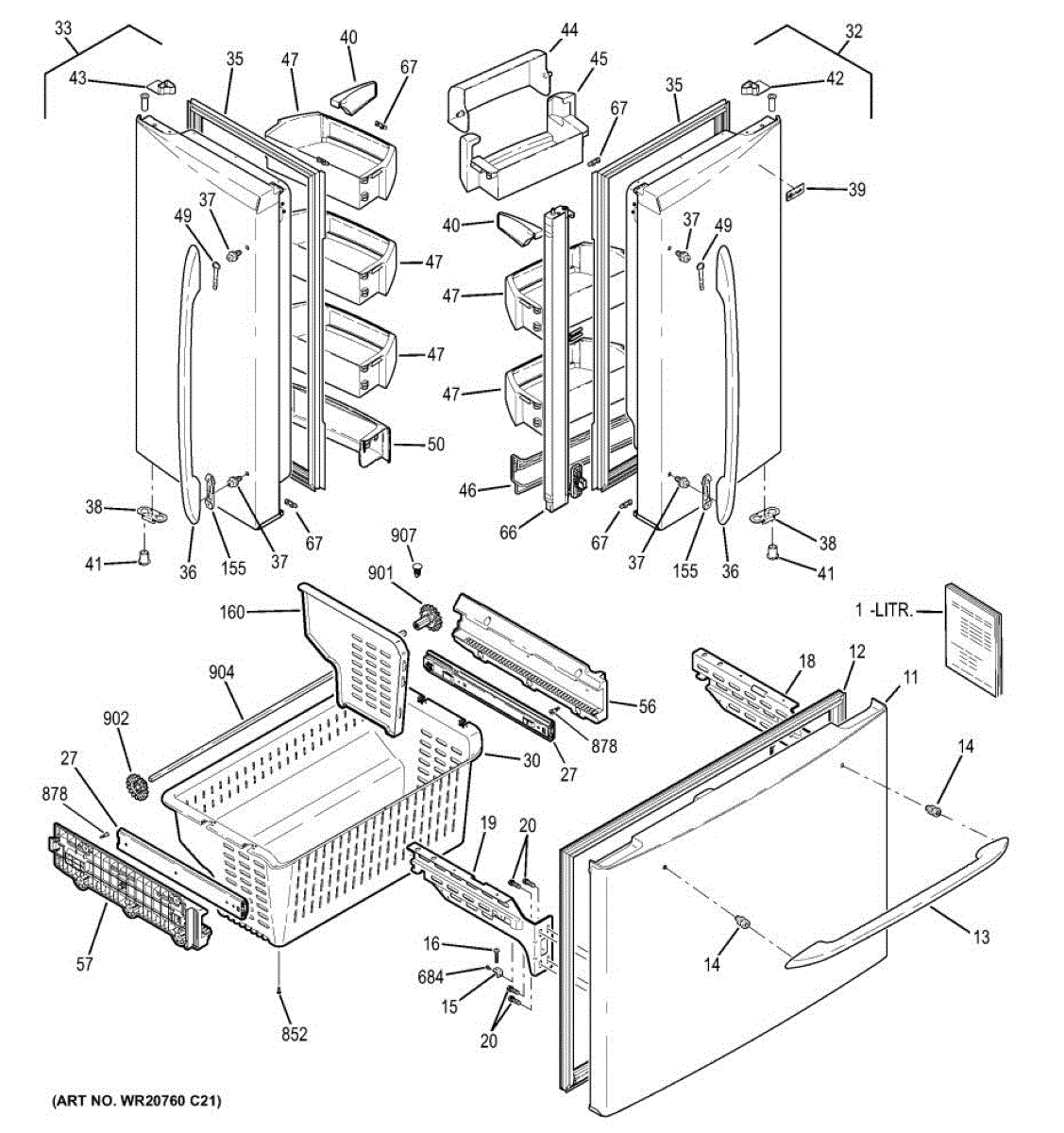

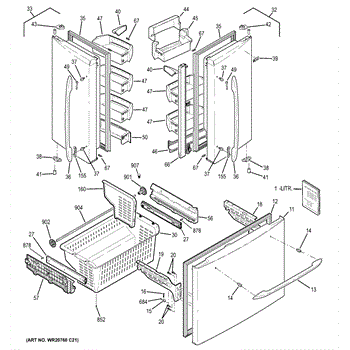

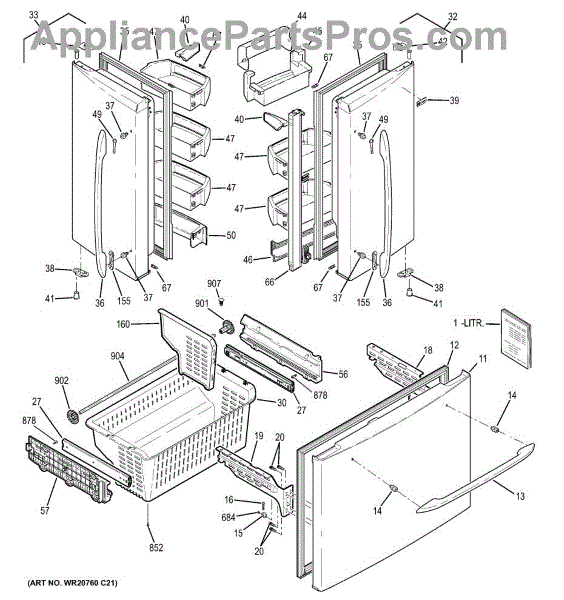

Parts for Ge PFCF1NFCABB: 01 - Doors Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Restore a tight seal and stable temperatures with this refrigerator door gasket. Replacing a worn gasket helps keep cold air in and humid air out to reduce frost, condensation, and unnecessary energy use.

• Forms an airtight seal around the door perimeter
• Helps maintain consistent temperature and humidity
• Reduces frost/ice buildup and interior condensation
• Can address doors that won't close fully or pop open
• Replace if torn, brittle, warped, or not sealing evenly

• Disconnect power before servicing
• Let the gasket warm to room temperature; use warm water or low heat to relax folds
• Remove the old gasket and press the new gasket into the retainer, seating corners first
• Check for even contact all around; adjust door/hinges as needed for a proper seal

The Gasket is an OEM part for GE refrigerators. This part forms an airtight seal around the refrigerator door, ensuring that the cold air stays inside and the warm air remains outside.

Gaskets can deteriorate over time due to normal wear, frequent usage, or environmental factors, leading to issues such as air leaks.

Symptoms that may indicate the need for a new Gasket include:

• Visible gaps or tears in the gasket, allowing cold air to escape.
• The refrigerator seems to run more often or for longer periods, struggling to maintain the set temperature.
• Signs of condensation or frost buildup around the door edges, indicating air leaks.
• The gasket feels stiff, brittle, or has lost its magnetic seal, making the door easy to open or not fully closed.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This OEM fastener secures interior components and trim on compatible appliances to restore proper fit and reduce movement. It's a direct-replacement hardware piece used where the original mounting screw or retainer is lost or worn. What it does

• Secures panels, trim pieces, brackets or small assemblies to the appliance frame
• Restores firm attachment to reduce rattles, gaps or misalignment
• Replaces missing or stripped hardware that prevents proper part installation
• Helps maintain proper operation by keeping service parts seated and stable

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the fastener, then tighten snugly—do not over-torque
• Replace any additional damaged fasteners with the same OEM part for best fit

This bracket support is a small mounting bracket that secures and stabilizes appliance components, helping keep panels and assemblies aligned for proper operation and reduced vibration. It's a direct-fit replacement when the original bracket is broken or missing. What it does

• Provides a sturdy mounting point to hold panels or internal components in place
• Restores proper alignment to doors, panels or assemblies that sit on the bracket
• Reduces rattling or vibration caused by a loose or damaged bracket
• Helps prevent wear or damage from parts shifting during use

• Unplug the appliance and shut off water/gas (if applicable) before starting work
• Use the original mounting screws; replace damaged fasteners as needed
• Handle sharp sheet-metal edges carefully and wear gloves and eye protection

This is a 1/4-20 UNC machine screw used to fasten appliance components securely. It restores proper fit and stability where threaded fasteners are required, preventing loose panels or shifting parts. What it does:

• Secures panels, brackets, or assemblies that use a 1/4-20 UNC threaded hole
• Stops rattling or movement caused by a missing or damaged screw
• Restores correct mechanical connection for safe operation
• Useful when replacing stripped, corroded, or lost fasteners

• Disconnect power to the appliance before servicing.
• Start threads by hand to avoid cross-threading; tighten until snug.
• Do not overtighten — use appropriate torque for the material to avoid stripping threads or damaging parts.
• Ensure proper contact and secure fastening.

This replacement screw secures appliance brackets, panels, and components. It restores a tight, aligned fit when the original hardware is stripped, rusted, or missing, helping reduce vibration and rattling for reliable operation.

• Fastens brackets, panels, or mounts to keep components secure and aligned
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration, rattling, or loose/misaligned parts
• Matches original spec for reliable hold and fit

• Disconnect power before servicing; use proper PPE
• Match thread and length to the removed screw before installation
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Ensure parts are aligned and seating surfaces are clean before tightening

This slide-out lower basket replaces a worn or damaged refrigerator lower storage basket to restore organized storage and easy access to fresh foods. Durable molded construction keeps produce contained and visible. What it does

• Provides a removable lower storage basket for organizing fruits, vegetables, and deli items
• Slides out for easy access so you can reach items at the back without lifting
• Replaces cracked, broken, or warped baskets that no longer support contents
• Helps keep refrigerator interior tidy and prevents items from rolling around

• One lower slide-out basket

• Snap or slide into the existing lower track; matches original mounting points
• Remove all food and use caution when handling edges to avoid pinching
• Inspect tracks and glides for damage; replace glide parts separately if basket does not slide smoothly
• Disconnect power only when performing additional repairs nearby

The Gasket is an OEM part for GE refrigerators, specifically designed to ensure an airtight seal around the refrigerator or freezer door. This crucial component plays a significant role in maintaining the appliance's energy efficiency by preventing cold air from escaping and warm air from entering.

Causes of a bad Gasket can stem from normal wear and tear over time, accidental damage, or deformation due to improper cleaning methods or exposure to extreme temperatures.

Symptoms of a bad Gasket include:

• Visible gaps or tears in the gasket material
• Condensation or frost buildup inside the refrigerator or freezer, indicating air leaks
• Difficulty in maintaining consistent internal temperatures
• An increase in energy consumption as the appliance works harder to maintain the desired temperature

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The French Door Gasket is an OEM part for GE refrigerators. This gasket seals the gap between the French doors of the refrigerator, maintaining an airtight seal to prevent warm air from entering and cool air from escaping. It ensures the refrigerator operates efficiently by keeping the internal temperature consistent.

You should replace this French door gasket if it becomes worn out or damaged. Causes of a bad gasket include regular wear and tear, damage from cleaning, or the gasket becoming brittle over time. A compromised gasket can lead to increased energy consumption and food spoilage.

Symptoms of a bad French door gasket include:

• Warm air entering the refrigerator
• Frost buildup around the doors
• Higher than usual energy bills
• The refrigerator door not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White

Color: Black

This stainless-steel handle fastener secures the appliance door handle to the door assembly, restoring a solid, rattle-free grip and proper handle alignment. Designed to replace a worn, loose, or missing fastener quickly and easily. What it does:

• Secures the door handle to the appliance door so the handle stays firmly attached
• Stops handle wobble, clicking, or partial detachment when opening or closing the door
• Restores proper handle alignment and feel after a stripped or corroded fastener
• Matches OEM finish for a consistent look with stainless-steel handles

• One stainless-steel handle fastener

• Disconnect power to the appliance before beginning any repair
• Access may require removing the handle or inner trim; follow for guidance
• Use appropriate hand tools and tighten the fastener until snug—do not over-torque

This module snugger is a small retaining piece used in the refrigerator to hold its associated module or component securely in place. Replacing a cracked or missing snugger restores a tight fit, reduces vibration and noise, and supports correct operation.

• Secures the related module or assembly to prevent shifting
• Helps maintain proper alignment for reliable performance
• Reduces rattles and wear from vibration or movement
• Typical signs it's needed: part is broken or missing, components feel loose, or you hear rattling

• Disconnect power to the refrigerator before servicing
• Note the original orientation and location; take a photo for reference
• Reuse existing fasteners or clips if applicable; avoid overtightening
• After installation, confirm the part holds the assembly firmly and that movement is smooth where intended

This thimble door is the molded trim piece that surrounds the refrigerator/freezer door opening, restoring proper fit and finish. It replaces damaged or worn trim to reduce drafts and improve door alignment and appearance. What it does

• Covers and protects the door opening edge, providing a finished appearance
• Helps maintain a consistent seal by supporting proper door alignment
• Reduces air leaks and drafts at the door opening when installed correctly
• Replaces cracked, warped, or missing trim that can catch or rub during door use

• One thimble door trim piece as shown

• Disconnect power to the appliance before beginning any repair
• Typically secures with clips or screws; inspect existing fasteners and retainers for reuse
• Handle trim gently to avoid cracking; align carefully to ensure a proper fit

This clear dairy door is the flip-up cover for the door-mounted dairy compartment in your refrigerator. It restores a clean look and keeps butter and other small dairy items contained, protected, and easy to access.

• Covers the dairy/butter compartment on the fresh food door
• Helps contain small items and reduce odor transfer
• Attaches to the door bin and flips up for quick access
• Common symptoms: cracked or missing cover, broken hinge tabs, won't stay closed

• Disconnect power to the refrigerator before servicing
• Open the door, support the bin, and gently flex the bin's end tabs to release the old cover
• Align the new cover's hinge pins with the bin openings and snap into place—do not force
• Verify smooth open/close operation before loading items

This wire beverage rack provides a secure place on the refrigerator door to store cans and bottles, keeping drinks organized and easy to reach. It restores proper door storage and prevents items from falling or shifting. What it does:

• Replaces a broken, bent, or missing beverage rack to restore door storage
• Holds cans, bottles and other small drink containers securely on the door
• Stops rattling, sliding, or items falling when the door is opened or closed
• Keeps bottles and cans organized for easier access

• One wire beverage rack

• Designed to attach to the refrigerator door; orientation and clip locations may vary by model
• Remove any damaged rack or clips before installing the replacement
• Install by snapping into the door shelf clips or securing with the existing fasteners; do not force parts into place
• Unplug the appliance or disconnect power before working inside the refrigerator for safety

A replacement module shelf assembly that supports and secures a refrigerator's electronic control module and wiring inside the cabinet, helping maintain proper component position and reduce vibration-related connection issues. What it does:

• Provides a stable mounting surface for the main control module and related wiring harness
• Keeps the module correctly positioned to prevent loose connections or intermittent electrical symptoms
• Helps reduce vibration and rattling that can occur when the original shelf is cracked or broken
• Maintains proper spacing to avoid contact with other components that might cause wear or shorting

• One module shelf assembly

• Disconnect power to the appliance before beginning any service
• Handle the shelf and electrical connectors gently to avoid damaging clips or wiring
• Installation typically requires basic hand tools and removing interior panels for access
• Module and harness are fully seated and secured before restoring power

This fresh food shelf module replaces the fixed shelf assembly inside your refrigerator's main compartment. It restores a sturdy, level storage surface and proper fit when the original shelf is cracked, warped, or no longer seats securely.

• Provides a rigid, level platform for food storage in the fresh food section
• Restores intended spacing and organization between shelves and bins
• Seats securely on side supports to prevent tipping or falling
• Common symptoms: cracked frame, broken mounting tabs, shelf won't sit level, shelf falls or is missing

• Remove all items from the shelf and lift out the damaged shelf
• Align the new shelf with the side rails/slots and set or snap it into place
• Handle edges carefully to avoid damage or injury during installation

This articulation mullion is the flip-out center rail on a French-door refrigerator. It swings into place as the door closes to seal the gap between doors, helping maintain proper temperatures and limit moisture around the center joint.

• Provides the pivoting center rail that engages the opposite door to complete the seal
• Common signs of failure: cracked or loose mullion, won't flip or latch, doors not closing smoothly, or moisture/condensation near the center
• Helps restore proper door sealing and reduce air leaks between doors
• Mounts on the door edge in the same location as the original flipper

• Disconnect power to the refrigerator before servicing
• Remove door bins if needed for access
• Remove mounting screws, lift off the old mullion, position the new mullion, and secure with the original hardware
• Open and close the door to ensure the mullion extends, retracts, and seals correctly

Small replacement bumper that mounts on a French-door to cushion contact, reduce rattling and protect the door and cabinet from wear. Restores smoother closing and helps maintain proper door alignment. What it does:

• Cushions the door to prevent metal-to-metal contact and reduce noise.
• Protects the door edge and cabinet finish from wear and impact damage.
• Helps the door align and seat properly for an even, quiet close.
• Commonly used when doors rub, squeak, or close unevenly.

• Disconnect power to the appliance before starting any work.
• Typically installs by pressing or seating into the designated bumper hole or post; may require removing the door or loosening a hinge for full access.
• Inspect surrounding mounting hole and adjacent bumpers; replace any additional worn bumpers for consistent fit.

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

This manufacturer-specified screw fastens appliance panels, brackets, and internal components in place. Replace a missing or stripped fastener to restore a tight, rattle-free fit and reliable support at the original mounting points.

• Provides the correct fastener for securing covers, brackets, and assemblies
• Replaces lost, rusted, or damaged screws
• Helps resolve loose or vibrating panels and trim
• Maintains alignment of components and hardware

• Unplug the appliance; shut off water if working near supply lines
• Match the new screw to the original location; verify length and thread
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Keep removed hardware organized for reassembly

The Gear Pinion is an OEM component specifically designed for GE French door refrigerators. This part is responsible for the smooth operation of door hinges and closing mechanisms.

The gear pinion works together with other inner door components to evenly distribute strength across the refrigerator’s motion system. This ensures doors move fluidly and stay securely sealed when closed.

Causes of a bad gear pinion can include wear from repetitive use over many years, stress from overloading the doors, or misalignment of connecting mechanisms.

Symptoms of a bad gear pinion include:

• Doors not closing or latching properly
• Binding or sticking movement
• Noise or vibration when opening/closing
• Increased effort required to operate doors

Note: Right-hand side

Replace this precision gear with a genuine GE OEM part to restore dependable door functionality. This product is also compatible with Hotpoint, RCA, and Kenmore refrigerator models.
