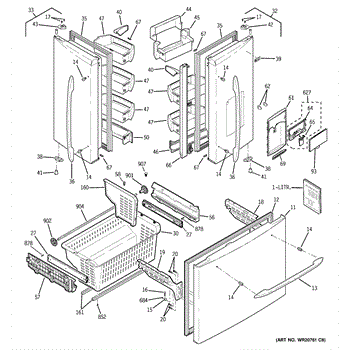

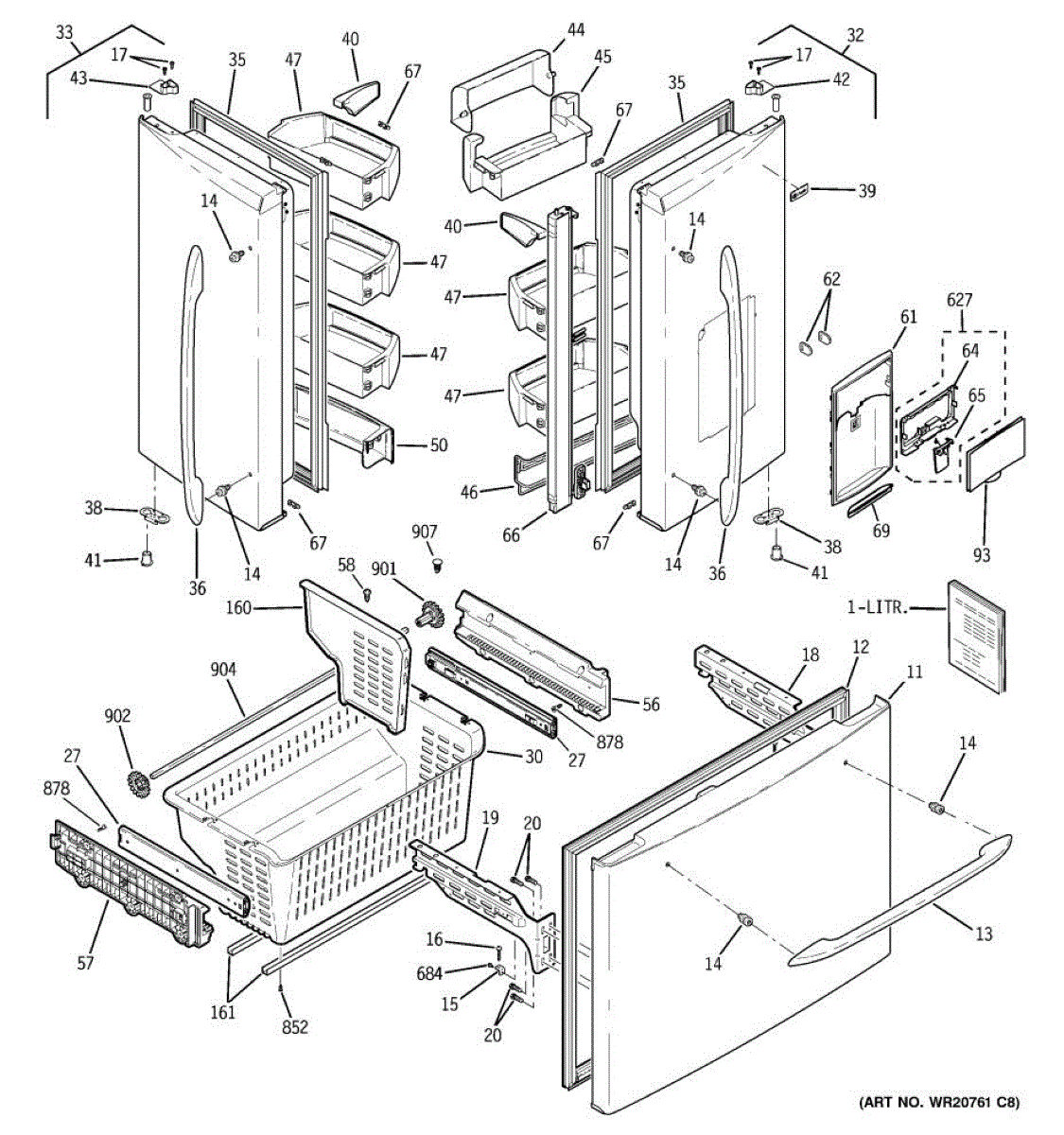

Parts for Ge PFCS1PJZCSS: 01 - Doors Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Restore a reliable door seal with this refrigerator door gasket. It forms an airtight barrier between the door and cabinet to keep cold air in, reduce frost and condensation, and help your unit maintain stable temperatures.

• Seals the full door perimeter to prevent warm, humid air from entering the compartment
• Helps maintain consistent cooling performance and moisture control
• A worn, torn, or deformed gasket may cause temperature swings, frost/ice buildup, or moisture around the door
• Visible gaps, a door that won't stay closed, or a failed "paper test" indicate a failed seal

• Unplug the appliance before starting
• Let the new gasket relax flat; gently warm with a hair dryer on low or place in warm water to remove kinks
• Fully seat the gasket lip into the door channel/retainer, working evenly around all four sides and corners
• After installation, check the seal with a paper strip and fine-tune by gently warming and reshaping as needed

This OEM fastener secures interior components and trim on compatible appliances to restore proper fit and reduce movement. It's a direct-replacement hardware piece used where the original mounting screw or retainer is lost or worn. What it does

• Secures panels, trim pieces, brackets or small assemblies to the appliance frame
• Restores firm attachment to reduce rattles, gaps or misalignment
• Replaces missing or stripped hardware that prevents proper part installation
• Helps maintain proper operation by keeping service parts seated and stable

• Disconnect power or unplug the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the fastener, then tighten snugly—do not over-torque
• Replace any additional damaged fasteners with the same OEM part for best fit

This bracket support is a small mounting bracket that secures and stabilizes appliance components, helping keep panels and assemblies aligned for proper operation and reduced vibration. It's a direct-fit replacement when the original bracket is broken or missing. What it does

• Provides a sturdy mounting point to hold panels or internal components in place
• Restores proper alignment to doors, panels or assemblies that sit on the bracket
• Reduces rattling or vibration caused by a loose or damaged bracket
• Helps prevent wear or damage from parts shifting during use

• Unplug the appliance and shut off water/gas (if applicable) before starting work
• Use the original mounting screws; replace damaged fasteners as needed
• Handle sharp sheet-metal edges carefully and wear gloves and eye protection

This is a 1/4-20 UNC machine screw used to fasten appliance components securely. It restores proper fit and stability where threaded fasteners are required, preventing loose panels or shifting parts. What it does:

• Secures panels, brackets, or assemblies that use a 1/4-20 UNC threaded hole
• Stops rattling or movement caused by a missing or damaged screw
• Restores correct mechanical connection for safe operation
• Useful when replacing stripped, corroded, or lost fasteners

• Disconnect power to the appliance before servicing.
• Start threads by hand to avoid cross-threading; tighten until snug.
• Do not overtighten — use appropriate torque for the material to avoid stripping threads or damaging parts.
• Ensure proper contact and secure fastening.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

This replacement screw secures appliance brackets, panels, and components. It restores a tight, aligned fit when the original hardware is stripped, rusted, or missing, helping reduce vibration and rattling for reliable operation.

• Fastens brackets, panels, or mounts to keep components secure and aligned
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration, rattling, or loose/misaligned parts
• Matches original spec for reliable hold and fit

• Disconnect power before servicing; use proper PPE
• Match thread and length to the removed screw before installation
• Start threads by hand to prevent cross-threading; tighten until snug—do not overtighten
• Ensure parts are aligned and seating surfaces are clean before tightening

This slide-out lower basket replaces a worn or damaged refrigerator lower storage basket to restore organized storage and easy access to fresh foods. Durable molded construction keeps produce contained and visible. What it does

• Provides a removable lower storage basket for organizing fruits, vegetables, and deli items
• Slides out for easy access so you can reach items at the back without lifting
• Replaces cracked, broken, or warped baskets that no longer support contents
• Helps keep refrigerator interior tidy and prevents items from rolling around

• One lower slide-out basket

• Snap or slide into the existing lower track; matches original mounting points
• Remove all food and use caution when handling edges to avoid pinching
• Inspect tracks and glides for damage; replace glide parts separately if basket does not slide smoothly
• Disconnect power only when performing additional repairs nearby

The Refrigerator Door Gasket is an OEM part for GE refrigerators. It is designed to create an airtight seal around the refrigerator door, preventing warm air from entering and cool air from escaping. This gasket is essential for maintaining the refrigerator's internal temperature, ensuring energy efficiency, and preserving the freshness of stored food.

Over time, the door gasket can become worn out or damaged. Causes of a bad door gasket can include regular wear and tear, exposure to temperature fluctuations, or physical damage such as tears or cracks. A compromised gasket can lead to increased energy consumption and reduced cooling efficiency.

Symptoms of a bad refrigerator door gasket include:

• The refrigerator door not sealing properly
• Visible cracks, tears, or deformities in the gasket
• Condensation or frost buildup around the door edges
• The refrigerator running more frequently or for longer periods

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This handle assembly replaces a damaged or worn refrigerator fresh-food door handle to restore a secure grip and straight door appearance. It provides a factory-fit replacement that mounts where the original handle attaches. What it does:

• Replaces a cracked, loose or broken fresh-food door handle
• Restores a safe, comfortable grip for opening the refrigerator door
• Corrects misaligned or crooked handle appearance
• Helps the door latch and seal operate normally by providing proper handle support

• One handle assembly as shown

• Unplug the appliance or disconnect power before beginning any repair
• Keep original fasteners; install with the same screws or clips provided and tighten snugly — do not overtighten
• Handle with care to avoid scratching the door finish; wear gloves to protect hands from sharp edges

This stop door is a small replacement door stop that helps limit and stabilize door movement for proper closing and alignment. Restores consistent door positioning to reduce slamming and wear on the hinge area. What it does:

• Acts as a physical stop to limit door travel and prevent over-rotation
• Helps the door latch and seal properly by holding it in the correct resting position
• Reduces noise and impact from abrupt door closing
• Protects hinge components and surrounding cabinet from excess wear

• Stop door

• Install on the door hinge area where the original stop is mounted; verify orientation before tightening
• Use basic hand tools; avoid over-tightening fasteners which can damage plastic parts
• Disconnect power or unplug the appliance if reaching into areas with electrical components

This module snugger is a small retaining piece used in the refrigerator to hold its associated module or component securely in place. Replacing a cracked or missing snugger restores a tight fit, reduces vibration and noise, and supports correct operation.

• Secures the related module or assembly to prevent shifting
• Helps maintain proper alignment for reliable performance
• Reduces rattles and wear from vibration or movement
• Typical signs it's needed: part is broken or missing, components feel loose, or you hear rattling

• Disconnect power to the refrigerator before servicing
• Note the original orientation and location; take a photo for reference
• Reuse existing fasteners or clips if applicable; avoid overtightening
• After installation, confirm the part holds the assembly firmly and that movement is smooth where intended

This right-hand cam closure is a direct-fit replacement that helps the refrigerator door close and stay aligned for a proper seal. It restores smooth hinge movement and reliable door latching to reduce gaps and cold loss. What it does:

• Guides and secures the door as the hinge rotates to help the door latch fully
• Maintains door alignment to support an even seal and consistent cooling
• Reduces hinge noise and sticking when worn or damaged
• Common symptom: door won't stay closed, rubs, or leaves an uneven gap

• Disconnect power to the appliance before starting any repair
• Support or remove the door per the manufacturer's service instructions to access the hinge/cam
• Replace the cam and reassemble hardware; verify door alignment and operation after installation

This clear dairy door is the flip-up cover for the door-mounted dairy compartment in your refrigerator. It restores a clean look and keeps butter and other small dairy items contained, protected, and easy to access.

• Covers the dairy/butter compartment on the fresh food door
• Helps contain small items and reduce odor transfer
• Attaches to the door bin and flips up for quick access
• Common symptoms: cracked or missing cover, broken hinge tabs, won't stay closed

• Disconnect power to the refrigerator before servicing
• Open the door, support the bin, and gently flex the bin's end tabs to release the old cover
• Align the new cover's hinge pins with the bin openings and snap into place—do not force
• Verify smooth open/close operation before loading items

This wire beverage rack provides a secure place on the refrigerator door to store cans and bottles, keeping drinks organized and easy to reach. It restores proper door storage and prevents items from falling or shifting. What it does:

• Replaces a broken, bent, or missing beverage rack to restore door storage
• Holds cans, bottles and other small drink containers securely on the door
• Stops rattling, sliding, or items falling when the door is opened or closed
• Keeps bottles and cans organized for easier access

• One wire beverage rack

• Designed to attach to the refrigerator door; orientation and clip locations may vary by model
• Remove any damaged rack or clips before installing the replacement
• Install by snapping into the door shelf clips or securing with the existing fasteners; do not force parts into place
• Unplug the appliance or disconnect power before working inside the refrigerator for safety

A replacement module shelf assembly that supports and secures a refrigerator's electronic control module and wiring inside the cabinet, helping maintain proper component position and reduce vibration-related connection issues. What it does:

• Provides a stable mounting surface for the main control module and related wiring harness
• Keeps the module correctly positioned to prevent loose connections or intermittent electrical symptoms
• Helps reduce vibration and rattling that can occur when the original shelf is cracked or broken
• Maintains proper spacing to avoid contact with other components that might cause wear or shorting

• One module shelf assembly

• Disconnect power to the appliance before beginning any service
• Handle the shelf and electrical connectors gently to avoid damaging clips or wiring
• Installation typically requires basic hand tools and removing interior panels for access
• Module and harness are fully seated and secured before restoring power

This fresh food shelf module replaces the fixed shelf assembly inside your refrigerator's main compartment. It restores a sturdy, level storage surface and proper fit when the original shelf is cracked, warped, or no longer seats securely.

• Provides a rigid, level platform for food storage in the fresh food section
• Restores intended spacing and organization between shelves and bins
• Seats securely on side supports to prevent tipping or falling
• Common symptoms: cracked frame, broken mounting tabs, shelf won't sit level, shelf falls or is missing

• Remove all items from the shelf and lift out the damaged shelf
• Align the new shelf with the side rails/slots and set or snap it into place
• Handle edges carefully to avoid damage or injury during installation

The Dispenser Shield is an OEM part for GE refrigerators equipped with water and ice dispensers. This shield acts as a protective cover for the dispenser area, preventing accidental spills or debris from entering the internal mechanisms.

Symptoms of a faulty dispenser shield:

• Difficulty in accessing or operating the dispenser
• Water or ice leaks around the dispenser area
• The shield becoming loose, cracked, or dislodged from its mounting
• Visible damage or wear on the shield surface

Causes of a bad dispenser shield can include impact or mishandling, exposure to excessive moisture or freezing temperatures, or general wear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

This manufacturer-specified screw fastens appliance panels, brackets, and internal components in place. Replace a missing or stripped fastener to restore a tight, rattle-free fit and reliable support at the original mounting points.

• Provides the correct fastener for securing covers, brackets, and assemblies
• Replaces lost, rusted, or damaged screws
• Helps resolve loose or vibrating panels and trim
• Maintains alignment of components and hardware

• Unplug the appliance; shut off water if working near supply lines
• Match the new screw to the original location; verify length and thread
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Keep removed hardware organized for reassembly

The Gear Pinion is an OEM component specifically designed for GE French door refrigerators. This part is responsible for the smooth operation of door hinges and closing mechanisms.

The gear pinion works together with other inner door components to evenly distribute strength across the refrigerator’s motion system. This ensures doors move fluidly and stay securely sealed when closed.

Causes of a bad gear pinion can include wear from repetitive use over many years, stress from overloading the doors, or misalignment of connecting mechanisms.

Symptoms of a bad gear pinion include:

• Doors not closing or latching properly
• Binding or sticking movement
• Noise or vibration when opening/closing
• Increased effort required to operate doors

Note: Right-hand side

Replace this precision gear with a genuine GE OEM part to restore dependable door functionality. This product is also compatible with Hotpoint, RCA, and Kenmore refrigerator models.
