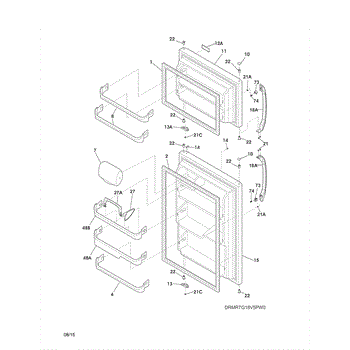

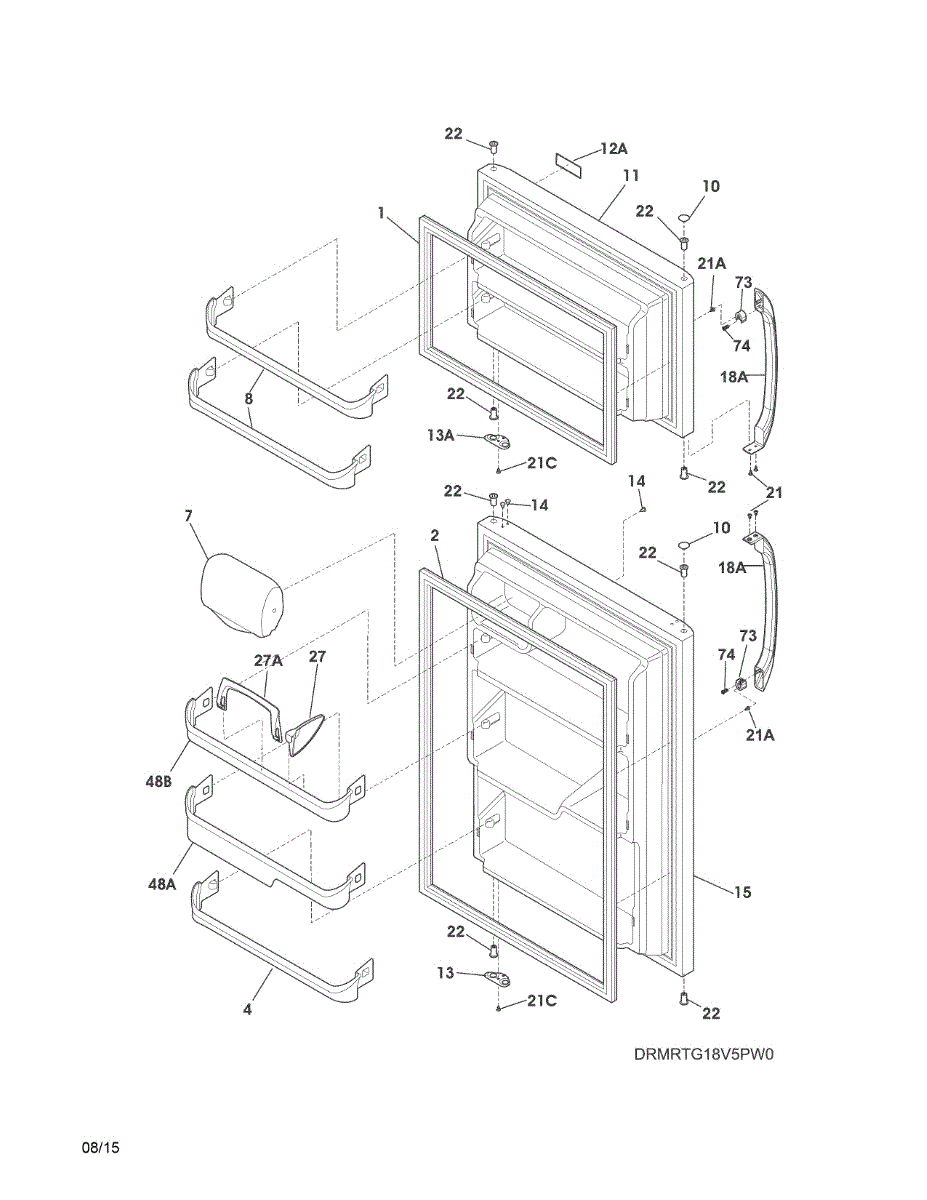

Parts for Universal Multiflex (Frigidaire) MRTG15V4PW3: Doors Parts

The Freezer Door Gasket is an OEM component for Frigidaire refrigerators. It is a rubber-sealing gasket that lines the perimeter of the freezer door. This gasket plays a crucial role in maintaining proper insulation and preventing warm air and moisture from entering the freezer compartment.

Causes of a bad gasket can include damage from over-tightening of the door, tears or cracks due to age and usage, or warping of the gasket profile from temperature extremes.

Symptoms of a bad freezer door gasket include:

• Frost or moisture buildup inside the freezer
• Difficulty closing the door fully due to misshapen gasket
• Warm air entering the freezer, causing higher temperatures
• Visible cracks or tears in the rubber seal

This OEM Frigidaire part is compatible with many Electrolux, Gibson, Kelvinator, and Kenmore models.

The Refrigerator Door Gasket is an OEM part for Frigidaire refrigerators. This gasket forms a seal around the refrigerator door, keeping the cold air inside and preventing warm air from entering. The gasket is white in color and measures 27"x 36".

Over time, door gaskets can wear out or become damaged due to regular use, cleaning chemicals, or age. A bad gasket can lead to air leaks, causing the refrigerator to work harder to maintain the desired temperature.

Symptoms of a bad refrigerator door gasket include:

• Warm spots inside the refrigerator
• Excessive frost build-up in the freezer
• Increased energy consumption
• Visible cracks, tears, or deformation in the gasket

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Rack is an OEM component for Frigidaire refrigerators. Located inside the fresh food compartment, it provides adjustable shelving for organization.

Normal usage causes wear of plastic parts from repeated removal/replacement of items stored on the rack over time. Excessive weight loads could potentially lead to bending or cracking as well.

Symptoms of a faulty or damaged door rack include:

• Gaps forming that allow smaller items to fall
• Instability where contents shift more easily
• Shelves unable to lock firmly into position
• Rack potentially detaching from mounting tracks

This genuine Frigidaire rackis also compatible with Electrolux, Kelvinator, and some Kenmore fridges.

The Door Shelf Bar is an OEM part for Frigidaire refrigerators. This bar attaches to the door, providing a secure front barrier for door shelves to help hold items like bottles, jars, and condiments in place. It enhances the storage capacity and organization of the refrigerator door, ensuring that items do not fall out when the door is opened or closed.

Over time, the bar can crack, warp, or break due to frequent use, overloading, or accidental impacts. A compromised door shelf bar can result in items falling out, leading to spills and reduced storage efficiency.

Symptoms of a bad Door Shelf Bar include:

• Cracks or breaks in the bar
• Difficulty attaching the bar securely to the door
• Items falling out or not staying in place
• Reduced storage capacity on the door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Rack is an OEM part compatible with Frigidaire refrigerators. It is a convenient storage component designed to fit securely inside the refrigerator door, providing additional space for organizing and storing items.This rack is white in color and measures about 23 inches wide by 3 inches high by 5 inches deep.

Causes of needing to replace a door rack can include damage from mishandling or impact, wear and tear over time, or the desire to upgrade or customize the interior organization of the refrigerator.

Symptoms indicating it's time for a new door rack include:

• Cracks, breaks, or visible damage to the rack or shelves
• Difficulty in sliding or removing the rack from the door
• Inability to securely hold or support items placed on the rack

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Dairy Door is an OEM replacement part for  Frigidaire side-by-side refrigerators. Located inside the fresh food compartment, it provides a dedicated storage area for milk, yogurt, cheese and other dairy products requiring colder temperatures. The door measures approximately 9 inches wide and 5 inches high.

Causes of a bad dairy door include normal wear from repeated opening and closing over time. Exposure to spills inside the refrigerator can also potentially damage door shelf components or seals.

Symptoms of a bad dairy door are:

• Difficulty opening or closing the door smoothly
• Door alignment issues where it does not sit flush in the frame
• Leaks or moisture inside the dairy storage area
• Damage or cracks in shelf supports or gasket seals

This OEM part is also compatible with models from brands like Electrolux, Gibson, and Kelvinator brand models.

NOTE: For white use 240337701

The Door Rack is an OEM part for Frigidaire refrigerators. This rack provides additional storage space for bottles, jars, and other condiments. It's an essential component for maximizing the storage capacity and organization of your refrigerator, making the most out of the available space.

Over time, door racks can experience wear or become damaged due to overloading, accidental impacts, or the natural aging process. This can lead to issues such as the rack becoming loose, cracking, or not being able to securely hold items.

Symptoms of a bad Door Rack include:

• Cracks or breaks in the rack, compromising its structural integrity
• The rack sagging or not attaching securely to the refrigerator door
• Difficulty in sliding the rack in or out, or it not fitting properly
• Reduced effectiveness in holding items securely

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Color: White. Used to cover the hinge bearing hole.

This door stop limits the refrigerator door's opening range to protect hinges and nearby cabinets. Replace a cracked or missing stop to restore smooth, controlled door movement and help the door close and seal properly.

• Limits door swing to prevent overextension and impact with walls or cabinets
• Reduces hinge stress and helps maintain proper door alignment
• Common signs of failure: door opens too far, binds at the hinge, or the original stop is cracked/missing
• Restores smooth, controlled door motion and closure

• Disconnect power and remove items from the door to reduce weight
• Support the door before loosening any hinge fasteners
• Install the new stop in the correct orientation for your model
• Adjust hinges if needed

This door stop limits the opening angle of the refrigerator/freezer door to prevent overextension that can stress hinges or strike nearby cabinets. Replacing a worn or missing stop restores controlled door travel and helps prevent impact damage.

• Controls and limits the door's opening range
• Helps protect hinges, gaskets, and adjacent cabinets from overextension
• Restores smooth, consistent door operation
• Common signs: door swings past normal position, door hits wall/cabinet, visible broken or missing stop

• Unplug the appliance and lighten the door if needed for easier handling
• Support the door; remove hinge fasteners or pin as needed to access the stop
• Match the orientation of the original stop; retain any shims/spacers in the same order
• Reassemble and verify door alignment and gasket seal

Color: White

The Door Handle is an OEM part compatible with Frigidaire refrigerators. This component serves as the primary means of opening and closing the refrigerator door, offering both functionality and aesthetic appeal. This handle measures approximately 17 x 1".  This white handle comes with block 218396700

Symptoms of needing to replace the door handle include:

• The handle becoming loose, wobbly, or detached from the door
• Cracks, chips, or other visible damage to the handle
• Difficulty in gripping or operating the handle smoothly

Causes of a faulty door handle can include physical impact or mishandling during use or cleaning, general wear and tear over extended periods, or issues with the internal mounting hardware or mechanisms.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

The Screw Kit is an OEM part for Frigidaire appliances. It contains various screws specifically designed to fit and secure different components of Frigidaire appliances, ensuring a tight and secure assembly. This kit is essential for both initial installations and for making repairs or replacements to existing appliances, providing the necessary hardware to maintain or restore the structural integrity of your appliance.  These screws are #10-16 x .500 inches long and can be loosened or tightened using either a Phillips-head or square-head screwdriver.

Symptoms of needing a new Screw Kit include:

• Loose components or panels on your appliance due to missing or damaged screws.
• Inability to securely fasten parts during assembly or repairs, which can lead to operational issues or safety hazards.
• Screws stripping or corroding over time, which can compromise the stability and durability of the appliance.

Causes for replacing screws can include mechanical stress that causes screws to loosen or fall out, environmental factors like moisture leading to corrosion, or accidental damage during cleaning or maintenance.

This screw kit is designed to be universally compatible with various Frigidaire models, ensuring that you have the right screws for a range of repair needs.

The Hinge Bearing is an OEM part for Frigidaire refrigerators. It plays a critical role in the smooth operation of the refrigerator door by providing a pivot point for the hinge. This small component helps to ensure that the door opens and closes smoothly and seals properly, which is essential for maintaining the refrigerator's internal temperature and energy efficiency.

Symptoms of a bad Hinge Bearing include:

• Difficulty in opening or closing the refrigerator door.
• Squeaking or grinding noises when the door moves.
• The door hanging unevenly or not sealing correctly, potentially leading to temperature fluctuations inside the fridge.

Causes of a bad hinge bearing can include wear and tear from the frequent use of the refrigerator door, accumulation of dirt or grime that impedes smooth movement, or degradation of the material over time due to environmental factors such as moisture.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This tall bottle retainer mounts to the refrigerator door shelf to keep taller containers upright as you open and close the door. Replacing a worn or missing retainer restores secure storage and helps prevent spills.

• Attaches to the door shelf/bin to create a front barrier for tall bottles and cartons
• Helps prevent items from tipping or sliding out during door movement
• Replace if cracked, bent, missing, or if it no longer stays secured
• Common symptoms: bottles fall forward, retainer is loose or broken, difficulty keeping tall items upright

• Disconnect power and remove items from the affected door shelf/bin
• Lift out the bin if needed; release the old retainer from side brackets/clips
• Align the new retainer's ends with the supports and press in until fully seated
• Reinstall the bin and ensure the retainer holds items securely and clears the door gasket

The Handle Mounting Block is an OEM part for Frigidaire refrigerators. This component anchors the refrigerator door handle assembly while also reinforcing the door structure.

Causes of a bad mounting block can include cracks developing from repeated opening/closing stresses, broken fasteners loosening its installation, or residual damage during door replacement or repair attempts.

Symptoms of a bad handle mounting block include:

• Loose, sagging or misaligned door handles
• Doors difficult to open or not staying securely closed/latched
• Noisy rattling coming from the door handle area
• Cracks or breaks visible in the mounting plastic

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Specs: 10-16 X 0.500
