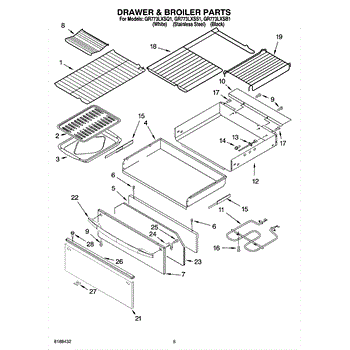

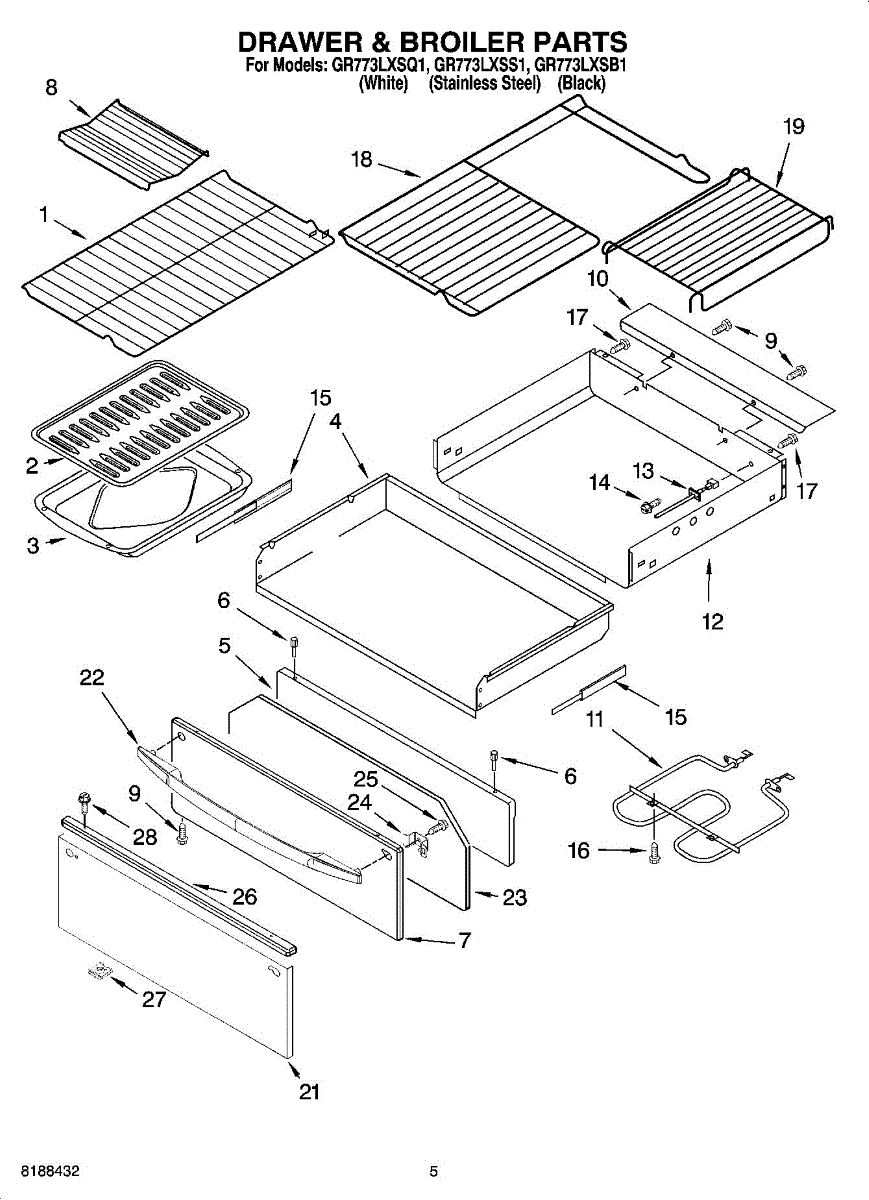

Parts for Whirlpool GR773LXSS1: 04 - Drawer & Broiler Parts

Replace your cracked, warped, or missing oven rack. This sturdy metal rack provides a reliable cooking surface inside your range oven cavity.

Replacement broiler pan grid for ovens and ranges. Sits on top of broiler pan to elevate food. Replace if cracked, warped, rusted, or missing.

For broil pan grid use WP3195996.

Black push rivet for ranges. Secures panels and components inside your range. Replace if cracked, broken, or missing. Two-piece design presses into hole.

White push rivet for electric and gas ranges. Secures panels and components in place. Replace if cracked, broken, or missing to restore appearance.

Replacement broiler pan for ranges and ovens. Holds food under high heat while collecting drippings. Order if your pan is missing, warped, or damaged.

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Fix F3E2 error codes or inaccurate warm drawer temperatures with this sensor replacement. Simple 15-minute DIY repair restores proper warming function.

Self-tapping screw used in range assembly. Features 8-18 thread size and 0.375 inch length. Also used in some washer models as cross-appliance hardware.

10-32 machine thread screw secures brackets, panels, and trim inside ranges and washers. Replace missing, stripped, or damaged fasteners to restore alignment.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Partial oven rack for ranges. Installs inside oven cavity to support cookware when a full rack isn't needed. Replace if bent, damaged, worn, or missing.

This is a metal oven rack that slides into the guide rails inside the oven cavity, providing a flat surface to hold cookware at various heights. It is designed to withstand high cooking temperatures and support heavy dishes. Replace this rack if it is warped, rusted, or if the rails no longer allow it to slide smoothly in and out of the oven.

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small metal clip secures the body side panel to the range frame. It snaps into place to hold panels firmly aligned and prevent rattling or looseness. Replace this clip if your side panel feels loose, shifts out of position, or if the original clip has broken or gone missing during a repair.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken
