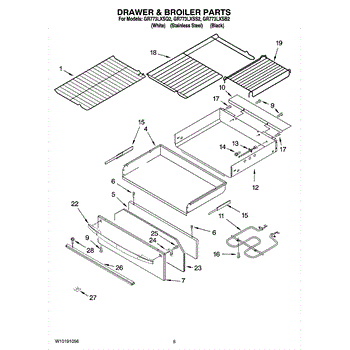

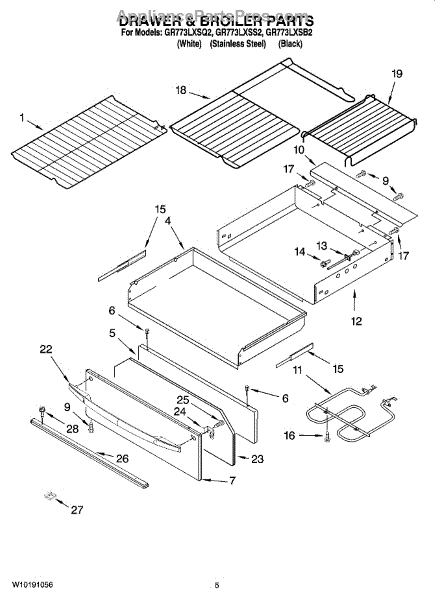

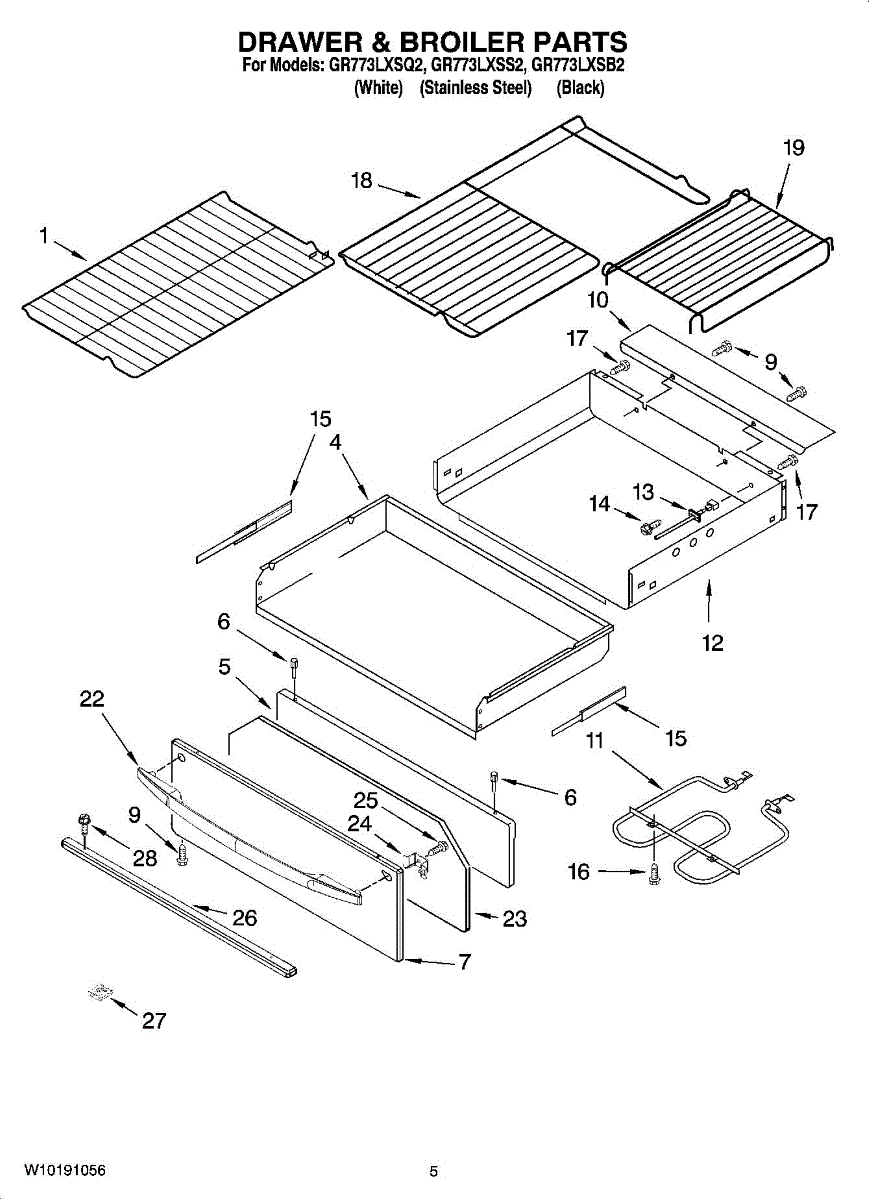

Parts for Whirlpool GR773LXSS2: 04 - Drawer & Broiler Parts

The Oven Rack is an OEM part for Whirlpool ovens, designed to provide a sturdy and reliable surface for baking and roasting within the appliance. This rack is crafted to fit inside Whirlpool oven models, ensuring optimal airflow around food items for even cooking and browning.

The primary cause for replacing an Oven Rack often relates to wear and tear from regular use.

Symptoms of a needing replacement Oven Rack include:

• Warping or bending of the rack, which can cause uneven cooking or baking
• Rust or corrosion that can contaminate food or deteriorate the rack further
• Difficulty sliding the rack in or out, indicating a potential misfit or damage

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black.

Color: White.

Screw for side trim.

This thermistor is the temperature sensor used by a warm drawer to monitor and regulate internal temperature, helping maintain consistent warming for cooked foods. Replaces a failed or out-of-range sensor to restore correct temperature feedback. What it does:

• Senses warm-drawer temperature and sends a resistance-based signal to the control board
• Allows the control system to maintain desired warming temperature
• Common symptom: warm drawer not holding correct temperature or displaying temperature-related error codes
• Safe, widely accepted fix when diagnostics indicate an open/short or out-of-spec thermistor

• One thermistor temperature sensor

• Disconnect power to the appliance before accessing internal components
• Handle the sensor and connector gently; avoid pulling on wires
• Route and secure the lead per the original routing to prevent pinching or heat exposure

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This machine-thread screw secures brackets, panels, and trim inside your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces rattles, and keeps assemblies properly aligned. What it does:

• 10-32 machine-thread screw used to fasten metal components
• Maintains alignment and stability of panels, brackets, and trim
• Replace if threads are stripped, head is damaged, corroded, or missing
• Common symptoms: loose panel/handle, vibration noises, gaps or misalignment

• 1 screw

• Disconnect power (and gas, if applicable) before servicing
• Support the component and start threads by hand to avoid cross-threading
• Use the correct driver; do not overtighten to prevent stripping
• Match thread size and length specified for your model

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This partial oven rack provides a sturdy, heat-resistant support for cookware when a full rack isn't needed. It restores proper sliding and positioning so pans and bakeware sit level during cooking. What it does:

• Replaces a bent, damaged, or missing partial oven rack to restore stable support for cookware
• Slides into existing oven rack supports for secure, level positioning
• Helps prevent cookware from tipping or sliding during use
• Durable finish resists typical oven heat and wear under normal use

• One partial oven rack

• Allow the oven to cool completely before handling interior parts
• No special tools typically required; slide rack into the oven's existing guides until seated
• If rack resistance or fit seems off, inspect oven supports for damage or debris and clean before installing
• For safety, disconnect power at the breaker if you must access electrical components or perform additional service

This replacement rack insert helps organize and protect dishes and utensils inside the dishwasher, restoring proper spacing and support for safe cleaning. It fits into the rack to prevent items from shifting or knocking during cycles. What it does

• Replaces a worn, broken, or missing rack insert to restore proper item support and spacing
• Holds dishes, glasses, or utensils in place to reduce chipping and clattering during wash cycles
• Keeps small items from tipping or falling through the rack grid
• Compatible with racks designed to accept this style of insert

• One rack insert

• Install by snapping or sliding the insert into the designated rack slots; no special tools generally required
• Inspect rack rails and surrounding clips for damage before installing
• Handle with care to avoid pinching; wear gloves if edges are sharp

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken
