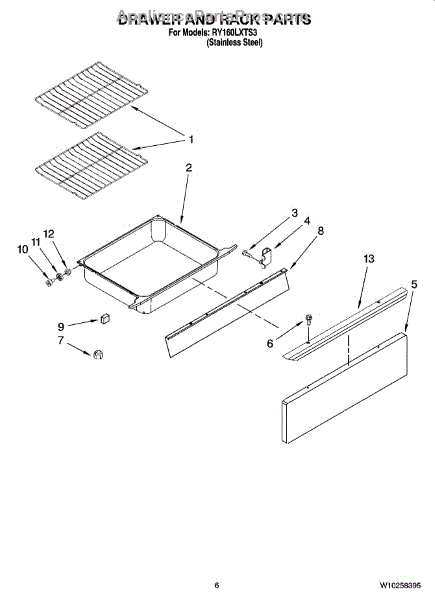

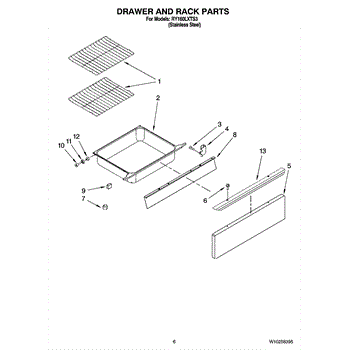

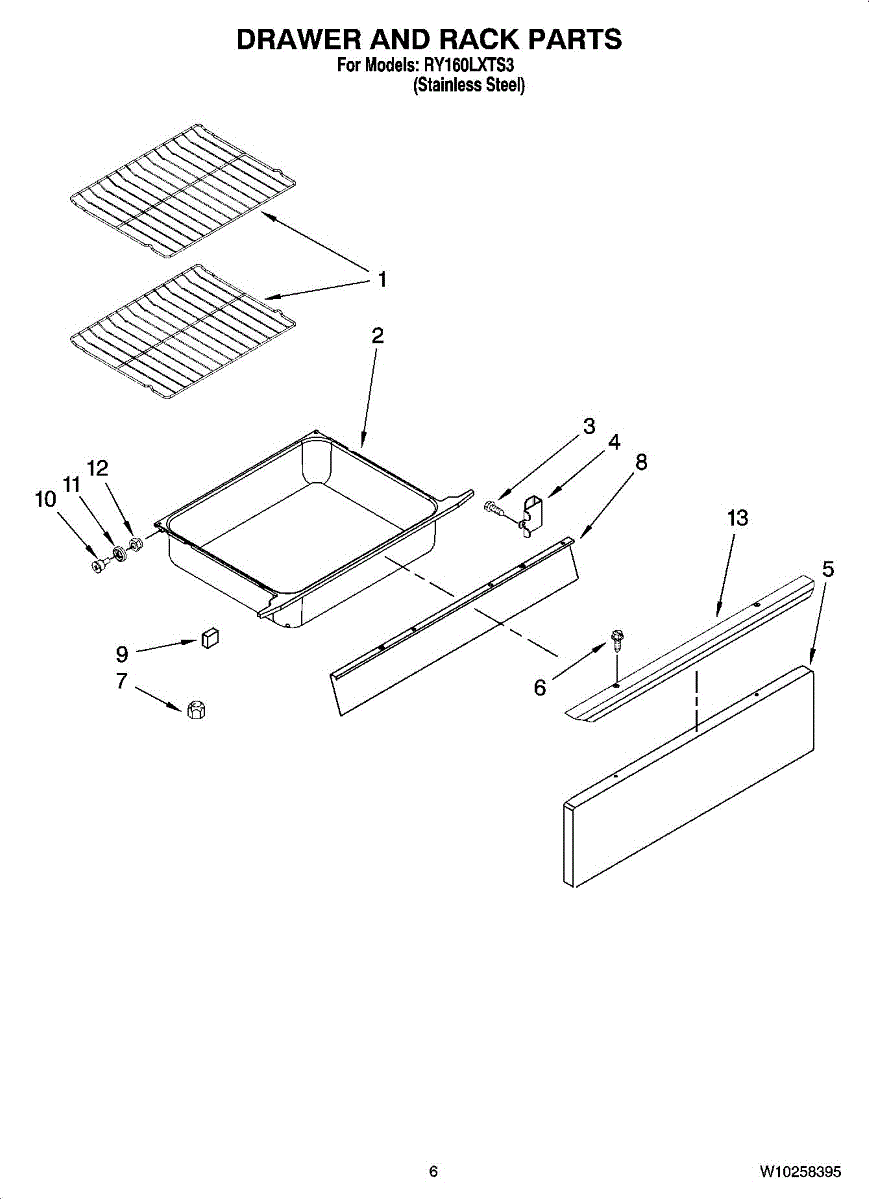

Parts for Whirlpool RY160LXTS3: 05 - Drawer And Rack Parts

The Oven Rack is an OEM part for Whirlpool ovens. It provides a sturdy and reliable surface for baking and roasting a variety of dishes. Designed to fit perfectly within Whirlpool models, this rack ensures optimal air circulation around the food, contributing to even cooking and browning.

Causes of a bad Oven Rack can include warping or damage from high heat, rusting from moisture exposure, or general wear and tear over time. Misshaping or instability can also result from placing too much weight on the rack or using it inappropriately.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in or out.
• Uneven cooking or baking due to improper leveling of the rack.
• The rack does not fit securely in the oven slots.
• Visible rust or damage, which could potentially contaminate food.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Includes two brackets part WP3801F813-51 to mount front panel to drawer. Front panel not included

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 8-32

This drawer roller supports and guides the lower range drawer so it slides smoothly on its track. Replacing a worn or broken roller restores easy operation and helps prevent the drawer from binding, sagging, or coming off the track.

• Supports the storage/warming drawer as it opens and closes
• Helps keep the drawer aligned on the rails to prevent tilting or popping off
• Reduces friction for smoother movement and less noise
• Typical failure signs: sticking drawer, rough/grinding movement, sagging front, or a cracked/flat-spotted wheel

• Disconnect power and allow the appliance to cool completely
• Remove the lower drawer to access the rollers
• Detach the fastener or retainer, install the new roller in the same orientation, and secure it
• Reinstall the drawer and verify smooth travel and proper engagement on both tracks

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.
