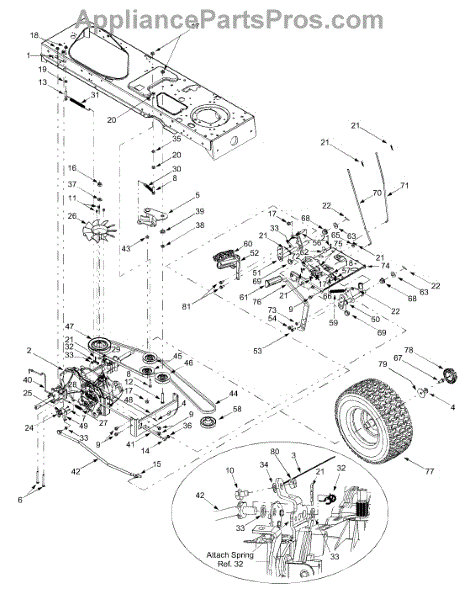

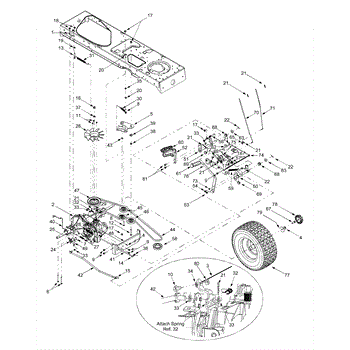

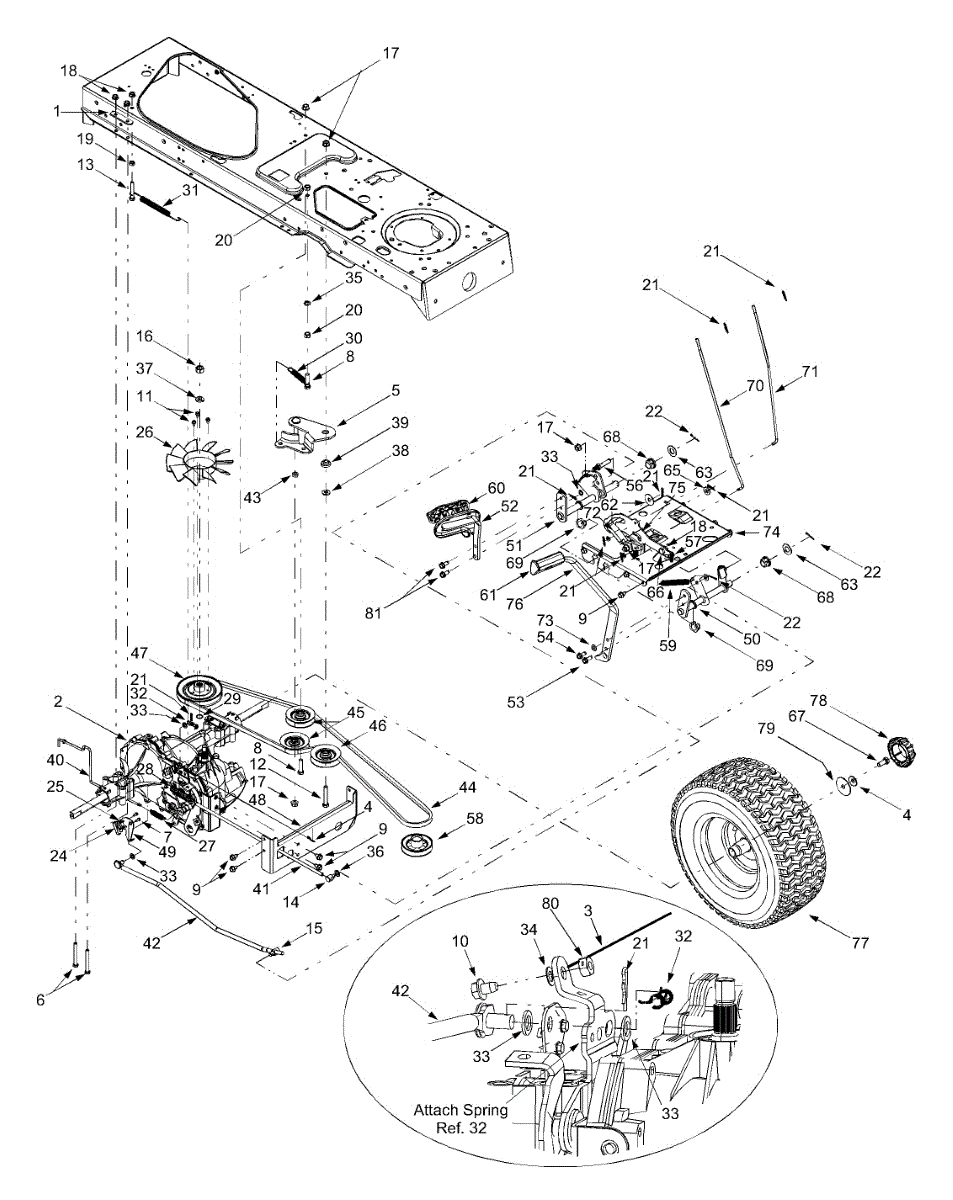

Parts for Yard-Man 13AZ614H401 / 2004: Drive, Controls, Wheels Rear Parts

Fixes loss of drive power or sluggish movement in lawn tractors. This hydrostatic transmission restores smooth forward and reverse operation.

Bell washer adds spacing on shafts in lawn tractors, tillers, mowers, and chipper shredders. Replace if washer is missing, worn, or damaged during maintenance.

Hex washer head screw for lawn equipment. Secures components and panels. Replace if stripped, missing, or corroded for proper assembly and fit.

Hex screw fastener for lawn tractors, mowers, and outdoor power equipment. Replace when stripped, rusted, or missing to secure engine and chassis parts.

Self-tapping screw for lawn mowers and garden equipment. Secures metal, wood, and plastic parts. Replace if stripped, missing, or corroded.

Hex screw fastener for securing lawn mower components. Replace if stripped, rusted, or missing to ensure proper assembly and equipment stability.

Ferrule fastener for lawn tractors and riding mowers. Replaces worn or damaged ferrules that secure components through circular ring seals. Confirm fit with your model number.

Hex lock nut secures bolted joints on outdoor lawn equipment. Replace if threads are stripped, nut is missing, or won't hold proper tension.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

Insulator nut plate for lawn mowers. Self-wrenching fastening component that secures parts within the mower. Replace if cracked, damaged, or missing.

Replace a broken transaxle cooling fan causing overheating or transmission damage. Direct fit for MTD lawn tractors and zero-turn mowers. Easy install.

Extension spring for lawn tractors and snow blowers. Installs on deck, transmission, or control linkage. Replace if stretched, broken, or missing.

Extension spring for lawn tractors and riding mowers. Replace if damaged, stretched, or losing tension to restore proper operation. Verify fit with model.

Wire retaining ring for lawn tractors and riding mowers. Secures wiring harnesses in place. Replace if cracked, broken, or missing to properly hold wires.

This is a metal extension spring used on a lawn tractor's brake rod assembly. It provides the tension needed to return the brake rod to its resting position after the brake pedal is released. Replace this spring if the brake pedal feels loose, does not return to position on its own, or the spring is visibly stretched, corroded, or broken.

This extension spring is a genuine OEM part sourced directly from the manufacturer for use on lawnmowers. The extension spring is part of the idler pulley system that allows the idler pulley bracket to pivot when turning blades on and off. If the spring is broken or warped, the mower deck will not function properly, and the lawn mower will not function at its best. The deck will not move up and down and may be stuck in one position. If this occurs, the extension spring should be replaced.Make sure the lawnmower has not been used recently. Wear safety gloves when working on the mower. Remove the spark plug and key from the lawnmower. Place the lawnmower on a flat surface. Locate the spring under the deck and use the diagram in the manual to remove the spring. Install the new spring and reverse the process to put the mower back together. Reinstall the spark plug. Start the lawnmower and test the deck movement and blade movement to make sure the spring is installed correctly.This extension spring is a silver metal part that is sold individually. It is designed for use in lawnmowers manufactured by Yard Machines, MTD, Troy-Bilt, Husky, Yard-Man, and MTD.

This replacement part is an extension spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This extension spring is found in different types of lawn mowers and helps other parts to work together and allow the engine to run properly and smoothly.A new extension spring might be needed if the current one is damaged or missing from the appliance. Because of the nature of the extension spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual sounds may come from inside the machine if this spring is not working properly. This is a genuine OEM replacement part and is sold individually. This spring is sourced directly from the manufacturer to ensure proper fit.

Flat washer for lawn tractors and outdoor power equipment. Replace if washer is missing, worn, or damaged during maintenance or repair work.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

Lock washer prevents fasteners from loosening due to vibration in lawn mowers, snowblowers, and outdoor power equipment. Simple replacement part.

Replacement flat washer for lawn tractors and outdoor power equipment. Install between fasteners to distribute load. Replace if lost, damaged, or worn.

Shoulder spacer for lawn tractors and riding mowers. Maintains proper spacing between components during assembly. Replace if missing, damaged, or worn.

Replacement spacer for lawn mowers and tractors. Installs between components to maintain proper clearance. Order a new spacer if worn or missing.

Drive belt for lawn tractors and riding mowers. Replace if worn, cracked, or slipping during operation. Verify fit with your model number.

Idler pulley for lawn tractors and mowers. Maintains tension on the blade belt system. Replace if cracked, worn, or causing belt slippage issues.

This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

Service kit for lawn tractors and walk-behind mowers. Includes essential parts for routine maintenance. Replace worn or missing components during service.

If your lawn tractor won't move or speed control is unresponsive, this drive control assembly restores forward motion. Moderate DIY repair, 30-45 minutes.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

Fastening screw for lawn tractors and mowers. Secures components together. Replace if stripped, missing, or damaged during maintenance or repairs.

Engine won't engage blades or drive? This lawn tractor engine pulley transfers power from the engine. Fits 1-inch shafts. Moderate difficulty repair.

Extension spring for lawn tractors and riding mowers. Replace if stretched, broken, or causing poor engagement. Verify fit with your model number.

Replacement pedal pad for lawn tractor auto-drive system. Installs on foot pedal control. Needed when original pad is cracked, worn, or missing.

Foot pad for lawn tractors and riding mowers. Replaces worn, cracked, or missing foot pads on the operator platform for comfort and safety.

Flat washer for lawn tractors and riding mowers. Used in various assembly points throughout the machine. Replace if missing, worn, or damaged.

A flat washer is used in a variety of applications, such as being placed under bolts or nuts as a means to help distribute the load over a larger area and to help ensure the nuts and bolts do not become loose over time. The washers also help to protect the surface from corrosion and damage. Not having washers could reduce the lifespan of a machine. It is important for buyers to replace washers that may have been lost or become damaged. The washers should be checked for signs of corrosion, cupping, or other damage that would necessitate replacement. Buyers should always make sure they are getting the correct size. The flat washer is an OEM part sold individually. It can be used for a range of different types of outdoor machines and more. Some of the types of machines that typically use these washers include lawn tractors, tillers, lawn mowers, chippers, shredders, and snowblowers. Brands include MTD, Yard Machines, Yard-Man, Troy-Bilt, Poulan, and Ryobi.

Flat washer for lawn tractors and riding mowers. Installs with bolts and screws to secure components. Replace if washer is missing or worn.

Hex screw for lawn mowers, tractors, and snow blowers. Replaces worn, corroded, or missing screws on engines and housings. Identical fit for secure assembly.

Hex flange bearing supports rotating shafts in riding mowers and tractors. Replace when you notice grinding noise or rough rotation. Verify fit with your model.

Flange bearing for lawn tractors and riding mowers. Replace if wheels wobble, make noise, or don't spin freely. Verify fit with your model number.

Wheel rim for lawn tractors and walk-behind mowers. Mounts between tire and axle. Replace if cracked, bent, corroded, or missing for proper wheel assembly.

Tubeless air valve for lawn tractor and mower tires. Replace when cracked, leaking, or damaged during tire changes. Installs in wheel rim for proper inflation.

Replacement wheel hub cap for lawn tractors and riding mowers. Covers and protects the wheel hub assembly. Replace if cracked, broken, or missing.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.
