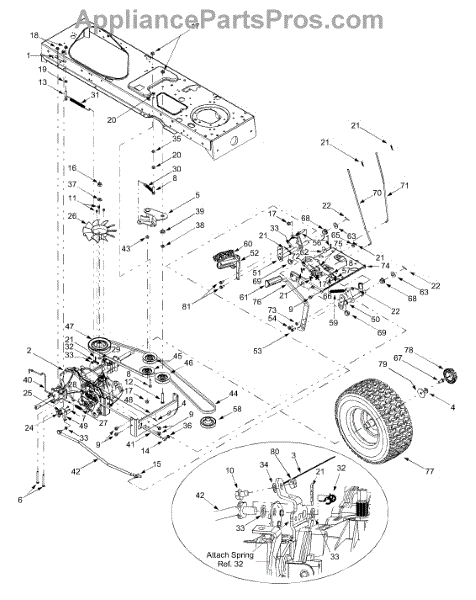

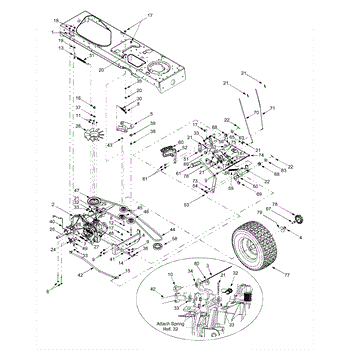

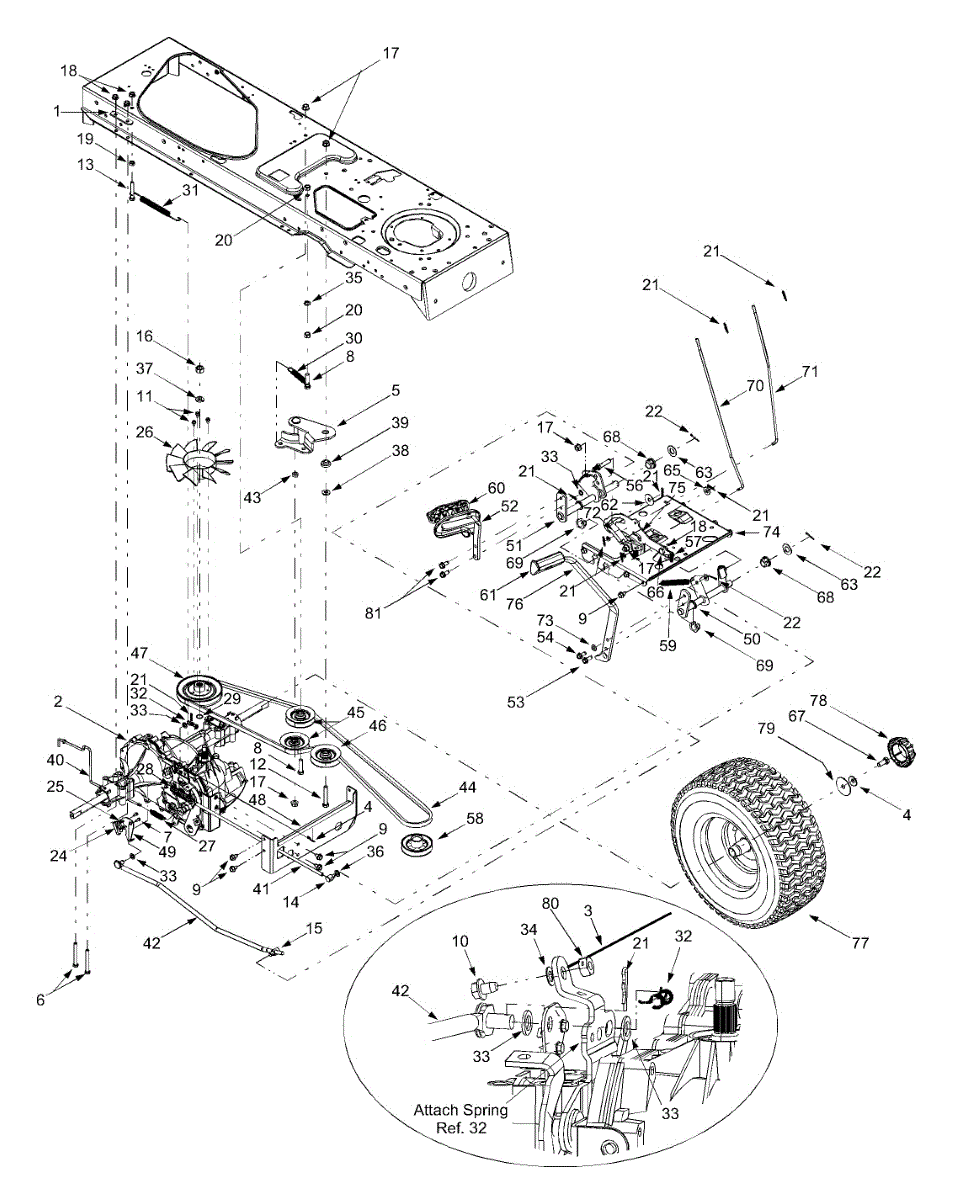

Parts for Yard-Man 13AZ614H701 / 2004: Drive, Controls, Wheels Rear Parts

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This hex screw is a genuine MTD part, sold individually. This hex screw can be used as a replacement part lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers. The hex screw for one of these small engine outdoor appliances is used as a fastening component.The hex screw in a small engine outdoor appliance might have to be replaced if it is lost, misplaced, or damaged from general wear and tear with long-term use. If this occurs, the hex screw should be removed and replaced by this genuine OEM replacement part in order to guarantee safe use of the appliance.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This ferrule is a genuine MTD part, sold individually. This ferrule can be used as a replacement part in a lawn mower. The purpose of the ferrule in a lawn mower is to fasten components to one another through a circular ring mechanism that seals onto one or more components.The ferrule in a lawn mower is a small component that can be easily misplaced or lost within the standard lifespan of the appliance. If the ferrule is lost at some point during the operation of the appliance, it should be immediately replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This ferrule is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Yard Machines, and Yard Man.

The hex lock nut is found on many different types of outdoor lawn equipment, as well as other types of equipment. The lock nut works to secure bolted joints by adding friction to the bolt threads. The nut has flat sides, which can easily be gripped by a wrench to be tightened or loosened as needed. These types of nuts are common, as they provide easy assembly and disassembly of various parts. Buyers may need a new hex lock nut for a range of reasons. The nut that is currently on the equipment could have become damaged or lost while working on the machine. It is vital for all of the nuts to be in place and properly secured on the equipment before use. This is an authentic OEM part. Some of the products that use hex lock nuts include lawn mowers, snowblowers, tillers, edgers, string trimmers, and log splitters. Common equipment brands using these nuts include Craftsman, Toro, Cub Cadet, Yard Machines, and Troy-Bilt.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

This insulator nut plate is a genuine MTD part, sold individually. This insulator nut plate can be used as a replacement part in a lawn mower. The purpose of the insulator nut plate in a lawn mower is to self-wrench into a bolt as a fastening component of several parts within the machinery of the appliance.The insulator nut plate can be easily lost or misplaced, or the component can become damaged and stripped over time from general wear and tear or as the result of an accident. The insulator nut plate is a small component and if it is found to be missing, it should be replaced by this genuine OEM replacement part. If the insulator nut plate is damaged, it should also be replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This insulator nut plate is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

This part is a replacement transaxle fan. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current transaxle fan is broken or malfunctioning, this part can be used as a replacement. It is intended for use with a variety of lawn tractor models. The transaxle fan attaches to the transaxle and spins to keep the equipment cool. If this part is broken, jammed, or unable to spin, the engine can overheat, which can cause serious damage. Thus, the transaxle fan will need to be replaced. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this transaxle fan, the appropriate owner's manual and equipment diagrams should be referred to. This transaxle fan is suitable for use on a variety of lawn tractor models manufactured by MTD, Craftsman, Cub Cadet, Troy-Bilt, and other brands. It is a genuine OEM part and thus is made of high-quality, durable materials. Part sold individually.

An authentic OEM replacement extension spring is an integral part of a lawn tractor or snowblowers brake system that helps to hold together and redistribute energy throughout the lower deck. When a driver applies the brakes, the lower deck has a tendency to continue moving forward with inertia. This extension spring helps to keep the parts in place and transfer a balance of energy. Although replacing the extension spring itself is a simple and straightforward process, gaining access to the spring is a little complicated as it requires removing the lawn mower or snowblower's lower deck. You will need a pair of pliers to remove the pins and cables that hold the lower deck in place but there is no other required hardware. Be sure to follow the user's manual as you remove the deck. This part is a top-quality replacement part sourced from its original manufacturer. It is designed to be used with Murray, Husky, Troy-Bilt Poulan, Yard Man, Yard Machines, Bolens, and MTD appliances. This part ships individually.

This extension spring is a genuine OEM part sourced directly from the manufacturer for use on lawnmowers. The extension spring is part of the idler pulley system that allows the idler pulley bracket to pivot when turning blades on and off. If the spring is broken or warped, the mower deck will not function properly, and the lawn mower will not function at its best. The deck will not move up and down and may be stuck in one position. If this occurs, the extension spring should be replaced.Make sure the lawnmower has not been used recently. Wear safety gloves when working on the mower. Remove the spark plug and key from the lawnmower. Place the lawnmower on a flat surface. Locate the spring under the deck and use the diagram in the manual to remove the spring. Install the new spring and reverse the process to put the mower back together. Reinstall the spark plug. Start the lawnmower and test the deck movement and blade movement to make sure the spring is installed correctly.This extension spring is a silver metal part that is sold individually. It is designed for use in lawnmowers manufactured by Yard Machines, MTD, Troy-Bilt, Husky, Yard-Man, and MTD.

This replacement part is an extension spring and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This extension spring is found in different types of lawn mowers and helps other parts to work together and allow the engine to run properly and smoothly.A new extension spring might be needed if the current one is damaged or missing from the appliance. Because of the nature of the extension spring, it is not unusual for it to become stripped or snapped due to normal wear and tear within the machine. Unusual sounds may come from inside the machine if this spring is not working properly. This is a genuine OEM replacement part and is sold individually. This spring is sourced directly from the manufacturer to ensure proper fit.

This flat washer is a genuine MTD part, sold individually. This flat washer can be used as a replacement part in a variety of small engine outdoor appliances including lawn mowers, snowblowers, tillers, string trimmers, chainsaws, edgers, log splitters, and wood chippers. The purpose of the flat washer for one of these small engine outdoor appliances is to serve as a fastening component within the internal mechanisms of the appliance so that friction is reduced and components are spaced apart from one another.The flat washer is a small component that can be easily misplaced or lost within the lifespan of a small engine outdoor appliance; additionally, the flat washer can be subject to stripping away and wearing out over time from general use. If this occurs, the flat washer should be replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This flat washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Broan, Yard Machines, Huskee, Montgomery Wards, Yard-Man, Turf King, and MasterCut.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

This lock washer is a genuine MTD part, sold individually. This lock washer can be used as a replacement part in lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, log splitters, and wood chippers.The lock washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced during the typical lifespan of the appliance. If this occurs, it should be replaced once the operator of the appliance notices its absence. The washer can also be stripped away as a result of general wear and tear, in which case it should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This lock washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Broan, Yard Machines, Huskee, Montgomery Wards, Yard Man, Turf King, and MasterCut.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or lost flat washer in outdoor power equipment.Flat washers are a standard piece of hardware that can be used on many types of equipment. They enable screws or bolts to tightly fix components together by providing a larger bearing surface. Lost or defective washers should be replaced. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on installation of this particular flat washer, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This flat washer can be used with outdoor power equipment manufactured by Craftsman, MTD, Troy-Bilt, and other brands.

This genuine OEM replacement part idler pulley plays an important part on many lawn tractors, mowers, and snowblowers. It drives the engine's belt system, particularly the belts connected to the crankshaft. It helps to create motion throughout the engine, including in the steering pump, air compressor, and the alternator. Therefore, without this pulley, the engine will not function properly. As with any part of an engine, an idler pulley will begin to wear down over time. When this happens, an idler pulley will begin slipping, causing the belts to no long run smoothly. If an idler pulley breaks completely, the engine will not start. Before replacing an idler pulley, be sure to let the engine cool completely, as you will have to remove several parts with a screwdriver and socket wrench set. This idler pulley will work with Troy-Bilt, Yard Machines, MTD, Cub Cadet, and Yard Man appliances. It is a high-quality replacement part sourced directly from the original manufacturer. This part ships individually.

This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

This drive control assembly is a genuine MTD part, sold individually. This drive control assembly can be used as a replacement part in a lawnmower. This part allows the user to control the speed and power of the mower.If the drive control assembly has suffered damage at some point within the typical lifespan of the appliance, the drive control assembly should be removed and replaced by this genuine OEM replacement part. Damage to the drive control assembly can take the form of denting, puncturing, scraping, warping, or eroding.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This drive control assembly is compatible with the following outdoor appliance brands: MTD, Yard-Man, Troy-Bilt, Cub Cadet, Husky, and Yard Machines.

The hex head self-tapping screws are designed for a number of applications in lawn and garden equipment, primarily holding machinery and engine parts together. Over time, screws can become stripped, fall out, or otherwise get damaged, resulting in a need for replacement. When replacing screws and other hardware, always be sure to disengage or disable any power supply to reduce the risk of shock or other injuries. The self-tapping screw makes it easy to replace, and the fact that they are manufacturer-guaranteed ensures a perfect fit for compatible machines. This OEM self-tapping screw is compatible with several machines from RYOBI, MTD, Husky, Cub Cadet, Yard-Man, Troy-Bilt, Bolens, and Yard Machines. It can be found in lawnmowers and tractors and can be in multiple locations, depending on the exact model. This screw is sold as a single piece; order multiple quantities if needed.

This screw is a genuine MTD part, sold individually. This screw can be used as a replacement part in lawn mowers, lawn tractors, chipper shredders, and wood chippers. The purpose of the screw in one of these small engine outdoor appliances is to serve as a fastening component for one or more parts.The screw is a small component that can be easily lost or misplaced during use or maintenance. If the screw is lost at some point, it should be replaced by this genuine OEM replacement part. As a result of general wear and tear over long-term use, the screw can also be stripped or damaged to the point that it cannot serve its function of fastening one or more internal components of the appliance. If this occurs, the screw should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Ryobi, Troy-Bilt, Murray, Yard Machines, Huskee, Bolens, and Yard Man.

A flat washer is used in a variety of applications, such as being placed under bolts or nuts as a means to help distribute the load over a larger area and to help ensure the nuts and bolts do not become loose over time. The washers also help to protect the surface from corrosion and damage. Not having washers could reduce the lifespan of a machine. It is important for buyers to replace washers that may have been lost or become damaged. The washers should be checked for signs of corrosion, cupping, or other damage that would necessitate replacement. Buyers should always make sure they are getting the correct size. The flat washer is an OEM part sold individually. It can be used for a range of different types of outdoor machines and more. Some of the types of machines that typically use these washers include lawn tractors, tillers, lawn mowers, chippers, shredders, and snowblowers. Brands include MTD, Yard Machines, Yard-Man, Troy-Bilt, Poulan, and Ryobi.

The hex screw is a specialty screw that has various uses on lawn and garden equipment engines and housings. Over time, screws are known to become worn, corroded, lost, or otherwise damaged. This is an identical replacement that will have many locations and applications, but when it becomes damaged or gets lost it should be replaced as soon as possible. This is a specialty screw that is not designed for general use. Refer to parts diagrams for the appropriate location and installation of this screw for a guaranteed fit. This OEM hex screw is manufactured to exact standards and can be used in more than 150 different brands of machines. It is compatible with snow throwers, lawn mowers, and blowers from RYOBI, Yard Machines, Yard Man, Poulan, Troy-Bilt, MTD, Bolens, Cub Cadet, and Husky. This high-quality hex screw is made of metal and sold as an individual unit. Those who need more than one screw will have to purchase multiple quantities. A wrench is required to replace this screw. Always allow engines to cool completely before performing any repairs and wear gloves for hand protection.

This is a replacement part for select riding mowers designed to ensure smooth rotation for years of use. This part is circular and tapers off into a hexagonal shape to support rotating shafts that create friction inside of machinery. Rotating parts are almost a given in most machinery like riding mowers, so the hex flange bearing provides support in multiple ways to parts such as wheels, rotors, and gears.The hex flange bearing serves two fundamental roles to make machinery run efficiently. For starters, friction will inevitably occur in rotating shafts, so bearings reduce the amount of friction and related wear and tear. The second function of this part is protecting the rotating from damage due to pressure created during operation.This genuine OEM sourced replacement part is intended to be used for lawn tractors from MTD and other yard machines. This part is compatible with manufacturers including Yard Machines, Bolens, Yard Man, Troy-Bilt, Cub Cadet, and Husky. A wrench may be used for an easier replacement installation. This item is available for purchase individually.

This tubeless air valve attaches to wheels, allowing air into and out of the tires on various lawn equipment. Regularly replacing this part is considered a part of routine maintenance. Make sure that you use appropriate pliers and other tools for easy installation. Be sure to use gloves when replacing these valves and work with caution so as not to damage the sensitive parts. This OEM tubeless air valve can be the perfect fit for compatible wheels on equipment such as lawn mowers, snowblowers, tillers, edgers, log splitters, and wood chippers. It is designed for use with select models from MTD, including Craftsman, Troy-Bilt, Bolens, Remington, Yardman, RYOBI, Husky, Power Pro, and many others. There is a limited parts warranty on this valve, which is made of durable rubber and metal and designed to offer a high-quality replacement. Sold individually.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.
