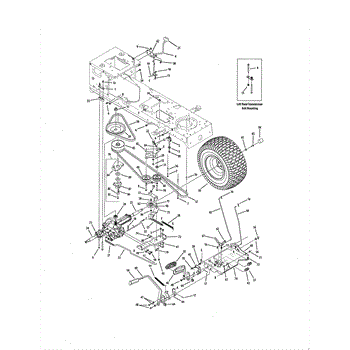

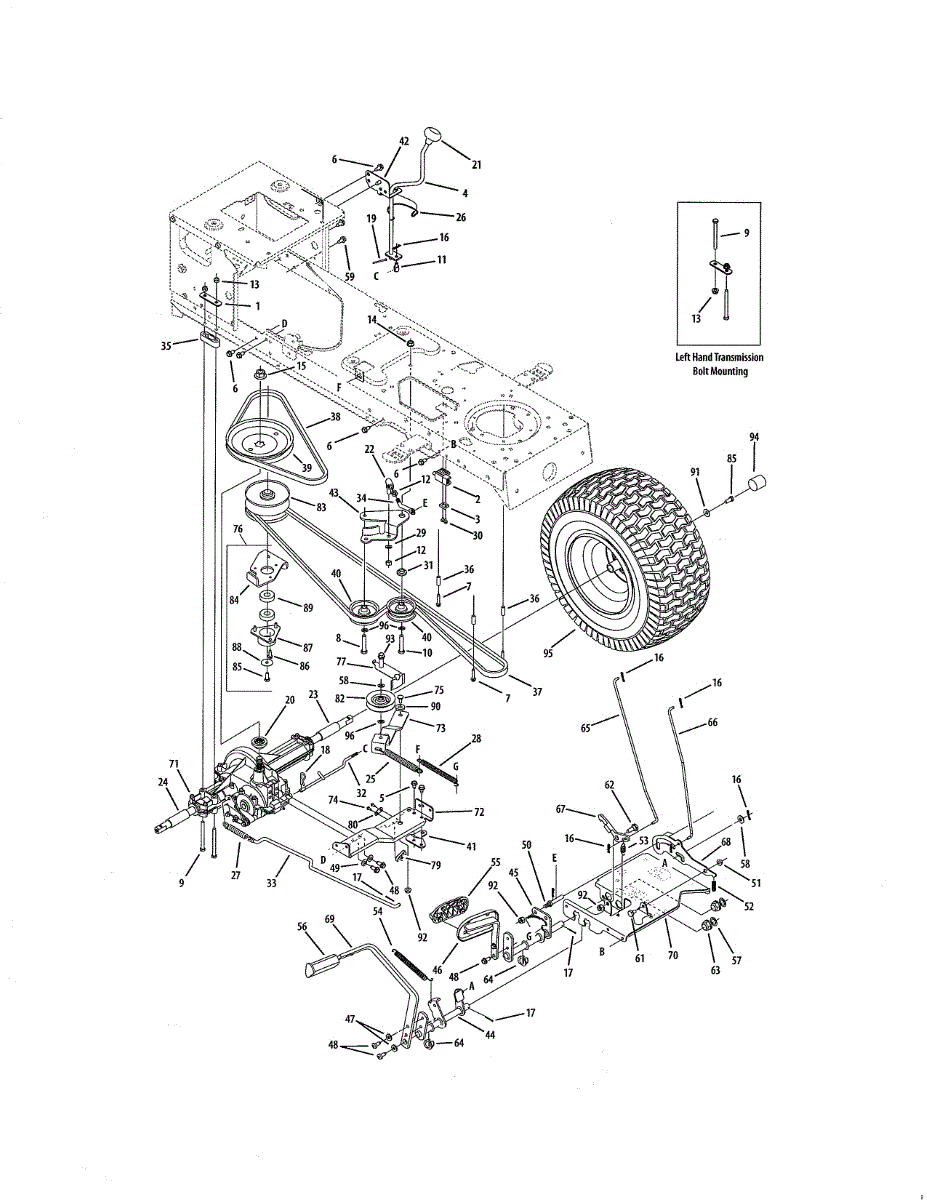

Parts for Mtd 13AL605H057: Drive System Parts

Fix a riding mower that won't start or stay running with this screw-mount switch. Direct replacement part for lawn tractors and riding mowers.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

This hex screw is a genuine MTD part. A hex screw can be used as a replacement part in refrigerators, humidifiers, lawn mowers, snowblowers, tillers, log splitters, and wood chippers. The purpose of this genuine OEM part is to stabilize and secure the placement of components within the internal or external machinery of one of these appliances.In lawn equipment a screw might easily be lost, misplaced, or damaged; if this occurs, the screw should be removed and replaced by this genuine OEM replacement part so that all components can maintain their placement.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with equipment manufactured by MTD, Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Sub Zero, Yard Machines, Huskee, Montgomery Wards, Bolens, Yard Man, Turf King, and MasterCut.

Replace your lawn mower's hex head tap screw if lost, stripped, or damaged. This small fastener secures components on mowers, tillers, and edgers.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

Hex lock nut secures bolted joints on outdoor lawn equipment. Replace if threads are stripped, nut is missing, or won't hold proper tension.

Flange nut with integrated hub for lawn tractors and riding mowers. Replaces worn, stripped, or missing hardware on mower decks and assemblies.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

Drive pulley hub for lawn tractors and riding mowers. Replaces cracked, worn, or broken hubs that connect drive components. Essential structural part.

This shift knob is a genuine MTD part, sold individually. A shift knob can be used as a replacement part in a lawn mower or a tiller. This genuine OEM part is made out of high quality, durable metal material that is built to last for the typical lifespan of the appliance.The shift knob in a lawn mower or a tiller might need to be replaced if it ceases to perform its central function for the appliance. This could occur if the shift knob has suffered damage from general wear and tear over long-term usage or as the result of a direct impact collision with a hard object, such as a rock or a curb.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This shift knob is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

Ball joint assembly for lawn tractor steering systems. Secures tie rod ends and drag links. Replace if cracked, worn, or damaged to restore proper steering.

Axle sleeve for riding mowers and lawn tractors. Installs on the axle shaft to provide support and alignment. Replace if cracked, worn, or missing.

Replacement sleeve for lawn tractors and riding mowers. Install this part when the original is worn, cracked, or missing to restore proper fit and function.

Extension spring for lawn tractors. Installs on linkage or control systems. Replace if stretched, broken, or missing to restore proper tension and operation.

This spring clip is a genuine MTD replacement part for lawn tractors and lawnmowers. The function of a spring clip is to fasten individual components together by maintaining spring tension. This spring clip is a metal part that most commonly clips the frame of the lawnmower or tractor to the deck.A lawnmower or lawn tractor spring clip might have to be replaced if there is damage to the part that loosens the spring tension and releases the components that it is meant to clamp together. If the spring clip is damaged, it must be removed and replaced immediately, as all components of the lawnmower or lawn tractor must be held together to ensure safe appliance use. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This spring clip is compatible with the following brands: MTD, Yard Man, Troy-Bilt, and Yard Machines. This part sold individually.

Extension spring for lawn tractors and riding mowers. Replace if damaged, stretched, or losing tension to restore proper operation. Verify fit with model.

Extension spring for lawn tractors and riding mowers. Replace if stretched, broken, or causing poor engagement. Verify fit with your model number.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

Shoulder spacer for lawn tractors and riding mowers. Maintains proper spacing between components during assembly. Replace if missing, damaged, or worn.

Can't shift gears or change settings on your lawn tractor? This shift rod controls gear selection and operational settings. Simple replacement part.

Replacement idler adjustment rod for lawn tractors and garden tractors. Replaces worn, bent, or broken rods. Installs in the drive system to control belt tension.

Deck spacer that attaches to the mower deck shell to create proper spacing between components and reduce friction. Replace if cracked or missing.

Variable speed drive belt connects engine to transmission for lawn tractors and riding mowers. Replace if stretched, damaged, or broken. Verify fit with your model.

Drive belt for lawn tractor transmission systems. Replace if you notice slipping, squealing, or loss of power. Verify fit with your model number.

This part is an idler pulley. The idler pulley applies tension to and guides the engine drive belt. A wrench set is needed to perform any repair involving the idler pulley part.The idler pulley can become worn over time with normal use. Wear to the pulley can cause the belt to slip. Signs that the idler pulley needs to be replaced include squealing noises coming from the equipment, the engine stalling, or overheating. The idler pulley is an essential component and it is important to replace this part if it becomes worn, broken, or damaged in any way.This part is a genuine MTD part and is an OEM part sourced directly from the manufacturer and it is sold individually. This idler pulley is compatible with lawn tractors and snowblowers manufactured by MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

Double idler bracket assembly for lawn tractors and walk-behind mowers. Mounts idler pulleys to the deck. Replace if bracket is cracked, bent, or broken.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

Replacement extension spring for lawn tractors and mowers. Installs internally to create tension for proper operation. Needed when original is broken, stretched, or missing.

Replacement pedal pad for lawn tractor auto-drive system. Installs on foot pedal control. Needed when original pad is cracked, worn, or missing.

Foot pad for lawn tractors and riding mowers. Replaces worn, cracked, or missing foot pads on the operator platform for comfort and safety.

A flat washer is used in a variety of applications, such as being placed under bolts or nuts as a means to help distribute the load over a larger area and to help ensure the nuts and bolts do not become loose over time. The washers also help to protect the surface from corrosion and damage. Not having washers could reduce the lifespan of a machine. It is important for buyers to replace washers that may have been lost or become damaged. The washers should be checked for signs of corrosion, cupping, or other damage that would necessitate replacement. Buyers should always make sure they are getting the correct size. The flat washer is an OEM part sold individually. It can be used for a range of different types of outdoor machines and more. Some of the types of machines that typically use these washers include lawn tractors, tillers, lawn mowers, chippers, shredders, and snowblowers. Brands include MTD, Yard Machines, Yard-Man, Troy-Bilt, Poulan, and Ryobi.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

Hex flange bearing supports rotating shafts in riding mowers and tractors. Replace when you notice grinding noise or rough rotation. Verify fit with your model.

Flange bearing for lawn tractors and riding mowers. Replace if wheels wobble, make noise, or don't spin freely. Verify fit with your model number.

Metal support bracket for lawn tractors and mowers. Bolsters and stabilizes internal components. Replace if cracked, broken, or missing. Sold individually.

Lawn tractor won't move forward or backward? This transaxle assembly restores drive power. Moderately difficult repair requiring mechanical skill.

Hex washer head screw for lawn equipment. Secures components and panels. Replace if stripped, missing, or corroded for proper assembly and fit.

Hex screw for lawn tractors and garden equipment. Replaces missing, loose, or deteriorated fasteners in various mounting applications across the machine.

This is a replacement pulley assembly. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part is intended to replace a faulty, broken, or malfunctioning pulley assembly on various lawnmower models. This is a variable speed pulley assembly.The pulley assembly enables the lawnmower to be manually started by pulling the pulley to power on the engine. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. When working on or near an engine, ensure the equipment is turned off and completely cooled down before starting any repairs. Proper tools are required to replace this part and work gloves are advised. For more accurate information on how and where to install this pulley assembly, reference the appropriate owner's manual and included diagrams.As an authentic replacement part, this pulley assembly is suitable for use on several different lawn mower models manufactured by MTD, Troy-Bilt, Husky, and Yard Machines. This is a genuine part made of high-quality, durable, non-corrosive materials and is sold individually.

Protects your mower's drive belt from damage and keeps it properly aligned in the pulley system. Replace if cracked or damaged to prevent belt wear.

Insulator nut plate for lawn mowers. Self-wrenching fastening component that secures parts within the mower. Replace if cracked, damaged, or missing.

Idler pulley maintains drive belt tension and rotation on lawn tractors. Replace if worn, cracked, or causing belt slippage. Verify fit with your model.

This is a variable speed pulley, designed as a genuine replacement part for use in select lawn tractors and riding mowers. The variable speed drive pulley is designed to control the drive belt, in combination with the throttle and choke, to help control the engine speed and provide the right level of movement during the mowing process. The pulley is subject to repetitive motion and constant stress, which can cause it to wear. It can become bent or damage from impact, as well. A damaged or broken pulley will cause the engine to malfunction or not work at all, rendering the tractor useless until it is replaced. Using a genuine OEM replacement like this model is essential. This specific drive pulley fits select models from Craftsman, Cub Cadet, Troy-Bilt, and Murray. It is sold as an individual unit. Be sure to disconnect the spark plug before working on the engine. Allow the engine to cool completely and wear gloves for safety. Several tools will be required for this job, including flathead and Phillips screwdrivers as well as a socket or wrench set.

Replace the hex screw in your lawn tractor or riding mower. Used to secure various components throughout the machine. Order a new screw if damaged or lost.

Bearing cup works with cone to provide stability and support radial/axial loads in your lawn tractor. Replace if worn or damaged. Verify fit with model number.

A flat washer is used with many types of lawn and garden equipment, such as lawnmowers and log splitters. In many cases, the washer is used to hold a bolt in place on a blade. It will often be found between the blade surface and the bolt. The washer is flat with a center hole and ensures the main components of the equipment stay stable and held together when the machine is being used.Over time, the washers on lawn equipment can start to become damaged or break which can result in subpar performance. If a visual inspection shows that the flat washer has warped or is broken, it will need to be replaced. The process is fairly easy and will require nothing more than a screwdriver or socket wrench. The screw or bolt near the washer will need to be removed so the washer can be replaced.This washer is a genuine OEM replacement part that comes as an individual component sourced directly from the manufacturer. It fits lawnmowers, wood chippers, snowblowers, and log splitters by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Bolens, Ryobi, Montgomery Wards, Troy-Bilt, Huskee, Murray, MTD, and Yard Machines.

Sealed ball bearing reduces friction between fixed parts and rotating shafts. Replace if you hear grinding noise or notice wheel wobble. Verify fit.

Shoulder spacer for lawn tractors and riding mowers. Installs to maintain proper spacing between components. Replace if worn, damaged, or missing.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Replacement mounting screw for lawn tractors and riding mowers. Secures components and panels in place. Order a new screw if yours is stripped or missing.

Replacement wheel hub cap for lawn tractors and riding mowers. Covers and protects the wheel hub assembly. Replace if cracked, broken, or missing.

Replacement tire for lawn tractors and riding mowers. Installs on wheel hub for mobility. Needed when tire is worn, flat, cracked, or stripped.

Tubeless air valve for lawn tractor and mower tires. Replace when cracked, leaking, or damaged during tire changes. Installs in wheel rim for proper inflation.

This wheel assembly is a genuine MTD part. It is meant as a replacement wheel on several makes and models of lawn tractors. Replacing the wheel is a relatively simple process, though it may require some special equipment.This wheel assembly is a genuine OEM part sourced directly from the manufacturer and is sold individually. Lawn tractors obviously have more than one wheel. Even if the wheel was damaged in an accident, check the others for wear and tear. It is very common for worn-out wheels to be more prone to damage than newer ones. What is more, it can be unhealthy for the machine to operate on unequal wheels. It is normal for the wheels on a lawn tractor to need to be replaced over time.This wheel assembly is designed for compatibility with many models of lawn tractors manufactured by Bolens, Brute, Columbia, Huskee, Husky, MasterCut, Murray, MTD Gold, White Outdoor, Yard Machines, and Yard-Man. Since there are so many models that this wheel assembly may work with, use the compatibility checker before purchasing.

Replacement flat washer for lawn tractors and outdoor power equipment. Install between fasteners to distribute load. Replace if lost, damaged, or worn.
