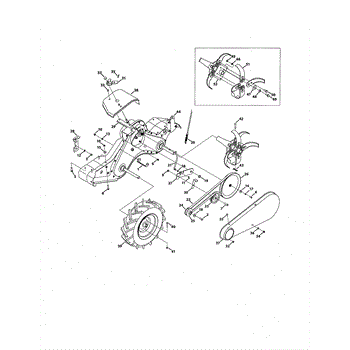

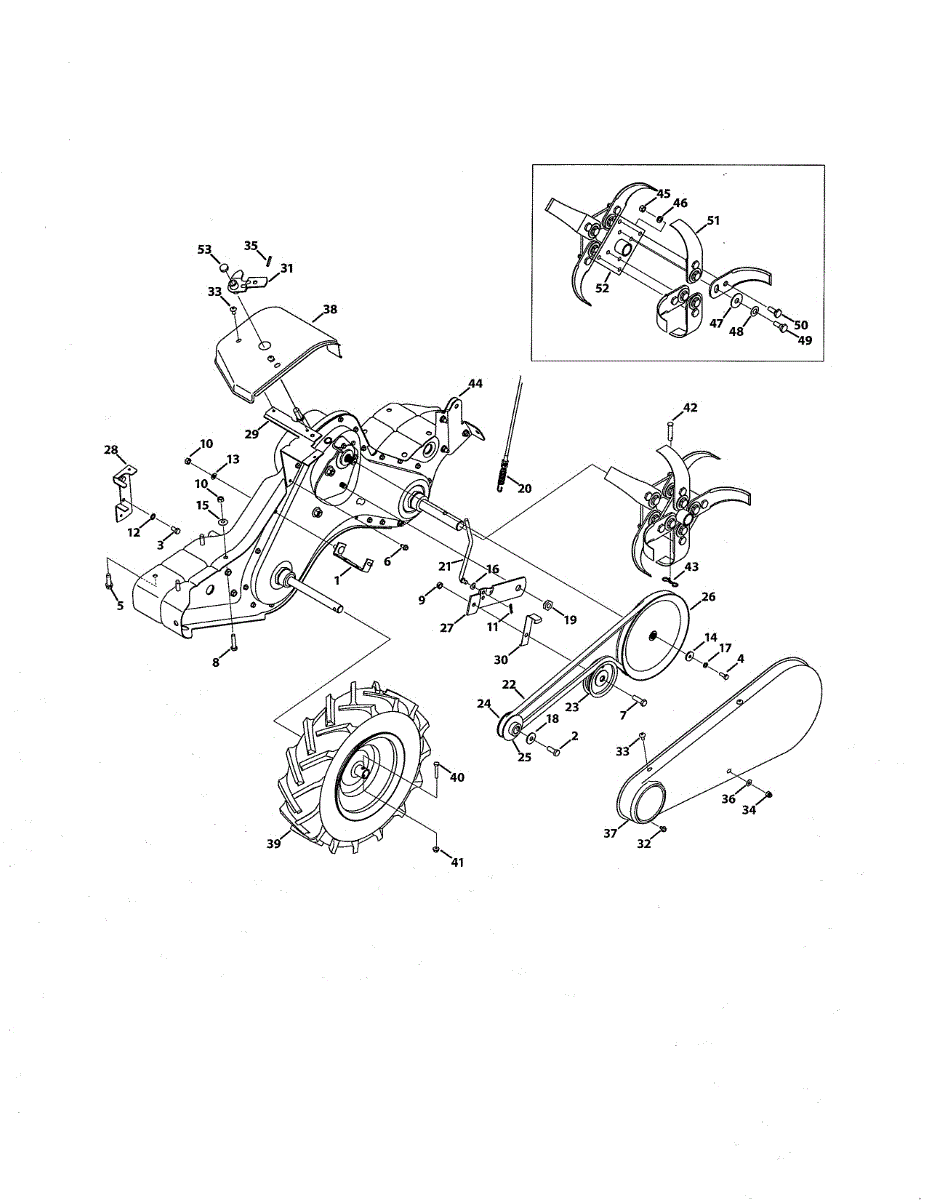

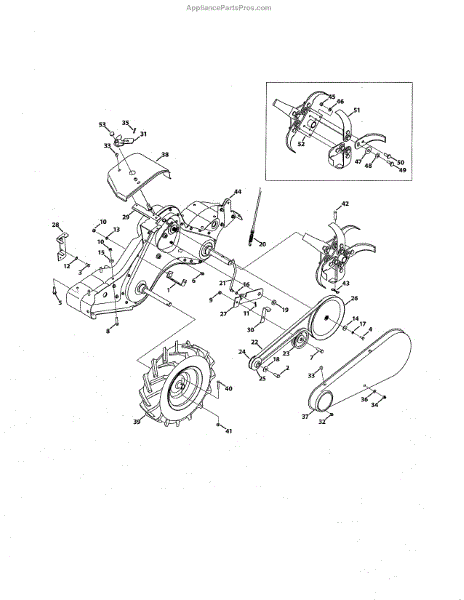

Parts for Mtd 21AA45M5031: Drive System Parts

This replacement part is a hex screw. It is a genuine replacement part made by MTD. Hex screws are able to hold other parts in place and secure them so that everything can operate smoothly. This part is small yet very important to the overall operation of many different machines.A new hex screw might be needed if the user notices that the current ones are damaged or missing. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous screw is stuck. It is possible that screws become stripped or lodged over time and should be replaced when this occurs. Be sure the engine is completely powered down before starting a repair. This is a genuine OEM replacement part sourced directly from the manufacturer. This screw is sold individually. Be sure to purchase the correct amount as many appliances require more than one.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This hex screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in many different applications in lawn and garden equipment and can be used on many different machines. If the hex screw is missing or loose due to deterioration, a new hex screw should be installed. Hex head screws are removed and replaced using a hex wrench. Screws are used to secure one part of a machine to another part. This hex head screw is not self-tapping, it is designed for pre-drilled holes. Most applications will require a washer and bolt to secure the screw, but there are applications where the screw is inserted into parts that do not have an opening on the other side and so the screw does not need to bolt. Wear gloves when working with screws and outdoor equipment. This hex head screw is made of hardened metal and is sold as an individual unit. This hex head screw can be used on many different model machines manufactured by MTD, Ryobi, Murray, YardMan, Bolens, Cub Cadet, and Husky.

Screw hex caps are found on lawn equipment and other small machines. Over time, with the machine's use or following accidental damage, a screw hex cap may break or become loose. In order to continue safely operating the machine, the part must be replaced. A missing or damaged screw hex cap can cause the equipment to move in unpredictable ways. Check for excessive vibration or noise.Always wear gloves for protection when replacing parts on lawn equipment. Tools required may include a socket set, wrench set, and a screwdriver. Screw hex caps are quick and easy to replace. Make sure that the replacement screw hex cap is installed correctly and properly secured for a tight and long-lasting fit.This screw hex cap is an authentic OEM replacement part. It is supplied by the manufacturer. The replacement screw hex cap is made of durable metal and is gold in color. The replacement piece can be used in a variety of machines, including chippers, shredders, cultivators, edgers, lawnmowers, lawn tractors, and snowblowers. The screw hex cap is compatible with Husky, Cub Cadet, Ryobi, Bolens, Yard Machines, Yard-Man, Troy-Bilt, and MTD. It is sold as an individual unit.

This genuine OEM replacement jam nut attaches to the idler bracket on a tiller. Jam nuts are a special type of nut designed to not unthread or strip out over time. Jam nuts are usually fastened on with another standard nut and then the two nuts are tightened against each other. Jam nuts can be easily identified from a standard nut because they are roughly half the size. Jam nuts can be lost while making repairs because of their small size. If lost, it might not affect the idler bracket immediately, but over time the standard nut may begin to slip or unthread. Therefore, the jam nut should be replaced as soon as possible. When making this replacement, be sure to unthread the standard nut as well and then tighten them both together using a wrench. This replacement jam nut is a high-quality part sourced from its original manufacturer. It is compatible with Troy-Bilt, Yard Man, Huskee, MTD, Ryobi, Yard Machines, and Cub Cadet tillers. This part does not ship with any additional hardware.

This is a genuine 5/16 hex nut, a standard piece of hardware used to affix various components securely. This MTD nut is used in multiple applications and has several placement options depending on the model of the engine. Nuts can become stripped or worn over time. In some cases, the screws they are attached to may become stripped, which might require a replacement of both. A wrench is required to complete the replacement. This hex nut is designed to work with several brands that feature MTD engines, including RYOBI, Yard Machines, Yard-Man, MTD, Troy-Bilt, Husky, Bolens, and Cub Cadet. There are hundreds of machines that use this nut, including tractors, lawnmowers, blowers, cultivators, and snowblowers. This nut is sold individually; purchase additional parts as necessary.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This flat washer is a genuine MTD replacement part for appliances that are operated by small engines, including lawn mowers, snowblowers, wood chippers, and leaf blowers. The purpose of a flat washer is to protect nuts, bolts, and other such fasteners from coming loose and separating the materials they hold together. One reason a flat washer might need to be replaced is from a loss or misplacement of the flat washer itself, as it is a small part that can slip itself off in some circumstances. Other reasons could include slow erosion, cracks, or flaws in the integrity of the material of the flat washer that can be attributed to general overuse or exposure to the elements. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This flat washer part is compatible MTD brand equipment. This part sold individually.

This replacement part is a clutch cable for lawnmowers. The clutch cable is the cord that allows the mower to switch the gear settings of the engine. If the mower is no longer switching gears properly or is not cutting as efficiently, the clutch cable might need to be replaced. Luckily, this is a relatively simple process.To replace the clutch cable, turn the ignition switch off. Lift the mower hood and disconnect the spark plug wire. Pull off the clutch lever handle and remove the air duct mounting screws and pull off the air duct. After that, remove the fuel tank out of the way. Remove the clutch lever assembly mounting screws. Pull the lever through the dash opening to release the clutch lever assembly from the dash. After that, access the cable connection. Once accessed, release the tension spring from the pin. Remove the washer and release the cable from the pin. Release the cable retainer locking tabs and remove the cable from the support bracket. Then replace it with the new clutch cable.This genuine OEM part is sold individually and is compatible with MTD brand lawnmowers.

This is a V-belt made for use with several tillers made by various manufacturers. It is the component responsible for rotating the tiller tines in the tiller, and it is the primary belt used in the equipment. Each belt is made of durable rubber but can break, wear out, or stretch out over time. If these things occur, the V-belt will need to be replaced to ensure the tiller continues to do its job.As the tiller is used more often, it becomes more likely that the V-belt will need to be replaced. Mechanical failures and other issues can sometimes cause the V-belt to wear out quicker than usual. If the V-belt has become overly worn, it can cause the tiller to perform poorly since the belt might slide off of the pulley. If the belt breaks entirely, the tiller will no longer run. Before replacing the belt, remove the spark plug wire and drain the fuel.This is a genuine OEM replacement V-belt that is directly sourced from the manufacturer. It is made for use with tillers manufactured by Yard-Man, MTD, Yard Machines, Craftsman, Ryobi, Huskee, MasterCut, and Cub Cadet.

This is a genuine OEM engine pulley sourced directly from the manufacturer for use on tiller engines and other engines with a pull start. The starter cord is attached to a pulley that has a spring for rewinding the cord after the engine starts. If the engine pulley is damaged due to rust or corrosion and the string won't pull, the engine won't start. The pulley may make screeching or whining sounds when pulled, this is one way to recognize that the pulley is beginning to go bad and should be replaced soon.Before replacing the pulley, make sure the engine is cool and remove the spark plug. Remove the starter housing to access the rope starter and pulley. Disassemble the pulley system and discard the old pulley. Reinstall the new pulley and thread the starter cord back around it. Reassemble the housing and put the spark plugs back so that you can test the starter. This engine pulley is made of heavy-duty steel and sold as an individual unit. It is designed to be compatible with small engines manufactured by Craftsman.

This engine pulley outer half is a genuine MTD part, sold individually. This engine pulley outer half can be used as a replacement part for a tiller. The purpose of an engine pulley outer half is to function in conjunction with the engine pulley inner half to form the pulley for a tiller, which affixes to the crankshaft and facilitates the driving of the belt.The engine pulley outer half might have to be replaced at some point in the lifespan of a tiller if the component is not functioning as it usually does. This could occur if the component suffers damage in the form of puncturing, cracking, breaking, or eroding. If this occurs, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.This is an OEM part sourced directly from the manufacturer. It is sold individually. This engine pulley outer half is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

This is a genuine replacement wheel assembly for several tillers. The wheels on a tiller allow the machine to move forward and backward. They roll as the tiller breaks up the soil, and help the operator to travel across the ground. Sometimes, wheels lose their seal or become damaged, which causes the tire to lose pressure and flatten. If the pressure in each tire differs, it will cause the tiller to pull to one side while operating. This makes it very difficult to control and till in a straight line. In this case, the tire may need replacing. Replacement is simple and fast and doesn't require any tools. Remove the pin in the center of the wheel, lift the front of the tiller, and remove the tire from the axle. Slide the new tire onto the axle, line up the holes and install the pin. This can be done in a matter of minutes.This genuine OEM replacement tiller wheel assembly is sold as an individual part and is shipped directly from the manufacturer. This part is compatible with several tillers made by MTD, Yard Man, Troy-Bilt, Cub Cadet, and Husky.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

A cotter pin is a small but necessary part found in many pieces of outdoor lawn & garden equipment and machinery. It is a type of split pin, which is a metal fastener featuring two tines that are bent during installation to fasten metal together. It designed for use especially with lawn tractors and is compatible with products by the following brands: MTD, Craftsman, Cub Cadet, Yard Machines, MasterCut, Bolens, Yard-Man, and Troy-Bilt.The low cost, availability, and extreme versatility of these cotter pins mean that they are used in countless machines nearly everywhere. Since this is a standard piece of hardware used frequently with lawn and garden equipment, it is important that the user refers to the appropriate diagrams of his or her unit to ensure the part is installed correctly.This cotter pin is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. The manufacturer of this particular cotter pin is MTD.

This is a genuine washer lock that is designed to be used in various applications on lawn and garden equipment. It is a standard piece of hardware that provides a strong seal and distributes pressure between the two connected components. Because of the exposure to high pressure and vibrations, these washers can become damaged or broken over time. If they are not replaced promptly, the connection between the two different parts may be affected. These washers are small and can also get lost while doing other repairs, so it may be helpful to keep some extras on hand. This genuine OEM lock washer is manufactured to exact standards and is compatible with several lawn and garden machines from Husky, Cub Cadet, MTD, RYOBI, Yard Machines, Troy Bilt, Yard Man, and Bolens. It can be used with over 150 models of tractors, blowers, cultivators, trimmers, and snowblowers. Consult the parts diagram for the exact location(s) and application(s) of this washer. Replacing this washer will require a screwdriver or socket set to attach the screws or bolts that the washer is securing. Always wear gloves for hand protection when replacing engine components like this lock washer.

A tiller can ease pre-planting preparation difficulties such as breaking up compact soil manually. Available in front-tine or rear-tine, this versatile machine's main component is the tines. This part is responsible for loosening the soil. It consists of four rotating metal blades in a unique curved shape in opposing directions. The standard layout of tines is that two blades are curved towards the tiller while the other two are pointing away. This blade configuration prevents soil build-up and is more efficient at digging. Even one damaged blade could drastically reduce the efficiency of a tiller. Several tines may be needed depending on the severity of the tiller tine damage. We carry brand-new tiller parts manufactured by MTD. This genuine OEM part is an all-metal replacement designed for tillers from MTD, Yard-Man, Cub Cadet, Ryobi, and Yard Machines. A wrench is the only tool needed to install this replacement successfully. The required bolts are not included in this purchase. The articulating tine is sold individually.
