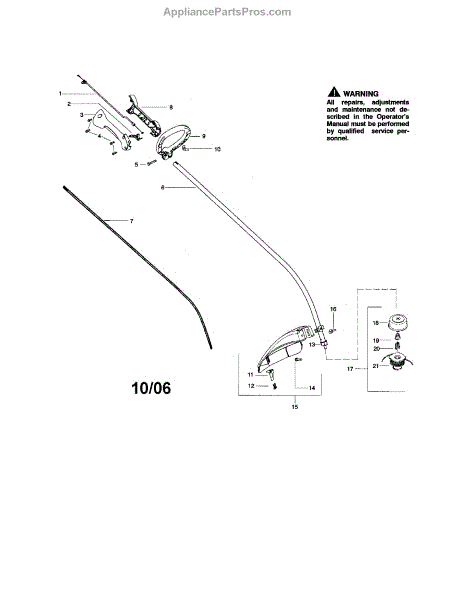

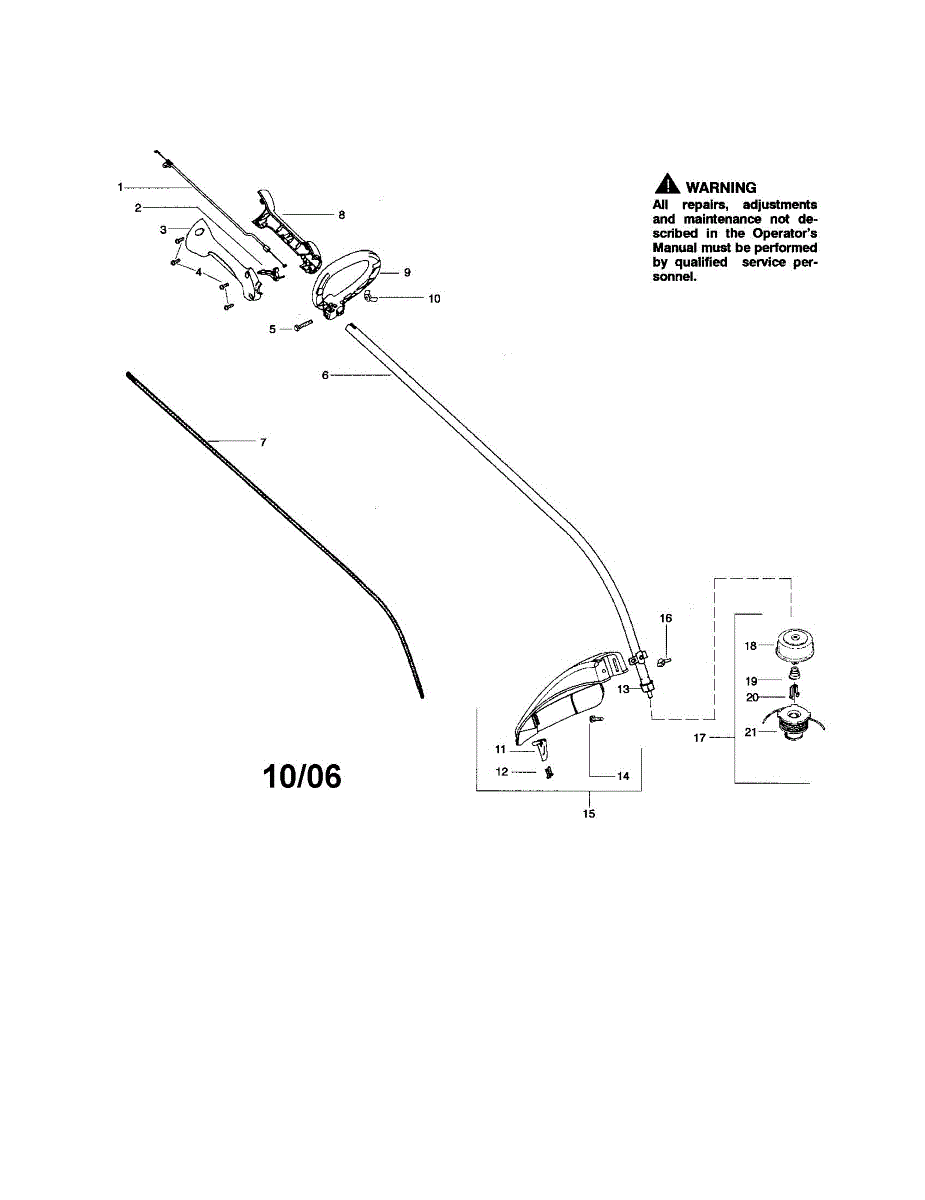

Parts for Craftsman 358791370: Driveshaft / Shield / Handle Parts

This is a trimmer throttle cable assembly meant to be compatible with trimmers from several top brands. The throttle cable is the part that connects the throttle trigger and the carburetor. It can allow the user to provide power to the machine by regulating the carburetor airflow. If the cable has a problem, users will not be able to control the throttle properly or at all in some cases.The throttle cable could become damaged and need to be replaced. There are connections on each end of the cable that could be damaged or broken. The cable might also kink, which could cause it to break. Owners can replace the cable and extend the life of the trimmer. Tools commonly used for replacement include a hex key, Torx screwdriver, or a screwdriver depending on the model.The throttle cable assembly works with certain models of trimmer from Husqvarna, Weed Eater, and Poulan. The cable is sold individually. This is an authentic OEM replacement that has been sourced from the manufacturer.

This genuine OEM trigger is used on several different types of outdoor equipment, including gas trimmers and edgers. The trigger is attached to the throttle cable to control the speed of the spool assembly. With pressure, the trigger pulls the throttle cable, and in turn, speeds up the spinning hub where the cutting is done. It allows for faster or more difficult cuts to be performed. With routine use of the outdoor equipment, the trigger can break, wear out, or malfunction. Without a properly working trigger, the equipment cannot be controlled with the expected manual adjustments.Replacing the trigger on an edger or trimmer is easy and requires only a screwdriver for most makes and models. Wear work gloves when replacing the trigger. Remove the screws from the control handle housing. Remove the trigger from the throttle cable and put the new one on. Screw back into place and replace the control handle housing.This trigger is a replacement part. It is sold separately. The trigger piece works in a wide assortment of both Husqvarna and Weed Eater trimmers and edgers. The trigger is manufactured using rigid, high-quality plastic, and it is yellow.

This is a shield kit that is used on string trimmers from two major manufacturers. It is responsible for securing the cutter head and preventing grass clipping from landing on the user of the trimmer. The shield kit comes with the shield itself, two screws, a line limiter, a bolt, and a wing nut. This is an important component but it can become broken, damaged, or lost and will need to be replaced before continued use.If a visual inspection of the shield shows cracks, holes, or other damage, it should be replaced. The wing nut will need to be removed from the shield guard before it can be removed. Place the new shield using the mounting bolt. The line limiter can be installed using the included screws. Make sure the guard is lined up on the shaft before tightening the wing nut to the bolt.This is a replacement shield kit that is an authentic OEM part sourced directly from the manufacturer. It is sold as an individual kit. The shield kit can be used with string trimmers created by Poulan, Husqvarna, and Weed Eater.
