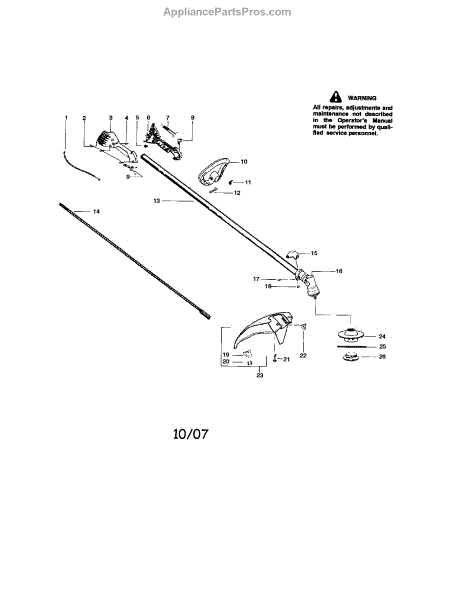

Parts for Craftsman 944515570: Driveshaft / Shield / Handle Parts

This is a throttle cable that fits many types of lawn and garden equipment, like pole pruners. This component is the part that links the carburetor to the throttle trigger to ensure the machine runs smoothly. Throttle cables have small connectors on both ends that can occasionally become brittle and break after extensive use. The cable can also sometimes become damaged or kinked during use and require replacement.If the throttle cable is damaged or broken, replacing it involves removing the throttle cable and then separating the two sides of the throttle housing. The throttle trigger can then be removed followed by the rear cover. At this point, the throttle cable itself can be removed. The new throttle cable will be passed through the engine housing and the large hole in the carburetor mounting plate. The cable housing can be pressed into the plastic tube before reassembling all the other parts of the tool.Made for a variety of pole pruners and string trimmers, this throttle cable works with tools by Poulan Pro, Craftsman, Poulan, and Weed Eater. This is a genuine OEM component that is directly sourced from the manufacturer. It comes as an individual part.

Designed for use with a wide range of string trimmers, this momentary switch is a genuine OEM replacement part. A momentary switch, also known as a kill switch, is a safety precaution that kills an appliance's engine in a moment, even if the engine is not set to the off position. This helps prevent accidents if the operator begins to lose control of the trimmer. At the touch of a button, the engine cuts and cannot be restarted for a short period (usually about five seconds). Momentary switches are positioned in a way that they don't often sustain damage but, over time, they can wear out. Once a switch stops working, it will need to be replaced to ensure safe operation. This is a fairly straightforward fix that only requires a screwdriver to open the tiller's handle and pliers to safely remove the wiring. This part is designed for string trimmers made by Poulan, Weed Eater, Paramount, and Husqvarna. It ships individually of any other hardware is comes sourced from the original manufacturer.

All gasoline-powered trimmers must have throttle controls that increase the amount of gasoline flowing into the carburetor. As the amount of fuel increases and the engine revolutions increase, the clutch engages the spool and the trimming line begins to turn. The throttle trigger assembly is quite durable. However, it has several appendages and is required to be under constant pressure when in use. If any of the design parts fail, the trigger unit must be replaced or the trimmer cannot be used. To replace the throttle trigger, open the housing and disconnect the throttle cable from the old trigger. It's easy to see where the new trigger will fit in the housing because the screw holes will line up perfectly with the holes in the new throttle trigger. The throttle cable will fit into one slot on the new trigger and a spring opposite the slot will hold the trigger unit at the proper angle as the housing is replaced. This new throttle trigger is an OEM replacement part, made to the same exacting specification as the original. This throttle control is designed by Craftsman and used on most of their trimmers. It is also compatible with a few other manufacturers' trimmers, including Poulan and Husqvarna.

The handle assist is the handle that is held to steer and control the machine during the trimming process. As the primary touchpoint, the handle has to provide enough comfort while assisting with the machine's function. This handle is designed to be gloves-friendly with a surface rough enough to provide security against slip. Use this as a replacement for a broken, loose, or worn handle. Remember always to hold the handle firmly while operating. This part is designed for use on trimmers or weed cutters made by Craftsman, Weed Eater, Poulan, or Poulan Pro. This is a genuine OEM replacement handle that will provide extra control and less hand fatigue. It is sold individually.

This is a shield bracket for use with line trimmers. The bracket is used to help hold and support the debris shield to the trimmer shaft. If this piece is broken or not working properly, it means that the deflector will not be attached correctly, and the debris will not go where it should. Owners who find that the shield bracket has an issue will want to replace it as soon as possible.The shield bracket is made from durable metal, but it could still become damaged or corroded over time. If there is damage, the owners can make the simple replacement on their own. It is important that they remove the spark plug wire before making the installation, though. They should also wear gloves to keep their hands safe.The shield bracket is compatible with select models of line trimmers from Husqvarna, Weed Eater, Poulan, and Jonsered. The piece is sold individually. It is a genuine OEM replacement part that has been sourced directly from the manufacturer.

This glide plate is compatible with a variety of Craftsman string trimmers for lawn and gardens. It attaches to the cutting head of the machine to ensure the cutting line is secure as it goes into the cutting head. This glide plate is made of durable plastic but regular use can cause wear and tear and the plate may become damaged. If the glide plate is knocked into other items, this can also damage it and prevent it from doing its job. If the glide plate needs to be replaced because it is damaged, cracked, or broken, the process is simple. First, make sure the string trimmer is turned off and place it on a level surface where work can be done. Reach down to the bottom where the part is located and slide it off of the machine. Once it has been removed, the new component can be installed in the opposite way. After installation, the trimmer can be used again.This is a genuine OEM replacement glide plate that is sold on an individual basis. The part is designed for use with several string trimmers by Craftsman.
