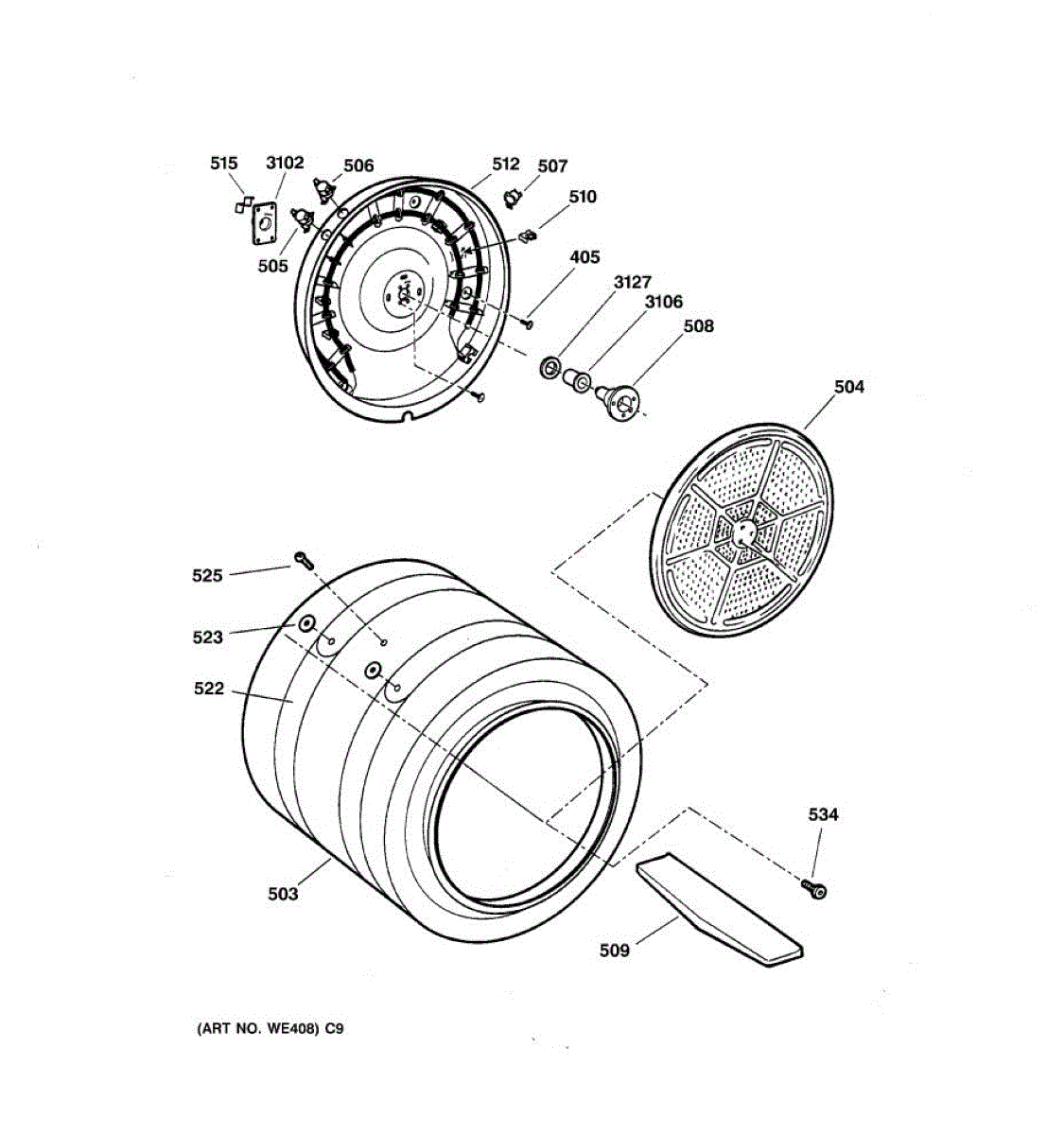

Parts for Ge DPSB620EC1CC: 04 - Drum Parts

Package of 12

The Heat Diffuser is an OEM part for GE dryers. It is designed to evenly distribute heat throughout the dryer drum, ensuring efficient and consistent drying of clothes. The heat diffuser helps maintain proper airflow and temperature inside the dryer.

Over time, the heat diffuser can become worn out or damaged due to high heat exposure, lint buildup, or mechanical issues. Regular use and lack of maintenance can also contribute to its deterioration.

Symptoms of a bad Heat Diffuser include:

• Uneven drying of clothes
• Longer drying times
• Overheating or burning smell
• Increased noise during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Hi-limit thermostat. L210.

The High Limit Thermostat is an OEM part for GE dryers. It serves as a crucial safety component, designed to prevent overheating by cutting off power to the dryer's heating elements when excessive temperatures are detected.

Symptoms of a faulty High Limit Thermostat include:

• Dryer not heating or running at all
• Dryer cycling on and off repeatedly during operation
• Error codes related to the thermal protection system

Causes of a bad High Limit Thermostat can include exposure to excessive heat over time, electrical issues, or physical damage to the thermostat itself.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Drum Bearing Kit is an OEM replacement part for GE dryers. It is a comprehensive kit that includes both rear drum bearings and necessary mounting hardware. These bearings play a vital role in smoothly rotating the dryer drum during cycles, reducing vibrations and noise.

Symptoms of bad bearings include:

• Excessive shaking or vibrating during cycles
• Loud grinding or scraping noises emanating from the rear drum area
• Difficulty turning or rotating the dryer drum by hand
• Increased wear and early failure of other components

Causes of bad bearings can include normal wear and tear over time, exposure to excessive loads or unbalanced loads that strained the bearings, or damage from extended use without proper lubrication.

This OEM replacement is also compatible with Hotpoint, RCA, and some Kenmore models.

Mounted inside the dryer drum, this replacement baffle lifts and separates laundry as the drum turns to improve airflow and even drying. Replacing a cracked or missing baffle restores quiet, effective tumbling and helps prevent fabric damage. What it does:

• Lifts and tumbles clothes to promote even drying and airflow
• Helps prevent clumping or items sticking to the drum
• Common failure signs: thumping noise, poor tumbling, long dry times, or a loose/missing baffle
• Restores balanced operation inside the drum when replaced

• 1 drum baffle

• Disconnect power; allow the dryer to cool before servicing
• Access the drum per your model (remove top/front panel as needed)
• Align the new baffle with the drum's mounting holes and secure with existing hardware; tighten all fasteners
• Hand-rotate the drum to verify clearance before reassembly and testing

This ceramic terminal insulator protects and supports a range or oven heating-element electrical connection, helping prevent shorts and arcing at high temperatures. It's a simple replacement to restore a secure, insulated terminal connection. What it does

• Insulates and isolates a heating-element or terminal connection from the metal chassis to prevent electrical shorts.
• Helps maintain a stable connection under high-heat conditions so the element can heat properly.
• Common symptom replacement: visible cracking, chipping, burn marks, arcing, or intermittent heating.
• Also used when terminals are loose or the original insulator is missing or degraded.

• One ceramic terminal insulator

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect surrounding terminals and wiring; replace damaged connectors or hardware as needed.
• Handle carefully—ceramic can chip or break if dropped or over-tightened.

The Heating Element Assembly is an OEM part for GE dryers. It is responsible for generating the heat necessary to dry clothes during the drying cycle. This assembly includes the heating element itself, which heats up when electricity passes through it, and the housing that supports and protects the element.

You should replace this heating element assembly if it becomes faulty. Causes of a bad heating element assembly can include wear and tear over time, overheating due to blocked airflow, or damage from electrical issues.

Symptoms of a bad heating element assembly include:

• Clothes not drying properly
• No heat during the drying cycle
• Longer drying times
• The dryer not getting warm

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: For restring coil only use WE11X10007

A replacement dampening band that cushions the washer tub and helps reduce vibration and noise during spin cycles. Restores smoother, quieter operation when the tub is rubbing or moving excessively. What it does:

• Wraps around/under the outer tub to absorb shocks and dampen tub movement during spin
• Reduces vibration, banging, and harsh impacts that occur with worn or damaged dampeners
• Helps keep the tub centered and prevents metal-to-metal contact
• Common symptom: washer vibrates, rocks, or makes loud knocking during spin

• One dampening band

• Disconnect power and water supply before starting any repair
• Access typically requires removing the washer cabinet or top panel; follow model-specific instructions
• Inspect surrounding suspension components and mounting points for wear; replace if damaged
• After installation, run a short spin cycle with no load to reduce vibration

This is a small screw, and it is made for dryers, washers, and washer dryer combos. This is a genuine replacement part made by General Electric. Screws are common in these appliances and can cause many difficulties if they become loose, damaged, or missing.A new screw might be needed if there are areas in the appliance that seem off balance or not level. Another way to tell if a new screw is needed is if there are parts in the appliance that are loose or falling off. This is common over many years of normal use as the shaking of washers and dryers can eventually lead to loose screws. Be sure the washer or dryer is completely off before attempting to replace any screws.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with washers, dryers, and washer dryer combos made by General Electric.

The Bearing Retainer is an OEM replacement part for GE electric dryers. It is an internal component that securely holds the drum bearing assembly in place to enable smooth rotation and provides structural bracing for the bearing during tumbling cycles.

Causes of a faulty retainer can include cracks from heat exposure over years of use. Impact damage from foreign objects inside the drum is also possible.

Symptoms of a bad bearing retainer include:

• Excessive vibration or noise during drying cycles
• Wobbling or misalignment of the rotating drum
• Premature failure of other moving parts due to lost structural support

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Drum Bearing Sleeve is an OEM part for GE dryers. It is designed to support the rear of the dryer drum, ensuring smooth rotation during the drying cycle. This sleeve reduces friction between the drum and the bearing, contributing to efficient and quiet operation of the dryer. This is the dryer rear drum bearing sleeve only. For the rear drum bearing kit order WE25M40.

You should replace the rear drum bearing sleeve if it becomes worn out or damaged. Causes of a bad bearing sleeve can include regular wear and tear, lack of lubrication, or excessive loads that cause undue stress on the component. A malfunctioning bearing sleeve can lead to increased friction, noise, and potential damage to other parts of the dryer.

Symptoms of a bad rear drum bearing sleeve include:

• Squeaking, grinding, or rumbling noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times due to inefficient drum movement
• Visible wear or damage to the sleeve

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The O Ring is an OEM part for GE dryers, creating a tight seal in different components for efficient operation. This small part prevents air leaks that can impact drying performance, made from quality materials to withstand high temperatures and frequent use

Causes of a faulty O Ring in a dryer may stem from heat exposure, regular wear and tear, or chemical damage. This can result in reduced elasticity, cracks, or breaks, impacting the seal.

Symptoms of a bad O Ring in your dryer include:

• Reduced efficiency in drying, as air leaks can affect the dryer's ability to maintain the correct temperature.
• Unusual noises stemming from air escaping through the compromised seal.
• Potential for small leaks or condensation within the dryer's internal components, leading to moisture issues.

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
