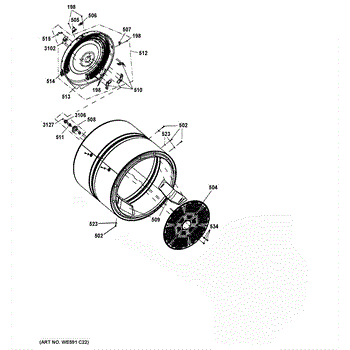

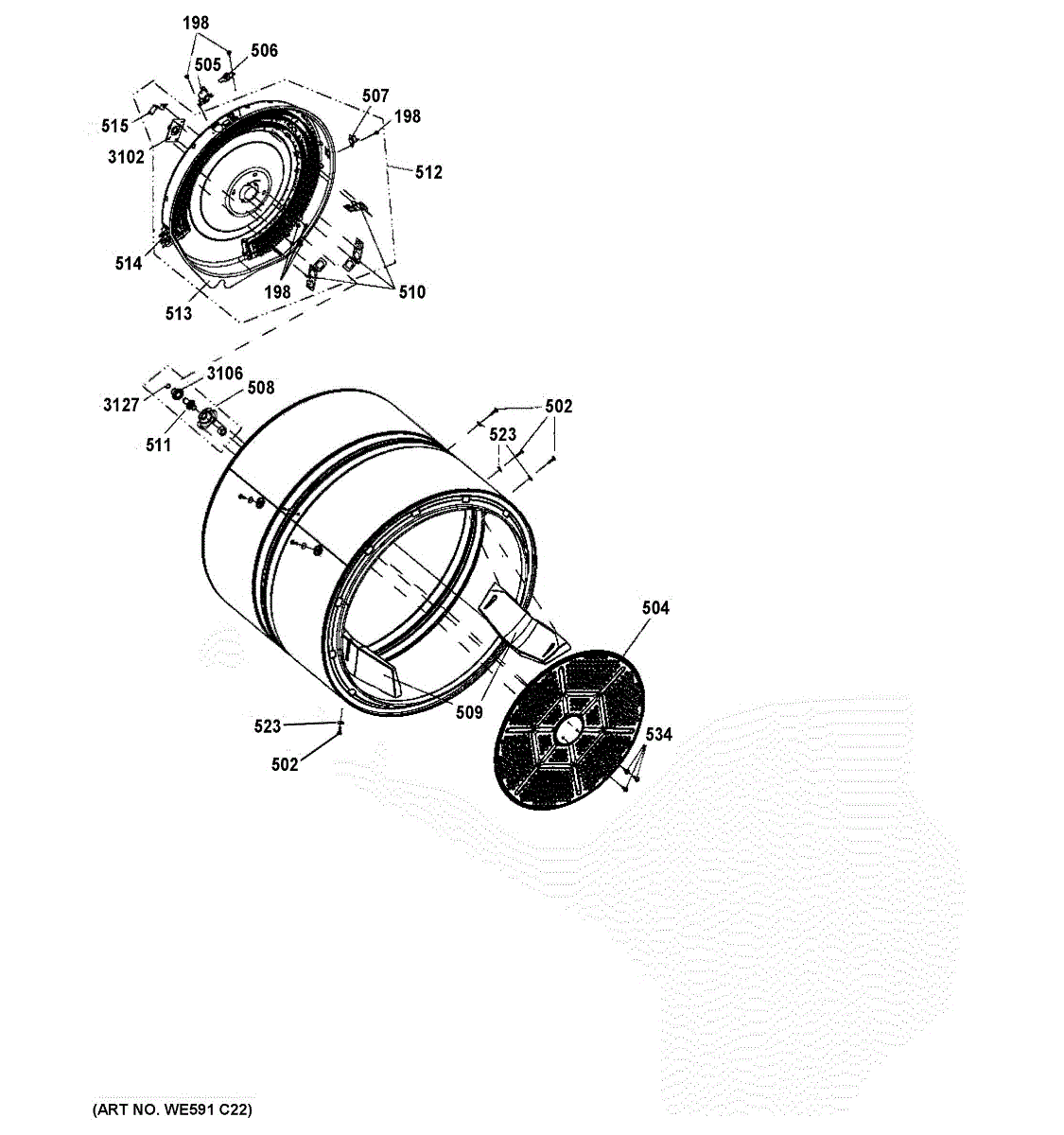

Parts for Ge GFD40ESCM0WW: Drum Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

The Heat Diffuser is an OEM part for GE dryers. It is designed to evenly distribute heat throughout the dryer drum, ensuring efficient and consistent drying of clothes. The heat diffuser helps maintain proper airflow and temperature inside the dryer.

Over time, the heat diffuser can become worn out or damaged due to high heat exposure, lint buildup, or mechanical issues. Regular use and lack of maintenance can also contribute to its deterioration.

Symptoms of a bad Heat Diffuser include:

• Uneven drying of clothes
• Longer drying times
• Overheating or burning smell
• Increased noise during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dryer inlet thermostat monitors the temperature of incoming air and cycles the heater to maintain proper drying temperatures. Replacing a failed thermostat can restore consistent heat, help prevent overheating, and improve overall drying performance.

• Senses inlet air temperature and opens/closes electrical contacts to control the heat source
• Helps regulate drying temperature and protect against overheating
• Failure may present as long dry times, no or intermittent heat, overheating/shutting off, or erratic temperature swings
• Typically mounted on the air intake/duct or blower housing, depending on model

• Disconnect power before service; if gas, also shut off the gas supply
• Access the thermostat at the front duct or blower housing; note wire positions and transfer one at a time
• Mount flush against the metal surface with existing hardware to ensure proper sensing
• After installation, clear lint from ducting and vents to ensure proper airflow

The Inlet Control Thermistor is an OEM part for GE dryers. It monitors and regulates the temperature of the incoming air to ensure optimal drying performance. This thermistor sends temperature readings to the dryer's control board, which adjusts the heating element accordingly to maintain the desired temperature throughout the drying cycle.

You should replace this inlet control thermistor if it becomes faulty or fails to provide accurate temperature readings. Common causes of a bad thermistor include electrical failures, damage from overheating, or wear and tear from regular use.

Symptoms of a bad inlet control thermistor include:

• Dryer not heating properly
• Overheating or uneven drying
• Dryer shutting off prematurely
• Error codes related to temperature issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Limit Thermostat is an OEM part for GE dryers. It helps regulate the temperature within the dryer drum. This thermostat is designed to monitor the internal temperature and prevent overheating by cutting off the power to the heating element if it exceeds a certain limit.

Causes of a bad Thermostat can include a malfunctioning temperature sensor, a buildup of lint or debris that restricts airflow, or a faulty heating element that causes the thermostat to continuously trip.

Symptoms of a bad High Limit Thermostat include:

• Dryer not heating or taking longer than usual to dry clothes
• Dryer overheating and shutting off prematurely
• Dryer producing unusual or burning smells
• Visible damage or discoloration on the thermostat itself

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Drum Support Shaft and Bearing is an OEM part for GE dryers. This component supports the drum and allows it to rotate smoothly during the drying cycle. The bearing reduces friction, ensuring quiet and efficient operation of the drum.

Common causes of a bad support shaft and bearing include normal wear and tear, overloading the dryer, or a lack of lubrication. These issues can lead to increased friction and stress on the components.

Symptoms of a bad Drum Support Shaft and Bearing include:

• Squeaking or grinding noises during operation
• The drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the drum
• Uneven drying of clothes

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Mounted inside the dryer drum, this replacement baffle lifts and separates laundry as the drum turns to improve airflow and even drying. Replacing a cracked or missing baffle restores quiet, effective tumbling and helps prevent fabric damage. What it does:

• Lifts and tumbles clothes to promote even drying and airflow
• Helps prevent clumping or items sticking to the drum
• Common failure signs: thumping noise, poor tumbling, long dry times, or a loose/missing baffle
• Restores balanced operation inside the drum when replaced

• 1 drum baffle

• Disconnect power; allow the dryer to cool before servicing
• Access the drum per your model (remove top/front panel as needed)
• Align the new baffle with the drum's mounting holes and secure with existing hardware; tighten all fasteners
• Hand-rotate the drum to verify clearance before reassembly and testing

This heater and housing assembly delivers the dryer's heat source and air path, restoring proper drying performance by replacing a damaged or failed heating element and its surrounding housing. Designed as a direct replacement for the OEM assembly. What it does

• Houses the dryer's heating element and directs heated air through the drum.
• Replaces a failed element or damaged housing that can cause little or no heat.
• Helps stop overheating or short-cycling caused by cracked or broken housing components.
• Restores normal temperature buildup when lint buildup or electrical failure is not the root cause.

• One heater and housing assembly.

• Disconnect all power to the appliance before beginning work; for gas dryers, also shut off the gas supply.
• Inspect vents and lint screens; clean before testing the new assembly to ensure proper airflow.
• Handle heating elements and terminals carefully to avoid bending elements or damaging insulation.

The Heating Element is an OEM replacement part for GE electric dryers. As the primary source of heat, it warm circulating air drying wet clothes efficiently.

Causes of failure may be surface fracturing and resistance loss due to deterioration over many heating cycles. Excessive mineral buildup may also hinder heat transfer capabilities.

Symptoms of a faulty element involve:

• Very long or inefficient drying times
• Unevenly dried clothes
• No heat detected during drying cycles

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Mica style heating element.

This ground strap assembly bonds the dryer's cabinet to the designated ground point, helping ensure safe operation. Replace a damaged or missing strap to restore a proper ground path and reduce the risk of shocks or nuisance static.

• Maintains the required electrical bond between the dryer chassis and ground as designed
• Helps prevent electric shock and reduces static by providing a low-resistance path to ground
• Replace if the original strap is loose, corroded, heat-discolored, broken, or missing
• Symptoms can include a slight tingle when touching the appliance or visible damage near the ground/terminal connection

• Disconnect power at the breaker before servicing; verify no power with a meter
• Follow your model's wiring diagram; bonding differs for 3-wire vs 4-wire cord installations per local codes
• Clean contact surfaces and secure fasteners firmly for a solid metal-to-metal bond; replace any heat-damaged hardware
• After installation, verify continuity between the cabinet and the designated ground point

This flat washer helps secure fasteners and distributes load to prevent damage where two parts join. It's a simple, durable replacement to restore proper fit and reduce movement at a bolted connection. What it does:

• Provides a flat bearing surface to spread pressure from nuts or bolts
• Helps prevent fasteners from digging into or deforming mating parts
• Reduces loosening from vibration or movement
• Can stop rubbing or binding that causes noise or premature wear

• One flat washer

• Power off and unplug the appliance before accessing internal components
• Replace the washer with an identical style and size to maintain fit and function
• Inspect mating fasteners and threads for damage; replace if worn
• Tighten fasteners to a snug fit—do not overtighten, which can cause distortion

This is a small screw, and it is made for dryers, washers, and washer dryer combos. This is a genuine replacement part made by General Electric. Screws are common in these appliances and can cause many difficulties if they become loose, damaged, or missing.A new screw might be needed if there are areas in the appliance that seem off balance or not level. Another way to tell if a new screw is needed is if there are parts in the appliance that are loose or falling off. This is common over many years of normal use as the shaking of washers and dryers can eventually lead to loose screws. Be sure the washer or dryer is completely off before attempting to replace any screws.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with washers, dryers, and washer dryer combos made by General Electric.

The Bearing Retainer is an OEM replacement part for GE electric dryers. It is an internal component that securely holds the drum bearing assembly in place to enable smooth rotation and provides structural bracing for the bearing during tumbling cycles.

Causes of a faulty retainer can include cracks from heat exposure over years of use. Impact damage from foreign objects inside the drum is also possible.

Symptoms of a bad bearing retainer include:

• Excessive vibration or noise during drying cycles
• Wobbling or misalignment of the rotating drum
• Premature failure of other moving parts due to lost structural support

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rear Drum Bearing Sleeve is an OEM part for GE dryers. It is designed to support the rear of the dryer drum, ensuring smooth rotation during the drying cycle. This sleeve reduces friction between the drum and the bearing, contributing to efficient and quiet operation of the dryer. This is the dryer rear drum bearing sleeve only. For the rear drum bearing kit order WE25M40.

You should replace the rear drum bearing sleeve if it becomes worn out or damaged. Causes of a bad bearing sleeve can include regular wear and tear, lack of lubrication, or excessive loads that cause undue stress on the component. A malfunctioning bearing sleeve can lead to increased friction, noise, and potential damage to other parts of the dryer.

Symptoms of a bad rear drum bearing sleeve include:

• Squeaking, grinding, or rumbling noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times due to inefficient drum movement
• Visible wear or damage to the sleeve

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
