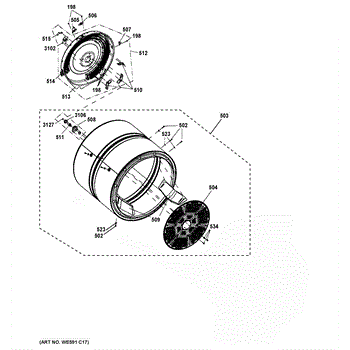

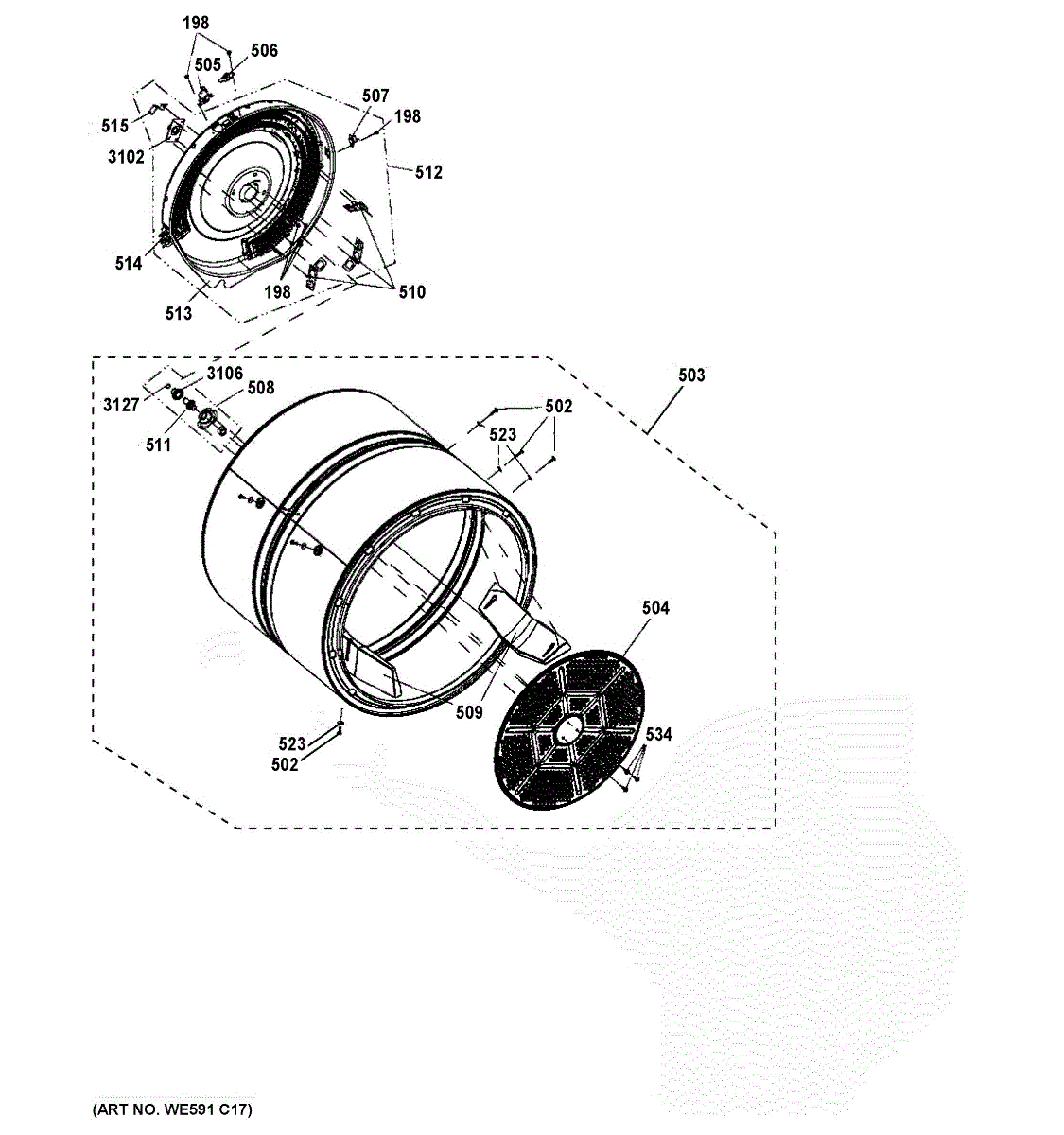

Parts for Ge GFD40ESCM1WW: Drum Parts

Secures dryer panels and internal components to the cabinet frame. Replace if screw is stripped, missing, or loose to prevent vibration and rattling.

Replace your dryer drum and baffle assembly when clothes tumble unevenly or you hear scraping noises. Confirm fit with your model number before ordering.

Fix melted plastic or goop marks on clothes with a new dryer heat diffuser. Replaces damaged diffuser that causes staining. DIY repair with 3 screws.

This dryer inlet thermostat monitors the temperature of incoming air and cycles the heater to maintain proper drying temperatures. Replacing a failed thermostat can restore consistent heat, help prevent overheating, and improve overall drying performance.

• Senses inlet air temperature and opens/closes electrical contacts to control the heat source
• Helps regulate drying temperature and protect against overheating
• Failure may present as long dry times, no or intermittent heat, overheating/shutting off, or erratic temperature swings
• Typically mounted on the air intake/duct or blower housing, depending on model

• Disconnect power before service; if gas, also shut off the gas supply
• Access the thermostat at the front duct or blower housing; note wire positions and transfer one at a time
• Mount flush against the metal surface with existing hardware to ensure proper sensing
• After installation, clear lint from ducting and vents to ensure proper airflow

The Inlet Control Thermistor is an OEM part for GE dryers. It monitors and regulates the temperature of the incoming air to ensure optimal drying performance. This thermistor sends temperature readings to the dryer's control board, which adjusts the heating element accordingly to maintain the desired temperature throughout the drying cycle.

You should replace this inlet control thermistor if it becomes faulty or fails to provide accurate temperature readings. Common causes of a bad thermistor include electrical failures, damage from overheating, or wear and tear from regular use.

Symptoms of a bad inlet control thermistor include:

• Dryer not heating properly
• Overheating or uneven drying
• Dryer shutting off prematurely
• Error codes related to temperature issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Limit Thermostat is an OEM part for GE dryers. It helps regulate the temperature within the dryer drum. This thermostat is designed to monitor the internal temperature and prevent overheating by cutting off the power to the heating element if it exceeds a certain limit.

Causes of a bad Thermostat can include a malfunctioning temperature sensor, a buildup of lint or debris that restricts airflow, or a faulty heating element that causes the thermostat to continuously trip.

Symptoms of a bad High Limit Thermostat include:

• Dryer not heating or taking longer than usual to dry clothes
• Dryer overheating and shutting off prematurely
• Dryer producing unusual or burning smells
• Visible damage or discoloration on the thermostat itself

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Supports and stabilizes the dryer drum for smooth rotation. Replace if shaft is worn, bearing is damaged, or drum wobbles or sinks at the rear.

Protection bracket for dryers. Mounts internally to shield components from damage. Replace if bent, broken, or missing to restore proper protection.

Dryer not heating or taking too long to dry? This heater and housing assembly replaces a failed heating element and housing to restore proper drying performance.

Housing cover that protects and encloses the dryer heating element assembly. Replace if cracked, broken, or damaged to restore proper dryer operation.

If your dryer runs but clothes stay wet or drying takes too long, the heating element may have failed. This coil heats air to dry clothes efficiently.

Bonds dryer cabinet to ground point for safe operation. Replace if damaged, broken, or missing to restore proper electrical grounding and reduce shock risk.

This flat washer helps secure fasteners and distributes load to prevent damage where two parts join. It's a simple, durable replacement to restore proper fit and reduce movement at a bolted connection. What it does:

• Provides a flat bearing surface to spread pressure from nuts or bolts
• Helps prevent fasteners from digging into or deforming mating parts
• Reduces loosening from vibration or movement
• Can stop rubbing or binding that causes noise or premature wear

• One flat washer

• Power off and unplug the appliance before accessing internal components
• Replace the washer with an identical style and size to maintain fit and function
• Inspect mating fasteners and threads for damage; replace if worn
• Tighten fasteners to a snug fit—do not overtighten, which can cause distortion
