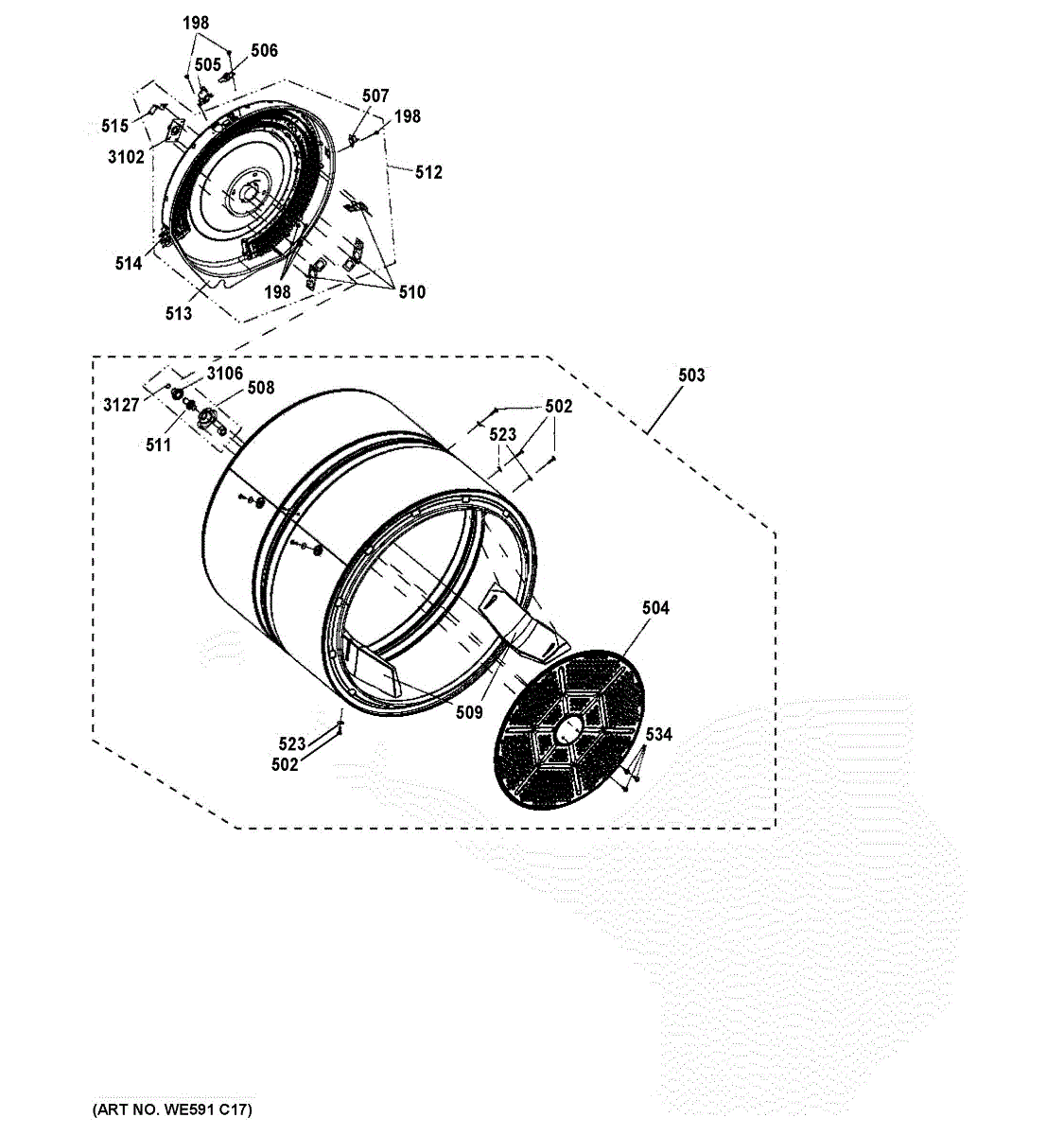

Parts for Ge YFD45ESSM1WW: Drum Parts

This factory screw secures dryer panels and internal components, keeping assemblies tight and aligned so the machine operates safely and without vibration or rattling.

• Fastens sheet-metal panels, brackets, or trim to the dryer cabinet/frame
• A loose or missing screw can cause panel vibration, noise, or misalignment
• Helps restore stability after service or when original hardware is lost
• Typical symptoms include rattling, loose panels, or gaps in trim

• Unplug the dryer before servicing
• Keep track of original screw locations and lengths; replace like-for-like
• Start screws by hand to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, inspect mating hole or clip before installing

The Heat Diffuser is an OEM part for GE dryers. It is designed to evenly distribute heat throughout the dryer drum, ensuring efficient and consistent drying of clothes. The heat diffuser helps maintain proper airflow and temperature inside the dryer.

Over time, the heat diffuser can become worn out or damaged due to high heat exposure, lint buildup, or mechanical issues. Regular use and lack of maintenance can also contribute to its deterioration.

Symptoms of a bad Heat Diffuser include:

• Uneven drying of clothes
• Longer drying times
• Overheating or burning smell
• Increased noise during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dryer inlet thermostat monitors the temperature of incoming air and cycles the heater to maintain proper drying temperatures. Replacing a failed thermostat can restore consistent heat, help prevent overheating, and improve overall drying performance.

• Senses inlet air temperature and opens/closes electrical contacts to control the heat source
• Helps regulate drying temperature and protect against overheating
• Failure may present as long dry times, no or intermittent heat, overheating/shutting off, or erratic temperature swings
• Typically mounted on the air intake/duct or blower housing, depending on model

• Disconnect power before service; if gas, also shut off the gas supply
• Access the thermostat at the front duct or blower housing; note wire positions and transfer one at a time
• Mount flush against the metal surface with existing hardware to ensure proper sensing
• After installation, clear lint from ducting and vents to ensure proper airflow

The Inlet Control Thermistor is an OEM part for GE dryers. It monitors and regulates the temperature of the incoming air to ensure optimal drying performance. This thermistor sends temperature readings to the dryer's control board, which adjusts the heating element accordingly to maintain the desired temperature throughout the drying cycle.

You should replace this inlet control thermistor if it becomes faulty or fails to provide accurate temperature readings. Common causes of a bad thermistor include electrical failures, damage from overheating, or wear and tear from regular use.

Symptoms of a bad inlet control thermistor include:

• Dryer not heating properly
• Overheating or uneven drying
• Dryer shutting off prematurely
• Error codes related to temperature issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Limit Thermostat is an OEM part for GE dryers. It helps regulate the temperature within the dryer drum. This thermostat is designed to monitor the internal temperature and prevent overheating by cutting off the power to the heating element if it exceeds a certain limit.

Causes of a bad Thermostat can include a malfunctioning temperature sensor, a buildup of lint or debris that restricts airflow, or a faulty heating element that causes the thermostat to continuously trip.

Symptoms of a bad High Limit Thermostat include:

• Dryer not heating or taking longer than usual to dry clothes
• Dryer overheating and shutting off prematurely
• Dryer producing unusual or burning smells
• Visible damage or discoloration on the thermostat itself

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Drum Support Shaft and Bearing is an OEM part for GE dryers. This component supports the drum and allows it to rotate smoothly during the drying cycle. The bearing reduces friction, ensuring quiet and efficient operation of the drum.

Common causes of a bad support shaft and bearing include normal wear and tear, overloading the dryer, or a lack of lubrication. These issues can lead to increased friction and stress on the components.

Symptoms of a bad Drum Support Shaft and Bearing include:

• Squeaking or grinding noises during operation
• The drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the drum
• Uneven drying of clothes

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven baffle redirects heat inside the oven cavity to promote even cooking and protects internal components from direct flame or element exposure. It's a direct-fit replacement designed to restore proper airflow and prevent damage from a warped or missing baffle. What it does:

• Redirects and evens oven heat to help consistent baking and roasting
• Shields oven walls and wiring from direct contact with heating elements
• Prevents rattling or vibration caused by a loose or broken baffle
• Helps reduce hotspots caused by a damaged or warped deflector

• One replacement oven baffle

• Disconnect power (or gas) and allow the oven to fully cool before starting
• Typical install requires basic hand tools; handle carefully to avoid sharp edges
• Verify proper placement and secure mounting to prevent contact with heating elements

This heater and housing assembly generates and channels heat in your electric dryer. Replace a failed unit to restore proper drying performance when the dryer runs but clothes stay cold or take too long to dry.

• Produces heat with an electric element inside a metal housing; airflow carries the warmed air into the drum
• Restores consistent heat when the original element is burned out or shorted
• Common symptoms include no heat, low heat/long dry times, or clothes remaining damp after a cycle
• Visual cues may include a broken element coil or scorching on the old housing

• Disconnect power before servicing; internal parts can be hot
• Access the heater housing per your model (often from the rear panel); photograph wiring for correct transfer
• Move over any attached thermostats/sensors and wiring from the original assembly as your model requires
• After installation, clean the lint system and verify exterior venting for unrestricted airflow

This heater housing directs heated air from the dryer's heating assembly into the drum and protects internal components. It restores proper airflow routing for consistent drying and helps contain the heating element and sensors. What it does:

• Houses and protects the dryer's heating element and related sensors/thermostats
• Channels heated air into the drum for efficient drying
• Prevents hot spots and directs exhaust airflow to venting system
• Symptoms a failing housing may be linked with: poor or uneven drying, overheating/shutdowns, or unusual smells

• One heater housing

• Disconnect power to the appliance before starting any repair; electric shock and burn hazards exist
• Basic disassembly typically involves removing the dryer front or top and drum to access the housing; follow OEM service instructions
• Inspect heating element, thermostats, and wiring while replacing the housing; replace any damaged components
• Use care handling sharp sheet-metal edges and ensure all seals/gaskets are properly seated for good airflow

The Heating Element is an OEM replacement part for GE electric dryers. As the primary source of heat, it warm circulating air drying wet clothes efficiently.

Causes of failure may be surface fracturing and resistance loss due to deterioration over many heating cycles. Excessive mineral buildup may also hinder heat transfer capabilities.

Symptoms of a faulty element involve:

• Very long or inefficient drying times
• Unevenly dried clothes
• No heat detected during drying cycles

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Mica style heating element.

This ground strap assembly bonds the dryer's cabinet to the designated ground point, helping ensure safe operation. Replace a damaged or missing strap to restore a proper ground path and reduce the risk of shocks or nuisance static.

• Maintains the required electrical bond between the dryer chassis and ground as designed
• Helps prevent electric shock and reduces static by providing a low-resistance path to ground
• Replace if the original strap is loose, corroded, heat-discolored, broken, or missing
• Symptoms can include a slight tingle when touching the appliance or visible damage near the ground/terminal connection

• Disconnect power at the breaker before servicing; verify no power with a meter
• Follow your model's wiring diagram; bonding differs for 3-wire vs 4-wire cord installations per local codes
• Clean contact surfaces and secure fasteners firmly for a solid metal-to-metal bond; replace any heat-damaged hardware
• After installation, verify continuity between the cabinet and the designated ground point

This flat washer helps secure fasteners and distributes load to prevent damage where two parts join. It's a simple, durable replacement to restore proper fit and reduce movement at a bolted connection. What it does:

• Provides a flat bearing surface to spread pressure from nuts or bolts
• Helps prevent fasteners from digging into or deforming mating parts
• Reduces loosening from vibration or movement
• Can stop rubbing or binding that causes noise or premature wear

• One flat washer

• Power off and unplug the appliance before accessing internal components
• Replace the washer with an identical style and size to maintain fit and function
• Inspect mating fasteners and threads for damage; replace if worn
• Tighten fasteners to a snug fit—do not overtighten, which can cause distortion
